2013 VOLKSWAGEN TOUAREG infotainment

Function key: Effect
Delete profiles : Press the profile to be deleted in the list of stored user profiles and accept the
confirmation dialog with Delete .
Change profile name8: Renames currently loaded profile in an input window .
Read name tags9: Reads out recorded name tags .
Delete name tags15: Deletes recorded name tags .
Import directory a):: Starts an immediate import of directory entries from a connected cell phone to
the directory.
Import contactsImports navigation data (VCARds) from an inserted data medium into the directory .
Export contacts : copies selected directory entries on an inserted data medium .

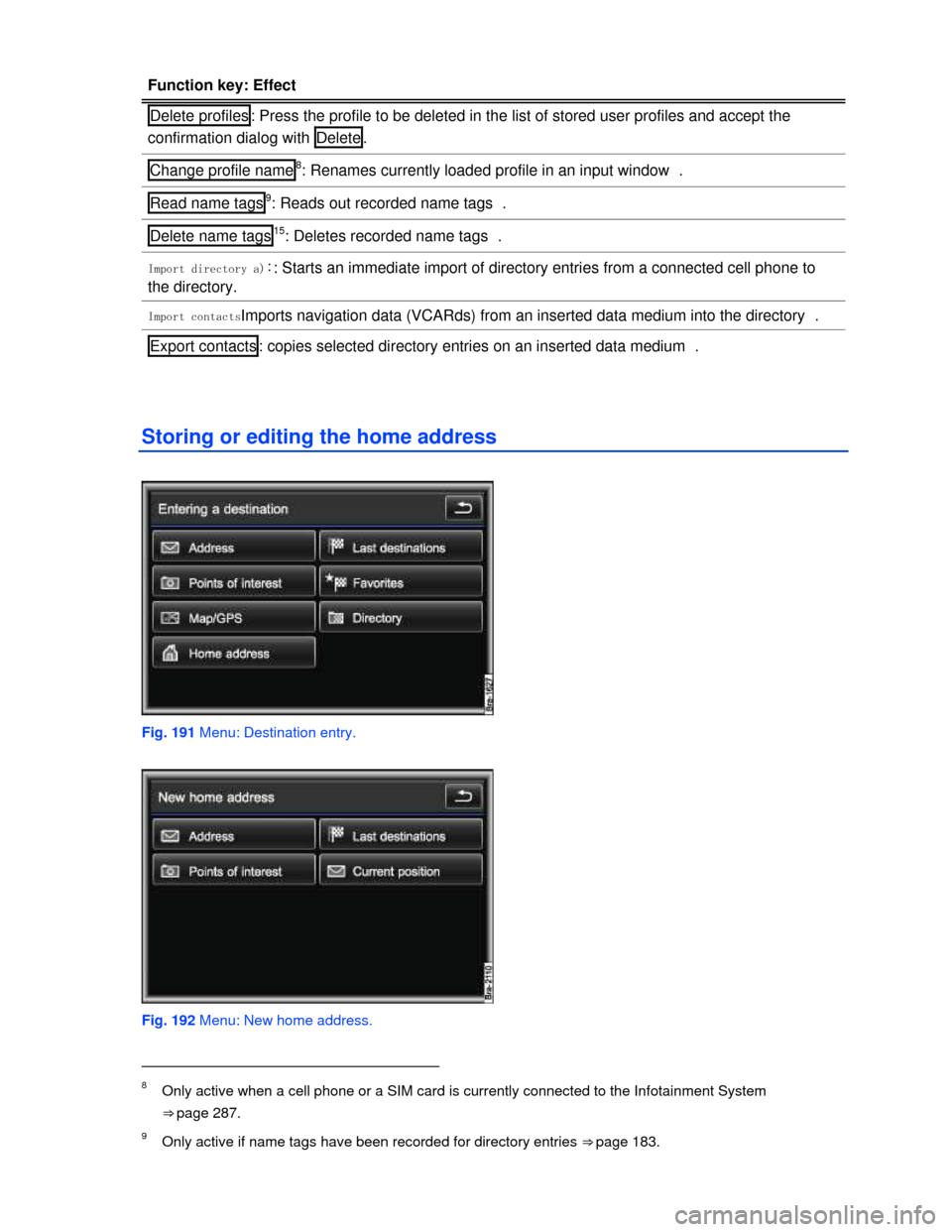

Storing or editing the home address

Fig. 191 Menu: Destination entry.

Fig. 192 Menu: New home address.

8 Only active when a cell phone or a SIM card is currently connected to the Infotainment System
⇒ page 287.
9 Only active if name tags have been recorded for directory entries ⇒ page 183.

On road : the start point for the route guidance will be reached using public roads as far as
possible.
Off-road : the start point for route guidance will be reached in off-road mode and any available
roads will not be used.

When route guidance starts, the system will switch to the map view.
An audible signal is given when the starting point of the waypoint tour has been reached.
During route guidance
Characteristics of the terrain are ignored during route guidance. A driving recommendation will be
given about 55 yards (50 meters) before reaching a turning point. You should therefore drive slowly
and follow recommendations for turning as far as possible!
Changes in the direction of travel will be given in relation to the current direction of travel, such as
.“Please travel in direction 9 o'clock!”.
The tendency of the direction of travel will be shown in the instrument cluster display using arrows.
Stopping route guidance
x Press the Infotainment button .NAV in the map display to open the Waypoint navigation
menu.
x Press the Stop function key.
Stopping waypoint navigation

Fig. 205 Waypoint navigation menu.
.

x Press the NAV Infotainment button or the ... ...function key to switch to the Navigation main
menu.
x In the Navigation main menu, press the NAV Infotainment button or MAP function key to switch
back to the map view.
The map is displayed in the most recently selected type (2D or 3D). 3D and “Autozoom” are activated
by default .
Alternative routes: Selecting a calculated route
In the Navigation settings menu, you can specify that 3 alternative routes are suggested on the
map after the start of route guidance. These 3 routes correspond to the available route criteria Fast,
Short and Economical route Route 1 corresponds to the current setting in this case.
x Select the required route by pressing on the right of the map.
The setting for the route criteria in the Route options menu is changed accordingly.
If no route is selected then route guidance starts automatically after about one minute, using the
setting selected in the Route options.
Interrupting route guidance
Active route guidance can be stopped and later resumed from the new vehicle position at any time in
the Navigation main menu.
x In the Navigation main menu, press the Stop function key ⇒ fig. 209.
x Press the Start function key to continue route guidance ⇒ fig. 206.
Provision of navigation recommendations

Fig. 210 3D map display during route guidance.

Function key: Effect
Complete : Detailed driving recommendations with lane recommendation and additional
information.
Compact : Some additional navigation recommendations and information are left out.
Off : no spoken navigation recommendations.
Time display : Display  during route guidance.
Arrival time : the estimated time of arrival at the destination is displayed.
Driving time : the estimated driving time until reaching the destination is displayed.
Instrument cluster guidance : Visual navigation recommendations for guidance in the instrument
cluster .
Arrow view : Travel direction arrows show the direction of travel and the distance to the next
turn-off point.
Street view : Road and route view corresponding with the map display in the Infotainment
System.
= Voice guidance during phone call: Spoken navigation recommendations are also given during a
telephone call.
Advanced navigation settings : Allows settings for demo mode.
SIRIUS traffic ID : The Sirius traffic ID and the Internet address and the telephone number of the
Sirius activation hotline are displayed in the pop-up window .

Advanced navigation settings: Demo mode and manual location
x In the Advanced navigation settings menu, check the check box in the Demo mode
function key by pressing it ] to start virtual route guidance to the entered destination.
x Press the Enter current position manually function key to select a manual location in the same way
you entered a destination .
If demo mode is enabled , an additional pop-up window opens when you start route guidance.
x Pressing the Demo mode function key starts a “virtual route guidance” to the destination you have
entered.
x If you press the Normal mode function key, a “real route guidance” starts.
The sequence of events and the operations in virtual route guidance are similar to those in real route
guidance. Once a manual location has been entered, the virtual route guidance starts from that
position.
Virtual route guidance is repeated when you reach the fictitious destination and always starts again
from the starting point if it is interrupted.
When real route guidance is started following route guidance in demo mode, the unit first has to
reorient itself. Depending on the number of currently received satellites, this orientation may take
some time. Vehicle movement can reduce the re-orientation time
.If the vehicle is moved and the unit can determine its current location by GPS, any manually
entered location will be overwritten with the current vehicle location.
.Disable demo mode after use, otherwise you will be prompted to choose between virtual and
normal route guidance each time you start route guidance.

Introduction
Before using

Before using the cellular telephone (cell phone) control for the first time, CARry out the
following steps. This will enable you to use the cell phone control safely and make full use of
the functions it provides:
d Follow the basic safety instructions Ü.
d Familiarize yourself with the controls.
d Read the instruction manual of the cell phone or audio player you wish to
pair with the unit.

Safety information
.WARNING
Driving on today's roads demands the full attention of the driver at all times. Driver
distraction causes accidents, collisions and serious personal injury!
x Never let yourself be distracted when setting, adjusting, or using the Infotainment System,
when using your cell phone, or when operating the cell phone controls.
x Always drive attentively and responsibly. Use the Infotainment system, your cell phone,
and the cell phone controls only if road, traffic, and weather conditions permit and you will
not be distracted from your driving.
x If you cannot use the Infotainment System, your cell phone, or the cell phone controls
safely while driving, wait until later or find a safe spot where you can pull off the road and
park the vehicle.
x Always set sound volume levels so that you can clearly hear horns, sirens, and other
warning sounds outside the vehicle.
x Setting the sound volume too high may damage your hearing. This applies even if you are
exposed to high volumes for short periods only.
x Your call may be cut off or you may be unable to make calls if you are in an area with no
cell phone network coverage, an area where the network is very weak or, in some cases, in a
tunnel, garage or underpass. This also means that no emergency calls can be made.
x In some countries, an emergency call is supported only if the cell phone is connected to
the telephone control containing an “unlocked” SIM CARd with sufficient credit or if a valid
SIM CARd is in the SIM CARd reader.
.WARNING
The volume may suddenly get louder change when you switch media source or connect a
new audio source.
x Always lower the volume before switching media source or connecting a new audio
source.

x Infotainment System with touchscreen
x Multi-function steering wheel Instrument cluster display shows telephone functions x
3 button module in the roof ⇒ fig. 222
.NOTICE
To operate the telephone control, a light press of the button or light pressure on the feature
keys on the screen is sufficient.
“Bluetooth audio” wireless communication interface
.

.WARNING
Driving on today's roads demands the full attention of the driver at all times. Driver
distraction causes accidents, collisions and serious personal injury!
x Never pair the cell phone or configure user profiles while driving. Do this only when the
vehicle is parked in a safe place.
x Never let yourself be distracted when setting, adjusting, or using the Infotainment System,
when using your cell phone, or when operating the cell phone controls.
x Always drive attentively and responsibly. Use the Infotainment system, your cell phone,
and the cell phone controls only if road, traffic, and weather conditions permit and you will
not be distracted from your driving.
x If you cannot use the Infotainment System, your cell phone, or the cell phone controls
safely while driving, wait until later or find a safe spot where you can pull off the road and
park the vehicle.
x Always set sound volume levels so that you can clearly hear horns, sirens, and other
warning sounds outside the vehicle.
.For device search, select a location with the likelihood of only a few unknown Bluetooth devices,
for example in the garage. The search range for Bluetooth is approximately 10 meters.
Pairing a cell phone via Bluetooth-HFP
.

x If necessary activate “wait for incoming Bluetooth connections”.
x Hold the cell phone in your hand ready to enter the password within the time limit.
x Select the cell phone from the device list in the vehicle by pressing the corresponding function key.
x Select the required pairing protocol below the cell phone found.
x On the cell phone, confirm the connection queries from the vehicle if required.
x Confirm the 4-digit password displayed on the Infotainment System screen.
x Enter the password on the cell phone within 30 seconds.26
x Confirm password entry.
x If necessary, confirm further queries on the mobile phone.
Pairing procedure if a cell phone has already been paired with the telephone control
x Set the Bluetooth connection to visible on the cell phone , step 1.
x Switch on the ignition.
x Access the SETUP main menu with the SETUP Infotainment button.
x Press the Telephone function key.
x Press the Bluetooth settings function key.
x In the Bluetooth settings menu, press the Search for Bluetooth devices function key.
x If necessary, confirm the query about whether Bluetooth has been activated on the cell phone with
Next .
x CARry out pairing as described , step 3.
Failed pairing
There is no limit on the number of attempts to pair the device with the telephone control.
Linking will not be successful if the password input time limit is exceeded or if the PIN code is entered
incorrectly.
Restart linking if the process fails despite correct entries.
Copying telephone directory to the telephone control
Once pairing has been successfully completed, the telephone directory entries from the cell phone26
are loaded automatically into the data memory of the telephone control Depending on the number of
entries copied, the process can take several minutes.
The telephone directory memory of the telephone control is limited to 5000 entries. Each user profile
can be assigned a maximum of 2000 entries as well as 100 user-created or edited entries.
Automatic connection to a paired cell phone
.
