2013 TOYOTA LAND CRUISER fuse

567 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)

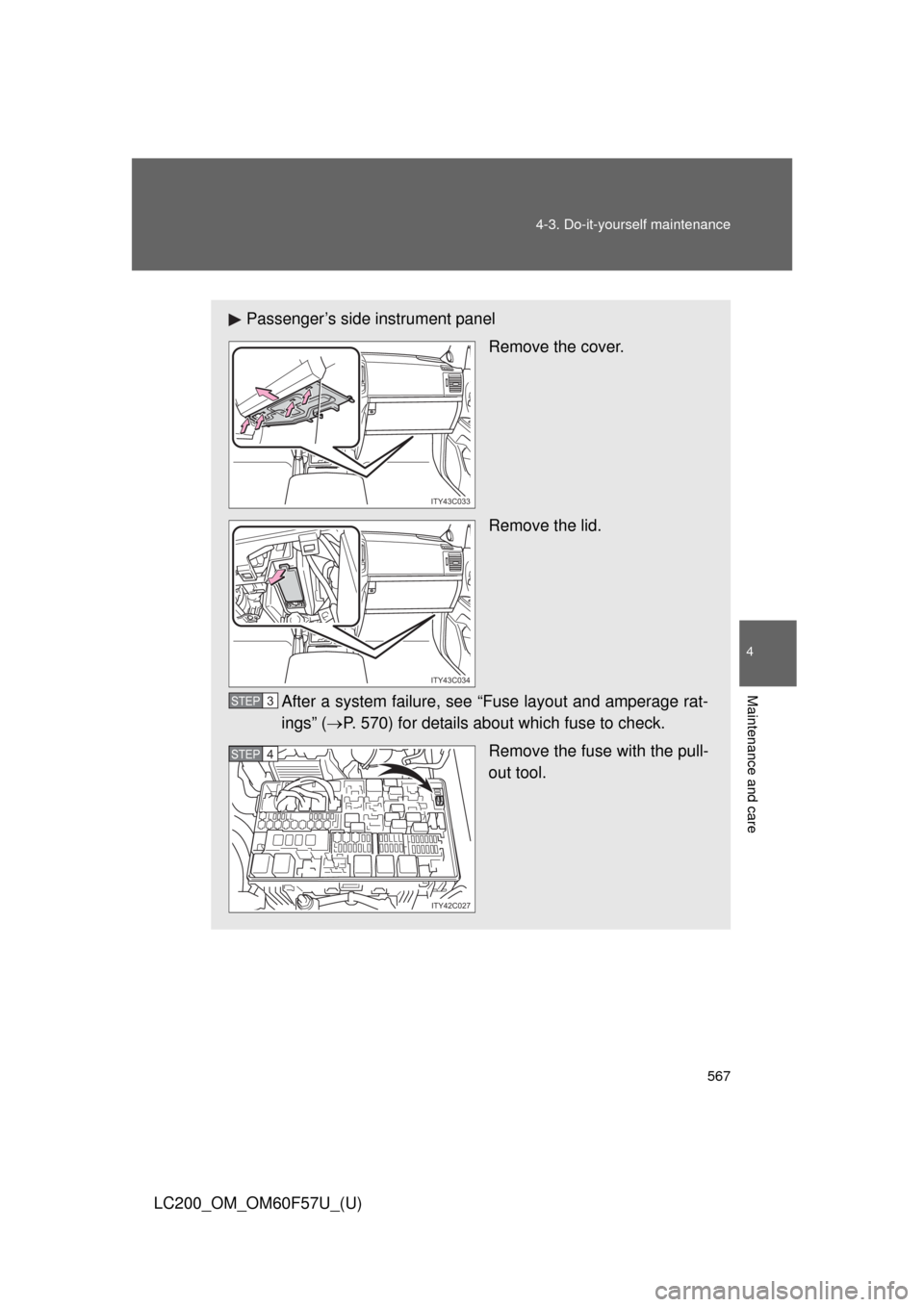

Passenger’s side instrument panel
Remove the cover.
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 570) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY43C033
ITY43C034
STEP3
ITY42C027
STEP4

568 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
Check if the fuse has blown.
Type A and B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
Ty pe A
12
ITY42C013
Ty pe B

569 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)

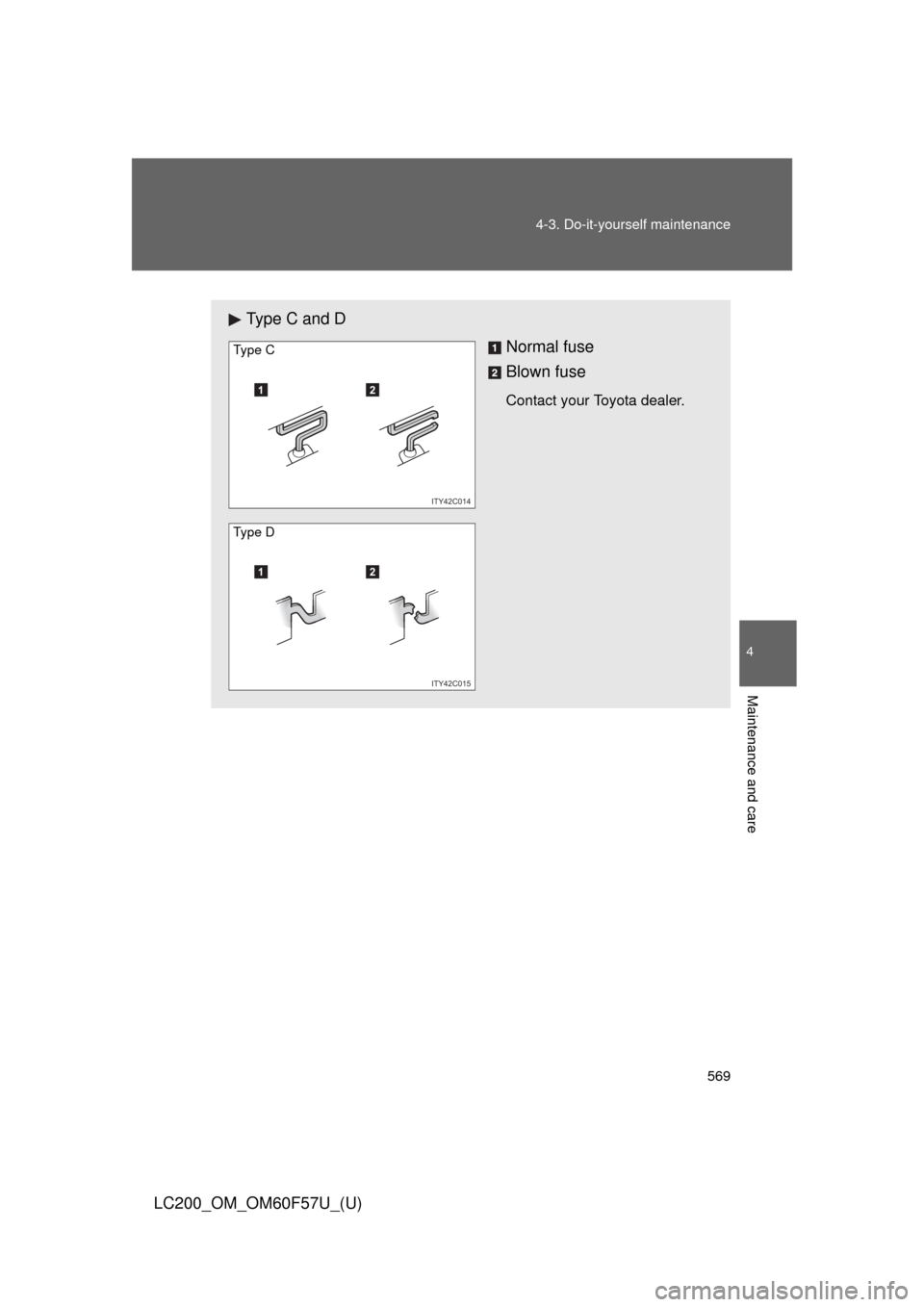

Type C and D
Normal fuse
Blown fuse
Contact your Toyota dealer.12
ITY42C014
Ty pe C
12
ITY42C015
Ty pe D

570 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
Fuse layout and amperage ratings
■Engine compartment
FuseAmpereCircuit
1A/F15 A
A/F heater
2HORN10 A
Horn
3EFI MAIN25 A
EFI, A/F heater
4IG2 MAIN 30 A
INJ, IGN, MET
5RR A/C50 A
Blower controller
6SEAT-A/C LH25 A
Seat heaters and ventilators
7RR S/HTR20 A
Rear seat heater
8DEICER20 A
Windshield wiper de-icer
9CDS FAN25 A
Condenser fan
10TOW TAIL30 A
Towing tail light system
11RR P/SEAT30 A
No circuit
12ALT-CDS10 A
ALT-CDS
13FR FOG7.5 A
Front fog lights
14SECURITY5 A
SECURITY
15SEAT-A/C RH25 A
Seat heaters and ventilators

571 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
16STOP15 AStoplights, high mounted stop-
light, brake controller, towing
converter, ABS, VSC, main
body ECU, EFI, trailer
17TOW BRK30 A
Brake controler
18AHC50 A
No circuit
19PTC-150 A
PTC heater
20PTC-250 A
PTC heater
21PTC-350 A
PTC heater
22RH-J/B50 A
RH-J/B
23SUB BATT40 A
To w i n g
24VGRS40 A
VGRS ECU
25H-LP CLN30 A
Headlight cleaner
26DEFOG30 A
Rear window defogger
27HTR50 A
Front air conditioning system
28PBD30 A
No circuit
29LH-J/B150 A
LH-J/B
30ALT180 A
Alternator
31A/PUMP NO.150 A
AI DRIVER
32A/PUMP NO.250 A
AI DRIVER 2
33MAIN40 AHeadlight, daytime running
light system, HEAD LL, HEAD
RL, HEAD LH, HEAD RH
34ABS150 A
ABS
35ABS230 A
ABS
36ST30 A
Starter system
37IMB7.5 AID code box, smart key sys-
tem, GBS
38AM25 A
Main body ECU
39DOME27.5 AVanity lights, overhead mod-
ule, rear interior light
FuseAmpereCircuit

572 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
40ECU-B25 ADriving position memory sys-
tem
41AMP 230 A
Audio system
42RSE7.5 A
Rear seat entertainment
43TOWING30 A
To w i n g
44DOOR NO.225 A
Main body ECU
45STR LOCK20 A
Steering lock system
46TURN-HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
47EFI MAIN220 A
Fuel pump
48ETCS10 A
EFI
49ALT-S5 A
IC-ALT
50AMP 130 A
Audio system
51RAD NO.110 ANavigation system, audio sys-
tem
52ECU-B15 ASmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate-
way ECU, steering sensor
53DOME110 A
Illuminated entry system, clock
54HEAD LH15 A
Headlight high beam (left)
55HEAD LL15 A
Headlight low beam (left)
56INJ10 A
Injector, ignition system
57MET5 A
Meter
58IGN10 ACircuit open, SRS airbag sys-
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
59DRL5 A
Daytime running light
60HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit

573 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
61HEAD RL15 A
Headlight low beam (right)
62EFI NO.27.5 AAir injection system, air flow
meter
63RR A/C NO.27.5 A
No circuit
64DEF NO.25 AOutside rear view mirror defog-
gers
65SPARE5 A
Spare fuse
66SPARE15 A
Spare fuse
67SPARE30 A
Spare fuse
FuseAmpereCircuit

574 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)■Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 AAudio system, multi-display
assembly, main body ECU,
mirror ECU, rear seat enter-
tainment, smart key system,
clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
multi-display assembly, seat
heater, air conditioning system,
glove box light, emergency
flashers, audio system, head-
light cleaner switch, inverter,
driving position memory sys-
tem, outside rear view mirror
switches, overhead module,
roll sensing of curtain shield
airbags off switch, shift lever
switch, steering switches, VSC
OFF switch, console switch
