2013 TOYOTA LAND CRUISER fuse

575 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
5ECU-IG NO.210 AAir conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 ACool box, condenser fan,
cooler compressor, rear win-
dow and outside rear view mir-
ror defoggers, air conditioning
system
8TA I L15 ATail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 ARear window wiper and
washer
124WD20 A 4WD
13LH-IG5 AAlternator, seat heater, wind-
shield wiper de-icer, front seat
belt, emergency flasher,
inverter, shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

576 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
16RR DOOR RH20 A Power windows
17MIR15 AMirror ECU, outside rear view
mirror defoggers
18RR DOOR LH20 A Power windows
19FR DOOR LH20 A Power windows
20FR DOOR RH20 A Power windows
21RR FOG7.5 A No circuit
22A/C7.5 A Air conditioning system
23AM15 A No circuit
24TI & TE15 A Tilt and telescopic steering
25FR P/SEAT RH30 A Power seat
26PWR OUTLET15 A Power outlet
27OBD7.5 A On-Board diagnosis
28PSB30 A Pre-collision seat belt
29DOOR NO.125 A Main body ECU
30FR P/SEAT LH30 A Power seat
31INVERTER15 A Inverter
FuseAmpereCircuit

577 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)■Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7TEL5 A Multimedia
8TOW BK/UP7.5 A Towing
9AHC-B NO.210 A No circuit
10ECU-IG NO.45 A Tire pressure warning system
11SEAT-A/C FAN10 A Ventilators
12SEAT-HTR20 A Seat heater
13AFS5 A No circuit
14ECU-IG NO.35 A Cruise control system
15STRG HTR10 A Heated steering system
16TV10 A Multi-display assembly

578 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 581)
●If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

5
When trouble arises
647
5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)

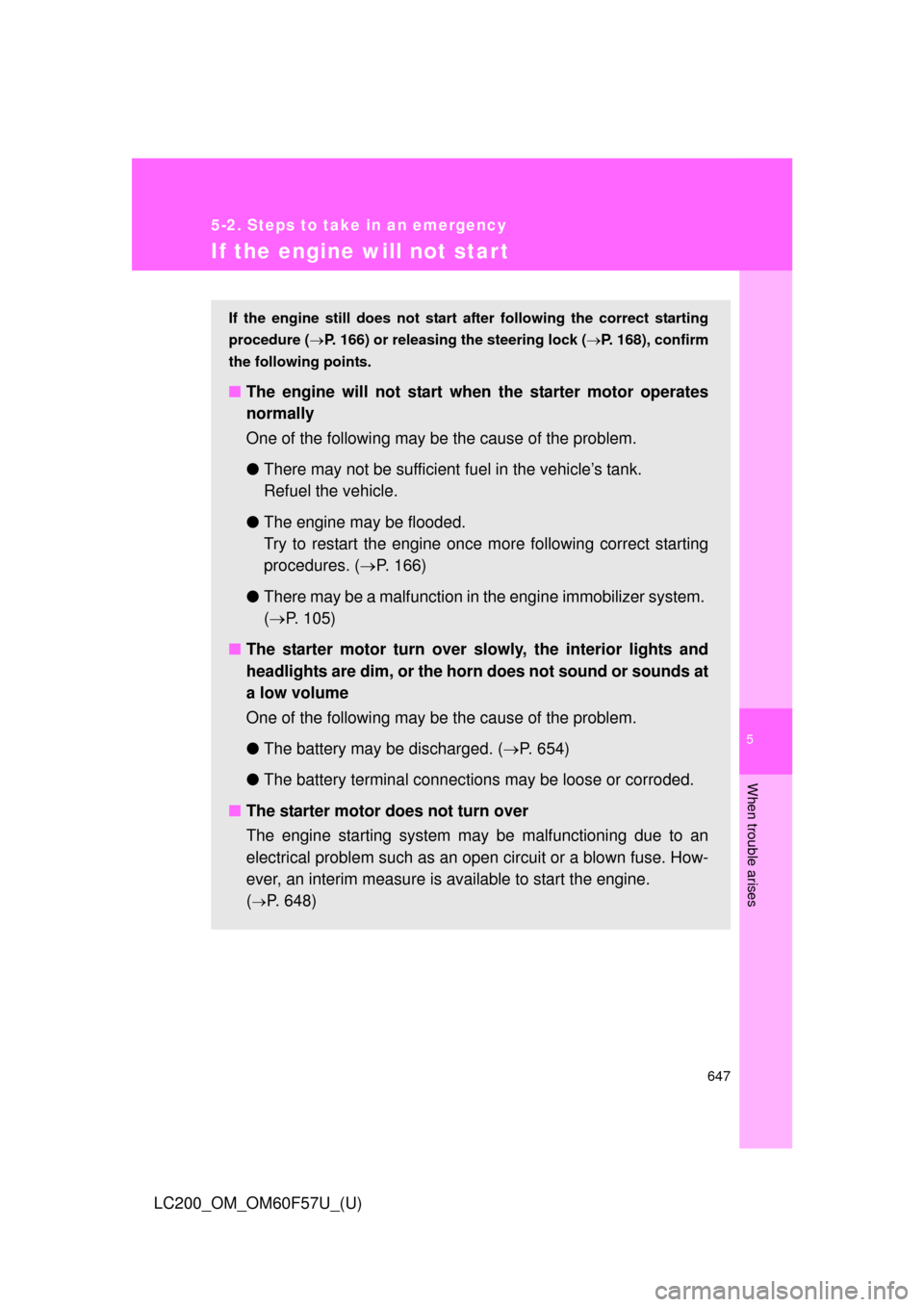

If the engine will not star t
If the engine still does not start after following the correct starting
procedure (P. 166) or releasing the steering lock (P. 168), confirm
the following points.
■The engine will not start when the starter motor operates
normally
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (P. 166)
●There may be a malfunction in the engine immobilizer system.
(P. 105)
■The starter motor turn over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume
One of the following may be the cause of the problem.
●The battery may be discharged. (P. 654)
●The battery terminal connections may be loose or corroded.
■The starter motor does not turn over
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(
P. 648)

712 Alphabetical index
LC200_OM_OM60F57U_(U)
Front turn signal lights
Replacing light bulbs ............. 581
Wattage .................................675
Fuel
Capacity ................................668
Fuel gauge ............................ 179
Fuel pump shut off system ....605
Gas station information .........720
Information ............................ 676
Refueling ............................... 101
Type ......................................676
Fuel door...................................101
Fuel filler door .......................... 101
Fuel pump shut off
system .................................... 605
Fuses......................................... 566
Garage door opener.................497
Gas station information...........720
Gauges ......................................179
Glove box.................................. 467
Glove box light .........................467
Hands-free system
(for cellular phone)*............... 423
Hazard lights
Switch.................................... 598
Head restraints
Adjusting ................................. 72
Headlight cleaner ..................... 209
Headlights
Replacing light bulbs ............. 581
Switch.................................... 196
Wattage .................................675
Heaters
Heated steering ..................... 487
Seat heaters .......................... 489
Side mirror............................. 351
Hill-start assist control ............282
Hood .......................................... 527Hooks
Cargo hook ........................... 495
Tie-down hooks..................... 495
Horn .......................................... 178
I/M test ...................................... 523
Identification
Engine ................................... 667
Vehicle .................................. 667
Ignition
Engine switch ........................ 166
Keys ........................................ 30
Ignition switch ....................... 166
Ignition switch.......................... 166
Illuminated entry system......... 465
Indicator lights ......................... 184
Initialization
Items to initialize ................... 701
Inside rear view mirror .............. 88
Instrument panel light
control .................................... 182
Interior lights
Interior lights ......................... 462
Switch ................................... 463
Wattage................................. 675
Intuitive parking assist ............ 229
Jack
Vehicle-equipped jack ........... 633
Jack handle .............................. 633
KDSS ......................................... 282
Keyless entry ............................. 32
G
H
I
J
K

714 Alphabetical index
LC200_OM_OM60F57U_(U)
Parking brake ...........................177
Parking lights
Switch.................................... 196
PCS............................................ 290
Personal lights
Personal lights....................... 464
Switch.................................... 464
Wattage .................................675
Power outlet ............................. 485
Power steering
Fluid ......................................538
Power windows ..........................93
Pre-Collision System ............... 290
Radiator .................................... 535
Radio ......................................... 356
RDS ...........................................360
Rear seats
Adjustment .............................. 59
Tumbling second seats ...........60
Tumbling third seats ................63
Rear turn signal lights
Replacing light bulbs ............. 581
Wattage .................................675
Rear view monitor system
*
Rear window defogger ............351
Rear window wiper .................. 208
Replacing
Fuses .................................... 566
Key battery ............................ 563
Light bulbs ............................. 581
Tires ......................................633
Reporting safety defects for
U.S.A. owners ........................704
Roll sensing of curtain shield
airbags off switch .................. 128
Roof luggage carrier ................302Safety Connect......................... 504
Seat belts
Adjusting the seat belt............. 79
Automatic Locking
Retractor ............................... 80
Child restraint system
installation........................... 140
Cleaning and maintaining
the seat belts ...................... 516
Emergency Locking
Retractor ............................... 80
How to wear your seat belt ..... 76
How your child should wear
the seat belt .......................... 81
Pregnant women,
proper seat belt use .............. 82
Reminder light ....................... 609
Seat belt extenders ................. 81
Seat belt pretensioners ........... 79
Seat heaters ............................. 489
Seats
Adjustment precautions .......... 58
Child seats/child restraint
system installation .............. 140
Cleaning ................................ 515
Driver’s seat position
memory................................. 68
Front seat adjustment ............. 57
Head restraint ......................... 72
Properly sitting in the seat..... 111
Rear seat adjustment .............. 59
Seat heaters.......................... 489
Service reminder
indicators .............................. 184
Shift lever
Automatic transmission ......... 171
If the shift lever cannot be
shifted from “P” ................... 649
P
R
S
