4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel
Remove the lid.STEP1
STEP2
ITY43C073
ITY43C032

571 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
16STOP15 AStoplights, high mounted stop-
light, brake controller, towing
converter, ABS, VSC, main
body ECU, EFI, trailer
17TOW BRK30 A
Brake controler
18AHC50 A
No circuit
19PTC-150 A
PTC heater
20PTC-250 A
PTC heater
21PTC-350 A
PTC heater
22RH-J/B50 A
RH-J/B
23SUB BATT40 A
To w i n g
24VGRS40 A
VGRS ECU
25H-LP CLN30 A
Headlight cleaner
26DEFOG30 A
Rear window defogger
27HTR50 A
Front air conditioning system
28PBD30 A
No circuit
29LH-J/B150 A
LH-J/B
30ALT180 A
Alternator
31A/PUMP NO.150 A
AI DRIVER
32A/PUMP NO.250 A
AI DRIVER 2
33MAIN40 AHeadlight, daytime running
light system, HEAD LL, HEAD
RL, HEAD LH, HEAD RH
34ABS150 A
ABS
35ABS230 A
ABS
36ST30 A
Starter system
37IMB7.5 AID code box, smart key sys-
tem, GBS
38AM25 A
Main body ECU
39DOME27.5 AVanity lights, overhead mod-
ule, rear interior light
FuseAmpereCircuit

When trouble arises5
597
LC200_OM_OM60F57U_(U)

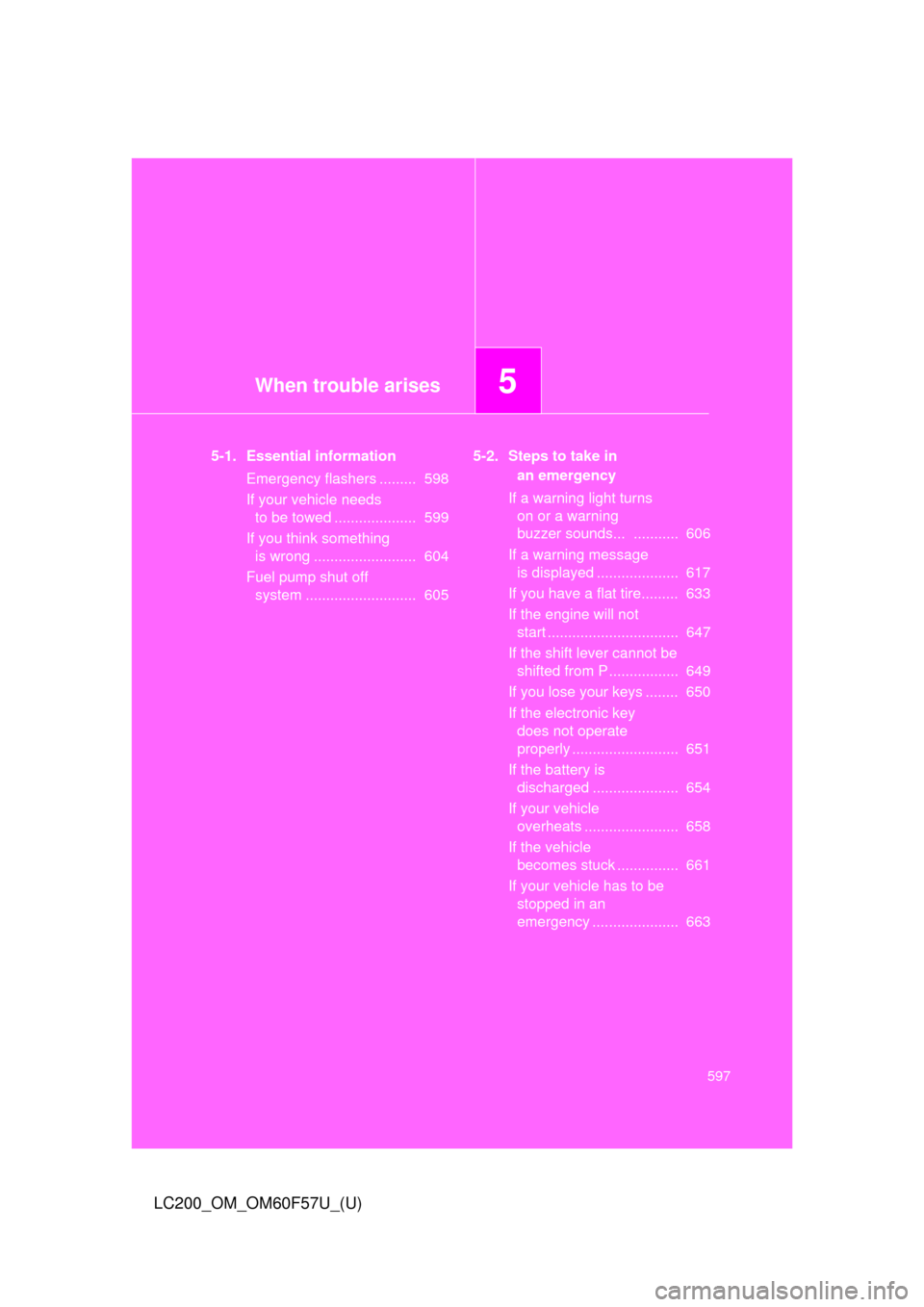

5-1. Essential information
Emergency flashers ......... 598
If your vehicle needs
to be towed .................... 599
If you think something
is wrong ......................... 604
Fuel pump shut off
system ........................... 6055-2. Steps to take in
an emergency
If a warning light turns
on or a warning
buzzer sounds... ........... 606
If a warning message
is displayed .................... 617
If you have a flat tire......... 633
If the engine will not
start ................................ 647
If the shift lever cannot be
shifted from P ................. 649
If you lose your keys ........ 650
If the electronic key
does not operate
properly .......................... 651
If the battery is
discharged ..................... 654
If your vehicle
overheats ....................... 658
If the vehicle
becomes stuck ............... 661
If your vehicle has to be
stopped in an
emergency ..................... 663

602 5-1. Essential information
LC200_OM_OM60F57U_(U)
Towing with a wheel lift-type truck
From front
Use a towing dolly under the rear
wheels.
From rear
Use a towing dolly under the
front wheels.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “ENGINE START STOP” switch OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

5
When trouble arises
605
5-1. Essential information
LC200_OM_OM60F57U_(U)
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or OFF.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2

614 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
■If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the “ENGINE START STOP” switch is turned to IGNITION
ON mode, have it checked by Toyota dealer.
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5
When trouble arises
621 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
(Flashes)Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch off, and
the driver’s door
open)Close the moon roof.
(Flashes)Indicates, if the vehi-
cle reaches a speed of
3 mph (5 km/h), that
the parking brake is
still engaged.Release the parking
brake.
Indicates that the
automatic transmis-
sion fluid temperature
is too high
A buzzer also sounds.Stop the vehicle in a
safe place, shift the shift
lever to “P” and wait
until the light goes off.
If the light goes off,
you may start the vehi-
cle again. If the light
does not go off, con-
tact your Toyota
dealer.
Warning messageDetailsCorrection procedure

626 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once3 times
(Flashes)The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off.Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in “P” and the
“ENGINE START
STOP” switch was
not turned off. Turn the
“ENGINE
START
STOP”
switch off
or bring the
electronic
key back
into the
vehicle.
