2013 TOYOTA LAND CRUISER stop start

5
When trouble arises
659 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
The coolant level is satisfac-
tory if it is between the “F” and
“L” lines on the reservoir.
Reservoir
“F”
“L”
Radiator cap
Add coolant if necessary.
(P. 529)
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to
check that the radiator cooling fan operates and to check
for coolant leaks from the radiator or hoses.
The fan operates when the air conditioning system is turned on
immediately after a cold start. Confirm that the fan is operating by
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.
STEP4
STEP5
STEP6
STEP7

5
When trouble arises
661
5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
If the vehicle becomes stuck
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift
lever to “P”.
Remove the mud, snow or sand from around the rear
wheels.
Place wood, stones or some other material under the rear
wheels to help provide traction.
Restart the engine.
Shift the shift lever to “D” or “R” position and release the
parking brake. Then, while exercising caution, depress the
accelerator pedal.STEP1
STEP2
STEP3
STEP4
STEP5
Press to turn off Active TRAC.

5
When trouble arises
663
5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)

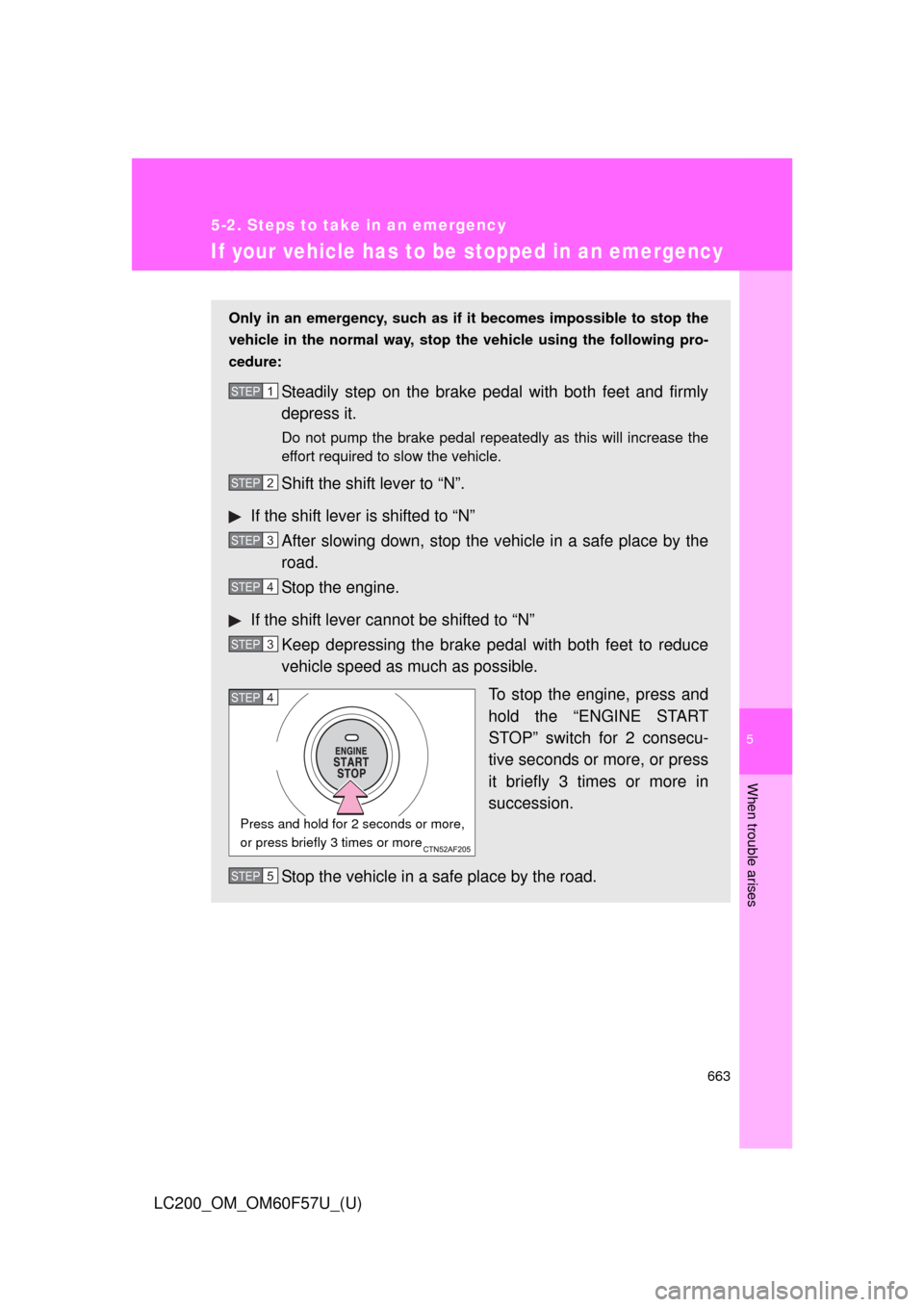

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N”
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to “N”
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
To stop the engine, press and
hold the “ENGINE START
STOP” switch for 2 consecu-
tive seconds or more, or press
it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP5

697 6-2. Customization
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
ItemFunctionDefault
settingCustomized
setting
Illumination
(P. 462)Time period
before the interior
lights turn off15 secondsOff
O—O 7.5 seconds
30 seconds
Operation after
the “ENGINE
START STOP”
switch is turned
offOn Off — — O
Operation when
the doors are
unlockedOn Off — — O
Operation when
you approach the
vehicle with the
electronic key on
your person
(When the inte-
rior light switch is
door position)On Off — — O
Sensitivity of the
ambient light sen-
sor used for dim-
ming the meter
lights etc.Standard -2 to 2 — — O
Sensitivity of the
ambient light sen-
sor used for
brightening the
meter lights etc.Standard -2 to 2 — — O

699 6-2. Customization
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
*1: The settings can be changed when the mechanical key linked operation of
the power window is set to ON.
*2: The settings can be changed when the wireless remote control linked oper-
ation of the power window is set to ON.
*3: The settings can be changed when the entry function linked operation of the
power window is set to ON.
■Vehicle customization
●If the smart key system is turned “OFF”, unlock door cannot be selected.
●If the doors are not opened after unlocking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)”
or “Operation signal (Buzzer)” are set to ON.
■When setting using the vehicle switches (vehicles with navigation sys-
tem)
When using the vehicle switches to set an item that can also be set using the
touch screen, the item displayed on the touch screen will not change imme-
diately.
If the “ENGINE START STOP” switch is first turned to OFF, the screen dis-
play will change once the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode again.
■When customizing using the touch screen (vehicles with navigation
system)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to “P”. Also, to prevent battery discharge, leave the engine running
while customizing the features.

711 Alphabetical index
LC200_OM_OM60F57U_(U)
Eco driving............................... 156
Electronic key
If your electronic key
battery is discharged .. 563, 651
Emergency flashers
Switch ................................... 598
Emergency, in case of
If a warning message is
displayed ............................ 617
If the electronic key does
not operate properly ........... 651
If the engine will not start...... 647
If the shift lever cannot be
shifted from “P” .................. 649
If the vehicle has discharged
battery ............................... 654
If the warning buzzer
sounds ............................... 606
If the warning light turns on .. 606
If you have a flat tire ............ 633
If you lose your keys............. 650
If you think something is
wrong ................................. 604
If your vehicle becomes
stuck................................... 661
If your vehicle has to be
stopped in an emergency... 663
If your vehicle needs to be
towed ................................. 599
If your vehicle overheats ...... 658
Engine
Compartment........................ 528
Engine switch ....................... 166
Hood ..................................... 527
How to start the engine ........ 166
Identification number ............ 667
If the engine will not start...... 647
Ignition switch ....................... 166
Overheating .......................... 658Engine coolant
Capacity ................................670
Checking ...............................534
Preparing and checking
before winter .......................310
Engine coolant temperature
gauge ......................................179
Engine immobilizer system.....105
Engine oil
Capacity ................................669
Checking ...............................530
Preparing and checking
before winter .......................310
Engine switch ...........................166
Event data recorder ...................25
First-aid kit holder....................495
Floor mats.................................493
Fluid
Brake .....................................536
Power steering ......................538
Washer ..................................542
Fog lights
Replacing light bulbs .............581
Switch....................................201
Wattage .................................675
Four-wheel drive system .........240
Front fog lights
Replacing light bulbs .............581
Switch....................................201
Wattage .................................675
Front passenger’s seat belt
reminder light.........................609
Front seats
Adjustment ..............................57
Driving position memory..........68
Front side marker light
Replacing light bulbs .............581
Wattage .................................675E
F
*: For vehicles with a navigation system,
refer to the “Navigation System Owner’s Manual”.

715 Alphabetical index
LC200_OM_OM60F57U_(U)
Side airbags ............................. 113
Side marker lights
Replacing light bulbs ............ 581
Switch ................................... 196
Wattage ................................ 675
Side mirror
Adjusting and folding .............. 90
Mirror position memory........... 68
Smart key system
Entry function ......................... 32
Starting the engine ............... 166
“SOS” button ........................... 504
Spare tire
Inflation pressure .................. 553
Storage location ................... 633
Spark plug................................ 671
Specifications .......................... 666
Speedometer ........................... 179
Steering
Column lock release ............. 168
Fluid...................................... 538
Steering wheel
Adjustment ............................. 86
Audio switches ..................... 398
Heated steering wheel.......... 487
Steering wheel position
memory ................................ 68
Stop lights ............................... 594
Storage feature ........................ 466
Storage precautions ............... 302
Stuck
If your vehicle becomes
stuck................................... 661
Sun visors ................................ 477
Sunshade
Roof ........................................ 98Switch
DISP switch ...........................190
ECT switch ............................172
Driving mode select switch....172
Emergency flasher switch .....598
Engine switch ........................166
Fog light switch .....................201
Hazard light switch ................598
Heated steering wheel
switch ..................................487
Ignition switch........................166
Light switches........................196
Power door lock switch ...........46
Power window switch ..............93
Rear window wiper and
washer switch .....................208
VIEW switch ..........................257
Window lock switch .................93
Wipers and washer
switch ..........................202, 208
Tachometer
Tachometer ...........................179
Tail lights
Switch....................................196
Talk switch
*.............................429
Telephone switch
*...................429
Theft deterrent system
Alarm .....................................107
Engine immobilizer system ...105
Tire inflation pressure .............553
Tie-down hooks........................495
Tire information
Glossary ................................685
Size .......................................682
Tire identification number ......681
Uniform tire quality grading ...683
T
*: For vehicles with a navigation system,
refer to the “Navigation System Owner’s Manual”.*: For vehicles with a navigation system,
refer to the “Navigation System Owner’s Manual”.
