2013 TOYOTA HIGHLANDER HYBRID Owners Manual

673

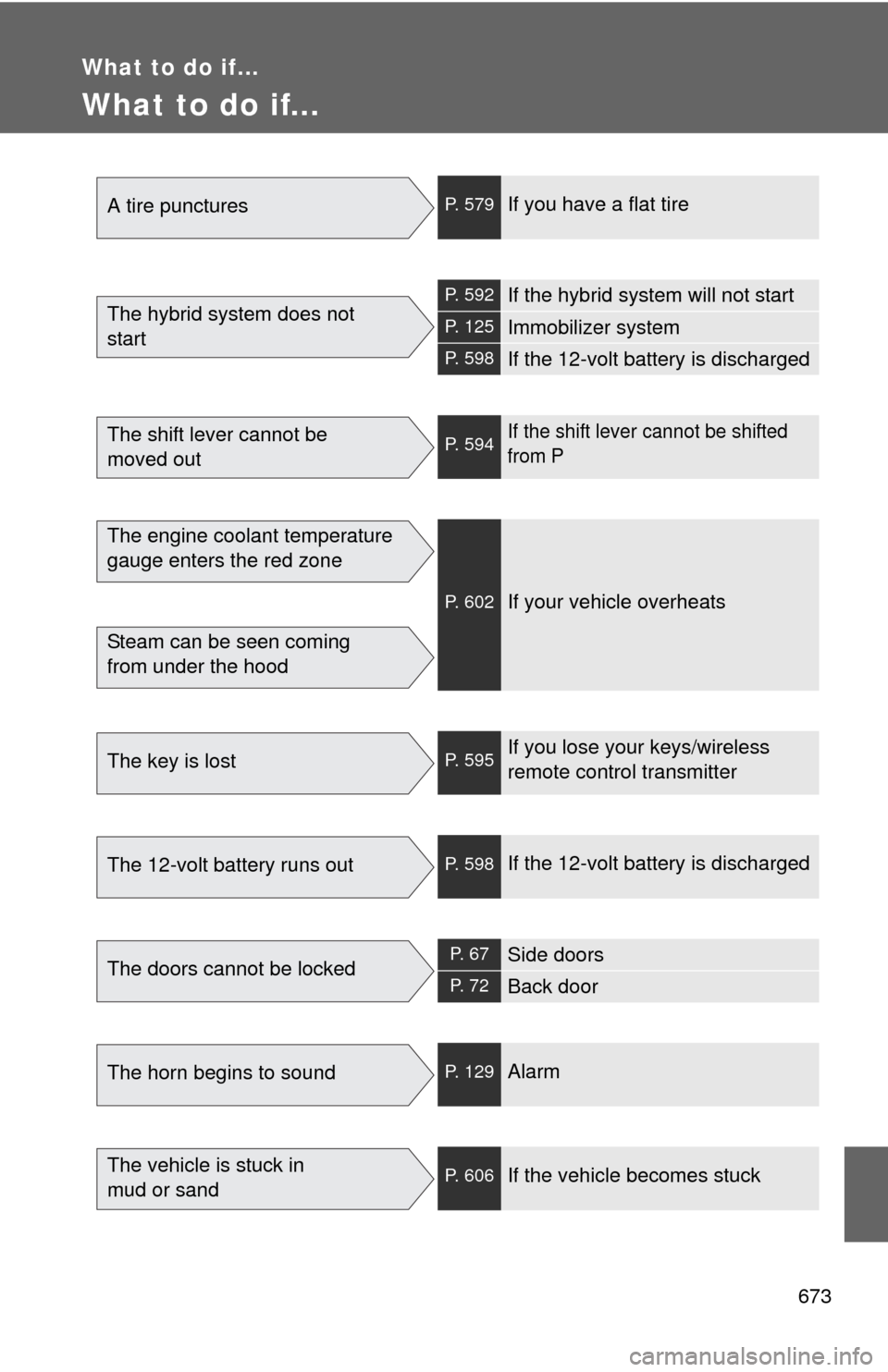

What to do if...
What to do if...
A tire puncturesP. 579If you have a flat tire
The hybrid system does not
startP. 592If the hybrid system will not start
P. 125Immobilizer system
P. 598If the 12-volt battery is discharged
The shift lever cannot be
moved outP. 594If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 602If your vehicle overheats
The key is lostP. 595If you lose your keys/wireless
remote control transmitter
The 12-volt battery runs outP. 598If the 12-volt battery is discharged
The doors cannot be lockedP. 6 7Side doors
P. 7 2Back door
The horn begins to soundP. 129Alarm
The vehicle is stuck in
mud or sandP. 606If the vehicle becomes stuck

674 What to do if...
A warning light or indicator light
comes onP. 567If a warning light turns on or a
warning buzzer sounds...
■Warning lights
P. 570
or
P. 5 6 7P. 570
P. 5 6 8
or
P. 5 6 8P. 570
P. 570
or
P. 5 6 8P. 570
P. 5 6 8
Brake system warning
light in redLow fuel level warning
light
Driver’s seat belt
reminder light
Brake system warning
light in yellowFront passenger’s seat belt
reminder light
Charging system warn-
ing light
Malfunction indicator
lampMaster warning light
Open door warning light
SRS warning light

675
What to do if...
P. 570
or
P. 5 6 8P. 568
P. 5 6 8P. 568
*: The light flashes to indicate a malfunction.
ABS warning lightTire pressure warning
light
Cruise control indicator
light
*
Electric power steering
warning lightSlip indicator
light
A warning message is
displayedP. 577If a warning message is displayed

676
GAS STATION INFORMATION
Auxiliary catch leverP. 496Fuel filler doorP. 120
Hood release lever P. 4 9 6Fuel filler door opener P. 1 2 0Tire inflation pressure
P. 621
Back door openerP. 7 2
Fuel tank capacity (Reference) 17. 2 gal. (65.0 L, 14.3 Imp. gal.)
Fuel typeUnleaded gasoline with an Octane Rating
of 87 (Research Octane Number 91) or
higher
Cold tire inflation
pressure
P. 6 2 1
Engine oil capacity
(Drain and refill

reference) qt. (L, Imp. qt.)
Without filter 6.0 (5.7, 5.0)
With filter 6.4 (6.1, 5.4)
Engine oil type Toyota Genuine Motor Oil or equivalent
Oil grade:
P. 615
ILSAC multigrade engine oil
Recommended oil viscosity:
SAE 0W-20
