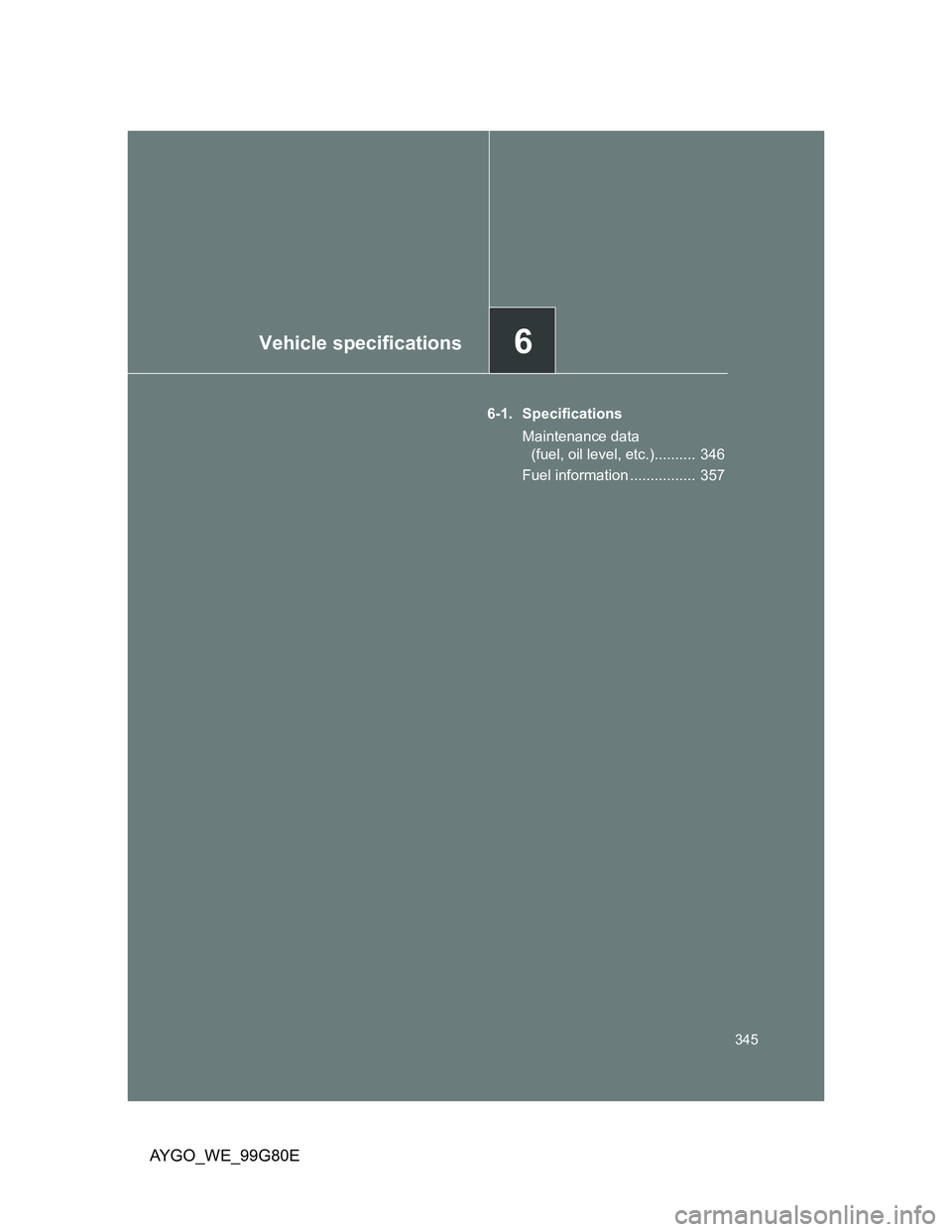

6Vehicle specifications
345
AYGO_WE_99G80E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 346
Fuel information ................ 357

346
AYGO_WE_99G80E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: 3-door models
*3: 5-door models
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Overall length 3430 mm (135.0 in.)
Overall width 1615 mm (63.6 in.)
Overall height*11465 mm (57.7 in.)
Wheelbase 2340 mm (92.1 in.)
TreadFront 1420 mm (55.9 in.)
Rear 1410 mm (55.5 in.)
Gross vehicle mass1180 kg (2601 lb.)*2
1190 kg (2623 lb.)*3
Maximum permissi-
ble axle capacityFront 695 kg (1532 lb.)
Rear 695 kg (1532 lb.)

347 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E3-door models
This number is also on the man-
ufacturer’s label on the right-
hand side center pillar.
5-door models
This number is also on the man-
ufacturer’s label on the right-
hand side rear pillar.
Engine number
The engine number is stamped
on the engine block as shown.

348 6-1. Specifications
AYGO_WE_99G80E
Engine
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
Model 1KR-FE
Type 3-cylinder in line, 4-cycle, gasoline
Bore and stroke 71.0  84.0 mm (2.79  3.30 in.)
Displacement 998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Intake: 0.145 0.235 mm (0.006 0.009 in.)
Exhaust:
0.275 0.365 mm (0.011 0.014 in.)
Drive belt tension9.0 11.0 mm (0.35 0.43 in.)
*
Vehicles without an air conditioning system:
Vehicles with an air conditioning system:
Generator
Water pump
Crankshaft
CrankshaftWater pumpGenerator
Air
conditioning
compressor

349 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E
Fuel
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)35 L (9.2 gal., 7.7 Imp.gal.)
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter3.3 L (3.5 qt., 2.9 Imp.qt.)
3.1 L (3.3 qt., 2.7 Imp.qt.)

350 6-1. Specifications
AYGO_WE_99G80EEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and better choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Temperature range anticipated before
next oil change.Preferred

351 6-1. Specifications
6
Vehicle specifications
AYGO_WE_99G80E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality
designation by API (American
Petroleum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-
Conserving” means that the oil
has fuel saving and
environmental protection
capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

352 6-1. Specifications
AYGO_WE_99G80E
Cooling system
*: The identification code are stamped on the locations shown in the below
illustration.
Capacity (Reference)0Q07
*:
4.4 L (4.6 qt., 3.9 Imp.qt.)
0Q01, 0Q02
*:
4.0 L (4.2 qt., 3.5 lmp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
On the back side
