4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80E
Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear

258 4-3. Do-it-yourself maintenance
AYGO_WE_99G80E
CAUTION
When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
When using a floor jack, follow the instructions of the manual provided with
the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine while the vehicle is supported by the floor jack.
Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift lever to E, M or R (vehicles with a multi-mode manual transmis-
sion) or R (vehicles with a manual transmission).
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.
Do not jack the vehicle at the front
under cover and the rear suspension.
The front under cover and the rear sus-
pension may be damaged.Front under
cover
FrontRear
suspension

259 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80E
CAUTION
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any object on top of or underneath
the floor jack.

260
4-3. Do-it-yourself maintenance
AYGO_WE_99G80E
Engine compartment
Washer fluid tank (P. 269)
Engine oil level dipstick
(P. 261)
Engine oil filler cap
(P. 262)
Fuse box (P. 282)Battery (P. 266)
Engine coolant reservoir
(P. 264)
Condenser (P. 266)
Electric cooling fan
Radiator (P. 266)

261 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80E
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.

262 4-3. Do-it-yourself maintenance
AYGO_WE_99G80EAdding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 349
Oil quantity
(Low  Full)1.5 L (1.6 qt., 1.3 Imp.qt.)
Item Clean funnel

263 4-3. Do-it-yourself maintenance
4
Maintenance and care
AYGO_WE_99G80E

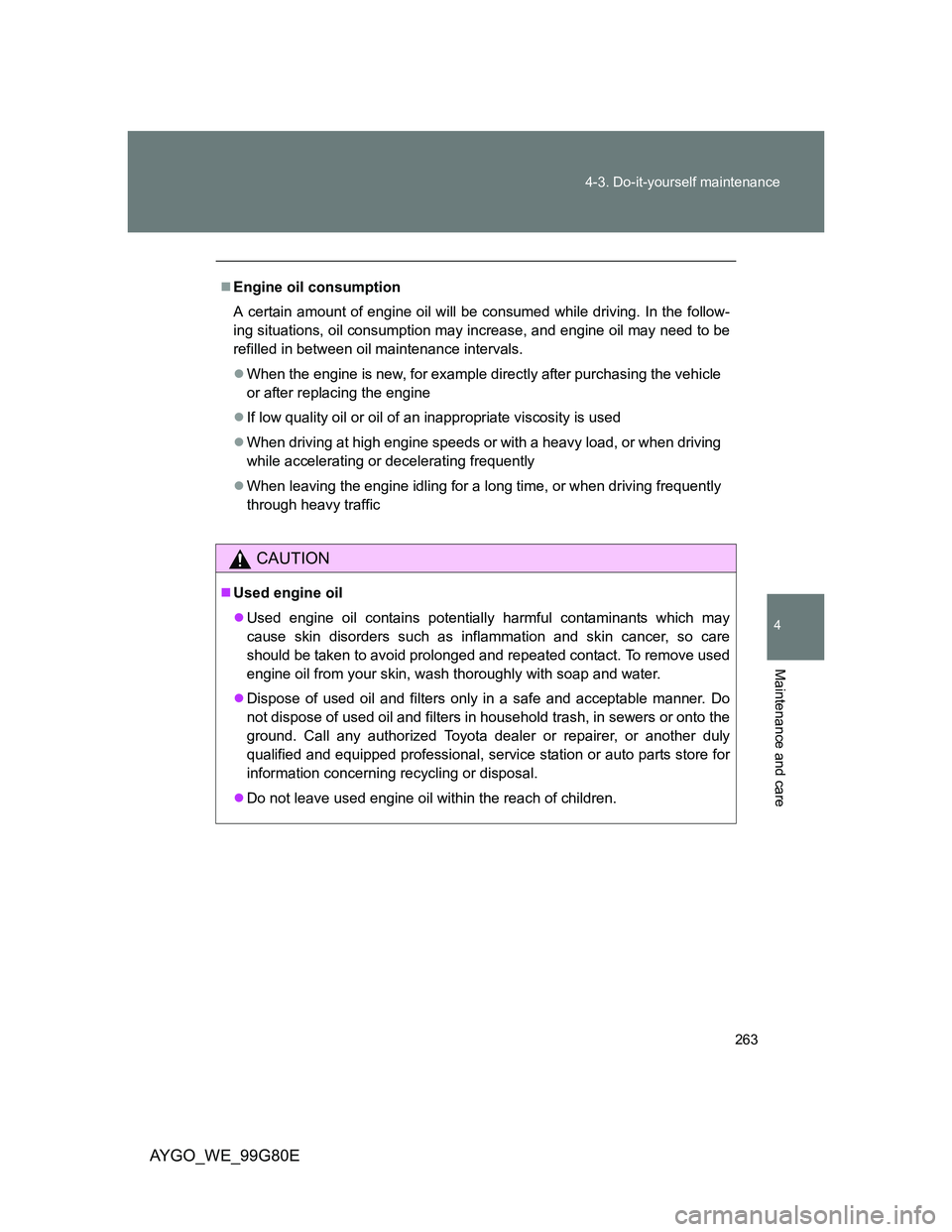

Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
If low quality oil or oil of an inappropriate viscosity is used
When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
Do not leave used engine oil within the reach of children.

264 4-3. Do-it-yourself maintenance
AYGO_WE_99G80E
Engine coolant
The coolant level is satisfactory if it is between the “F” (Full) and “L”
(Low) lines on the reservoir when the engine is cold.
Ty p e A
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F” line.
Ty p e B
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F” line.
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
