Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 744)
Remove the engine compartment cover
P. 537
Front bulb locations
Front position/daytime
running light (vehicles
with halogen headlight)
Headlight low
beam
(halogen bulb)
Front turn signal light
Front fog light
(if equipped)
Headlight high
beam
(halogen bulb)

586 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Rear bulb locations
Sedan
Wagon
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Rear turn signal light
Rear fog light*1
Back-up light
License plate lightsRear fog light
*2
Rear turn signal light
Rear fog light*1 or
back-up light
*2
Back-up light*1 or
rear fog light
*2
License plate lights

587 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Replacing light bulbs
Headlight low beam (vehicles with halogen bulbs)
For the right side only: Remove
the securing clip and turn and
pull off the washer fluid filler
opener.
Install the washer fluid filler
opener in the reverse order of
removal.
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3

588 4-3. Do-it-yourself maintenance

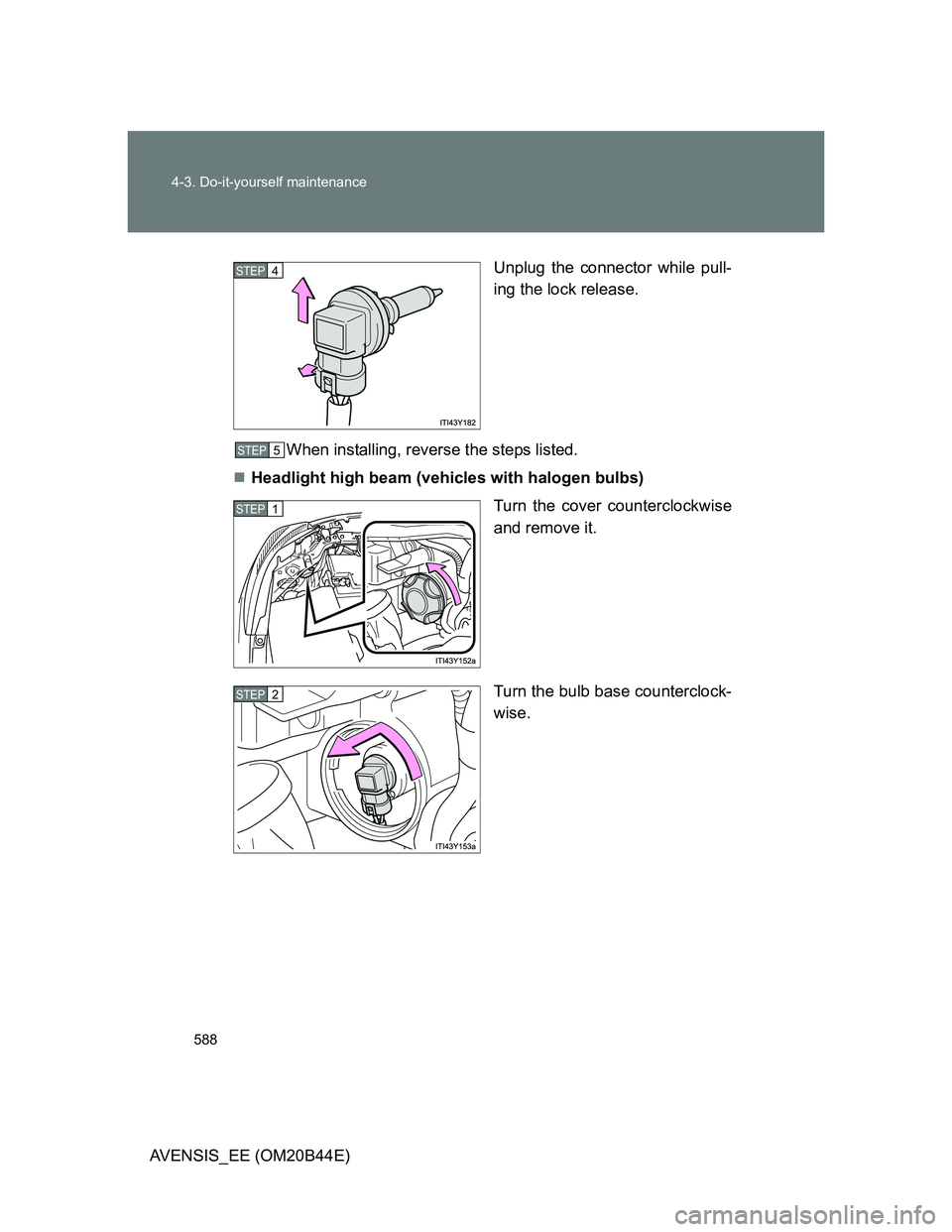

AVENSIS_EE (OM20B44E)Unplug the connector while pull-
ing the lock release.
When installing, reverse the steps listed.
Headlight high beam (vehicles with halogen bulbs)
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
STEP4
STEP5
STEP1
STEP2

589 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)Unplug the connector while pull-
ing the lock release.
When installing, reverse the steps listed.
Front fog light (if equipped)
Remove the fender liner bolts
and clip.
Partly remove the fender liner.
STEP3
STEP4
STEP1
STEP2

590 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
When installing, reverse the steps listed.
STEP3
STEP4
STEP5

591 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)Front position/daytime running light (vehicles with halogen
headlight)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

592 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)Front turn signal light
For the right side only: Remove
the securing clip and turn and
pull off the washer fluid filler
opener.
Install the washer fluid filler
opener in the reverse order of
removal.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4
