2013 TOYOTA AVENSIS Owners Manual (in English)

505
3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)
Trunk features (sedan)
Cargo hooks
Cargo hooks are provided for
securing loose items.
First-aid kit storage belt

506 3-5. Other interior features
AVENSIS_EE (OM20B44E)
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk. The
luggage mat may get damaged.
Luggage mat
Pull the lever upwards when
lifting the luggage mat up.
The lever can be hooked on
the edge of the trunk.
STEP1
STEP2

507
3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)
Luggage compar tment features (wagon)
Cargo hooks
Vehicles with deck rail
Cargo hooks are provided for
securing loose items.
Vehicles without deck rail

508 3-5. Other interior features
AVENSIS_EE (OM20B44E)
Auxiliary box
Front
Lift the front deck board.
Rear
Pull the lever upwards when
lifting the rear deck board.
Press down the rear deck
board.
STEP1
STEP2

509 3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)
Side
Lift the side deck board.
Separating luggage compartment (if equipped)
The deck side board can be
used to separate the luggage
compartment.
Remove the deck side board
and insert it upright into the
groove.
Luggage cover (if equipped)
Pull out the luggage cover and
hook it on the anchors.

510 3-5. Other interior features
AVENSIS_EE (OM20B44E)
Separation net
Open the cover.
Take the strap, lift the separa-
tion net and insert it into the
hole.
STEP1
STEP2

511 3-5. Other interior features
3
Interior features
AVENSIS_EE (OM20B44E)
Removing luggage cover
The luggage cover can be removed by following the procedure
below.
Pull the release lever
Lift up
Removing the separation net
The separation net can be removed by following the procedure
below.
Push the release button
Lift up

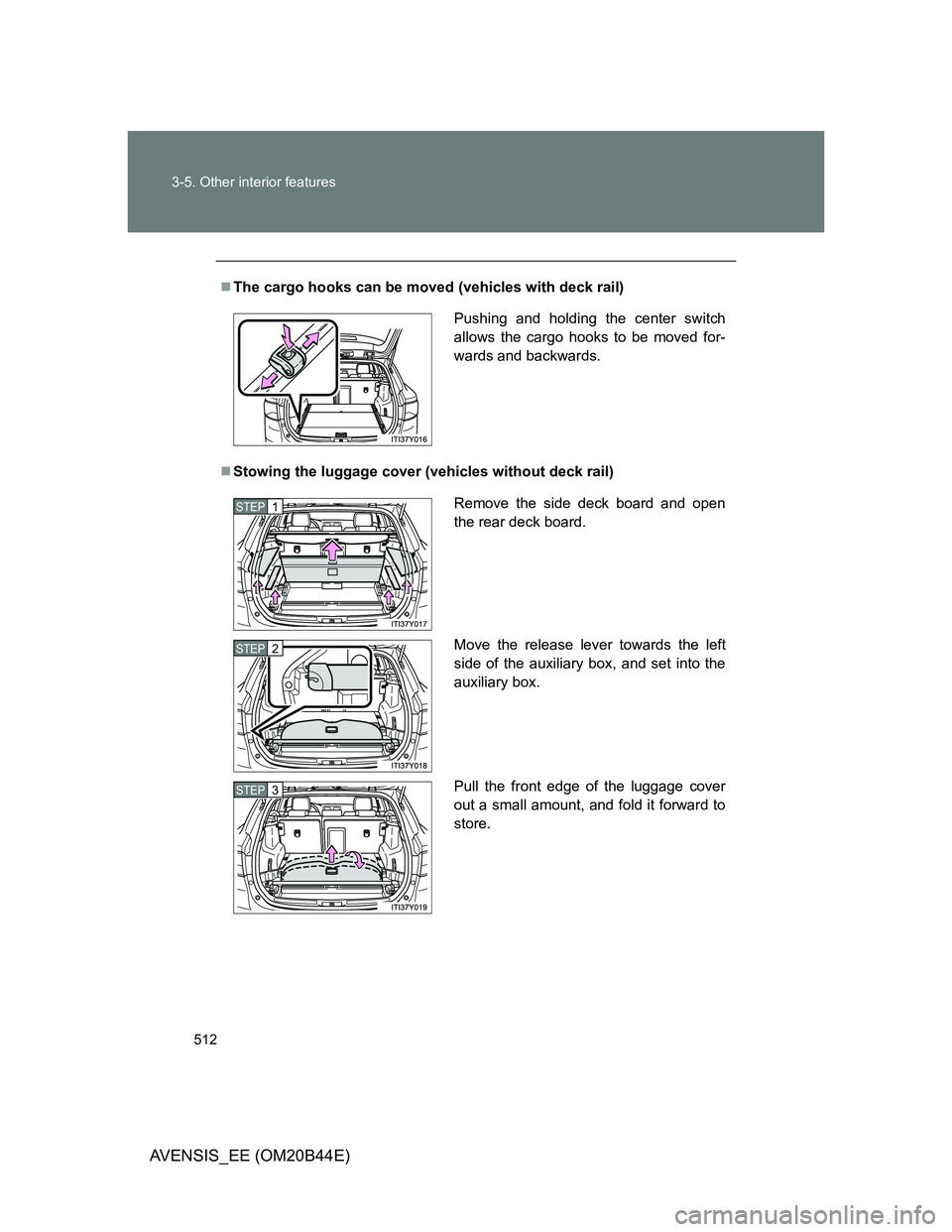

512 3-5. Other interior features
AVENSIS_EE (OM20B44E)
The cargo hooks can be moved (vehicles with deck rail)
Stowing the luggage cover (vehicles without deck rail)
Pushing and holding the center switch
allows the cargo hooks to be moved for-
wards and backwards.
Remove the side deck board and open
the rear deck board.
Move the release lever towards the left
side of the auxiliary box, and set into the
auxiliary box.
Pull the front edge of the luggage cover
out a small amount, and fold it forward to
store.STEP1
STEP2
STEP3
