2013 TOYOTA AVENSIS Owners Manual (in English)

577 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
29IGT/INJ
*215 AMultiport fuel injection system/
sequential multiport fuel injection
system, ignition system
EDU
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
30EFI MAIN
*220 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
FUEL OPN
*110 A Fuel filler door opener
31 HORN 15 A Horn
32 IG2 15 A IGN, METER
33 HTR SUB NO.1 30 A Air conditioning system
34 HTR SUB NO.2 30 A Air conditioning system
35 HTR SUB NO.3 30 A Air conditioning system
36 PWR SEAT LH 30 A Power seat, lumber support
37 PWR OUTLET 15 A Power outlet
38 PSB 30 A Pre-crash seat belt
39 FUEL OPN
*210 A Fuel filler door opener
40 FR DEICER 20 A Windshield wiper de-icer
41 ABS NO.2 30 A Anti-lock brake system, VSC
42 STV HTR
*125 A Power heater
FuseAmpereCircuit

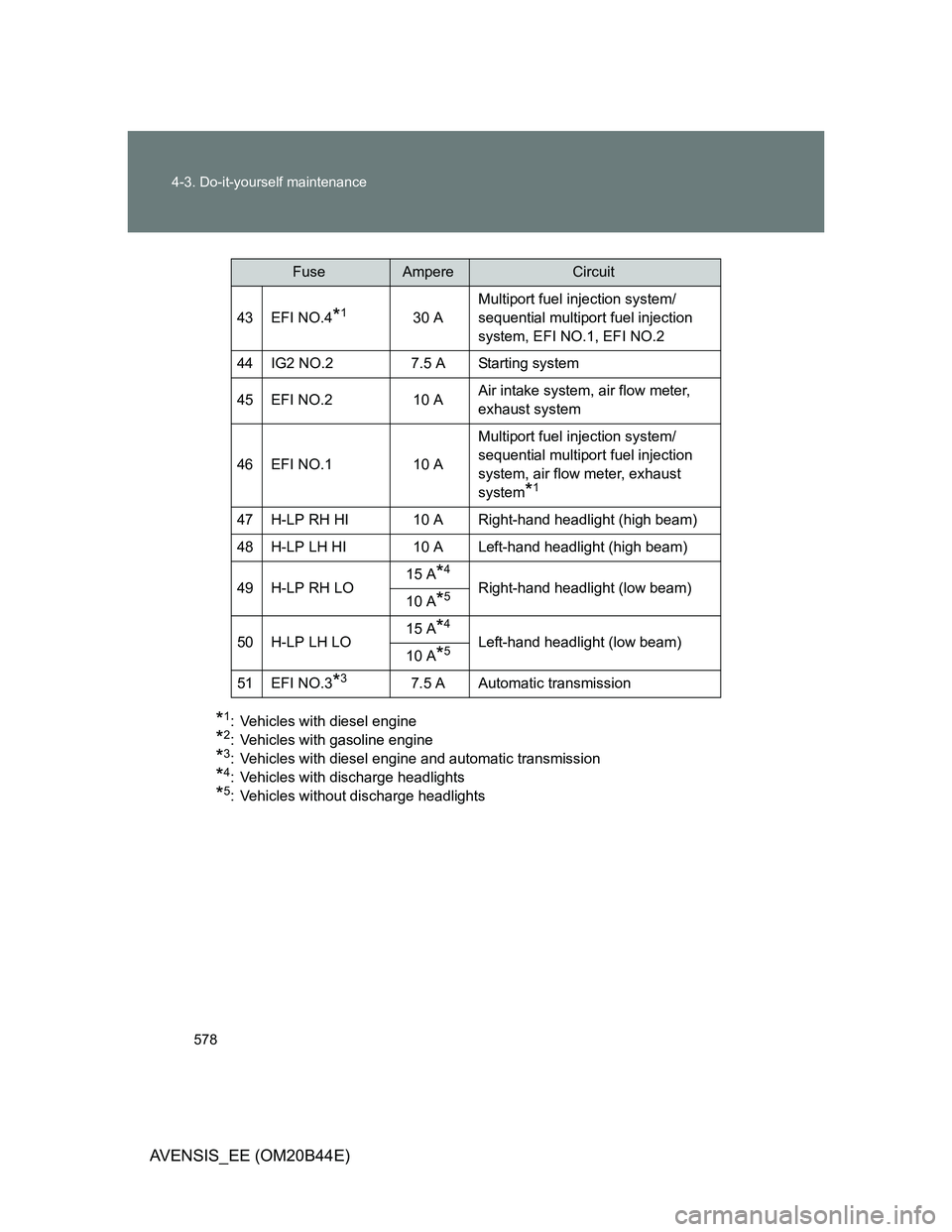

578 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles with diesel engine and automatic transmission
*4: Vehicles with discharge headlights
*5: Vehicles without discharge headlights43 EFI NO.4
*130 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
44 IG2 NO.2 7.5 A Starting system
45 EFI NO.2 10 AAir intake system, air flow meter,
exhaust system
46 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter, exhaust
system
*1
47 H-LP RH HI 10 A Right-hand headlight (high beam)
48 H-LP LH HI 10 A Left-hand headlight (high beam)
49 H-LP RH LO15 A
*4
Right-hand headlight (low beam)
10 A*5
50 H-LP LH LO15 A*4
Left-hand headlight (low beam)
10 A*5
51 EFI NO.3*37.5 A Automatic transmission
FuseAmpereCircuit

579 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)Under the instrument panel (type A)
FuseAmpereCircuit
1TAIL 10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling dial, instrument panel
lights, air conditioning system
switch, audio system, Multidrive or
automatic transmission shift lever
illumination, glove box light, airbag
manual on-off system, emergency
flashers, cigarette lighter, “AFS
OFF” switch, speed limiter switch,
electric parking brake switch, steer-
ing switch, VSC OFF switch,
Toyota parking assist-sensor
switch, “LKA” switch, seat heater
switch, “SPORT” switch, outside
rear view mirror switches, fuel filler
door opener switch

580 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
2 ECU-IG NO.3 10 AToyota parking assist-sensor, AFS,
windshield wiper de-icer, electric
parking brake, pre-crash seat belt,
paddle shift switch, tilt & telescopic
steering, electric power steering
3 P FR DOOR 20 A Power windows (passenger side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 SHADE 20 A Panoramic roof shade
*1
7 CIG 15 A Cigarette lighter
8ACC 7.5 AOutside rear view mirrors, shift lock
system, audio system, main body
ECU, power outlet
9 MIR HTR 10 A Outside rear view mirror defoggers
10 TI & TE 30 A Tilt & telescopic steering
11 RR FOG 7.5 A Rear fog light
12 IGN 7.5 ASteering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, automatic
transmission
*2, starting system
FuseAmpereCircuit

581 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
13 METER 7.5 A Gauges and meters
14 SEAT HTR 15 A Seat heaters
15 HTR-IG 10 A Air conditioning system
16 WIPER 30 AWindshield wipers, rain sensing
windshield wipers
17 RR WIPER 15 A Rear window wiper
*1
18 WASHER 15 AWindshield washers, rear window
washer*1
19 ECU-IG NO.1 10 AMain body ECU, smart entry & start
system, electric cooling fan(s), shift
lock system, panoramic roof
shade
*1, auto anti-glare inside rear
view mirror, anti-lock brake system,
steering sensor, yaw rate & G sen-
sor, VSC, headlight cleaner, pre-
crash safety system, LKA, driver
support system
20 ECU-IG NO.2 10 ABack-up lights, charging system,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
indicator, air conditioning system,
AFS, rear view monitor, Toyota
parking assist-sensor
21 OBD 7.5 A On-board diagnosis system
FuseAmpereCircuit

582 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
*1: Wagon only
*2: Vehicles with diesel engine and automatic transmission22 STOP 10 AStop lights, high mounted stop-
light, anti-lock brake system, VSC,
multiport fuel injection system/
sequential multiport fuel injection
system, automatic transmission
*2,
shift lock system, starting system
23 DOOR 25 A Power door lock system
24 ACC-B 25 A CIG, ACC
25 DRL 7.5 A Daytime running light system
26 FR FOG 15 A Front fog lights
27 AM1 7.5 AStarting system, ACC, CIG, ECU-IG
NO.2, HTR-IG, WIPER, RR WIPER,
WASHER, ECU-IG NO.1, ECU-IG
NO.3, SEAT HTR
FuseAmpereCircuit

583 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)Under the instrument panel (type B)
*1: Left-hand drive vehicle
*2: Right-hand drive vehicle
FuseAmpereCircuit
1 POWER 30 A Power windows (driver side)
2 DEF 40 A Rear window defogger, MIR HTR
3 PWR SEAT RH 30 A Power seat, lumber support
4 WIPER NO.2
*17.5 ACharging system, driver support
system ECU
5 WIPER NO.2
*27.5 ACharging system, driver support
system ECU

584 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 585)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuse or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
