4005-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12F76E)

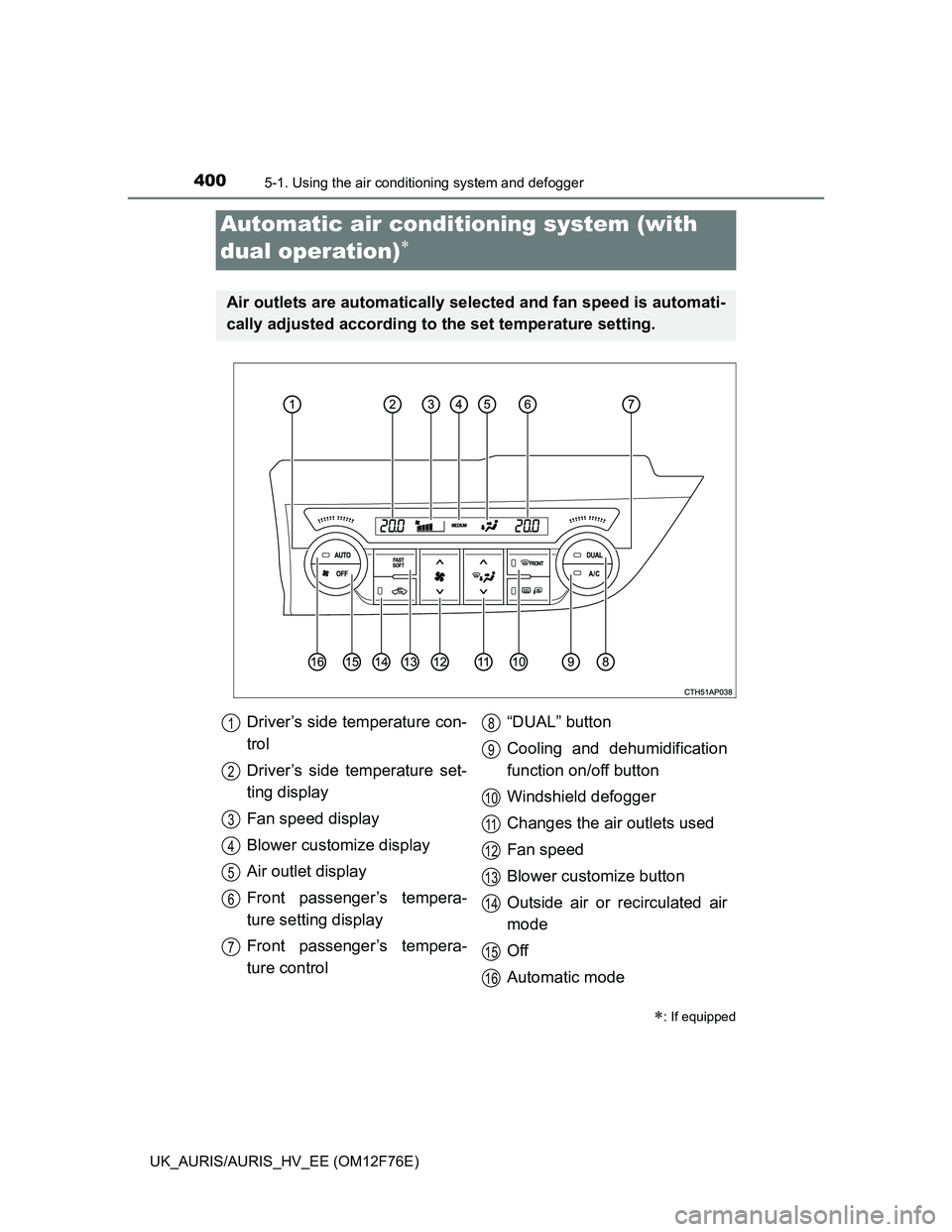

Automatic air conditioning system (with
dual operation)

: If equipped
Air outlets are automatically selected and fan speed is automati-
cally adjusted according to the set temperature setting.
Driver’s side temperature con-
trol
Driver’s side temperature set-
ting display
Fan speed display
Blower customize display
Air outlet display
Front passenger’s tempera-
ture setting display
Front passenger’s tempera-
ture control“DUAL” button
Cooling and dehumidification
function on/off button
Windshield defogger
Changes the air outlets used
Fan speed
Blower customize button
Outside air or recirculated air
mode
Off
Automatic mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

4165-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Search for a desired station by turning or pressing “”or “”
on .
Press and hold the button (from to ) the station is to
be set to until you hear a beep.

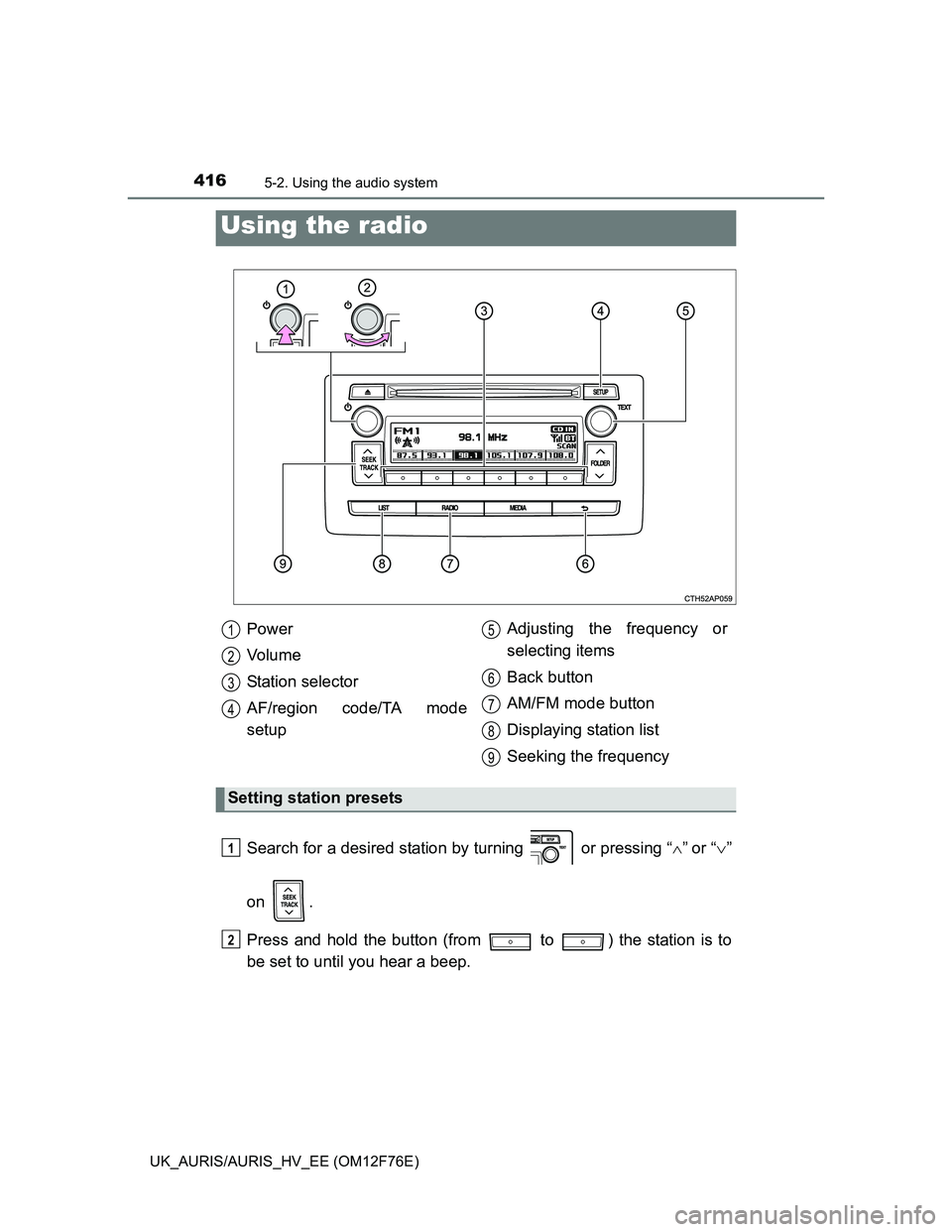

Using the radio
Power
Vo l u m e
Station selector
AF/region code/TA mode
setupAdjusting the frequency or
selecting items
Back button
AM/FM mode button
Displaying station list
Seeking the frequency
Setting station presets
1
2
3
4
5
6
7
8
9
1
2

4175-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features
Updating the station list
Press .
The station list will be displayed.
Press (UPDATE) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press .

Selecting a station from the station list
Press .
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
This feature allows your radio to receive RDS data.
Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
Using the station list
RDS (Radio Data System)
1
2
1
2
3
1
2
3

4205-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Insert a CD.
Press and remove the CD.

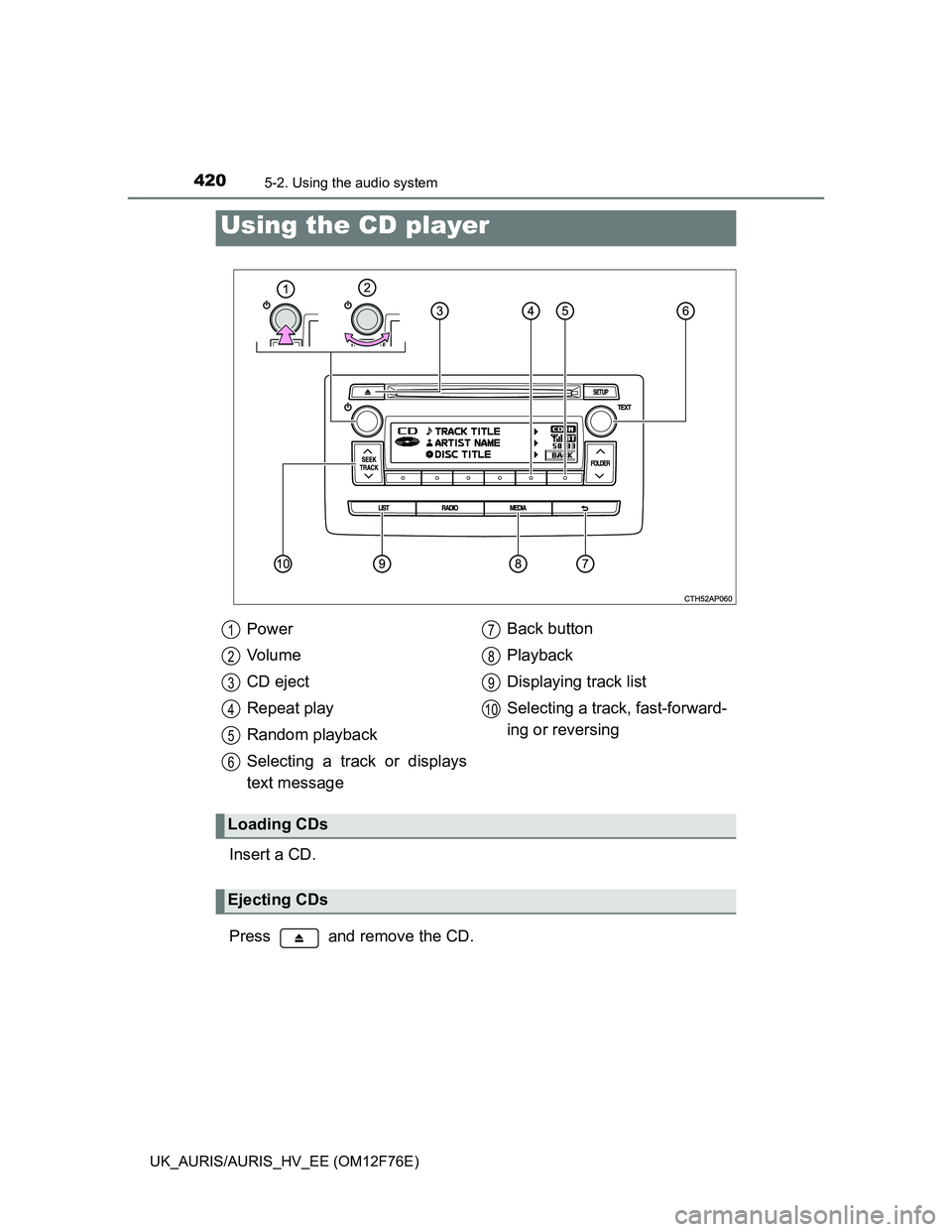

Using the CD player
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageBack button
Playback
Displaying track list
Selecting a track, fast-forward-
ing or reversing
Loading CDs
Ejecting CDs
1
2
3
4
5
6
7
8
9
10

4215-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features
Turn or press “” to move up or “” to move down using
until the desired track number is displayed.
Press .
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or .
To fast-forward or reverse, press and hold “” or “” on .
Press (RPT).
The current track is played repeatedly until (RPT) is pressed again.
Press (RDM).
Tracks are played in a random order until (RDM) is pressed again.
Press .
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press or .
Selecting a track
Selecting a track from a track list
Fast-forwarding and reversing tracks
Repeat play
Random playback
Switching the display
1
2

4225-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Display
Up to 24 characters can be displayed at a time.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . If the CD still
cannot be played back, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped profes-
sional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.

4255-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features
P. 4 2 0

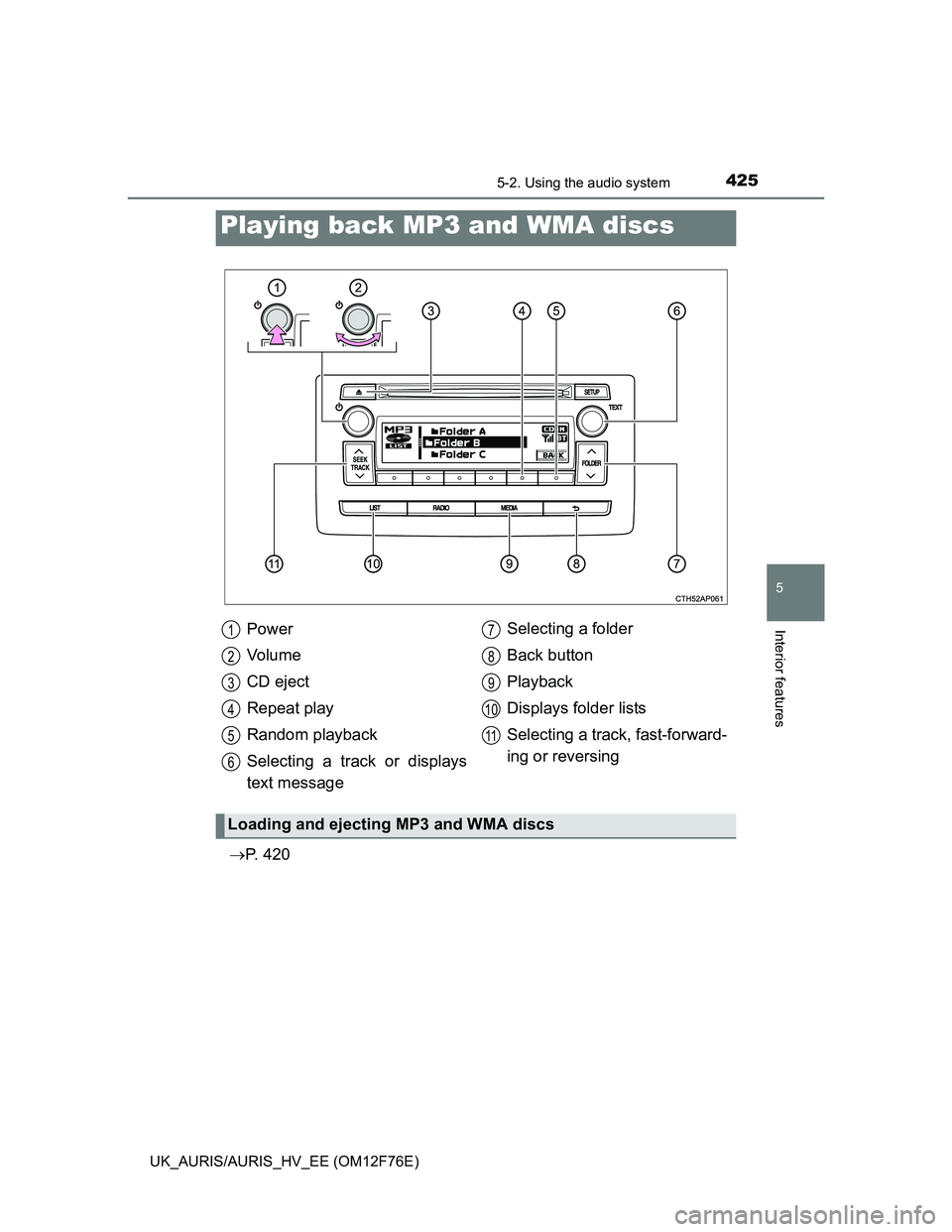

Playing back MP3 and WMA discs
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageSelecting a folder
Back button
Playback
Displays folder lists
Selecting a track, fast-forward-
ing or reversing
Loading and ejecting MP3 and WMA discs
1
2
3
4
5
6
7
8
9
10
11

4265-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12F76E)
To select the desired folder, press “” or “” on .
To return to the first folder, press and hold “” on until you hear a
beep.

Selecting a folder and file from folder lists
Press .
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press .
To exit, press .

Selecting a file
Turn or press “” or “” on to select the desired file.
To fast-forward or reverse, press and hold “
” or “” on .
Pressing (RPT) changes modes in the following order:
File repeat  Folder repeat*  Off.
*: Available except when RDM (random playback) is selected
Selecting a folder
Selecting and scanning files
Fast-forwarding and reversing files
Repeat play
1
2
