2013 TOYOTA AURIS HYBRID display

3514-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

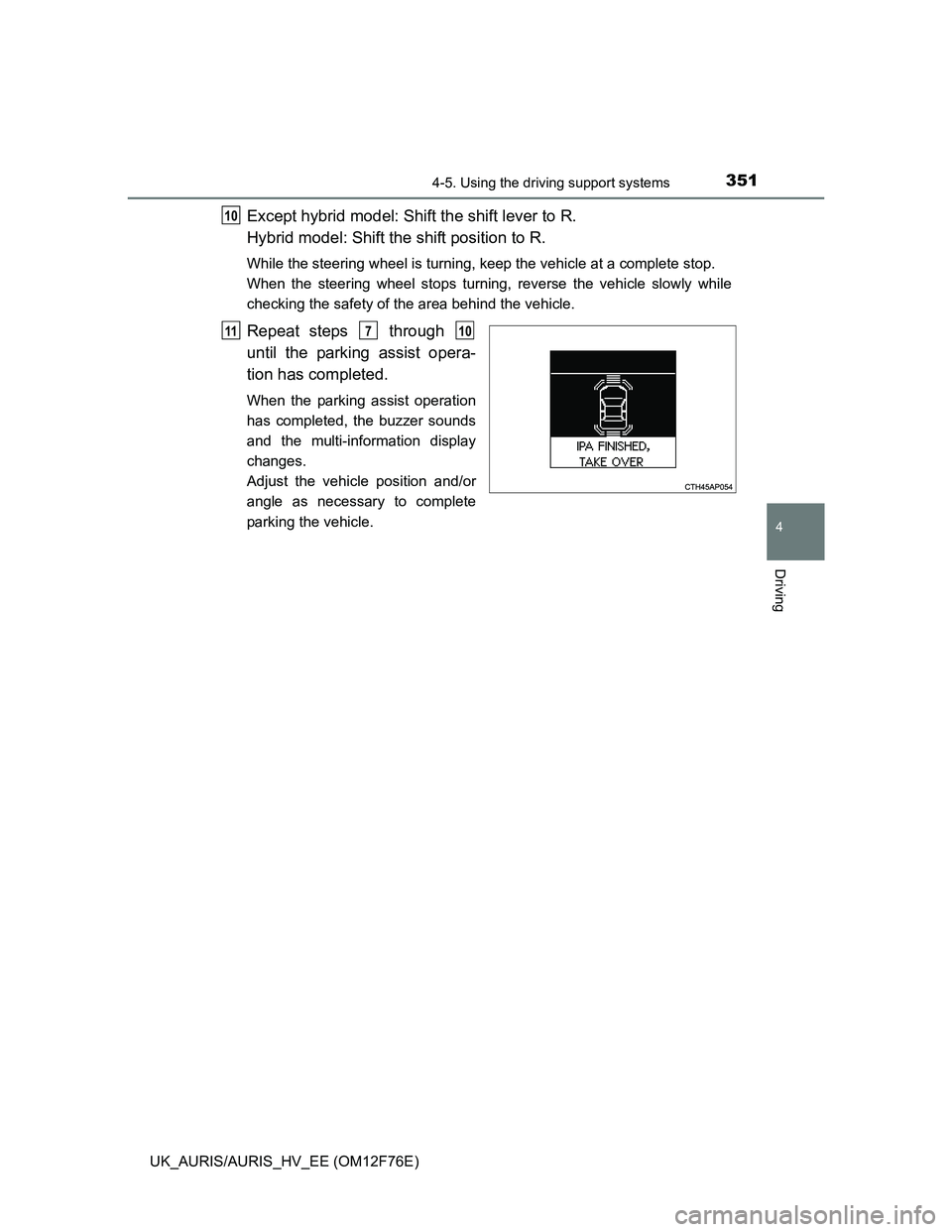

Except hybrid model: Shift the shift lever to R.
Hybrid model: Shift the shift position to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle.
Repeat steps through
until the parking assist opera-
tion has completed.
When the parking assist operation
has completed, the buzzer sounds
and the multi-information display
changes.
Adjust the vehicle position and/or
angle as necessary to complete
parking the vehicle.
10
11710

3524-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12F76E)

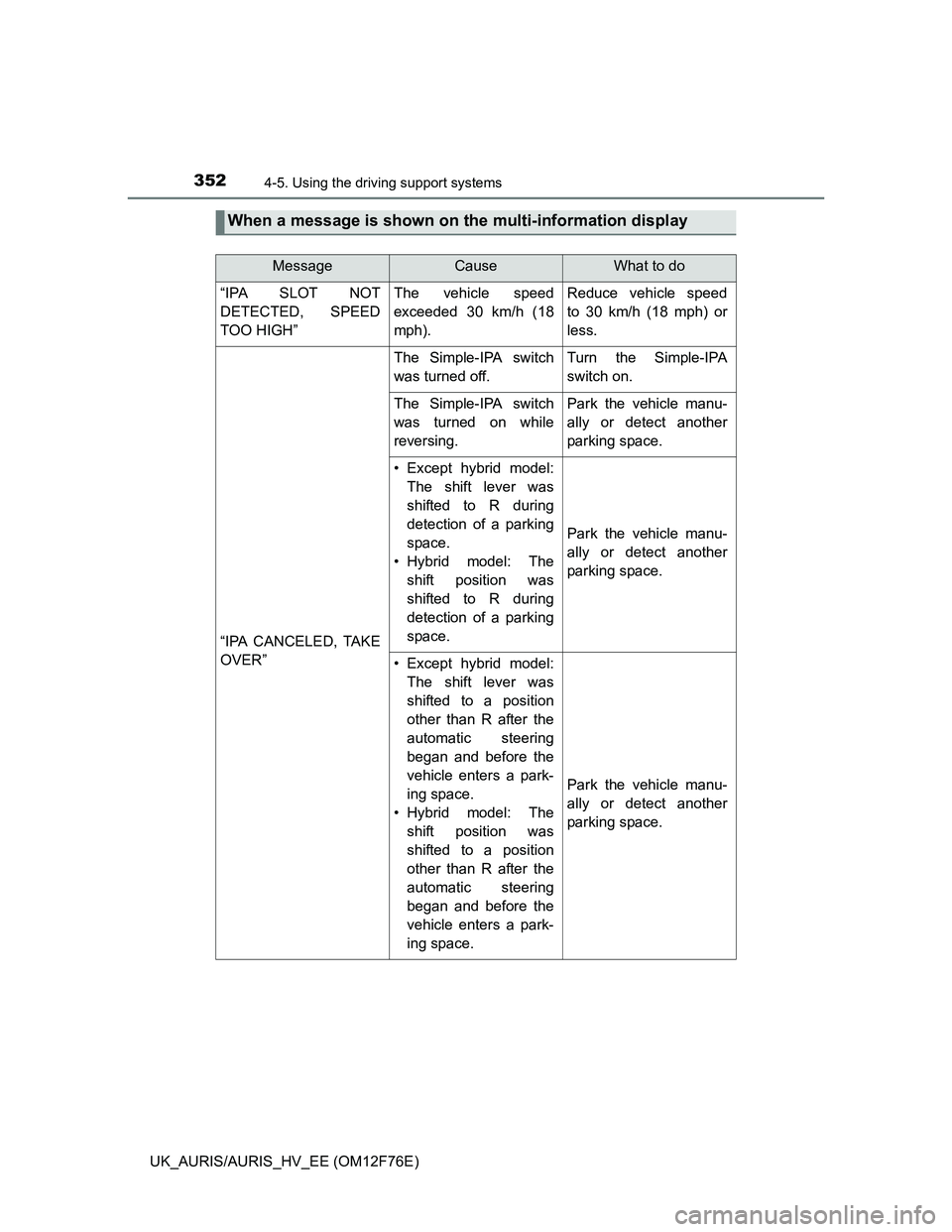

When a message is shown on the multi-information display
MessageCauseWhat to do
“IPA SLOT NOT
DETECTED, SPEED
TOO HIGH”The vehicle speed
exceeded 30 km/h (18
mph).Reduce vehicle speed
to 30 km/h (18 mph) or
less.
“IPA CANCELED, TAKE
OVER”
The Simple-IPA switch
was turned off.Turn the Simple-IPA
switch on.
The Simple-IPA switch
was turned on while
reversing.Park the vehicle manu-
ally or detect another
parking space.
• Except hybrid model:
The shift lever was
shifted to R during
detection of a parking
space.
• Hybrid model: The
shift position was
shifted to R during
detection of a parking
space.
Park the vehicle manu-
ally or detect another
parking space.
• Except hybrid model:
The shift lever was
shifted to a position
other than R after the
automatic steering
began and before the
vehicle enters a park-
ing space.
• Hybrid model: The
shift position was
shifted to a position
other than R after the
automatic steering
began and before the
vehicle enters a park-
ing space.
Park the vehicle manu-
ally or detect another
parking space.

3594-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving

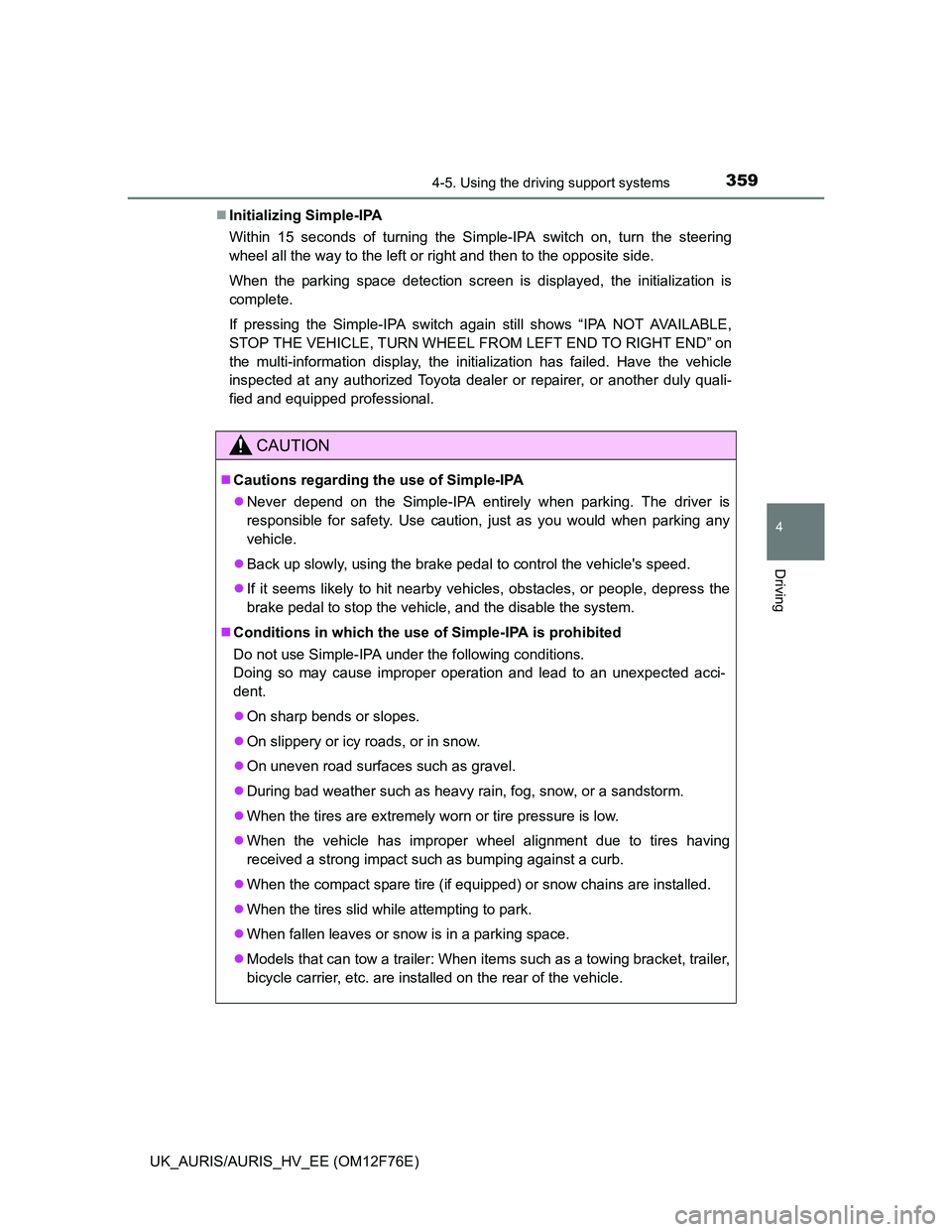

Initializing Simple-IPA
Within 15 seconds of turning the Simple-IPA switch on, turn the steering
wheel all the way to the left or right and then to the opposite side.
When the parking space detection screen is displayed, the initialization is
complete.
If pressing the Simple-IPA switch again still shows “IPA NOT AVAILABLE,
STOP THE VEHICLE, TURN WHEEL FROM LEFT END TO RIGHT END” on
the multi-information display, the initialization has failed. Have the vehicle
inspected at any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
CAUTION
Cautions regarding the use of Simple-IPA
Never depend on the Simple-IPA entirely when parking. The driver is
responsible for safety. Use caution, just as you would when parking any
vehicle.
Back up slowly, using the brake pedal to control the vehicle's speed.
If it seems likely to hit nearby vehicles, obstacles, or people, depress the
brake pedal to stop the vehicle, and the disable the system.
Conditions in which the use of Simple-IPA is prohibited
Do not use Simple-IPA under the following conditions.
Doing so may cause improper operation and lead to an unexpected acci-
dent.
On sharp bends or slopes.
On slippery or icy roads, or in snow.
On uneven road surfaces such as gravel.
During bad weather such as heavy rain, fog, snow, or a sandstorm.
When the tires are extremely worn or tire pressure is low.
When the vehicle has improper wheel alignment due to tires having
received a strong impact such as bumping against a curb.
When the compact spare tire (if equipped) or snow chains are installed.
When the tires slid while attempting to park.
When fallen leaves or snow is in a parking space.
Models that can tow a trailer: When items such as a towing bracket, trailer,
bicycle carrier, etc. are installed on the rear of the vehicle.

3624-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12F76E)
Stopping the engine
With the clutch pedal fully depressed, stop the vehicle. Then shift
the shift lever to N.
Release the clutch pedal.
The engine will stop and Stop &
Start indicator will come on
*1 or
Stop & Start indicator will be dis-
played on the multi-information
display
*2.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display

Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The engine will restart. The Stop & Start indicator will go off.
(In this situation, releasing the clutch pedal will not stop the engine
again.)
Stop & Star t system
: If equipped
The Stop & Start system stops and restarts the engine according
to the clutch pedal operation for stopping and starting the vehi-
cle.
1
*1
*2
2

3664-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12F76E)When to use the Stop & Start system
Use the Stop & Start system when stopping the vehicle temporarily at red
lights, intersections, etc. When stopping the vehicle for a longer period of
time, turn off the engine completely.
Stop & Start system warning buzzer
If the engine is stopped by the Stop & Start system and the following action is
performed, a buzzer will sound and the Stop & Start indicator will flash. This
indicates that the engine is only stopped by the Stop & Start system, not that
the engine has been turned off completely.
The shift lever is shifted to a position other than N with the clutch pedal
released.
If the Stop & Start cancel indicator continues to flash
The Stop & Start system may be malfunctioning. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
If the windshield is fogged up while the engine is stopped by the Stop &
Start system
Turn the windshield defogger on. (The engine will start due to the automatic
engine start function.) (P. 391, 400)
If the windshield fogs up frequently, press the Stop & Start cancel switch to
deactivate the system.
The Stop & Start system operation time and Stop & Start system total
operation time display
P. 123, 129
Replacing 12-volt battery
The installed 12-volt battery is specific to the Stop & Start system. It should
only be replaced with a 12-volt battery of identical type and rating.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for further details.

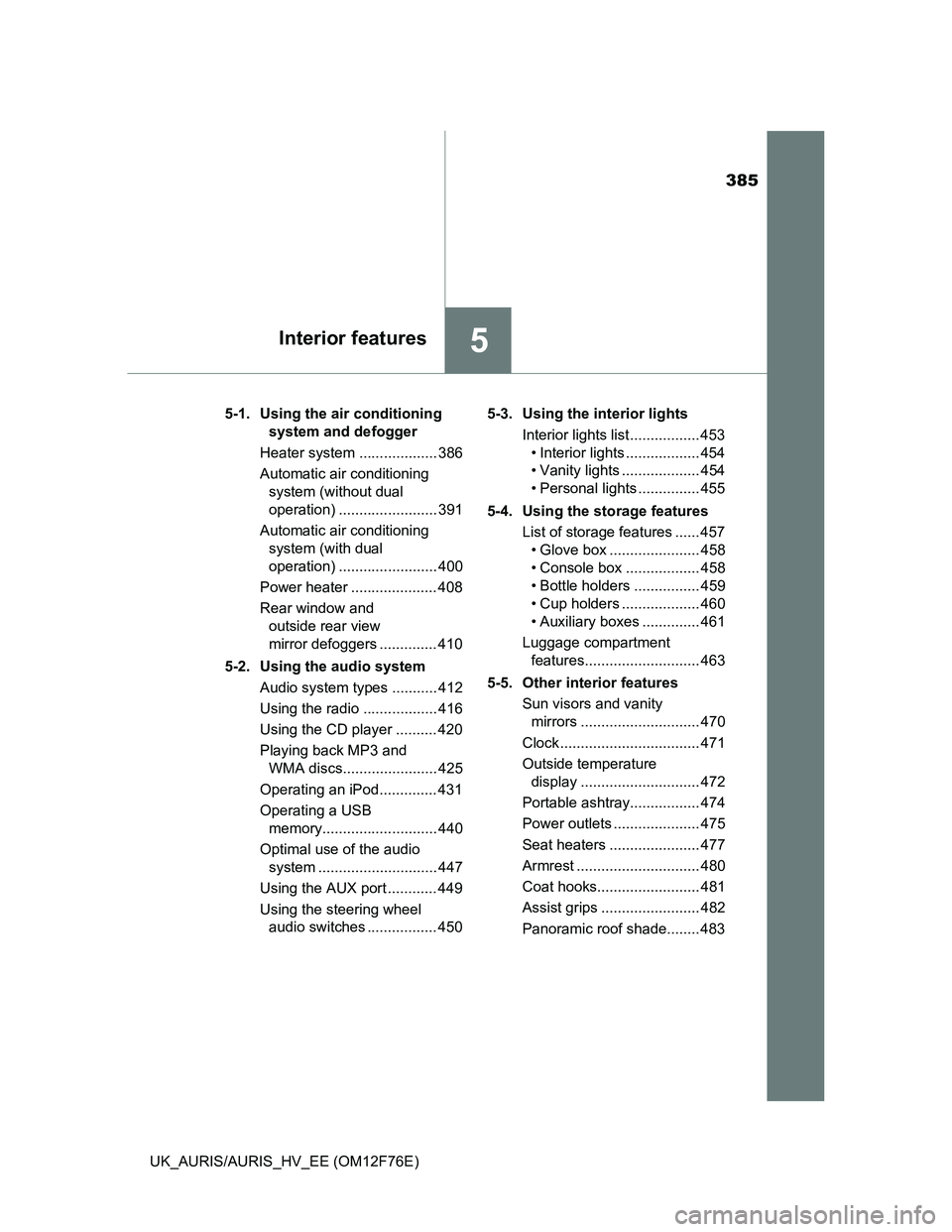

385
5Interior features
UK_AURIS/AURIS_HV_EE (OM12F76E)5-1. Using the air conditioning
system and defogger
Heater system ................... 386
Automatic air conditioning
system (without dual
operation) ........................ 391
Automatic air conditioning
system (with dual
operation) ........................ 400
Power heater ..................... 408
Rear window and
outside rear view
mirror defoggers .............. 410
5-2. Using the audio system
Audio system types ........... 412
Using the radio .................. 416
Using the CD player .......... 420
Playing back MP3 and
WMA discs....................... 425
Operating an iPod.............. 431
Operating a USB
memory............................ 440
Optimal use of the audio
system ............................. 447
Using the AUX port ............ 449
Using the steering wheel
audio switches ................. 4505-3. Using the interior lights
Interior lights list ................. 453
• Interior lights .................. 454
• Vanity lights ................... 454
• Personal lights ............... 455
5-4. Using the storage features
List of storage features ...... 457
• Glove box ...................... 458
• Console box .................. 458
• Bottle holders ................ 459
• Cup holders ................... 460
• Auxiliary boxes .............. 461
Luggage compartment
features............................ 463
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 470
Clock .................................. 471
Outside temperature
display ............................. 472
Portable ashtray................. 474
Power outlets ..................... 475
Seat heaters ...................... 477
Armrest .............................. 480
Coat hooks......................... 481
Assist grips ........................ 482
Panoramic roof shade........ 483

386
UK_AURIS/AURIS_HV_EE (OM12F76E)
5-1. Using the air conditioning system and defogger

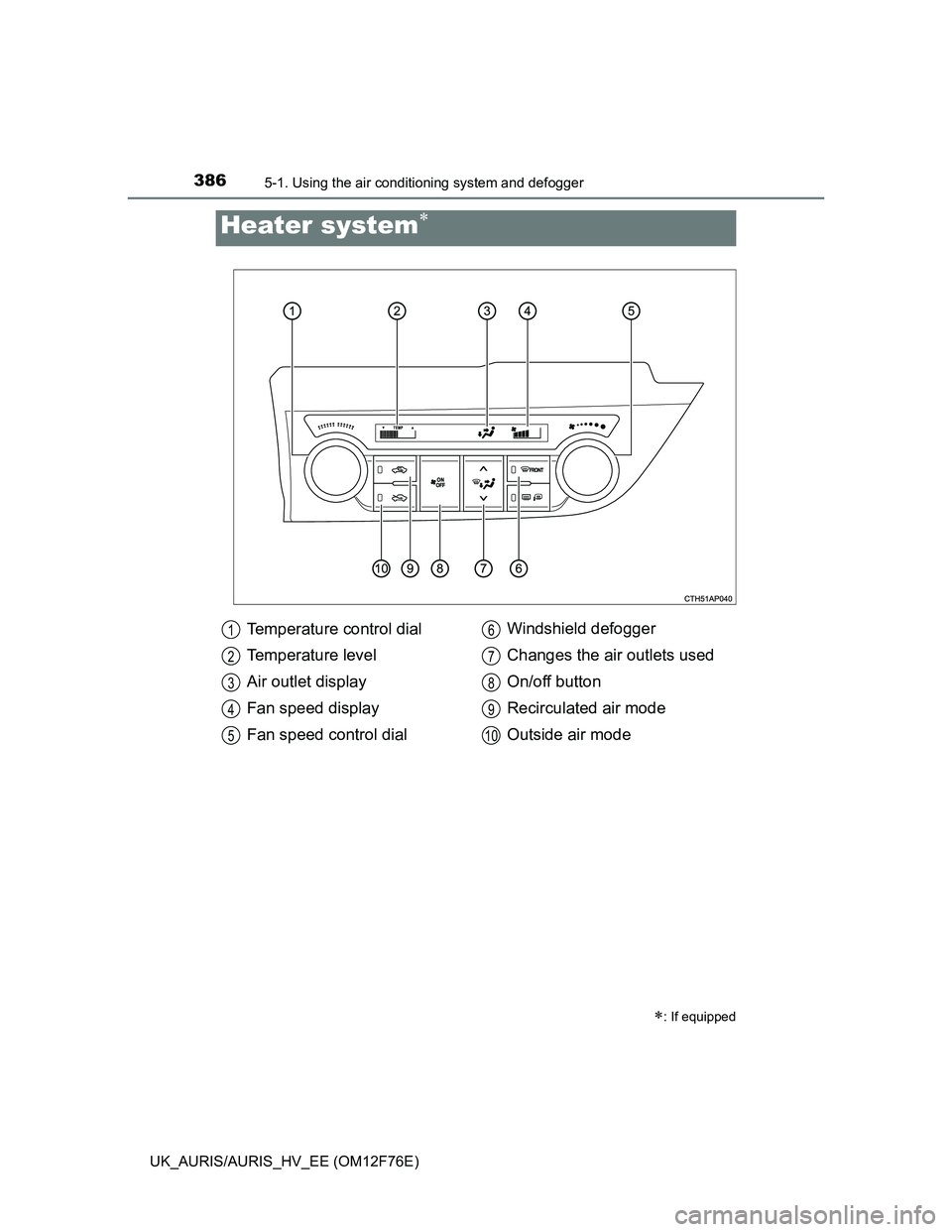

Heater system
: If equipped
Temperature control dial
Temperature level
Air outlet display
Fan speed display
Fan speed control dialWindshield defogger
Changes the air outlets used
On/off button
Recirculated air mode
Outside air mode1
2
3
4
5
6
7
8
9
10

3915-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12F76E)
5
Interior features

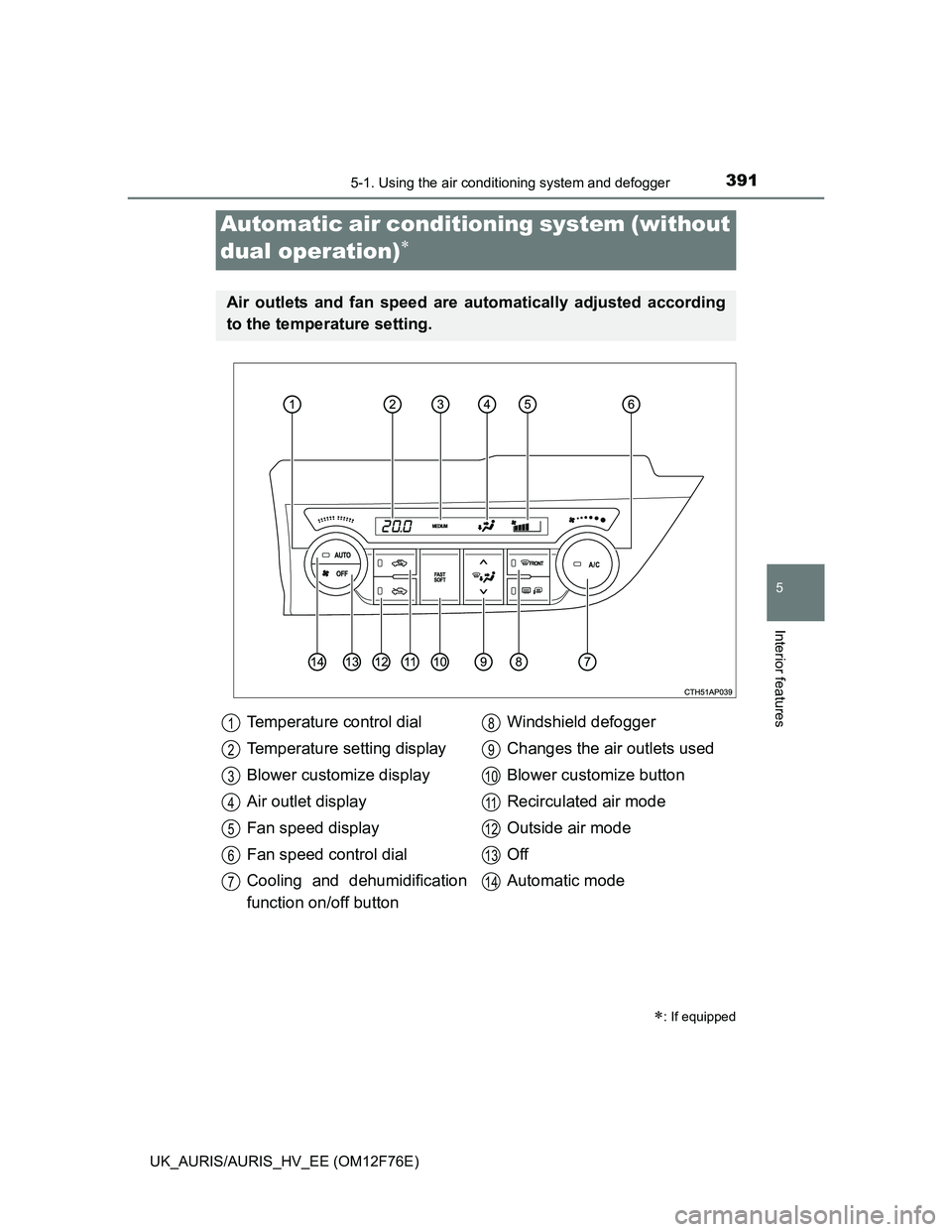

Automatic air conditioning system (without
dual operation)

: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Temperature control dial
Temperature setting display
Blower customize display
Air outlet display
Fan speed display
Fan speed control dial
Cooling and dehumidification
function on/off buttonWindshield defogger
Changes the air outlets used
Blower customize button
Recirculated air mode
Outside air mode
Off
Automatic mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
