2013 SKODA ROOMSTER Owner's Manual

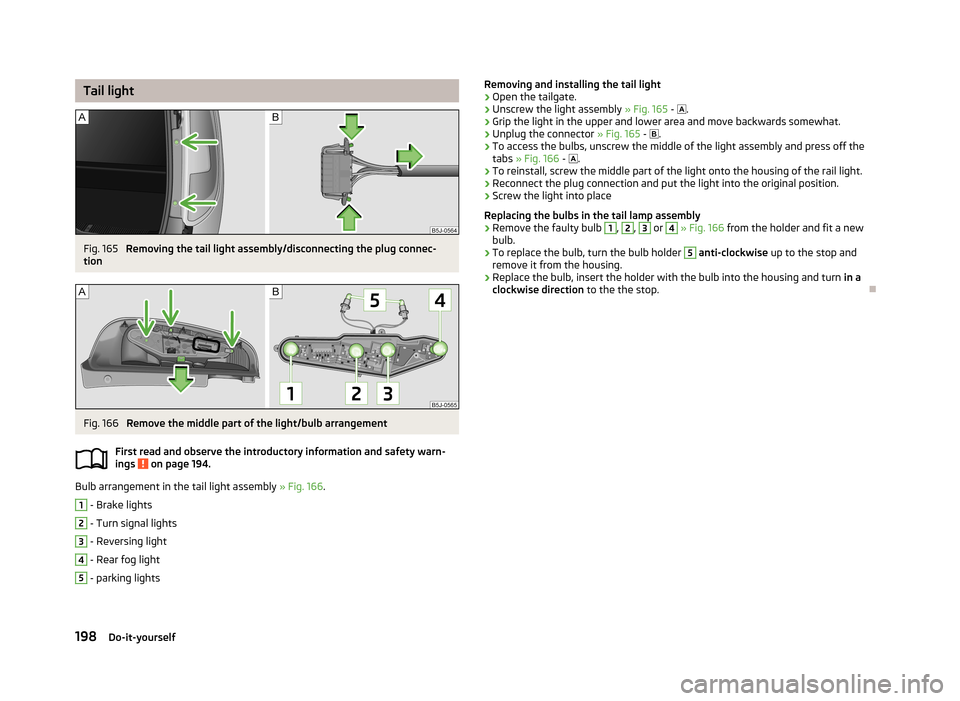

Tail lightFig. 165
Removing the tail light assembly/disconnecting the plug connec-
tion
Fig. 166
Remove the middle part of the light/bulb arrangement
First read and observe the introductory information and safety warn- ings
on page 194.
Bulb arrangement in the tail light assembly » Fig. 166.
1
- Brake lights
2
- Turn signal lights
3
- Reversing light
4
- Rear fog light
5
- parking lights
Removing and installing the tail light›Open the tailgate.›
Unscrew the light assembly » Fig. 165 -  .
›
Grip the light in the upper and lower area and move backwards somewhat.
›
Unplug the connector » Fig. 165 -  .
›
To access the bulbs, unscrew the middle of the light assembly and press off the
tabs » Fig. 166 -  .
›
To reinstall, screw the middle part of the light onto the housing of the rail light.
›
Reconnect the plug connection and put the light into the original position.
›
Screw the light into place
Replacing the bulbs in the tail lamp assembly
›
Remove the faulty bulb
1
,
2
,
3
or
4
» Fig. 166 from the holder and fit a new
bulb.
›
To replace the bulb, turn the bulb holder
5
anti-clockwise up to the stop and
remove it from the housing.
›
Replace the bulb, insert the holder with the bulb into the housing and turn in a
clockwise direction to the the stop.

198Do-it-yourself

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle identification data
199
Dimensions
201
Vehicle-specific details per engine type
202
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.

Vehicle identification data
Fig. 167
Vehicle data sticker/type plate
First read and observe the introductory information given on page 199.
Vehicle data sticker
The vehicle data sticker » Fig. 167 -  is located under the floor covering in the
luggage compartment.
The vehicle data sticker contains the following data: Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code Partial vehicle description
Operating weight (in kg)
Fuel consumption (in ltr./100 km) - intra-urban/extra-urban/combined
CO 2 emission levels - combined (in g/km)
Items
5,

6
and
7
on the vehicle data sticker are only valid for some countries.
Type plate
The type plate » Fig. 167 - 
is located at the bottom of the B-pillar on the driver's
side.
The type plate lists the following weights:
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped on the right hand suspension strut dome in the engine compartment. This number is also
located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number (three-digit code letter and serial number) is stamped onto
the engine block.
Operating weight
The specified operating weight is for orientation purposes only. This value repre- sents the minimum operating weight without additional weight-increasing equip- ment such as air conditioning system, spare wheel, or trailer hitch. 

1234567891011199Technical data

The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight »
.
The payload consists of the following components: › Passengers
› All items of luggage and other loads
› Roof load including roof rack system
› Equipment not included in the operating weight
› Trailer drawbar load when towing a trailer (max. 50 kg).
Measuring the fuel consumption and CO 2 emissions according to the ECE
regulations and EU directives The measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all
gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
WARNINGDo not exceed the specified maximum permissible weights – risk of accident
and damage!
Note
■ If required, you can find out the precise weight of your vehicle at a specialist ga-
rage.■
The fuel consumption and emission values have been determined in accordance
with rules and under conditions set out by legal or technical requirements for de-
termining operational and technical data for motor vehicles.
■
Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values.

200Technical data

DimensionsFirst read and observe the introductory information given on page 199.
Vehicle dimensions (mm)
ROOMSTERPRAKTIKSCOUTLength421442134240Width168416841695Width including exterior mirror188218821882Height160716071650Clearance140140141Wheel base262026202620Track gauge front/rear1436/1500
(1420/1484) a)1436/1500
(1420/1484) a)1427/1494a)
Valid for vehicles, which have factory-fitted 15" wheels.

201Technical data

Vehicle-specific details per engine typeFirst read and observe the introductory information given on page 199.The specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational and
technical data for motor vehicles.
1.2 ltr./51 kW engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)51/5400112/30003/1198PerformancesROOMSTERPRAKTIKTop speed (km/h)159Acceleration 0-100 km/h (s)15.9Permissible trailer load, braked (kg)700 a)
/900 b)Permissible trailer load, unbraked (kg)600/450 c)580/450c)a)
Uphills up to 12 %
b)
Uphills up to 8 %
c)
Vehicles without ABS.
1.2 ltr./63 kW TSI engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)63/4800160/1500-35004/1197PerformanceROOMSTERPRAKTIKTop speed (km/h)172Acceleration 0-100 km/h (s)12.6Permissible trailer load, braked (kg)1000 a)
/1200 b)Permissible trailer load, unbraked (kg)610/450 c)590/450 c)a)
Uphills up to 12 %
b)
Uphills up to 8 %
c)
Vehicles without ABS.

202Technical data

1.2 ltr./77 kW TSI engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/5000175/1500-41004/1197PerformancesROOMSTER MG5ROOMSTER DSG7Top speed (km/h)184184Acceleration 0-100 km/h (s)10.911.0Permissible trailer load, braked (kg)1100 a)
/1200 b)Permissible trailer load, unbraked (kg)610/450 c)630/450 c)a)
Uphills up to 12 %
b)
Uphills up to 8 %
c)
Vehicles without ABS.
1.4 ltr./63 kW engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)63/5000132/38004/1390PerformanceROOMSTERPRAKTIKTop speed (km/h)171Acceleration 0-100 km/h (s)13.0Permissible trailer load, braked (kg)900 a)
/1100 b)Permissible trailer load, unbraked (kg)600/450 c)580/450c)a)
Uphills up to 12 %
b)
Uphills up to 8 %
c)
Vehicles without ABS.

203Technical data

1.6 ltr./77 kW engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/5600153/38004/1598PerformancesROOMSTER MG5ROOMSTER AG6Top speed (km/h)183180Acceleration 0-100 km/h (s)11.312.5Permissible trailer load, braked (kg)1000 a)
/1200 b)Permissible trailer load, unbraked (kg)610/450 c)630/450 c)a)
Uphills up to 12 %
b)
Uphills up to 8 %
c)
Vehicles without ABS.
1.2 ltr./55 kW TDI CR engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)55/4200180/20003/1199PerformanceROOMSTERROOMSTER
GreenLinePRAKTIKTop speed (km/h)162165162Acceleration 0-100 km/h (s)15.515.415.5Permissible trailer load, braked (kg)1000 a)
/1200 b)Permissible trailer load, unbraked (kg)650/450 c)630/450 c)a)
Uphills up to 12 %
b)
Uphills up to 8 %
c)
Vehicles without ABS.

204Technical data

1.6 ltr./66 kW TDI CR engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)66/4200230/1500-25004/1598PerformanceROOMSTERPRAKTIKTop speed (km/h)171Acceleration 0-100 km/h (s)13.3Permissible trailer load, braked (kg)1200Permissible trailer load, unbraked (kg)660/450 a)640/450a)a)
Vehicles without ABS.
1.6 ltr./77 kW TDI CR engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)77/4400250/1500-25004/1598PerformanceTop speed (km/h)181Acceleration 0-100 km/h (s)11.5Permissible trailer load, braked (kg)1200Permissible trailer load, unbraked (kg)660/450 a)a)
Vehicles without ABS.

205Technical data
