2013 RENAULT KANGOO Mechanism And Accessories Workshop Manual

SIDE OPENING ELEMENT MECHANISMS
Sliding door runners
51
13106R
Remove the lower trim, depending on the version.REMOVE THE MOUNTING FITTINGS FOR THE
LOWER RUNNER
12976R
12975R
51-11

SIDE OPENING ELEMENT MECHANISMS

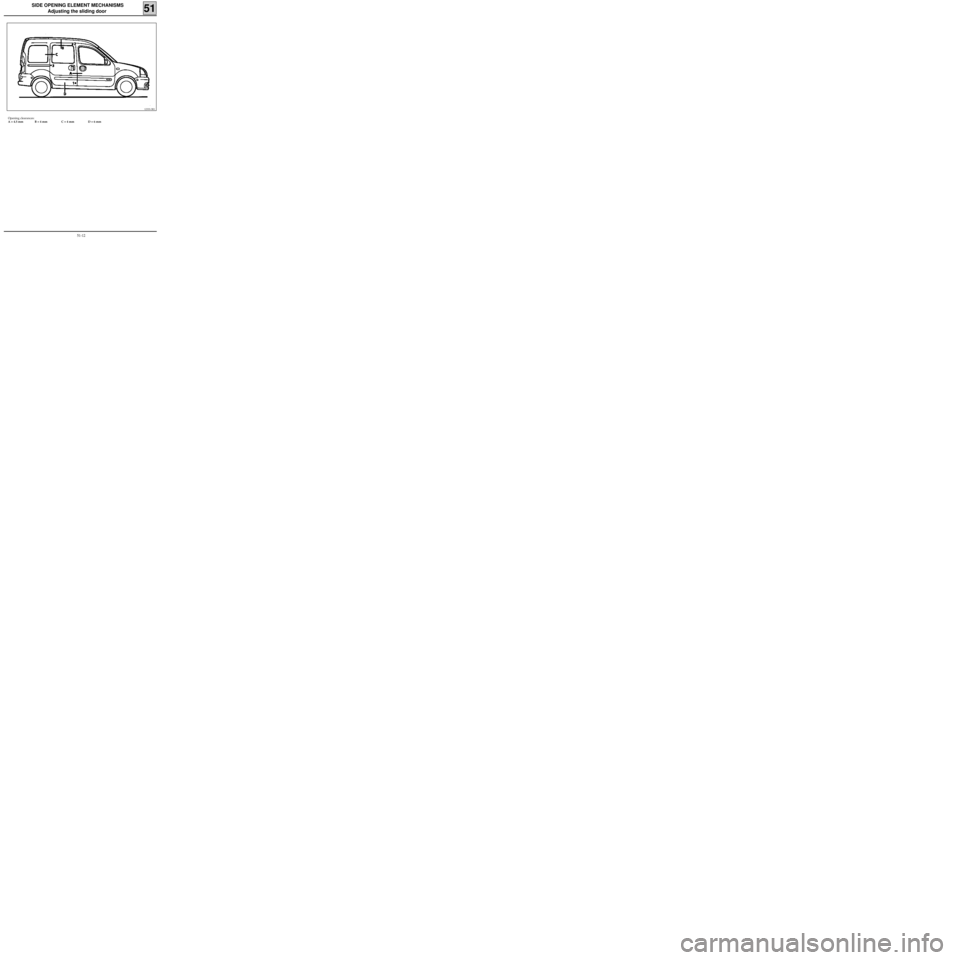

Adjusting the sliding door
51
12333-3R1
Opening clearances:
A = 4.5 mm B = 4 mm C = 4 mm D = 6 mm
51-12

SIDE OPENING ELEMENT MECHANISMS
Adjusting the sliding door
51
13155S
3Adjust the mid-height bracket to obtain clea-
rances A and C.
1Adjust the height of the lower bracket so that
clearances B and D are obtained.
13157R
13156R
2Adjust the upper bracket to balance the clea-
rance (A).
51-13

NON-SIDE OPENING ELEMENT MECHANISMS
Exterior handle for rear door
- mounting bolt (1),
- handle.
52
REMOVING
First remove trim (see section 72) and then take
out:
PRB5201
13070R1
52-1

NON-SIDE OPENING ELEMENT MECHANISMS
Rear screen wiper motor
Tailgate
52
REMOVING
First remove the trim and the screen wiper arm.
PRB5205
13070R
Swing-out doors
Then remove mounting bolts (B).
Disconnect wiring harness (A).
13071R
52-2

NON-SIDE OPENING ELEMENT MECHANISMS
Rear door lock
Unclip control cables for top and bottom latches.
52
REMOVING
First remove trim and screen wiper assembly.
PRB5206
13104R
13113R
Then remove mounting bolts.
52-3

NON-SIDE OPENING ELEMENT MECHANISMS
Rear door latches
Remove mounting bolts and pull latch - cable
assembly.
52
REMOVING
First remove trim for lock (see section 72) and then
unclip cables (see section 52).
PRB5202
13256R
52-4

NON-SIDE OPENING ELEMENT MECHANISMS
Exterior handle for tailgate
Then remove mounting fittings (1).
Unclip control linkage (2).
52
REMOVING
First take off trim.
PRB5203
13071-1R
52-5
