2013 Peugeot Expert VU Owner's Manual

7
4
7
8
3a
2b
2
2a


Exterior

FAMILIARISATIO
N
1

121 85
Rear suspension

Repairing a wheel
Parking sensors 123
Changing a wheel
78 26
25 20
Side-hinged rear doors

Key - Remote control

Sliding side door



Key
: section identification
: page identification 142

Usable dimensions

6
7
6
6
Exterior
8
109
Diesel engines
Petrol engine
11 0
140

Towing eye

Opening the bonnet
Lift the cover located at the foot of the left-
hand seat and pull the release lever upwards.
At the front, unclip the cover by pressing it
at the bottom.
At the rear, unclip the cover using a coin or
the flat part of the towing eye. 108 Partially open the bonnet, lift the safety
catch and raise the bonnet. Secure the stay in one of the two notches,
according to the height required, to hold the
bonnet open.
Take care when carrying out work under the bonnet.
Refer to "Levels" in section 6 for instructions on the use of fluids.

9


Interior

FAMILIARISATIO
N
1



INSTRUMENTS AND CONTROLS


1.
Lighting and direction indicator
control stalk.

2.
Instrument panel with screen.

3.
Wiper, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket
(120 W max), cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

14.
"Grip control".

Interior
10

CENTRE CONSOLE AND OVERHEAD
STORAGE UNIT


1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation of the DSC,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp.

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer
to "Adjusting the date and time" in
section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.
Depending on the configuration of your
vehicle, you have either:

3
11


Interior

FAMILIARISATIO
N
1


Driver's seat


SITTING COMFORTABLY



1.
Forwards-backwards adjustment.

2.
Backrest angle.

3.
Cushion height.

4.
Lumbar.

5.
Head restraint height.
67

2
4
3
3
Interior
12

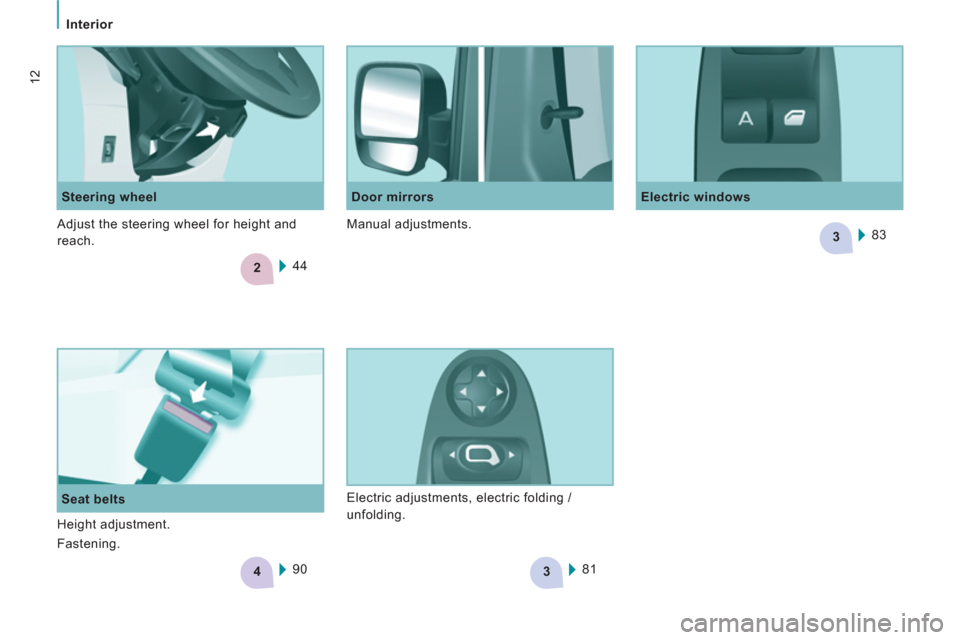

Seat belts
Steering wheel

Electric windows

Door mirrors
44
90 83

81 Electric adjustments, electric folding /
unfolding.
Height adjustment.
Fastening. Adjust the steering wheel for height and
reach. Manual adjustments.

3
3
7
13


Interior

FAMILIARISATIO
N
1


SEEING CLEARLY

45 Lighting off.
Sidelamps.

Dipped beam headlamps (green).
Main beam headlamps (blue).
Wiper control stalk

2
fast.
1
normal.
I
intermittent.
0
off.
È
single wipe.

AUTO
, press the stalk down.
AUTO, automatic illumination
of headlamps.
Lighting control stalk
48
Changing bulbs
129
In bad weather or in winter, check that the
lamps are not covered with mud or snow.

9
9
3
4
3
9 Interior
14

DRIVING SAFELY


Emergency or assistance call
This easy to use audio system offers a
map of Europe on SD Card, a Bluetooth
telephone connection and the playing of
MP3 / WMA files. 50, 53
Cruise control / Speed limiter
For the cruise control, he vehicle speed must
be higher than 25 mph (40 km/h) with at least
4th gear engaged
For the speed limiter, the minimum vehicle speed
that can be programmed is 20 mph (30 km/h).
Peugeot Connect Sound (RD5) This system allows an emergency or
assistance call to be sent to the dedicated
PEUGEOT centre.
For more information on the use of this
system, refer to section 9, "Technology on
board".

Peugeot Connect Navigation (RT6)
Fixed speed limiter
52
88


Grip control
This allows the vehicle to make progress in
most conditions of low grip.
