2013 Peugeot 508 Hybrid Owner's Manual - RHD (UK, Australia)

263

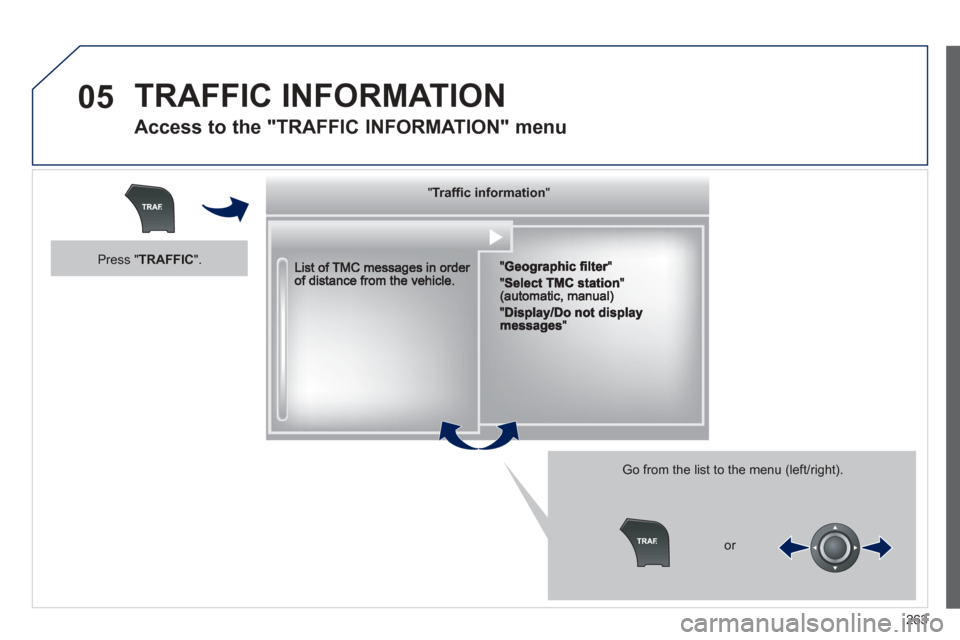

05 TRAFFIC INFORMATION

Access to the "TRAFFIC INFORMATION" menu
Go from the list to the menu (left/right).

"""""""ac o at oTraf fi c informationTraffic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTf fiif tiTf fiif tiTf fiif tiTf fiif ti"""""""
or
Press "TRAFFIC".

264
05

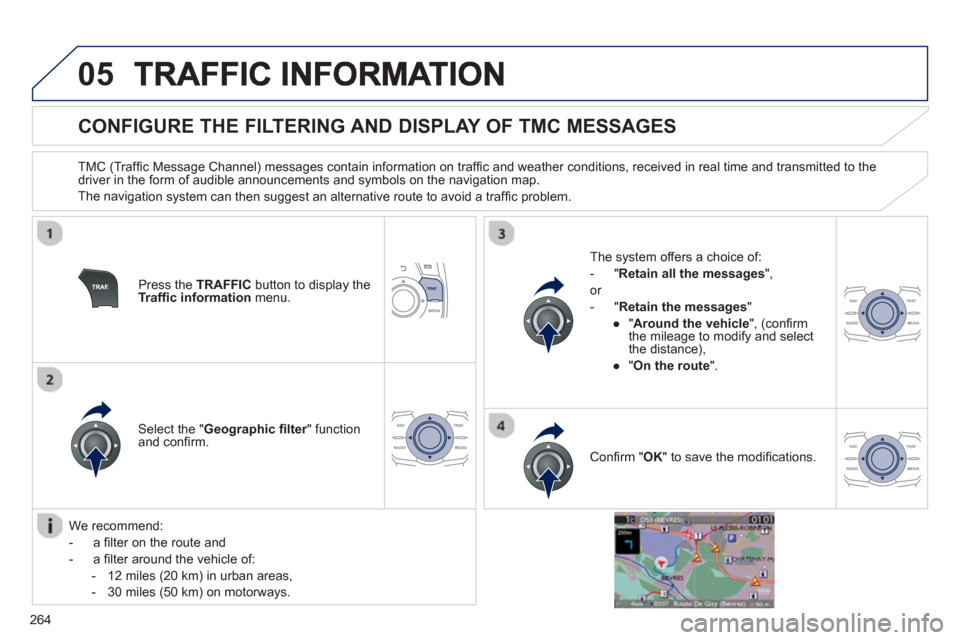

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traf fi c problem.
Pr
ess the TRAFFICbutton to display the Traf fi c information menu.
Select the "Geographic fi lter" function rand con fi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-" Retain the messa
ges"
●
"Around the vehicle
", (con fi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Con fi rm " OK
" to save the modifi cations.

We recommend:
-
a fi lter on the route and
-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

265
05TRAFFIC INFORMATION

PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:

RECEIVING TA MESSAGES

The TA (Traf
fi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traf fi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO to display the "FM / AM
band
" menu.
Select " Guidance options " then confi rm.
Select " Activate / Deactivate TA" thenconfi rm.
The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.
Activate or deactivate the function at an
y time by pressing
the button.

During a message, press the button to interrupt it.

266

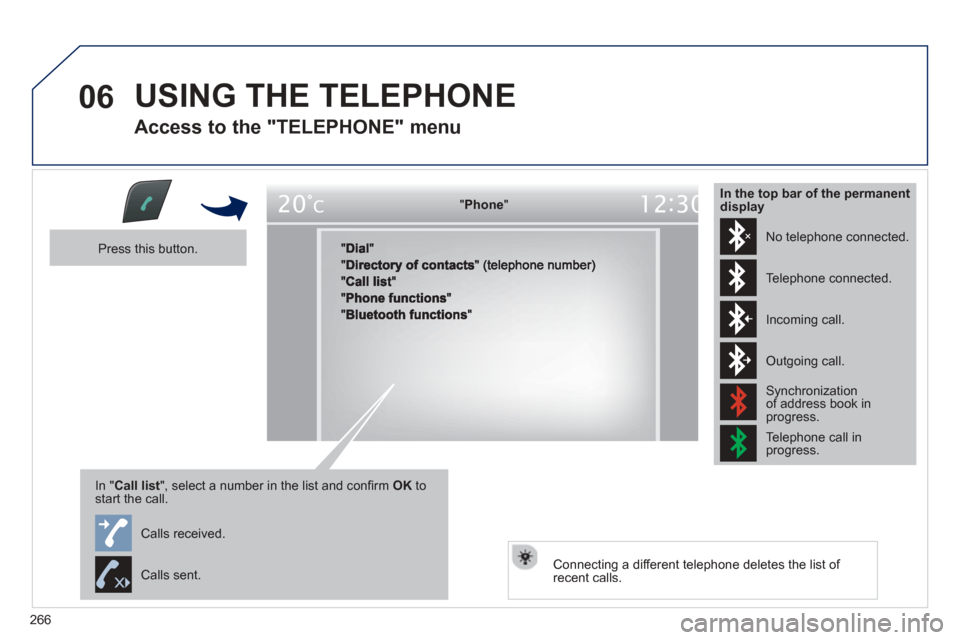

06 USING THE TELEPHONE

Access to the "TELEPHONE" menu
"""""""oePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhPhPhPh"""""""
Press this button.
In "Call list ", select a number in the list and confi rm OK tostart the call.

Connecting a different telephone deletes the list of recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronization of address book in progress.
Telephone call in progress.
In the top bar of the permanentdisplay
Calls received.
Calls sent.

267
06

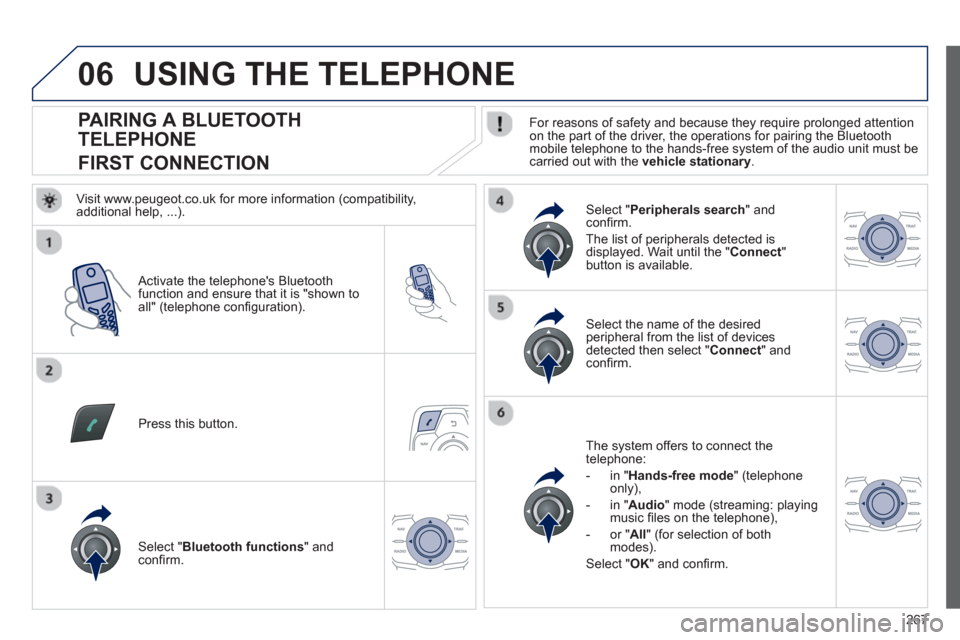

PAIRING A BLUETOOTH
TELEPHONE
FIRST CONNECTION For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must becarried out with the vehicle stationary.
Activate the telephone's Bluetooth
function and ensure that it is "shown to all" (telephone con fi guration).
Pr
ess this button.
Select the name of the desired
peripheral from the list of devicesdetected then select " Connect" andconfi rm.
The s
ystem offers to connect the
telephone:
- in " Hands-free mod
e " (telephone
only),
- in "
Audio " mode (streaming: playing music fi les on the telephone),
-
or "All" (for selection of bothmodes).
Select " OK" and confi rm.
Select " Bluetooth functions " and confi rm.
Select "Peripherals search " andconfi rm.
The list of
peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE
Visit www.peugeot.co.uk for more information (compatibility,
additional help, ...).

268
06
Enter the same code on the telephone then accept
the connection. Then accept automatic connection on the telephone to allow the
telephone to reconnect automaticall
y every time the vehicle is started.

Dependin
g on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.
USING THE TELEPHONE
The "Hands-free mode" should be used in preference if "Streaming" is not desired.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.

The ability o
f the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.

Select a code for the connection then confi rm " OK ".
On return to the vehicle, the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modif
y the automatic connection mode, remove the pairing and pair the telephone again with the desired mode.

269
06
Press this button.
Select " Dial" then confi rm.
Select " Directory of contacts" thenconfi rm.
Dial the telephone number using the
virtual ke
ypad selecting each number
in turn.
Con fi rm " OK " to make the call. Press this button or make lon
g press on
the steering mounted TEL/SRC button.

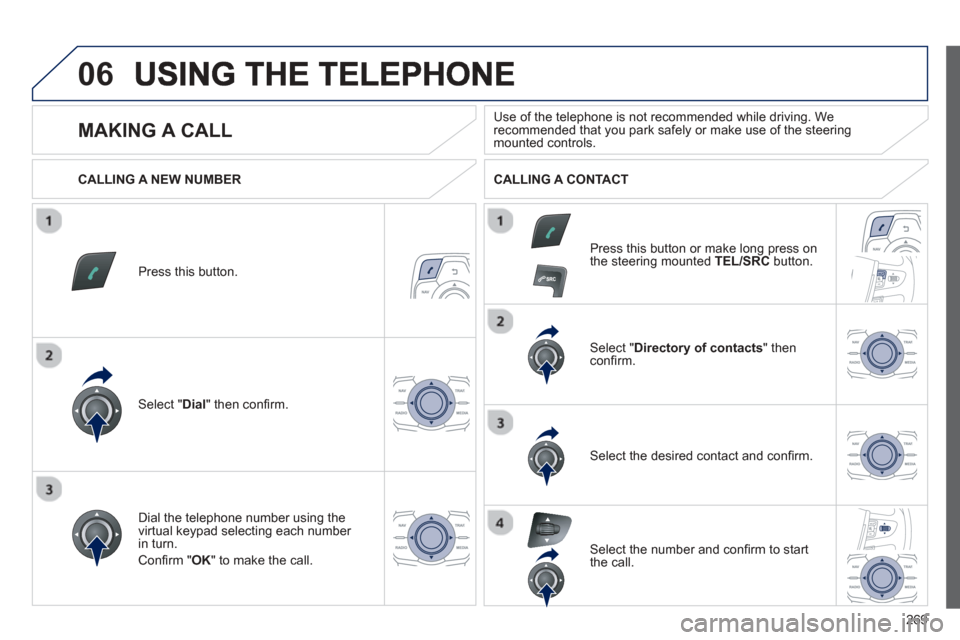

CALLING A NEW NUMBER
CALLING A CONTACT
Select the desired contact and con fi rm.
Select the number and con fi rm to start
the call.

MAKING A CALL Use of the telephone is not recommended while driving. Werecommended that you park safely or make use of the steering mounted controls.

270
06USING THE TELEPHONE

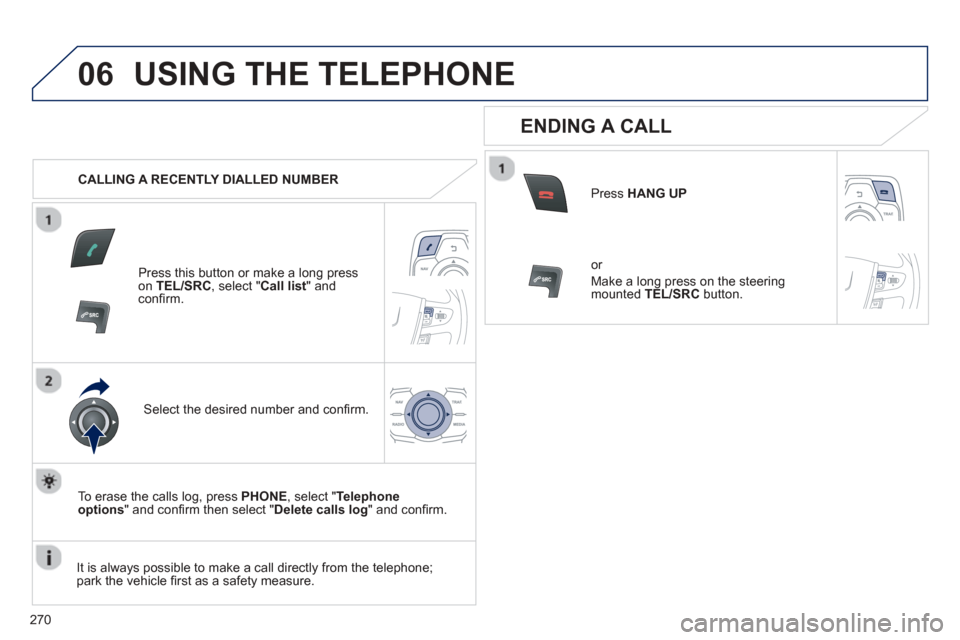

CALLING A RECENTLY DIALLED NUMBER
Press this button or make a long press on TEL/SRC, select "Call list" andconfi rm.
Select the desired number and confi rm.
To erase the calls lo
g, press PHONE , select " Telephoneoptions" and confi rm then select " Delete calls log " and con fi rm.

ENDING A CALL
Press HANG UP
or
Make a long press on the steeringmounted TEL/SRC button.
It is alwa
ys possible to make a call directly from the telephone;
park the vehicle fi rst as a safety measure.
