2013 Peugeot 308 SW BL trip computer

2
CONTENTS
Instrument panels 25
Warning and indicator lamps 29
Indicators 39
Instrument panel buttons 43Ventilation 61
Heating 63
Manual air conditioning 63
Rear screen demist - defrost 65
Dual-zone digital air conditioning 66
Front seats 68
Rear seats 72
Seat modularity 78
Mirrors 80
Steering wheel adjustment 82
COMFORT 61 Î 82
Remote control key 83
Alarm 87
Electric windows 89
Doors 91
Boot 94
Panoramic sunroof 95
Fuel tank 96
Misfuel prevention (Diesel) 97
ACCESS 83 Î 98
Lighting controls 99
LED lamps 101
Daytime running lamps 101
Headlamp adjustment 103
Directional lighting 104
Wiper controls 105
Automatic rain sensitive wipers 107
Courtesy lamps 108
Interior mood lighting 109
Boot lamp 109
VISIBILITY 99 Î 109
Child seats 125
ISOFIX child seats 131
Child lock 136
CHILD
SAFETY 125 Î 136 FAMILIARISATION 4 Î 22
INSTRUMENTS and
CONTROLS 25 Î 44
Screens without audio equipment 45
Screens with audio equipment 47
Retractable colour screen
(Peugeot Connect Navigation (RT6)) 52Retractable colour screen (Peugeot Connect
Media Navigation (NG4 3D)) 54
Trip computer 57
MULTIFUNCTION
SCREENS 45 Î 60
Interior fi ttings 110
Front armrest 113
Boot fi ttings 116
FITTINGS 110 Î 124
7
5
4
3
26
ECO-DRIVING 23 Î 24

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wiper / screenwash / trip computer
control stalk.

4.
Central adjustable air vents.

5.
Multifunction screen.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Passenger's airbag deactivation.

10.
Glove box / Audio/video sockets.

11 .
Storage compartment or instrument
panel navigator associated with
Peugeot Connect Media Navigation
(NG4 3D).

12.
12 V accessory socket.

13.
Front ashtray.

14.
Heating / air conditioning controls.

15.
Open storage.

16.
Audio and telematics system.

17.
Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESP/
ASR) button.
Parking sensors button.
PEUGEOT services button

1INSTRUMENTS and CONTROLS












TYPE 2 INSTRUMENT PANEL

Dials


6.
Central screen.


7.
Control button.

Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

8.
Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.

1.
Rev counter.

Indicates the speed of rotation of
the engine (x 1000 rpm).

2.
Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Small screen.


A.
Trip distance recorder.

(miles or km)

B.
Distance recorder.

(miles or km)

C.
Engine oil level indicator,

service indicator.

(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
section on the button or function
and its associated display. The following functions are displayed
depending on the selection.


- Warning lamps / CHECK.



- Tyre under-infl ation detection.


- Speed limiter / Cruise control.


- Gear shift indicator.


- 6-speed electronic gear control
or automatic gearbox.


- Navigation - Guidance / Trip
computer.


- Alert messages symbol.

1INSTRUMENTS and CONTROLS












TYPE 3 INSTRUMENT PANEL WITH PEUGEOT CONNECT MEDIA
NAVIGATION (NG4 3D)


1.
Rev counter.

Indicates the speed of rotation of
the engine (x 1000 rpm).

2.
Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.

Indicates the current speed of the
moving vehicle (km/h or mph).

5.
Small screen.


A.
Trip distance recorder.

(miles or km)

B.
Distance recorder.

(miles or km).

C.
Engine oil level indicator,

service indicator.

(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed
depending on the selection.


- Warning lamps / CHECK.


- Tyre under-infl ation detection.


- Speed limiter / Cruise control.


- Gear shift indicator.


- 6-speed electronic gear control
or automatic gearbox.


- Navigation - Guidance / Trip
computer.


- Vehicle and screen parameter
settings menus.


- Alert messages.






Dials


Displays

6.
Central screen.


7.
Control button.

Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

8.
Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.

1INSTRUMENTS and CONTROLS

*
According to country.









Instrument panel navigator associated
with the Peugeot Connect Media

Controls
There are four buttons to control the
large central instrument panel screen:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous screen, exit
from the menu.
Main menu


)
Press button 1
for access to the
main menu and select one of the
following functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move on the
screen.

)
Press button 1
again to confi rm the
selection.
The main menu and its associated
functions can only be accessed
when stationary, via buttons 1
to 4
.
A message appears on the cen-
tral screen above a certain speed
threshold, indicating that the main
menu cannot be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2
and 3
(refer to the "Trip
computer" section). This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and of the
parameters of the central screen
(languages, units...),

- while driving
, scrolling of the
active functions (trip computer,
navigation...).


Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- wiper linked with reverse gear
(refer to the "Visibility" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


Choice of language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .

Choice of units
This menu allows you to select the
units: temperature (°Celsius or °Fahr-
enheit) and consumption (l/100 km,
mpg or km/l).

2
45
MULTIFUNCTION SCREENS

Displays in the screen

Depending on the context, displays:


- time,

- date,

- ambient temperature with air condi-
tioning (the value if there is a risk of
ice),

- trip computer,

- alert messages,

- parameter settings menus for the
screen and vehicle equipment.

MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND (RD5))
Controls
Main menu

Three buttons are used to control the
the screen:


- "ESC"
to abandon the operation in
progress,

- "MENU"
to scroll through the menus
or sub-menus,

- "OK"
to select the menu or sub-
menu required.


)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:


- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required.

2
47
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A
Controls

Displays in the screen

Displays according to context:


- time,

- date,

- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),

- audio functions,

- trip computer,

- alert messages,

- screen display and vehicle equip-
ment parameter settings menus.



Main menu



)
Press the "MENU"
button for access
to the main menu
, then press the
"
" or "
" buttons to scroll through
the various menus:


- radio-CD,

- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required. From the control panel of your Peugeot
Connect Sound (RD5), you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or

)
press the "ESC"
button to abandon
the operation in progress.

Radio-CD
With the Peugeot Connect Sound (RD5)
switched on, once the "Radio-CD" menu
has been selected you can activate or
deactivate the functions linked with use
of the radio (RDS, REG), or CD (CD in-
troscan, shuffl e, repeat).
For more information on the "Radio-CD"
application, refer to the Peugeot Connect
Sound (RD5) section.

2MULTIFUNCTION SCREENS

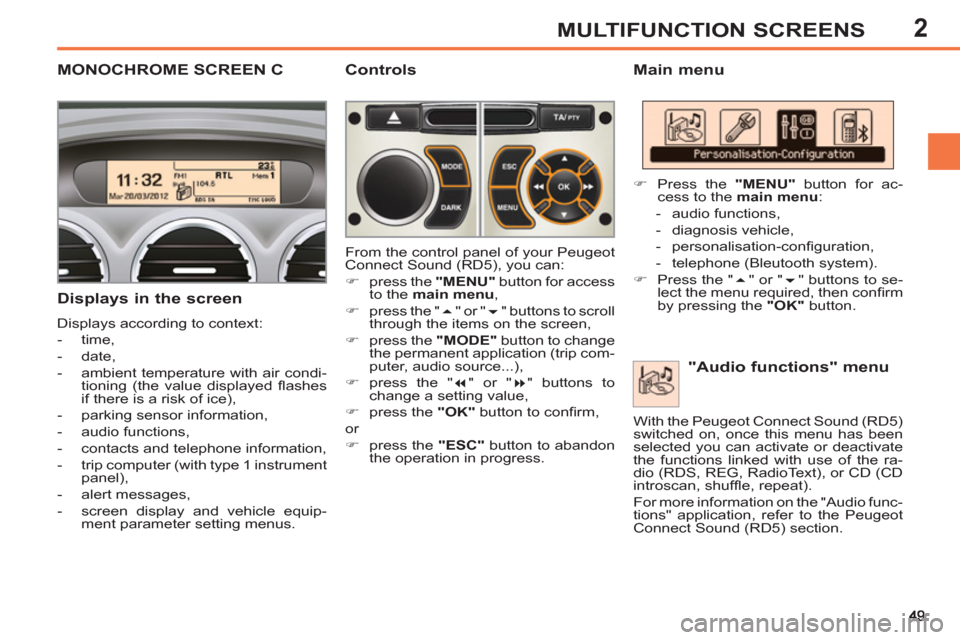

MONOCHROME SCREEN C
Main menu

Displays in the screen

Displays according to context:


- time,

- date,

- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),

- parking sensor information,

- audio functions,

- contacts and telephone information,

- trip computer (with type 1 instrument
panel),

- alert messages,

- screen display and vehicle equip-
ment parameter setting menus.



"Audio functions" menu


Controls

From the control panel of your Peugeot
Connect Sound (RD5), you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or


)
press the "ESC"
button to abandon
the operation in progress.


)
Press the "MENU"
button for ac-
cess to the main menu
:


- audio functions,

- diagnosis vehicle,

- personalisation-confi guration,

- telephone (Bleutooth system).

)
Press the "
" or "
" buttons to se-
lect the menu required, then confi rm
by pressing the "OK"
button.

With the Peugeot Connect Sound (RD5)
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText), or CD (CD
introscan, shuffl e, repeat).
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound (RD5) section.
