MULTIFUNCTION SCREENS






Monochrome screen A



)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession. The trip computer provides the follow-
ing information:

Information displays

- range,

- current fuel consumption,

- Stop & Start time counter,

- distance travelled,

- average fuel consumption,
)
The next press then returns you to
the normal display.


- average speed.
Zero reset


)
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.



TRIP COMPUTER


System that gives you information on
the journey in progress (range, fuel con-
sumption…).

2
58
MULTIFUNCTION SCREENS

Display of information


)
Press the up and down arrows on
the instrument panel navigator
, as-
sociated with Peugeot Connect Me-
dia Navigation (NG4 3D), to cycle
through the information.

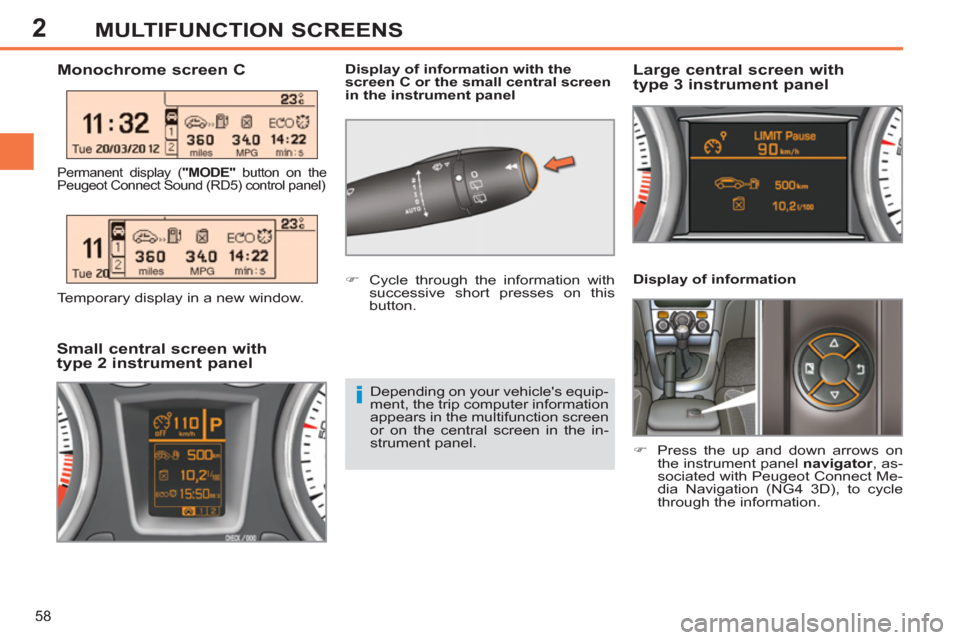

Monochrome screen C

Display of information with the
screen C or the small central screen
in the instrument panel
Large central screen with
type 3 instrument panel

Small central screen with
type 2 instrument panel

Depending on your vehicle's equip-
ment, the trip computer information
appears in the multifunction screen
or on the central screen in the in-
strument panel.




)
Cycle through the information with
successive short presses on this
button.


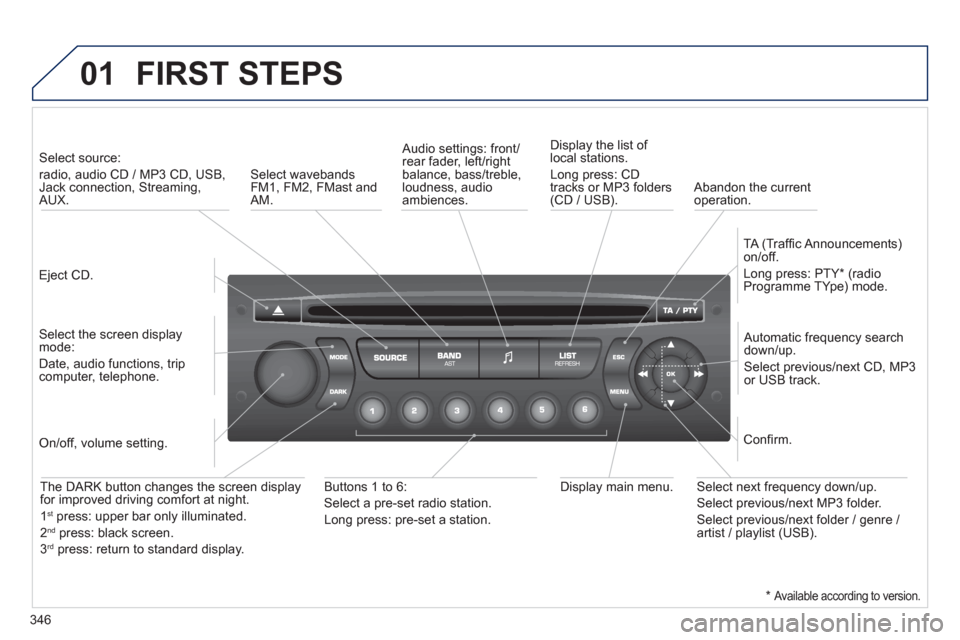

Permanent display ( "MODE"
button on the
Peugeot Connect Sound (RD5) control panel)
Temporary display in a new window.

2
59
MULTIFUNCTION SCREENS


- The trip "2"
tab with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.


- The current information tab,
for the trip in use, with:


●
the range,

●

the current fuel consumption,

●
the distance remaining to
be travelled or the Stop &
Start counter.



- The trip "1"
tab with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed.

Trip zero reset


)
When the trip required is displayed,
press the button on the end of the
wiper stalk
for more than two sec-
onds.

)
When the required trip is displayed,
press the "OK"
button on the instru-
ment panel navigator
, associated with
Peugeot Connect Media Navigation
NG4 3D), for more than two seconds.



With the instrument panel
large central
screen


Trips "1"
and "2"
are independent
but their use is identical.
For example, trip "1"
can be used
for daily fi gures, and trip "2"
for
monthly fi gures.
The trip computer can display:

With the monochrome screen C or
the instrument panel small screen

2MULTIFUNCTION SCREENS






A few definitions
(trip computer)
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer
or a qualifi ed workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.








Stop & Start time counter
(minutes / seconds or hours /
minutes)
If your vehicle is fi tted with
Stop & Start, a time counter calculates
the time spent in STOP mode during a
journey.
It resets to zero every time the ignition
is switched on with the key.
