INSTRUMENTS and CONTROLS

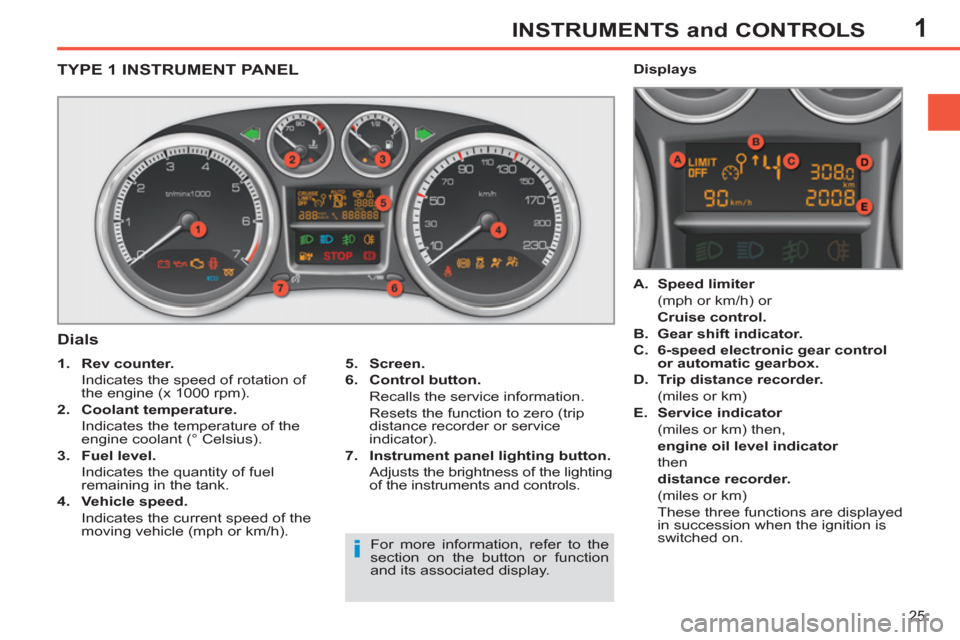

TYPE 1 INSTRUMENT PANEL

Dials


5.
Screen.


6.
Control button.

Recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

7.
Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.

1.
Rev counter.

Indicates the speed of rotation of
the engine (x 1000 rpm).

2.
Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.

Indicates the current speed of the
moving vehicle (mph or km/h).

A.
Speed limiter

(mph or km/h) or
Cruise control.


B.
Gear shift indicator.


C.
6-speed electronic gear control
or automatic gearbox.


D.
Trip distance recorder.

(miles or km)

E.
Service indicator

(miles or km) then,
engine oil level indicator

then
distance recorder.

(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.


Displays
For more information, refer to the
section on the button or function
and its associated display.

1INSTRUMENTS and CONTROLS












TYPE 2 INSTRUMENT PANEL

Dials


6.
Central screen.


7.
Control button.

Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

8.
Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.

1.
Rev counter.

Indicates the speed of rotation of
the engine (x 1000 rpm).

2.
Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Small screen.


A.
Trip distance recorder.

(miles or km)

B.
Distance recorder.

(miles or km)

C.
Engine oil level indicator,

service indicator.

(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
section on the button or function
and its associated display. The following functions are displayed
depending on the selection.


- Warning lamps / CHECK.



- Tyre under-infl ation detection.


- Speed limiter / Cruise control.


- Gear shift indicator.


- 6-speed electronic gear control
or automatic gearbox.


- Navigation - Guidance / Trip
computer.


- Alert messages symbol.

1INSTRUMENTS and CONTROLS












TYPE 3 INSTRUMENT PANEL WITH PEUGEOT CONNECT MEDIA
NAVIGATION (NG4 3D)


1.
Rev counter.

Indicates the speed of rotation of
the engine (x 1000 rpm).

2.
Coolant temperature.

Indicates the temperature of the
engine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel
remaining in the tank.

4.
Vehicle speed.

Indicates the current speed of the
moving vehicle (km/h or mph).

5.
Small screen.


A.
Trip distance recorder.

(miles or km)

B.
Distance recorder.

(miles or km).

C.
Engine oil level indicator,

service indicator.

(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed
depending on the selection.


- Warning lamps / CHECK.


- Tyre under-infl ation detection.


- Speed limiter / Cruise control.


- Gear shift indicator.


- 6-speed electronic gear control
or automatic gearbox.


- Navigation - Guidance / Trip
computer.


- Vehicle and screen parameter
settings menus.


- Alert messages.






Dials


Displays

6.
Central screen.


7.
Control button.

Starts a manual CHECK and
recalls the service information.
Resets the function to zero (trip
distance recorder or service
indicator).

8.
Instrument panel lighting button.

Adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
section on the button or function
and its associated display.

1
30
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action / Observations






STOP


fi xed, alone
or associated
with another
warning lamp,
accompanied
by an audible
signal and a
message in
the screen. Illumination of this warning
lamp is associated with a
serious braking system,
power steering, engine
lubrication or cooling
system malfunction or a
punctured tyre. Stop as soon as it is safe to do so as there is a
risk that the engine will cut out while driving.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.





Braking


fi xed,
associated
with the STOP
warning lamp. The braking system fl uid
level is too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer or a qualifi ed workshop.

+


fi xed, associated
with the STOP
and ABS
warning lamp.
The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.




Maximum
coolant
temperature


fi xed with the
needle in the
red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or a qualifi ed workshop.

1
39
INSTRUMENTS and CONTROLS












Coolant temperature indicator

With the engine running, when the nee-
dle is:


- in zone A
, the temperature is
correct,

- in zone B
, the temperature is
too high; the max temperature
warning lamp 1
and the central
STOP
warning lamp come on,
accompanied by an audible signal
and a message in the screen.

You must stop as soon as it is safe
to do so.

Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a quali-
fi ed workshop. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:


)
wait for the engine to cool,

)
unscrew the cap by two turns to
allow the pressure to drop,

)
when the pressure has dropped,
remove the cap,

)
top up the level to the "MAX" mark.

10
172
CHECKS
PETROL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery / Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10
173
CHECKS
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

*
According to engine.

10
174
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

Brake fluid level


On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may oper-
ate after the vehicle has been switched
off, even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop. When the pressure has dropped,
remove the cap and top up the level.

Oil level

The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
This manual check will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only
be valid 30 minutes after topping up. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.


Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level.
Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

It is normal to top up the oil level
between services. PEUGEOT re-
commends that you check the oil
level and top up if necessary every
3 000 miles (5 000 kilometres).
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Changing the coolant
The coolant does not have to be changed.


Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the
fan. This can operate with the ignition
off.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).
Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.
