2013 Peugeot 308 SW BL start stop button

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Cruise control / speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake lever.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Bonnet release.

11 .
Door mirror controls.
Electric window controls.

12.
Fusebox.

13.
Manual headlamp height
adjustment.
Stop & Start button.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

20
FAMILIARISATION

Stop & Start

Going into engine STOP mode
Going into engine START mode
Deactivation / Activation DRIVING
SAFELY




161
You can deactivate the system at any
time by pressing "ECO OFF"
; the warn-
ing lamp in the button comes on.
The "ECO"
warning lamp comes on
in the instrument panel and the en-
gine automatically goes into standby: The "ECO"
warning lamp goes
off and the engine restarts au-
tomatically:


- with a manual gearbox
; when you
fully
depress the clutch pedal,

- with a 6-speed electronic gear
control gearbox;



●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal release, when you
move to position A
or M
,

●
or when you engage reverse.


- with a manual gearbox
; at speeds
below 12 mph (20 km/h), put the
gear lever into neutral, then release
the clutch pedal,

- with a 6-speed electronic gear
control gearbox
; at speeds below
5 mph (8 km/h), when you press
the brake pedal or move the gear
lever to position N
.
In certain circumstances, STOP mode
may not be available; the "ECO" warn-
ing lamp fl ashes for a few seconds,
then goes off.



160
If you change gear without com-
pletely declutching, the engine will
not restart automatically. An alert
message is displayed to encour-
age you to fully depress the clutch
pedal.



161
The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition with the key. In certain circumstances, START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.

2
57
MULTIFUNCTION SCREENS






Monochrome screen A



)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession. The trip computer provides the follow-
ing information:

Information displays

- range,

- current fuel consumption,

- Stop & Start time counter,

- distance travelled,

- average fuel consumption,
)
The next press then returns you to
the normal display.


- average speed.
Zero reset


)
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.



TRIP COMPUTER


System that gives you information on
the journey in progress (range, fuel con-
sumption…).

2
59
MULTIFUNCTION SCREENS


- The trip "2"
tab with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.


- The current information tab,
for the trip in use, with:


●
the range,

●

the current fuel consumption,

●
the distance remaining to
be travelled or the Stop &
Start counter.



- The trip "1"
tab with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed.

Trip zero reset


)
When the trip required is displayed,
press the button on the end of the
wiper stalk
for more than two sec-
onds.

)
When the required trip is displayed,
press the "OK"
button on the instru-
ment panel navigator
, associated with
Peugeot Connect Media Navigation
NG4 3D), for more than two seconds.



With the instrument panel
large central
screen


Trips "1"
and "2"
are independent
but their use is identical.
For example, trip "1"
can be used
for daily fi gures, and trip "2"
for
monthly fi gures.
The trip computer can display:

With the monochrome screen C or
the instrument panel small screen

3

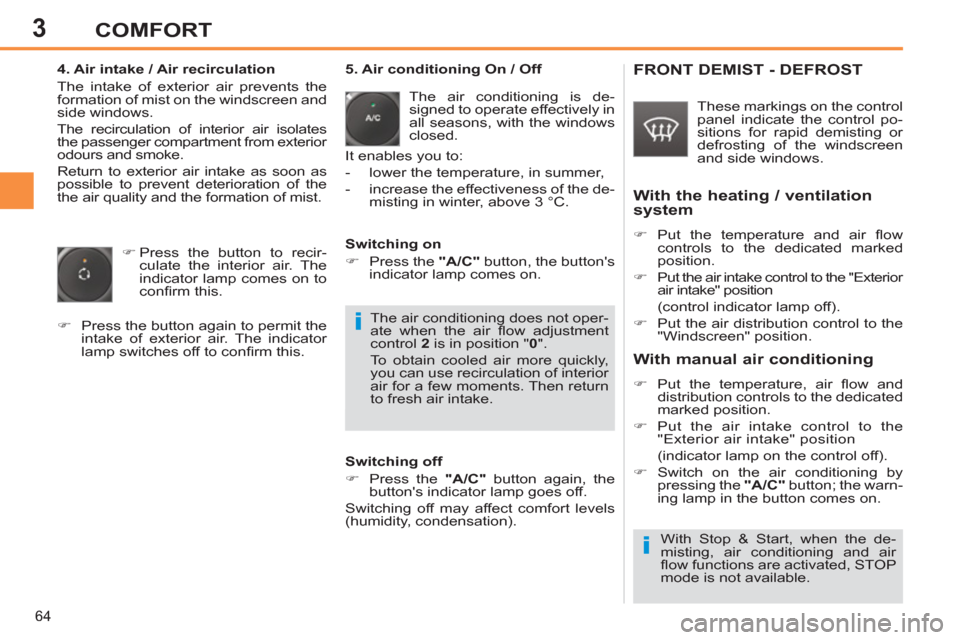

64
COMFORT

4. Air intake / Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air isolates
the passenger compartment from exterior
odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
the air quality and the formation of mist.


)
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
confi rm this.

)
Press the button again to permit the
intake of exterior air. The indicator
lamp switches off to confi rm this.



5. Air conditioning On / Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the de-
misting in winter, above 3 °C.


Switching off


)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).

Switching on


)
Press the "A/C"
button, the button's
indicator lamp comes on.
FRONT DEMIST - DEFROST


These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.


With the heating / ventilation
system


)
Put the temperature and air fl ow
controls to the dedicated marked
position.

)
Put the air intake control to the "Exterior
air intake" position
(control indicator lamp off).

)
Put the air distribution control to the
"Windscreen" position.



With manual air conditioning



)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.

)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

)
Switch on the air conditioning by
pressing the "A/C"
button; the warn-
ing lamp in the button comes on.
The air conditioning does not oper-
ate when the air fl ow adjustment
control 2
is in position " 0
".
To obtain cooled air more quickly,
you can use recirculation of interior
air for a few moments. Then return
to fresh air intake.

With Stop & Start, when the de-
misting, air conditioning and air
fl ow functions are activated, STOP
mode is not available.

3
66
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.


)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left / right
setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice, etc.).

Automatic operation



)
Press the "AUTO"
button.
The indicator lamp in the
button comes on.
2. Driver's side adjustment
DUAL-ZONE DIGITAL
AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.


)
To switch it off, press the "visibility"

button again or press the "AUTO"

button, the indicator lamp in the but-
ton goes off and the indicator lamp
in the "AUTO"
button comes on.


1. Automatic comfort programme
3. Passenger side adjustment


)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.






With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.

4
86
ACCESS














Lost keys

Visit a PEUGEOT dealer with the vehicle's registration document, your per-
sonal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transpond-
er code required to order a new key.







Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collection
point.

Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact
causing airbag deployment.
As a safety precaution (with children on board), remove the key from the igni-
tion switch when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.

9

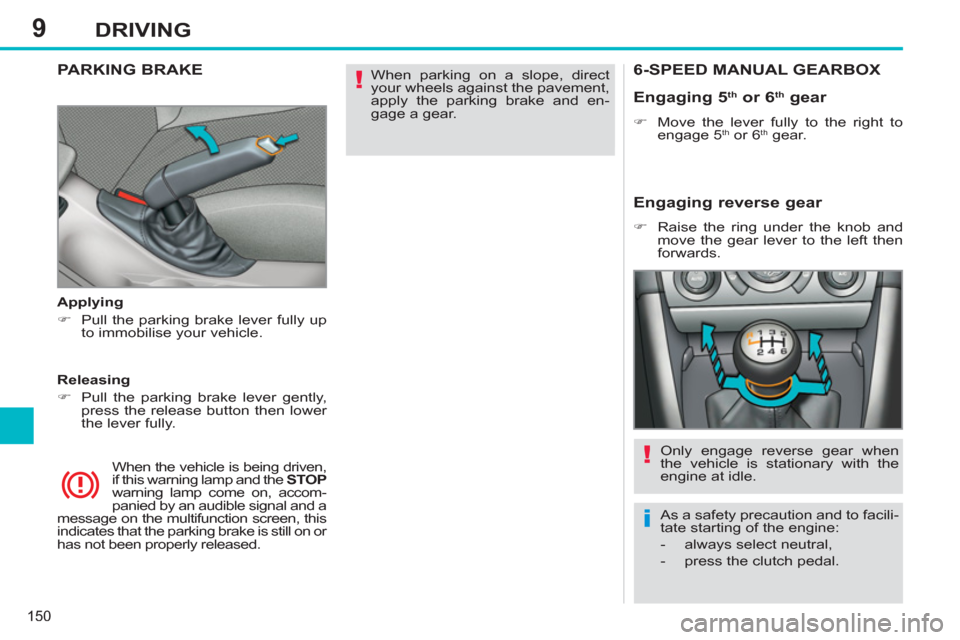

150
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and en-
gage a gear.
PARKING BRAKE


Applying


)
Pull the parking brake lever fully up
to immobilise your vehicle.

When the vehicle is being driven,
if this warning lamp and the STOP

warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on or
has not been properly released.
Releasing


)
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX

Engaging 5
th
or 6 th
gear



)
Move the lever fully to the right to
engage 5 th or 6 th
gear.



Engaging reverse gear



)
Raise the ring under the knob and
move the gear lever to the left then
forwards.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
As a safety precaution and to facili-
tate starting of the engine:


- always select neutral,

- press the clutch pedal.
