2013 Peugeot 308 SW BL engine coolant

11
204
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Fuse N°



Rating


Functions



F1



20 A

Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).


F2



15 A

Horn.


F3



10 A

Front / rear wash-wipe.


F4



20 A

Headlamp wash.


F5



15 A

Canister purge, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP),
oil vapour heater (1.6 litre THP), Diesel heater
(1.6 litre HDI).


F6



10 A

Vehicle speed sensor, ABS/ESP control unit.


F7



10 A

Power steering control unit, automatic gearbox,
engine coolant level detector.


F8



25 A

Starter motor control.


F9



10 A

Diagnostic socket, directional headlamps, air fl ow
sensor (Diesel), particle emission fi lter pump
(Diesel).


F10



30 A

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40 A

Air conditioning blower.
Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
205
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



30 A

Windscreen wipers slow / fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



30 A

Air pump.


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Oil vapour heater (1.4 litre and 1.6 litre VTi),
canister purge electrovalve (1.4 litre
and 1.6 litre VTi), oxygen sensors (petrol),
air cooling electrovalves (Diesel).


F20



10 A

Electronic thermostat, variable timing electrovalves,
airfl ow sensor (1.6 litre THP 200),Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F21



5 A

Fan assembly relay supply, Valvetronic relay
control (1.4 litre and 1.6 litre VTi ), Turbo cooling
(1.6 litre THP), Valvetronic motor (1.6 litre
THP 200), air fl ow sensor (1.6 litre HDI).

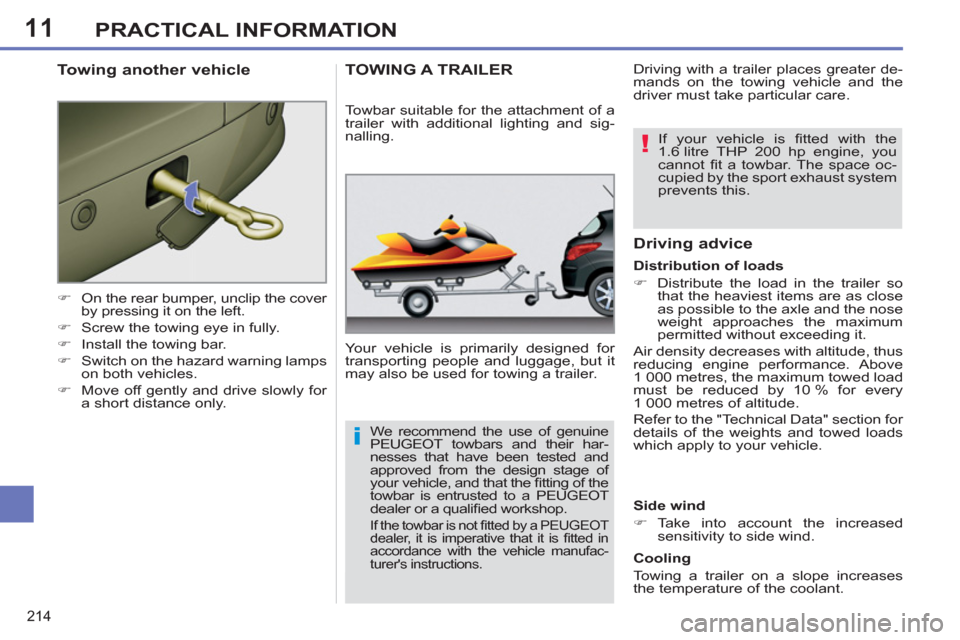

11
214
PRACTICAL INFORMATION


)
On the rear bumper, unclip the cover
by pressing it on the left.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on both vehicles.

)
Move off gently and drive slowly for
a short distance only.



Towing another vehicle TOWING A TRAILER

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Driving advice


Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
Towbar suitable for the attachment of a
trailer with additional lighting and sig-
nalling.

Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
your vehicle, and that the fi tting of the
towbar is entrusted to a PEUGEOT
dealer or a qualifi ed workshop.

If the towbar is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted in
accordance with the vehicle manufac-
turer's instructions.

If your vehicle is fi tted with the
1.6 litre THP 200 hp engine, you
cannot fi t a towbar. The space oc-
cupied by the sport exhaust system
prevents this.

371
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE


Running out of fuel, Diesel ............... 171

Checking levels .........................174-175


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid

- additive (Diesel with particle
emissions fi lter)


Changing bulbs..........................194-200


- front

- rear


Opening the bonnet .......................... 170
Under the bonnet, petrol ................... 172
Under the bonnet, Diesel .................. 173
Petrol engines............................219-227
Diesel engines ...........................228-239
Dimensions ....................................... 240
Identifi cation markings ...................... 241

Battery .......................................207-209
Energy economy mode..................... 210

Checking components ...............176-177


- air fi lter

- passenger compartment fi lter

- oil fi lter

- particle emissions fi lter (Diesel)

- brake pads / discs


Engine
compartment fuses ............201, 204-206

372
ALPHABETICAL INDEX
ABS and EBFD systems......................139Accessories..........................................217Accessory socket, 12V.................112,123Access to the 3rd row.............................74Additional seats......................................76Adjusting headlamps....................103,104Adjusting head restraints ........................70Adjusting seat belt height .............141,143Adjusting the steering wheel..................82Airbag, knee.................................147,149Airbags, curtain............................148,149Airbags, front ................................146,149Airbags, lateral.............................148,149Air conditioning.......................................23Air conditioning, digital.....................62,66Air conditioning, manual ...................62,63Air filter.................................................r176Air flow....................................................23Air vents.................................................61Alarm ......................................................87Alert / warning log............................49,52Anti-lock braking system (ABS) ............139Anti-pinch..........................................89,95Anti-theft.................................................84Armrest, front ........................................113Armrest, rear........................................r115Ashtray.................................................112Assistance call..............................139,244Athermic windscreen ............................111Audible warning....................................137Audio/video sockets .............................274Audio streaming (Bluetooth).........330,357Audio systems........................................56Automatic illumination
of headlamps ....................99, 102,103
Backup starting.....................................208Battery..................................176, 207-209Battery, charging..........................207, 209Battery, remote control.....................85, 86Blind for panoramic sunroof...................f95Blinds....................................................124Bluetooth(hands-free).............275-277,314, 355Bluetooth (telephone)...........275-277, 314Bonnet..................................................170Bonnet stay..........................................170Boot........................................................94Boot lamp.....................................109, 124Boot storage trays................................118Brake discs...........................................177Brake lamps.................................197, 199Brake pads...........................................177Brakes..................................................177Braking assistance system...................139
Changing a wheel.........................187, 189Changing a wiper blade ...............107,211Changing the remote control battery......85CHECK...................................................43Checking levels ............................174, 175Checking the engine oil level .................42Checking tyre pressures (using the kit) ...................................178Checks.........................172, 173, 176, 177Child lock..............................................136Children ................................128, 133-135Child seats..........................125, 127, 130Child seats, conventional .....................127Closing the boot...............................83,94Closing the doors.............................83,91Cold climate screen ..............................215Colour screen, retractable ..........52,54,56Connectors, audio ................112, 352, 354Control for panoramic sunroof blind.......95Coolant level ...................................39, 174Coolant temperature indicator................r39Courtesy lamps....................................108Courtesy mirror.....................................r111Cruise control .......................................165Cup holder............................................r110
Automatic operationof hazard warning lamps .................137Automatic rain sensitive windscreen
wipers.......................................105, 107Auxiliary sockets ..........274, 331,352, 354
A
B
Capacity, fuel tank..................................96CD MP3................................................351Central locking..................................83, 92Changing a bulb..........194,197,199, 200Changing a fuse ...................................201
CDate (setting) .................45,47,49,52,54
Daytime running lamps........101, 194, 195Deactivating the passenger airbag.......146Deadlocking............................................84Defrosting ...............................................65Dials and gauges...............................25-27Diesel additive level..............................175
D

375
ALPHABETICAL INDEX
Radio...........................269, 323, 324,349RCA sockets .................................274,331Reading lamps, rear.............................r108Rear foglamp................................197,199Rear screen (demisting).........................65Recharging the battery.................207,209Reduction of electrical load..................210Reinitialising the electric windows..........89Reinitialising the remote control.............85Remote control.................................83,86Removable screen (snow shield) .........215Removing a wheel ................................192Removing the mat................................114Repair kit, puncture......................178,184Replacing bulbs...........194, 197, 199,200Replacing fuses....................................201Replacing the air filter..........................r176Replacing the oil filter...........................r176Replacing the particle emission filter....176Replacing the passenger compartment filter............................r176Replacing wiper blades................107,211Resetting the service indicator...............r41Resetting the trip recorder......................r43Rev counter.......................................r25-27Reversing lamp ............................197,199Risk areas (update)......................265,302Roof bars..............................................216Routine checks .............................176,177Running out of fuel (Diesel)..................171
Safety for children..........................89, 136Screen, colour 16/9 ......................253, 280Screen, colour and mapping........295, 334Screen, monochrome..........348,358, 360Screen, monochrome C.........................58Screen, multifunction (with audio equipment) ................47, 49, 52, 54, 56Screen, multifunction (without audio equipment).........................................45Screen-wash reservoir.........................r174Screen menu map .......280,334,358, 360Screenwash, front ................................106Screenwash fluid level..................106, 174Seat adjustment...............................68, 69Seat belts....................127,141,143, 145Seat configurations .................................78Seats, electric .........................................69Seats, rear..................................r72, 74, 76Serial number, vehicle..........................241Service indicator.....................................r40Servicing.................................................23Setting the clock ............45, 47, 49, 52, 54Short-cut menus...........................254, 296Sidelamps......99, 101,194,195,197, 199Side repeater........................................r195SIM card...............................................278Ski flap..................................................115Snow chains.........................................241Spare wheel .................................187, 189Spectacles storage...............................110Speed limiter........................................r163Speedometer.....................................r25-27Stability control (ESP)..........................140Start ......................................................208Starting the vehicle................85,153, 157
Steering mounted controls, audio ........................................252, 347Stopping the vehicle..............85, 153, 157Stop & Start ......................60, 66, 96, 160,170, 176, 207Storage..........110,113, 115, 116,118, 121Storage box ..................................113, 121Storage drawer.....................................r114Storage wells........................................116Storing driving positions .........................71Stowing rings........................116,118, 121Sun visor......................................r111, 124Synchronising the remote control ...........85Synthesiser, voice................................308System, navigation .......................258, 298Systems, ASR and ESP.......................140
R
SProtectingchildren............125, 128, 133-135,146Puncture .......................................178,184
Table of weights............................219, 228Table position.............................70,74,76Tables, aircraft......................................115Tables of engines.........................219, 228Ta bles of fuses.....................................201Tank, fuel ................................................98Te chnical data.....................219, 228, 240Telephone............. 245, 275-277, 314, 318Telephone, hands-free...................275-277Temperature, coolant..............................39Temperature control for heated seats....71Temporary tyre repair kit......................178Third brake lamp..........................197, 200TMC (Traffic info)..........................267,311Toll/car park cards................................111To ols.............................................187, 189
T
