2013 NISSAN TITAN Quick Reference Guide

Quick RefeRence Guide
2013
TiTAn

*See your Owner’s Manual for information.
HeAd LiGHT And Tu Rn S iG nAL c OnTROL
V e H icL e inf ORMAT iOn diSPLAY
LOW T iRe PRe SSuRe WARnin G LiGHT
W ind SHieL d W iPeR / WASHeR SW iT c H
STee Rin G WH eeL SW iTc HeS fOR
A udi O c OnTROL* / BLueTOOTH
® cR
uiSe cOn TROL
c ARGO LAMP SW iTc H*
ST eeRin G WHeeL T iLT AdJu STMen T*
P ed AL POS iTiOn Ad Ju STM enT SW iTc H*
R eAR SO nAR SYSTe M Off SW iTc H* HOO
d ReLeAS e*
cOn TROL PA neL diSPLAY*
A uTOMATic c LiMATe c OnTROLS
4-WH eeL d RiVe (4Wd) SH ifT SWiTc H*
f RO nT PASS enGeR Ai R BAG
STATu S LiGHT* e-LO
ck SW iTc H*
TOW MOde SWiTcH*
Ve Hic Le d YnAM ic cOnTROL
(Vdc) O ff SWiTc H*
H eATed S eAT SWiTc HeS*
0102030405
0607080910
11 12131415
16 171819
01
02
04
03
12
14
13
15
05
06
09
08
07
1011
16
17
18
19
19Behind shift lever
Behind
steering wheel

TABLe Of cOnTenTS
NEW SYSTEM FEATURES
u SB/iPod® interface (if so equipped) .............................. 2
ESSENTIAL INFORMATION
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 3
Tire Pressure Monitoring System (TPMS) ...........................3
Wide Open door (king cab models only) .......................... 4
FIRST D RIvE FEATURES
Remote k eyless entry System (if so equipped) ...................... 5
Opening the Tailgate ............................................ 5
Power Seat Adjustments (if so equipped) ...........................5
Automatic drive Positioner (if so equipped) ......................... 6
Outside Mirror control Switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 6
Starting/Stopping the engine ..................................... 6

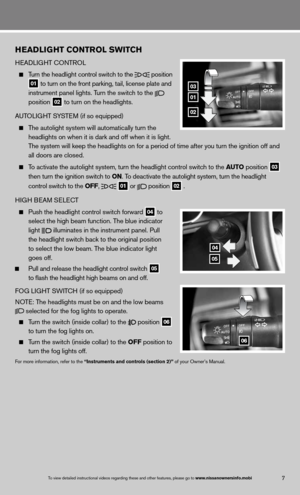

Headlight control Switch ........................................ 7

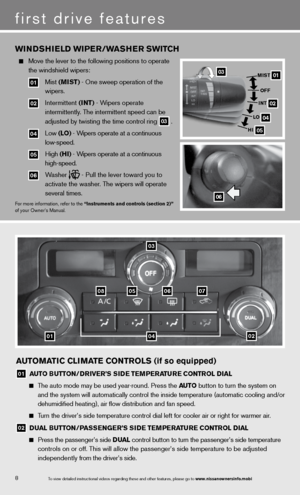

Windshield Wiper/Washer Switch ................................. 8

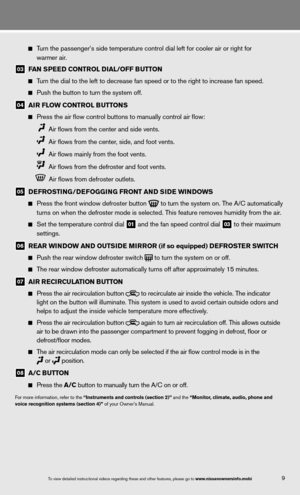

Automatic climate controls (if so equipped) ........................ 8

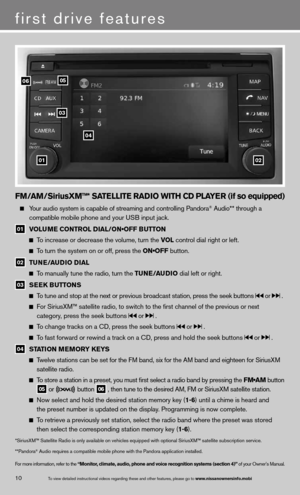

f M/AM/SiriusXM™ Satellite Radio with cd Player (if so equipped) .... 10

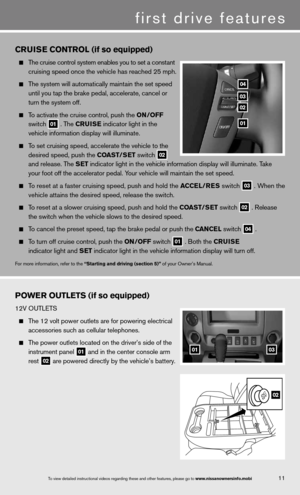

cruise control (if so equipped) .................................. 11

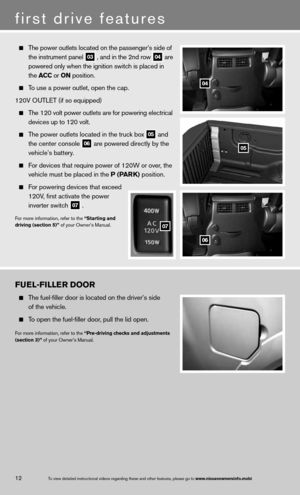

Power Outlets (if so equipped) .................................. 11
fuel-filler door ................................................ 12

S YSTEM GUIDE

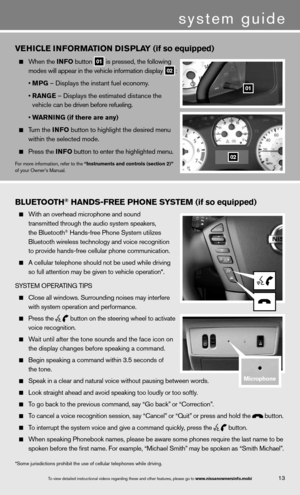

Vehicle information display (if so equipped) ........................13
Bluetooth
® Hands-free Phone System (if so equipped) ...............13
System Operating Tips ...................................... 13
Bluetooth

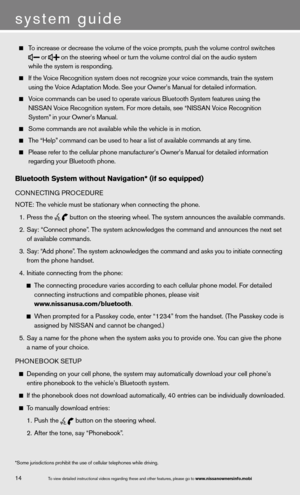

® System without navigation (if so equipped) . . . . . . . . . . .14
Bluetooth® System with navigation (if so equipped) ..............15

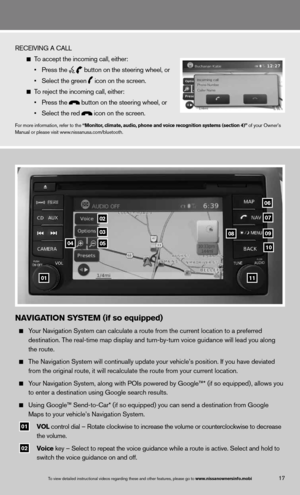

navigation System (if so equipped) ...............................17
HomeLink
® universal Transceiver (if so equipped) ...................18
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, “Monitor, climate, audio,
phone and voice recognition systems (section 4)” and the “Starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/titan or snap this barcode with an appropriate barcode reader.

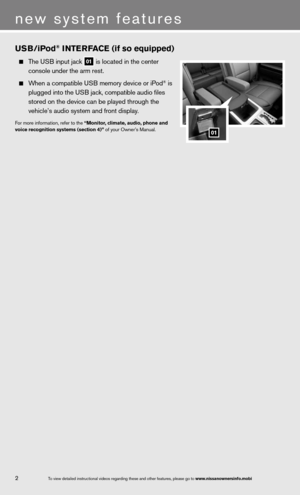

USB/iPod® INTERFACE (if so equipped)
The u SB input jack 01 is located in the center

console under the arm rest.

When a compatible u SB memory device or iPod® is
plugged into the u SB jack, compatible audio files
stored on the device can be played through the
vehicle’s audio system and front display.
for more information, refer to the “Monitor, climate, audio, phone and
voice recognition systems (section 4)” of your Owner’s Manual.
2
new system features
01
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi

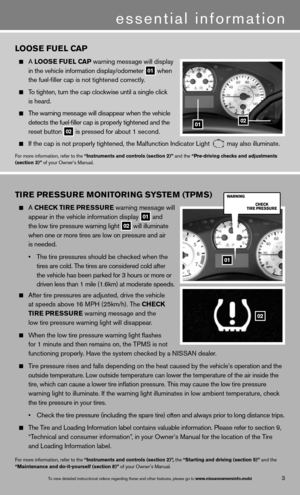

TIRE PRESSURE MONITORING SYSTEM (TPMS)
A ChEC k TIRE PRESSURE warning message will

appear in the vehicle information display
01 and
the low tire pressure warning light 02 will illuminate
when one or more tires are low on pressure and air
is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mile (1.6km) at moderate speeds.

After tire pressures are adjusted, drive the vehicle
at speeds above 16 MPH (25km/h). The Ch ECk
TIRE PRESSURE warning message and the
low tire pressure warning light will disappear.

When the low tire pressure warning light flashes
for 1 minute and then remains on, the TPMS is not
functioning properly. Have the system checked by a ni SSAn dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. if the warning light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior to long distance trips.

The Tire and Loading information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire
and Loading information label.
for more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will display
in the vehicle information display/odometer

01 when
the fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed for about 1 second.

if the cap is not properly tightened, the Malfunction indicator Light may also illuminate.
f
or more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
02
3
essential information
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi
0102
01

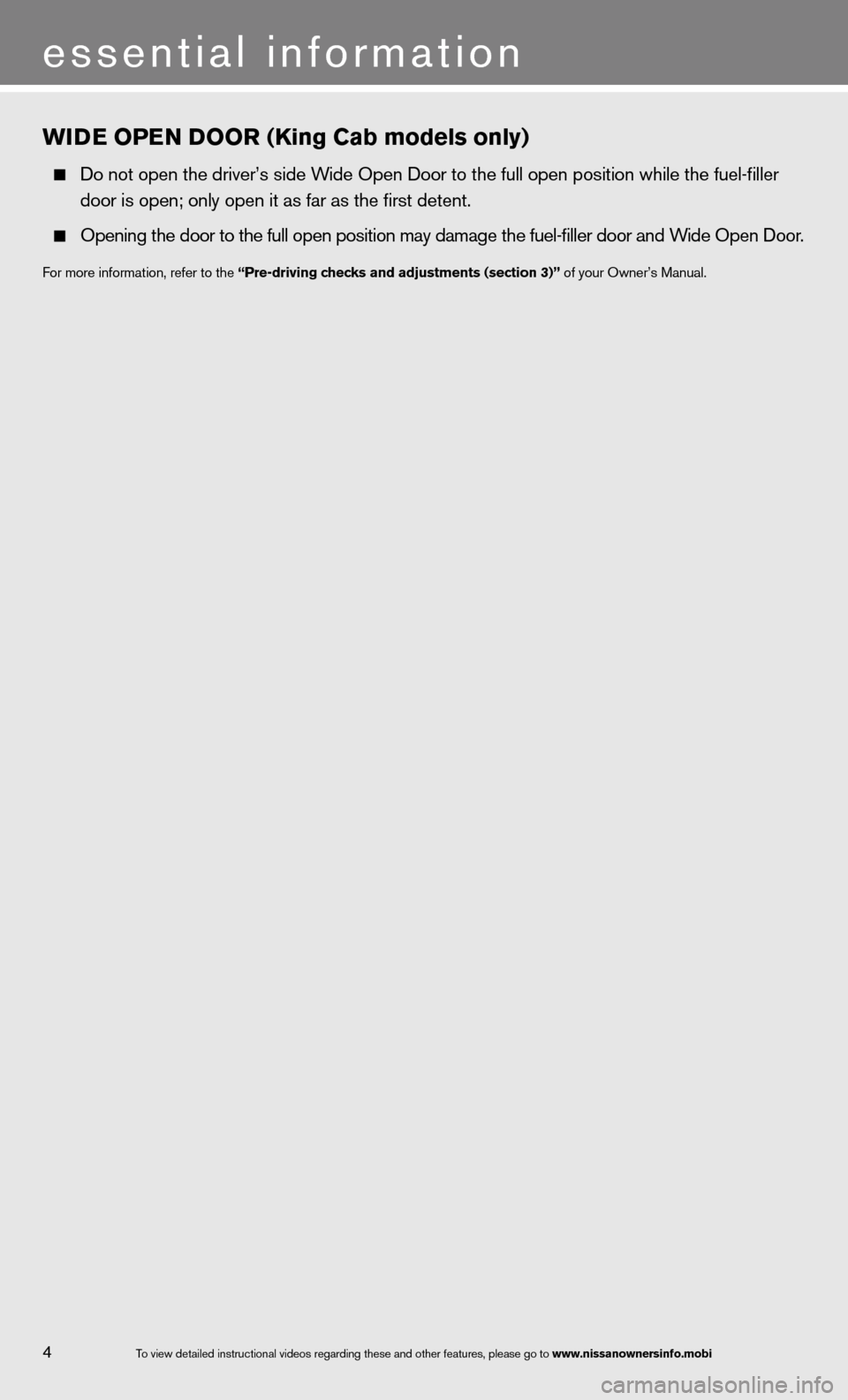

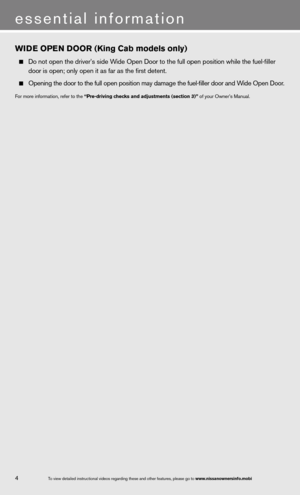

WIDE OPEN DOOR (king Cab models only)
do not open the driver’s side Wide Open door to the full open position while the fuel-filler
door is open; only open it as far as the first detent.

Opening the door to the full open position may damage the fuel-filler \
door and Wide Open door.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
4To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi
essential information

OPENING ThE TAILGATE
Pull the tailgate handle
01 upward and lower the
tailgate. Support cables hold the tailgate open.
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
POWER SEAT ADJUSTMENTS (if so equipped)
To slide the seat forward or backward, push the
control switch

01 forward or backward.

To adjust the angle of the seatback, push the switch


02 forward or backward.
SeAT LifTe R (if so equipped for driver’s seat)

To adjust the angle and height of the seat cushion,
push the front or rear end of the switch

01 up or down.
MAnu AL LuMBAR S uPPORT (if so equipped for driver’s seat)

To adjust the lumbar area, move the lever
03 up or down.
f
or more information, refer to the “Safety –– Seats, seat belts and supplemental restraint system (section 1)”\
of your
Owner’s Manual.
REMOTE k EYLESS ENTRY SYSTEM (if so equipped)
The Remote k eyless entry System allows you to lock or
unlock your vehicle and turn on the interior lights.

To lock the vehicle, press the
button on your keyfob.


To unlock the driver’s door, press the
button on
your keyfob.

Press the
button again within 5 seconds and all
doors will unlock.
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
0102
03
5
first drive features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi

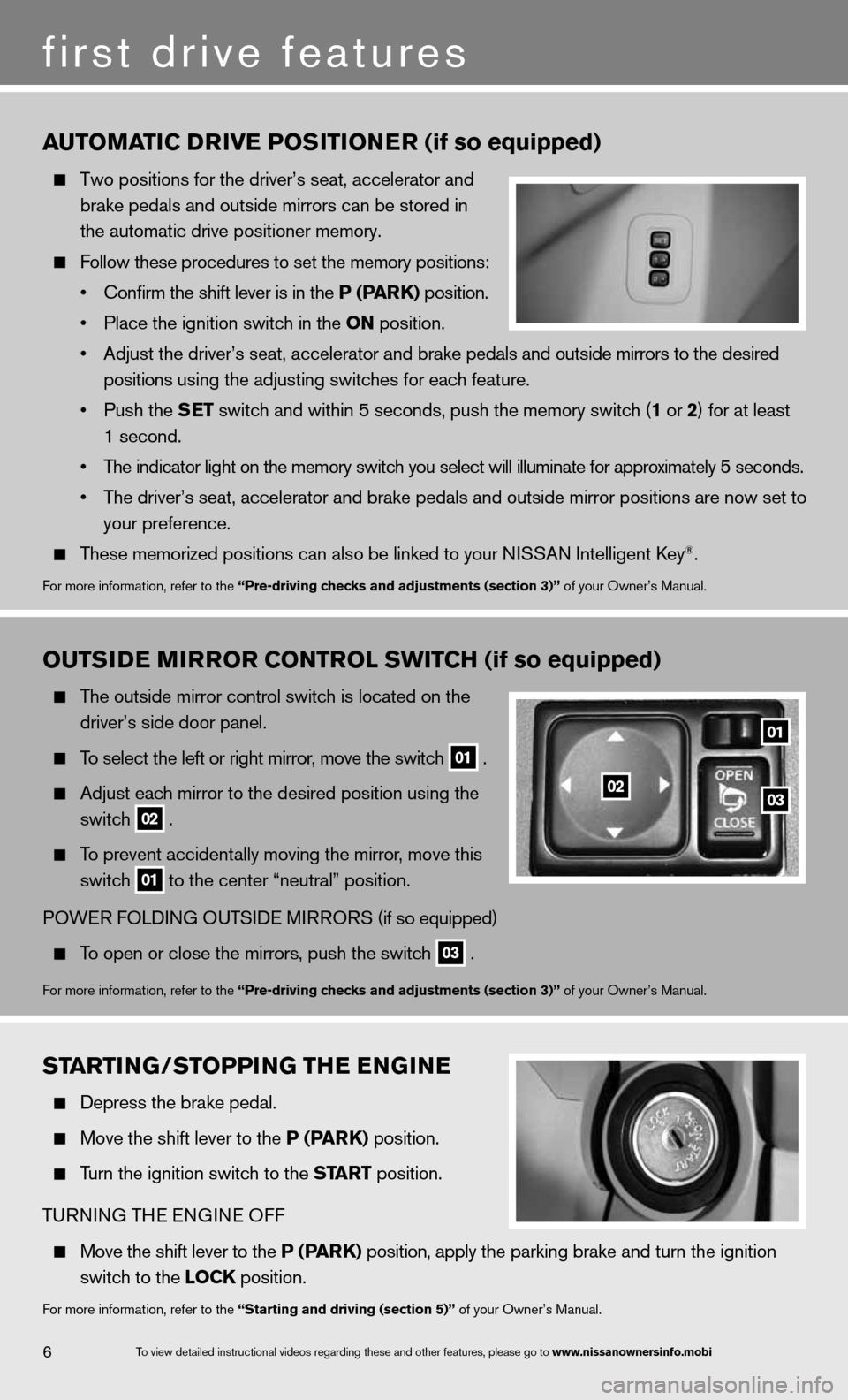

STARTING/STOPPING ThE ENGINE
depress the brake pedal.

Move the shift lever to the P (PAR k) position.

Turn the ignition switch to the START position.
T uRnin G THe enGine Off

Move the shift lever to the P (PAR k) position, apply the parking brake and turn the ignition
switch to the LOCk position.
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
6
first drive features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi
OUTSIDE MIRROR CONTROL SWITCh (if so equipped)
The outside mirror control switch is located on the
driver’s side door panel.

To select the left or right mirror, move the switch
01 .

Adjust each mirror to the desired position using the
switch

02 .

To prevent accidentally moving the mirror, move this
switch

01 to the center “neutral” position.
POW eR fOLdin G OuTSide M iRRORS (if so equipped)

To open or close the mirrors, push the switch
03 .
f
or more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
02
01
0203
AUTOMATIC DRIvE POSITIONER (if so equipped)
Two positions for the driver’s seat, accelerator and
brake pedals and outside mirrors can be stored in
the automatic drive positioner memory.

follow these procedures to set the memory positions:
• Confirm the shift lever is in the P (PAR k) position.
• Place the ignition switch in the ON position.
• Adjust the driver’s seat, accelerator and brake pedals and outside mirrors to the desired
positions using the adjusting switches for each feature.
• Push the SET switch and within 5 seconds, push the memory switch (1 or 2) for at least
1 second.
• The indicator light on the memory switch you select will illuminate for approximately 5 seconds.
• The driver’s seat, accelerator and brake pedals and outside mirror positions are now set to
your preference.

These memorized positions can also be linked to your ni SSAn intelligent key®.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
