2013 NISSAN TITAN Owners Manual

WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION
●Do not tow a trailer or haul a heavy load
for the first 500 miles (800 km) . Your
engine, axle or other parts could be
damaged.
● For the first 500 miles (800 km) that you
tow a trailer, do not drive over 50 mph
(80 km/h) and do not make starts at full
throttle. This helps the engine and other
parts of your vehicle wear in at the
heavier loads.
Your new vehicle was designed to be used pri-
marily to carry passengers and cargo. Remember
that towing a trailer places additional loads on
your vehicle’s engine, drive train, steering, brak-
ing and other systems.
A NISSAN Towing Guide (U.S. only) is available
on the website at www.nissanusa.com. This
guide includes information on trailer towing ca-
pability and the special equipment required for
proper towing.

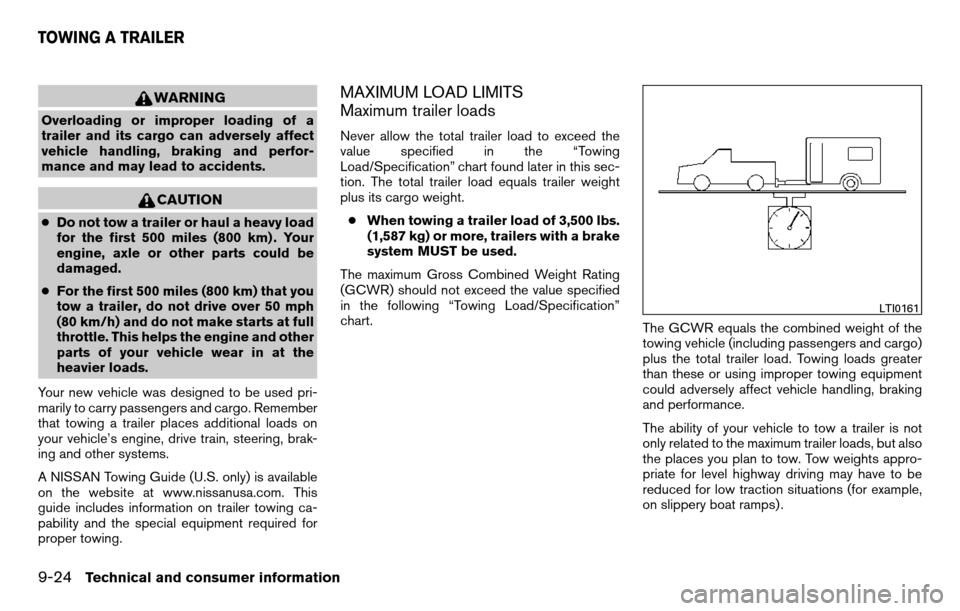

MAXIMUM LOAD LIMITS
Maximum trailer loads
Never allow the total trailer load to exceed the
value specified in the “Towing
Load/Specification” chart found later in this sec-
tion. The total trailer load equals trailer weight
plus its cargo weight. ● When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used.
The maximum Gross Combined Weight Rating
(GCWR) should not exceed the value specified
in the following “Towing Load/Specification”
chart. The GCWR equals the combined weight of the
towing vehicle (including passengers and cargo)
plus the total trailer load. Towing loads greater
than these or using improper towing equipment
could adversely affect vehicle handling, braking
and performance.
The ability of your vehicle to tow a trailer is not
only related to the maximum trailer loads, but also
the places you plan to tow. Tow weights appro-
priate for level highway driving may have to be
reduced for low traction situations (for example,
on slippery boat ramps) .
LTI0161
TOWING A TRAILER
9-24Technical and consumer information

Temperature conditions can also affect towing.
For example, towing a heavy trailer in high outside
temperatures on graded roads can affect engine
performance and cause overheating. The engine
protection mode, which helps reduce the chance
of engine damage, could activate and automati-
cally decrease engine power. Vehicle speed may
decrease under high load. Plan your trip carefully
to account for trailer and vehicle load, weather
and road conditions.
WARNING
Overheating can result in reduced engine
power and vehicle speed. The reduced
speed may be lower than other traffic,
which could increase the chance of a col-
lision. Be especially careful when driving.
If the vehicle cannot maintain a safe driv-
ing speed, pull to the side of the road in a
safe area. Allow the engine to cool and
return to normal operation. See “If your
vehicle overheats” in the “In case of emer-
gency” section of this manual.
CAUTION
Vehicle damage resulting from improper
towing procedures is not covered by
NISSAN warranties.

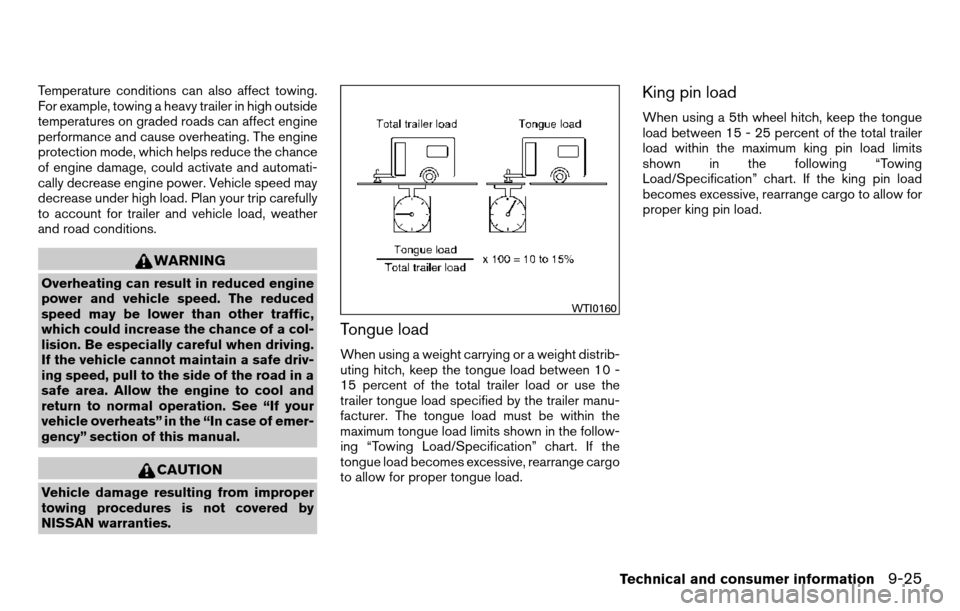

Tongue load
When using a weight carrying or a weight distrib-
uting hitch, keep the tongue load between 10 -
15 percent of the total trailer load or use the
trailer tongue load specified by the trailer manu-
facturer. The tongue load must be within the
maximum tongue load limits shown in the follow-
ing “Towing Load/Specification” chart. If the
tongue load becomes excessive, rearrange cargo
to allow for proper tongue load.
King pin load
When using a 5th wheel hitch, keep the tongue
load between 15 - 25 percent of the total trailer
load within the maximum king pin load limits
shown in the following “Towing
Load/Specification” chart. If the king pin load
becomes excessive, rearrange cargo to allow for
proper king pin load.
WTI0160
Technical and consumer information9-25

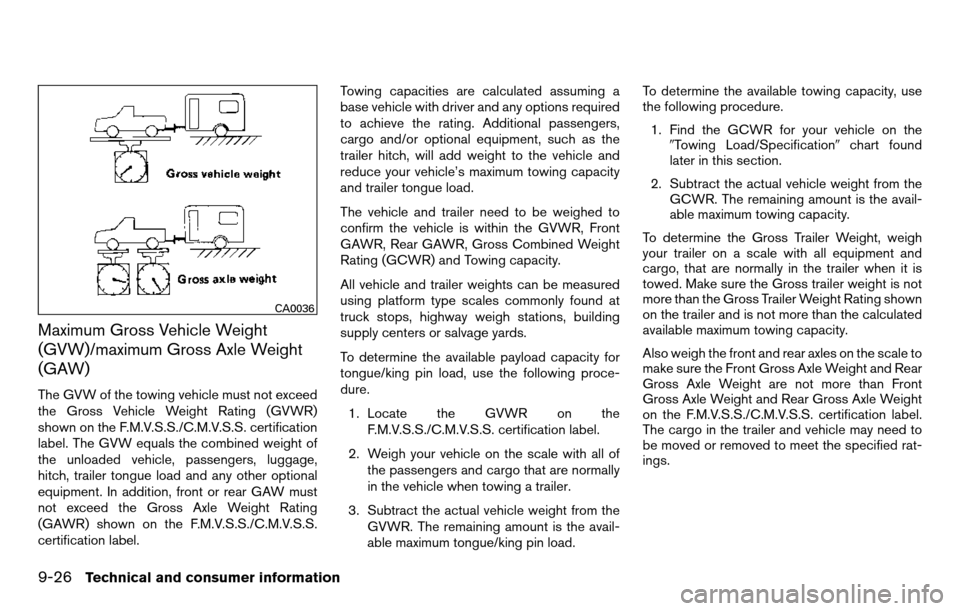

Maximum Gross Vehicle Weight
(GVW)/maximum Gross Axle Weight
(GAW)
The GVW of the towing vehicle must not exceed
the Gross Vehicle Weight Rating (GVWR)
shown on the F.M.V.S.S./C.M.V.S.S. certification
label. The GVW equals the combined weight of
the unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other optional
equipment. In addition, front or rear GAW must
not exceed the Gross Axle Weight Rating
(GAWR) shown on the F.M.V.S.S./C.M.V.S.S.
certification label.Towing capacities are calculated assuming a
base vehicle with driver and any options required
to achieve the rating. Additional passengers,
cargo and/or optional equipment, such as the
trailer hitch, will add weight to the vehicle and
reduce your vehicle’s maximum towing capacity
and trailer tongue load.
The vehicle and trailer need to be weighed to
confirm the vehicle is within the GVWR, Front
GAWR, Rear GAWR, Gross Combined Weight
Rating (GCWR) and Towing capacity.
All vehicle and trailer weights can be measured
using platform type scales commonly found at
truck stops, highway weigh stations, building
supply centers or salvage yards.
To determine the available payload capacity for
tongue/king pin load, use the following proce-
dure.
1. Locate the GVWR on the F.M.V.S.S./C.M.V.S.S. certification label.
2. Weigh your vehicle on the scale with all of the passengers and cargo that are normally
in the vehicle when towing a trailer.
3. Subtract the actual vehicle weight from the GVWR. The remaining amount is the avail-
able maximum tongue/king pin load. To determine the available towing capacity, use
the following procedure.
1. Find the GCWR for your vehicle on the Towing Load/Specification chart found
later in this section.
2. Subtract the actual vehicle weight from the GCWR. The remaining amount is the avail-
able maximum towing capacity.
To determine the Gross Trailer Weight, weigh
your trailer on a scale with all equipment and
cargo, that are normally in the trailer when it is
towed. Make sure the Gross trailer weight is not
more than the Gross Trailer Weight Rating shown
on the trailer and is not more than the calculated
available maximum towing capacity.
Also weigh the front and rear axles on the scale to
make sure the Front Gross Axle Weight and Rear
Gross Axle Weight are not more than Front
Gross Axle Weight and Rear Gross Axle Weight
on the F.M.V.S.S./C.M.V.S.S. certification label.
The cargo in the trailer and vehicle may need to
be moved or removed to meet the specified rat-
ings.
CA0036
9-26Technical and consumer information

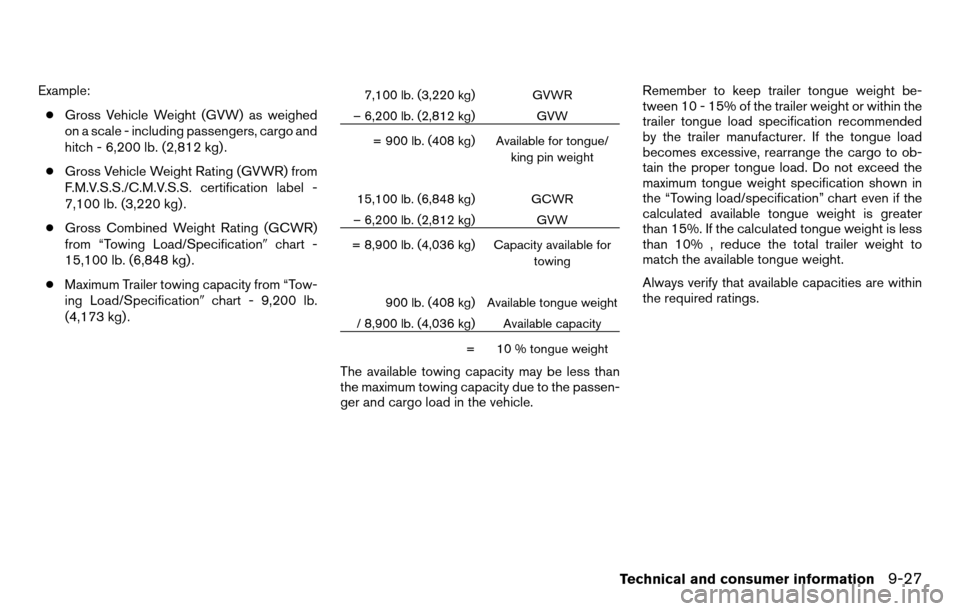

Example:● Gross Vehicle Weight (GVW) as weighed
on a scale - including passengers, cargo and
hitch - 6,200 lb. (2,812 kg) .
● Gross Vehicle Weight Rating (GVWR) from
F.M.V.S.S./C.M.V.S.S. certification label -
7,100 lb. (3,220 kg) .
● Gross Combined Weight Rating (GCWR)
from “Towing Load/Specification chart -
15,100 lb. (6,848 kg) .
● Maximum Trailer towing capacity from “Tow-
ing Load/Specification chart - 9,200 lb.
(4,173 kg) .7,100 lb. (3,220 kg) GVWR
– 6,200 lb. (2,812 kg) GVW
= 900 lb. (408 kg) Available for tongue/ king pin weight
15,100 lb. (6,848 kg) GCWR
– 6,200 lb. (2,812 kg) GVW
= 8,900 lb. (4,036 kg) Capacity available for towing
900 lb. (408 kg) Available tongue weight
/ 8,900 lb. (4,036 kg) Available capacity
= 10 % tongue weight
The available towing capacity may be less than
the maximum towing capacity due to the passen-
ger and cargo load in the vehicle. Remember to keep trailer tongue weight be-
tween 10 - 15% of the trailer weight or within the
trailer tongue load specification recommended
by the trailer manufacturer. If the tongue load
becomes excessive, rearrange the cargo to ob-
tain the proper tongue load. Do not exceed the
maximum tongue weight specification shown in
the “Towing load/specification” chart even if the
calculated available tongue weight is greater
than 15%. If the calculated tongue weight is less
than 10% , reduce the total trailer weight to
match the available tongue weight.
Always verify that available capacities are within
the required ratings.
Technical and consumer information9-27

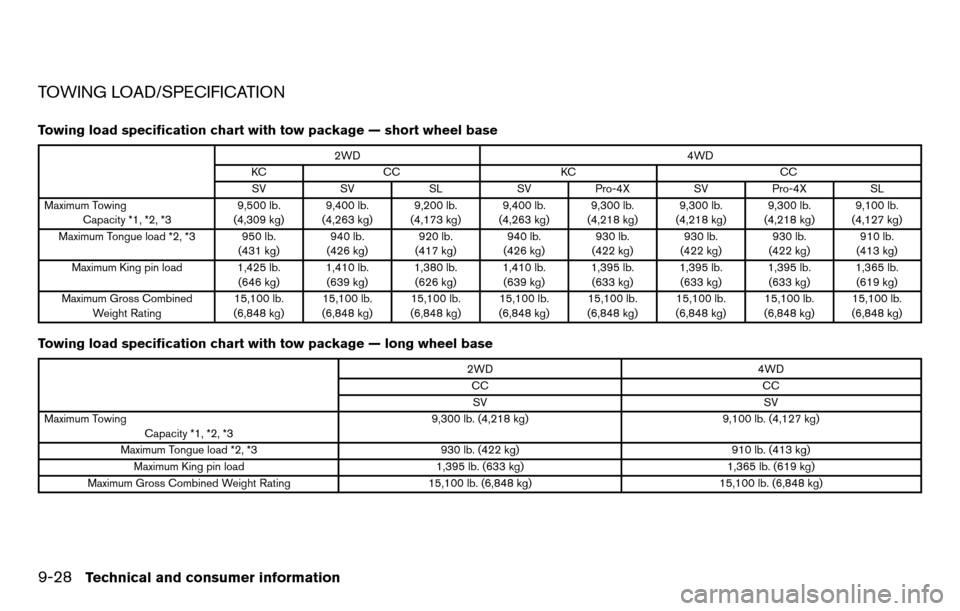

TOWING LOAD/SPECIFICATION
Towing load specification chart with tow package — short wheel base
2WD4WD
KC CC KC CC
SV SV SLSVPro-4X SVPro-4X SL
Maximum Towing Capacity *1, *2, *3 9,500 lb.
(4,309 kg) 9,400 lb.
(4,263 kg) 9,200 lb.
(4,173 kg) 9,400 lb.
(4,263 kg) 9,300 lb.
(4,218 kg) 9,300 lb.
(4,218 kg) 9,300 lb.
(4,218 kg) 9,100 lb.
(4,127 kg)
Maximum Tongue load *2, *3 950 lb. (431 kg)940 lb.
(426 kg) 920 lb.
(417 kg) 940 lb.
(426 kg) 930 lb.
(422 kg) 930 lb.
(422 kg) 930 lb.
(422 kg) 910 lb.
(413 kg)
Maximum King pin load 1,425 lb. (646 kg)1,410 lb.
(639 kg) 1,380 lb.
(626 kg) 1,410 lb.
(639 kg) 1,395 lb.
(633 kg) 1,395 lb.
(633 kg) 1,395 lb.
(633 kg) 1,365 lb.
(619 kg)
Maximum Gross Combined Weight Rating 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg) 15,100 lb.
(6,848 kg)
Towing load specification chart with tow package — long wheel base
2WD 4WD
CC CC
SV SV
Maximum Towing Capacity *1, *2, *3 9,300 lb. (4,218 kg)
9,100 lb. (4,127 kg)
Maximum Tongue load *2, *3 930 lb. (422 kg)910 lb. (413 kg)
Maximum King pin load 1,395 lb. (633 kg)1,365 lb. (619 kg)
Maximum Gross Combined Weight Rating 15,100 lb. (6,848 kg)15,100 lb. (6,848 kg)
9-28Technical and consumer information

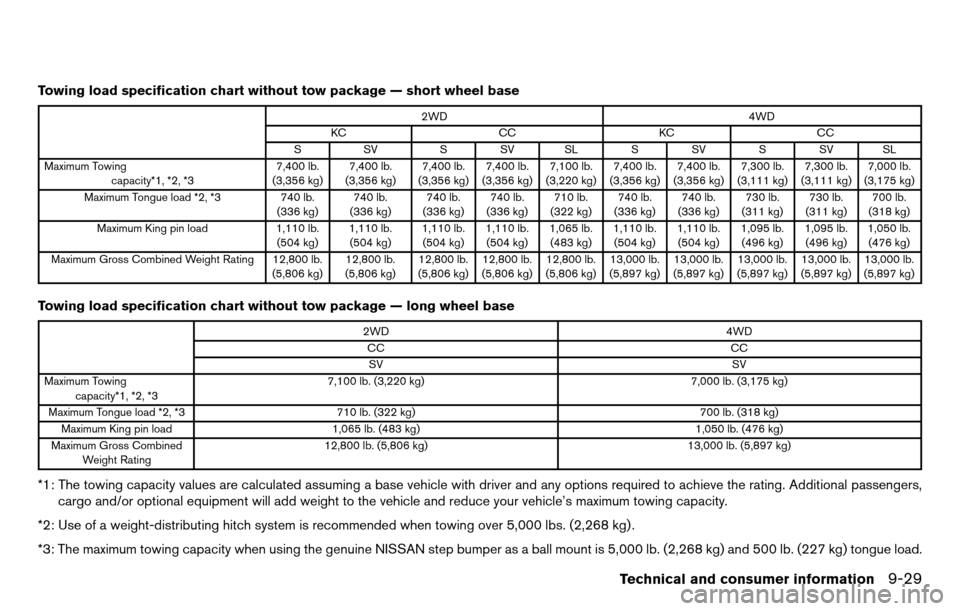

Towing load specification chart without tow package — short wheel base
2WD4WD
KC CCKCCC
S SV S SV SL S SV S SV SL
Maximum Towing capacity*1, *2, *3 7,400 lb.
(3,356 kg) 7,400 lb.
(3,356 kg) 7,400 lb.
(3,356 kg) 7,400 lb.
(3,356 kg) 7,100 lb.
(3,220 kg) 7,400 lb.
(3,356 kg) 7,400 lb.
(3,356 kg) 7,300 lb.
(3,111 kg) 7,300 lb.
(3,111 kg) 7,000 lb.
(3,175 kg)
Maximum Tongue load *2, *3 740 lb.
(336 kg) 740 lb.
(336 kg) 740 lb.
(336 kg) 740 lb.
(336 kg) 710 lb.
(322 kg) 740 lb.
(336 kg) 740 lb.
(336 kg) 730 lb.
(311 kg) 730 lb.
(311 kg) 700 lb.
(318 kg)
Maximum King pin load 1,110 lb.
(504 kg) 1,110 lb.
(504 kg) 1,110 lb.
(504 kg) 1,110 lb.
(504 kg) 1,065 lb.
(483 kg) 1,110 lb.
(504 kg) 1,110 lb.
(504 kg) 1,095 lb.
(496 kg) 1,095 lb.
(496 kg) 1,050 lb.
(476 kg)
Maximum Gross Combined Weight Rating 12,800 lb. (5,806 kg)12,800 lb.
(5,806 kg) 12,800 lb.
(5,806 kg) 12,800 lb.
(5,806 kg) 12,800 lb.
(5,806 kg) 13,000 lb.
(5,897 kg) 13,000 lb.
(5,897 kg) 13,000 lb.
(5,897 kg) 13,000 lb.
(5,897 kg) 13,000 lb.
(5,897 kg)
Towing load specification chart without tow package — long wheel base
2WD 4WD
CC CC
SV SV
Maximum Towing capacity*1, *2, *3 7,100 lb. (3,220 kg)
7,000 lb. (3,175 kg)
Maximum Tongue load *2, *3 710 lb. (322 kg) 700 lb. (318 kg)
Maximum King pin load 1,065 lb. (483 kg) 1,050 lb. (476 kg)
Maximum Gross Combined Weight Rating 12,800 lb. (5,806 kg)
13,000 lb. (5,897 kg)
*1: The towing capacity values are calculated assuming a base vehicle with driver and any options required to achieve the rating. Additional passengers,
cargo and/or optional equipment will add weight to the vehicle and reduce your vehicle’s maximum towing capacity.
*2: Use of a weight-distributing hitch system is recommended when towing over 5,000 lbs. (2,268 kg) .
*3: The maximum towing capacity when using the genuine NISSAN step bumper as a ball mount is 5,000 lb. (2,268 kg) and 500 lb. (227 kg) tongue load.
Technical and consumer information9-29

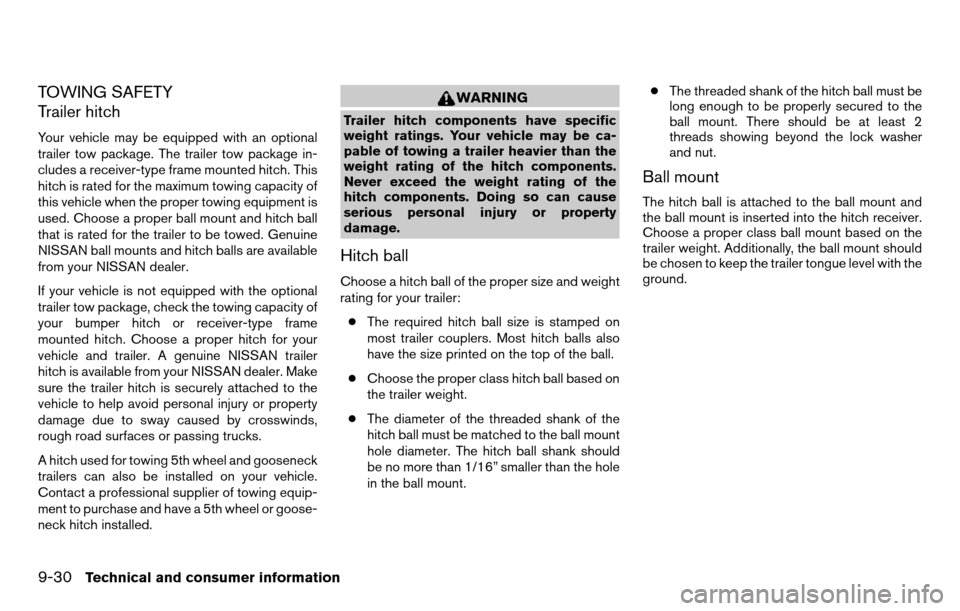

TOWING SAFETY
Trailer hitch
Your vehicle may be equipped with an optional
trailer tow package. The trailer tow package in-
cludes a receiver-type frame mounted hitch. This
hitch is rated for the maximum towing capacity of
this vehicle when the proper towing equipment is
used. Choose a proper ball mount and hitch ball
that is rated for the trailer to be towed. Genuine
NISSAN ball mounts and hitch balls are available
from your NISSAN dealer.
If your vehicle is not equipped with the optional
trailer tow package, check the towing capacity of
your bumper hitch or receiver-type frame
mounted hitch. Choose a proper hitch for your
vehicle and trailer. A genuine NISSAN trailer
hitch is available from your NISSAN dealer. Make
sure the trailer hitch is securely attached to the
vehicle to help avoid personal injury or property
damage due to sway caused by crosswinds,
rough road surfaces or passing trucks.
A hitch used for towing 5th wheel and gooseneck
trailers can also be installed on your vehicle.
Contact a professional supplier of towing equip-
ment to purchase and have a 5th wheel or goose-
neck hitch installed.
WARNING
Trailer hitch components have specific
weight ratings. Your vehicle may be ca-
pable of towing a trailer heavier than the
weight rating of the hitch components.
Never exceed the weight rating of the
hitch components. Doing so can cause
serious personal injury or property
damage.
Hitch ball
Choose a hitch ball of the proper size and weight
rating for your trailer:● The required hitch ball size is stamped on
most trailer couplers. Most hitch balls also
have the size printed on the top of the ball.
● Choose the proper class hitch ball based on
the trailer weight.
● The diameter of the threaded shank of the
hitch ball must be matched to the ball mount
hole diameter. The hitch ball shank should
be no more than 1/16” smaller than the hole
in the ball mount. ●
The threaded shank of the hitch ball must be
long enough to be properly secured to the
ball mount. There should be at least 2
threads showing beyond the lock washer
and nut.
Ball mount
The hitch ball is attached to the ball mount and
the ball mount is inserted into the hitch receiver.
Choose a proper class ball mount based on the
trailer weight. Additionally, the ball mount should
be chosen to keep the trailer tongue level with the
ground.
9-30Technical and consumer information

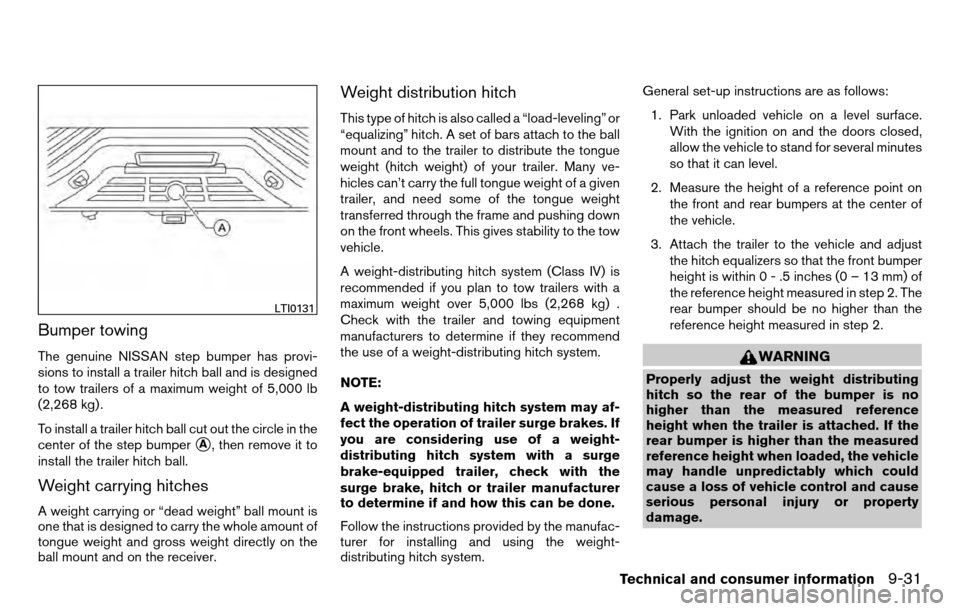

Bumper towing
The genuine NISSAN step bumper has provi-
sions to install a trailer hitch ball and is designed
to tow trailers of a maximum weight of 5,000 lb
(2,268 kg) .
To install a trailer hitch ball cut out the circle in the
center of the step bumper
A, then remove it to
install the trailer hitch ball.
Weight carrying hitches
A weight carrying or “dead weight” ball mount is
one that is designed to carry the whole amount of
tongue weight and gross weight directly on the
ball mount and on the receiver.
Weight distribution hitch
This type of hitch is also called a “load-leveling” or
“equalizing” hitch. A set of bars attach to the ball
mount and to the trailer to distribute the tongue
weight (hitch weight) of your trailer. Many ve-
hicles can’t carry the full tongue weight of a given
trailer, and need some of the tongue weight
transferred through the frame and pushing down
on the front wheels. This gives stability to the tow
vehicle.
A weight-distributing hitch system (Class IV) is
recommended if you plan to tow trailers with a
maximum weight over 5,000 lbs (2,268 kg) .
Check with the trailer and towing equipment
manufacturers to determine if they recommend
the use of a weight-distributing hitch system.
NOTE:
A weight-distributing hitch system may af-
fect the operation of trailer surge brakes. If
you are considering use of a weight-
distributing hitch system with a surge
brake-equipped trailer, check with the
surge brake, hitch or trailer manufacturer
to determine if and how this can be done.
Follow the instructions provided by the manufac-
turer for installing and using the weight-
distributing hitch system. General set-up instructions are as follows:
1. Park unloaded vehicle on a level surface. With the ignition on and the doors closed,
allow the vehicle to stand for several minutes
so that it can level.
2. Measure the height of a reference point on the front and rear bumpers at the center of
the vehicle.
3. Attach the trailer to the vehicle and adjust the hitch equalizers so that the front bumper
height is within0-.5inches (0 – 13 mm) of
the reference height measured in step 2. The
rear bumper should be no higher than the
reference height measured in step 2.
WARNING
Properly adjust the weight distributing
hitch so the rear of the bumper is no
higher than the measured reference
height when the trailer is attached. If the
rear bumper is higher than the measured
reference height when loaded, the vehicle
may handle unpredictably which could
cause a loss of vehicle control and cause
serious personal injury or property
damage.
LTI0131
Technical and consumer information9-31
