2013 NISSAN TITAN Owners Manual

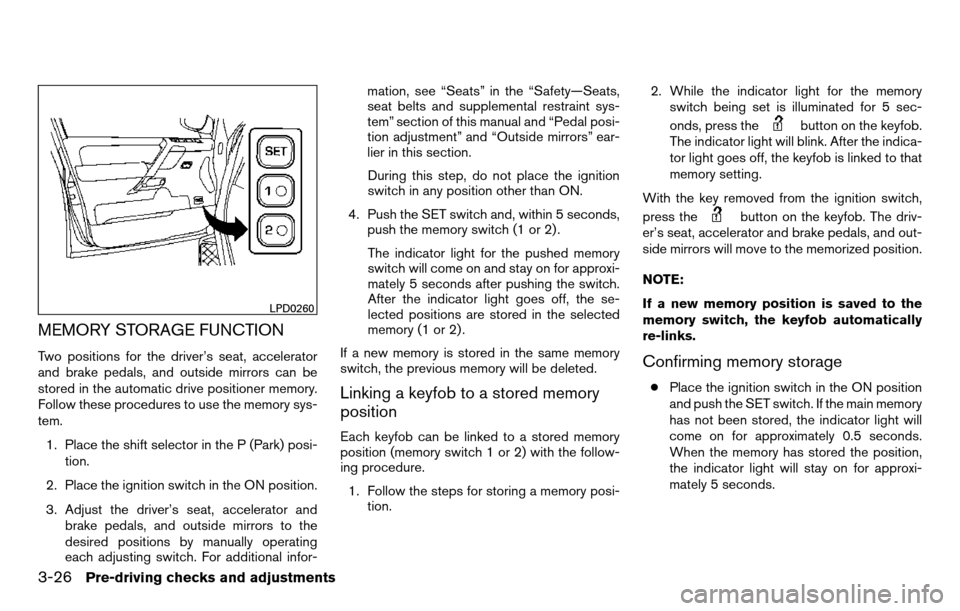

MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, accelerator
and brake pedals, and outside mirrors can be
stored in the automatic drive positioner memory.
Follow these procedures to use the memory sys-
tem.1. Place the shift selector in the P (Park) posi- tion.
2. Place the ignition switch in the ON position.
3. Adjust the driver’s seat, accelerator and brake pedals, and outside mirrors to the
desired positions by manually operating
each adjusting switch. For additional infor- mation, see “Seats” in the “Safety—Seats,
seat belts and supplemental restraint sys-
tem” section of this manual and “Pedal posi-
tion adjustment” and “Outside mirrors” ear-
lier in this section.
During this step, do not place the ignition
switch in any position other than ON.
4. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will come on and stay on for approxi-
mately 5 seconds after pushing the switch.
After the indicator light goes off, the se-
lected positions are stored in the selected
memory (1 or 2) .
If a new memory is stored in the same memory
switch, the previous memory will be deleted.
Linking a keyfob to a stored memory
position
Each keyfob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure. 1. Follow the steps for storing a memory posi- tion. 2. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, press the
button on the keyfob.
The indicator light will blink. After the indica-
tor light goes off, the keyfob is linked to that
memory setting.
With the key removed from the ignition switch,
press the
button on the keyfob. The driv-
er’s seat, accelerator and brake pedals, and out-
side mirrors will move to the memorized position.
NOTE:
If a new memory position is saved to the
memory switch, the keyfob automatically
re-links.
Confirming memory storage
● Place the ignition switch in the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored the position,
the indicator light will stay on for approxi-
mately 5 seconds.
LPD0260
3-26Pre-driving checks and adjustments

●If the battery cable is disconnected, or if the
fuse opens, the memory storage function will
be canceled and must be restarted before a
stored memory position can be set again.
Drive the vehicle over 25 MPH (40 km/h) to
restart the memory storage function. You
can also restart the memory storage function
using the following procedure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
Once the memory storage function has been
restarted, you can store a memory position.
See “Memory storage function” in this sec-
tion.
Selecting the memorized position
Set the shift selector to the P (Park) position,
then: ● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) or
● Place the ignition switch in the ON position
and push the memory switch (1 or 2) .
The driver’s seat, accelerator and brake pedals,
and outside mirrors will move to the memorized position with the indicator light blinking, and then
the light will stay on for approximately 5 seconds.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
will automatically move when the shift selector is
placed in the P (Park) position. This allows the
driver to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward:
● When the key is removed from the ignition
switch and the driver’s door is opened.
● When the driver’s door is opened with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to LOCK with the driver’s door open.
The driver’s seat will return to the previous posi-
tion: ● When the key is inserted into the ignition
switch and the driver’s door is closed.
● When the driver’s door is closed with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to ON while the shift selector is in the P
(Park) position. The entry/exit function can be adjusted or can-
celed. For vehicles with a navigation system, see
“Vehicle electronic systems” in the “Display
screen, heater, air conditioner, audio and phone
systems” section of this manual. For vehicles
without navigation system, see your NISSAN
dealer.
Restarting the entry/exit function
If the battery cable is disconnected or if the fuse
opens, the entry/exit function will be disabled.
Drive the vehicle over 25 MPH (40 km/h) to
restart the entry/exit function. You can also restart
the entry/exit function using the following proce-
dure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
The entry/exit function should now work properly.
Pre-driving checks and adjustments3-27

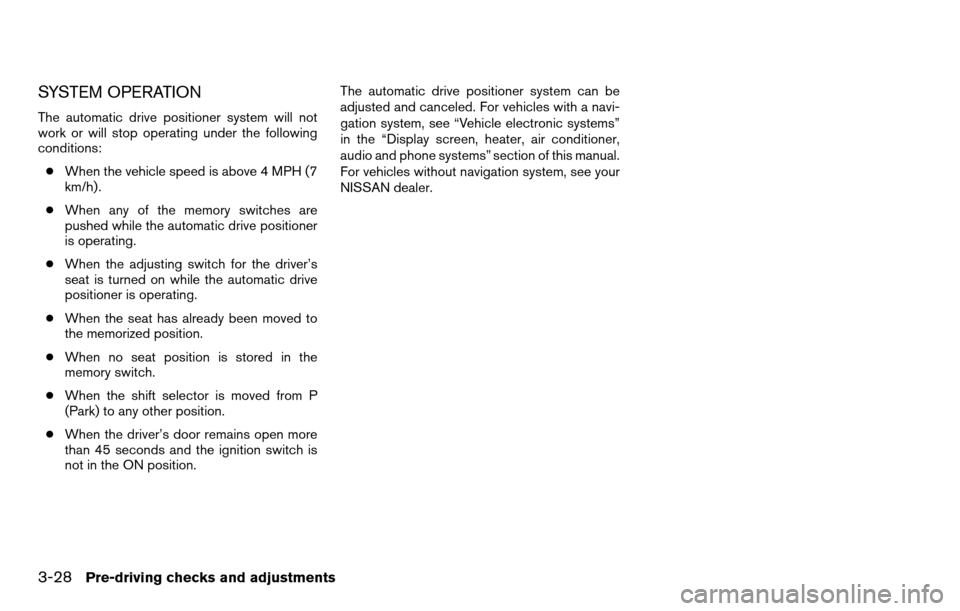

SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:● When the vehicle speed is above 4 MPH (7
km/h) .
● When any of the memory switches are
pushed while the automatic drive positioner
is operating.
● When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
● When the seat has already been moved to
the memorized position.
● When no seat position is stored in the
memory switch.
● When the shift selector is moved from P
(Park) to any other position.
● When the driver’s door remains open more
than 45 seconds and the ignition switch is
not in the ON position. The automatic drive positioner system can be
adjusted and canceled. For vehicles with a navi-
gation system, see “Vehicle electronic systems”
in the “Display screen, heater, air conditioner,
audio and phone systems” section of this manual.
For vehicles without navigation system, see your
NISSAN dealer.
3-28Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-4
How to use the touch screen ....................4-5
How to use the BACK button ....................4-7
How to use the MENU button ....................4-7
button.................................. 4-11
RearView Monitor (if so equipped) ..................4-11
How to read the displayed lines .................4-12
Difference between predicted and actual
distances ..................................... 4-12
Adjusting the screen ........................... 4-15
Operating tips ................................. 4-16
Vents . .......................................... 4-17
Heater and air conditioner (manual) (Type A)
(if so equipped) .................................. 4-17
Controls ...................................... 4-18
Heater operation .............................. 4-19
Air conditioner operation .......................4-20
Air flow charts ................................. 4-21
Heater and air conditioner (manual) (Type B)
(if so equipped) .................................. 4-25Controls
...................................... 4-25
Heater operation .............................. 4-26
Air conditioner operation .......................4-28
Air flow charts ................................. 4-29
Heater and air conditioner (automatic)
(if so equipped) .................................. 4-32
Automatic operation ........................... 4-32
Manual operation .............................. 4-33
Operating tips ................................. 4-33
Servicing air conditioner ........................... 4-34
Audio system .................................... 4-34
Radio ........................................ 4-34
FM radio reception ............................ 4-35
AM radio reception ............................ 4-35
Satellite radio reception (if so equipped) . . . ......4-35
Audio operation precautions ....................4-36
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-43
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-48
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-53

USB interface (models without Navigation
System) (if so equipped).......................4-59
USB interface (models with Navigation
System) ...................................... 4-60
iPod* player operation without Navigation
System (if so equipped) ........................ 4-62
iPod* player operation with Navigation
System (if so equipped) ........................ 4-64
Bluetooth streaming audio without
Navigation System (if so equipped) ..............4-66
Bluetooth streaming audio with Navigation
System (if so equipped) ........................ 4-68
Pandora audio (United States only)
(if so equipped) ............................... 4-69
CD care and cleaning .......................... 4-71
Steering wheel switch for audio control
(if so equipped) ............................... 4-71
Antenna ...................................... 4-72
NISSAN mobile entertainment system (MES)
(if so equipped) .................................. 4-73
Digital video disc (DVD) player controls ..........4-74
Remote control ................................ 4-75
Flip-down screen .............................. 4-75
Playing a digital video disc (DVD) ...............4-76Care and maintenance
......................... 4-80
How to handle the DVD ........................ 4-80
Car phone or CB radio ............................ 4-83
Bluetooth Hands-Free Phone System without
Navigation System (Type A) (if so equipped) .........4-83
Regulatory Information ......................... 4-85
Using the system .............................. 4-85
Control buttons ............................... 4-88
Getting started ................................ 4-88
List of voice commands ........................ 4-90
Voice Adaptation (VA) mode ....................4-94
Manual control ................................ 4-95
Troubleshooting guide ......................... 4-97
Bluetooth Hands-Free

Phone System without
Navigation System (Type B) (if so equipped) . . . ......4-98
Regulatory Information ......................... 4-99
Using the system ............................. 4-100
Control buttons .............................. 4-101
Connecting procedure ........................ 4-101
Voice commands ............................. 4-102
Making a call ................................. 4-104
Receiving a call .............................. 4-104
During a call ................................. 4-105

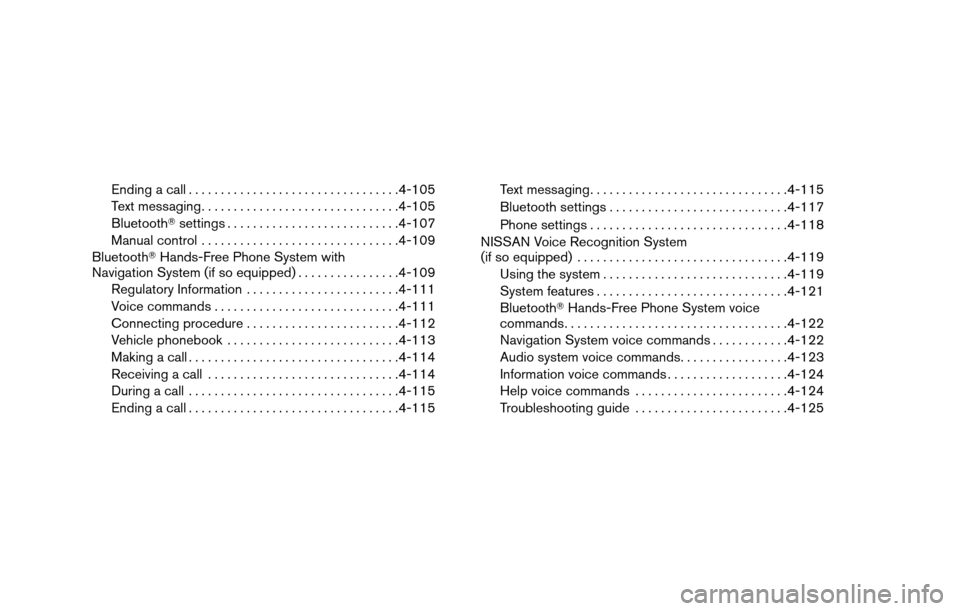

Ending a call................................. 4-105
Text messaging ............................... 4-105
Bluetooth settings . .......................... 4-107
Manual control ............................... 4-109
Bluetooth Hands-Free Phone System with
Navigation System (if so equipped) ................4-109
Regulatory Information ........................ 4-111
Voice commands ............................. 4-111
Connecting procedure ........................ 4-112
Vehicle phonebook ........................... 4-113
Making a call ................................. 4-114
Receiving a call .............................. 4-114
During a call ................................. 4-115
Ending a call ................................. 4-115Text messaging
............................... 4-115
Bluetooth settings ............................ 4-117
Phone settings ............................... 4-118
NISSAN Voice Recognition System
(if so equipped) . . . .............................. 4-119
Using the system ............................. 4-119
System features .............................. 4-121
Bluetooth Hands-Free Phone System voice
commands ................................... 4-122
Navigation System voice commands ............4-122
Audio system voice commands .................4-123
Information voice commands ...................4-124
Help voice commands ........................ 4-124
Troubleshooting guide ........................ 4-125

WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
1. Display screen
2.
button**
3. MAP button*
4. NAV button* 5. MENU button
6. BACK button
7. TUNE knob / AUDIO button
8.
(brightness control) button
LHA2516
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

9. Power button/VOL (volume) control knob
10. CAMERA button
* For information regarding the Navigation system
control buttons, refer to the separate Navigation
System Owner’s Manual.
** For information regarding the Bluetooth
Hands-Free Phone System control button, see
“Bluetooth Hands-Free Phone System” in this
section.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.HOW TO USE THE TOUCH
SCREEN
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
● ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
Monitor, climate, audio, phone and voice recognition systems4-5
