2013 NISSAN TITAN Owners Manual

1. 2nd row seat belts (P. 1-15)
2. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-47)
3. Front seat belts (P. 1-15)
4. Front-seat Active Head Restraints
5. Supplemental front-impact air bags
(P. 1-47)
6. Seats (P. 1-2)
7. Occupant classification sensor
(pressure sensor) (P. 1-56)
8. Seat belt with pretensioner (P. 1-60)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-47)
10. LATCH (Lower Anchors and Tethers for
Children) (P. 1-28)
11. Top tether strap anchor point (P. 1-30)
See the page number indicated in paren-
theses for operating details.
LII2021
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

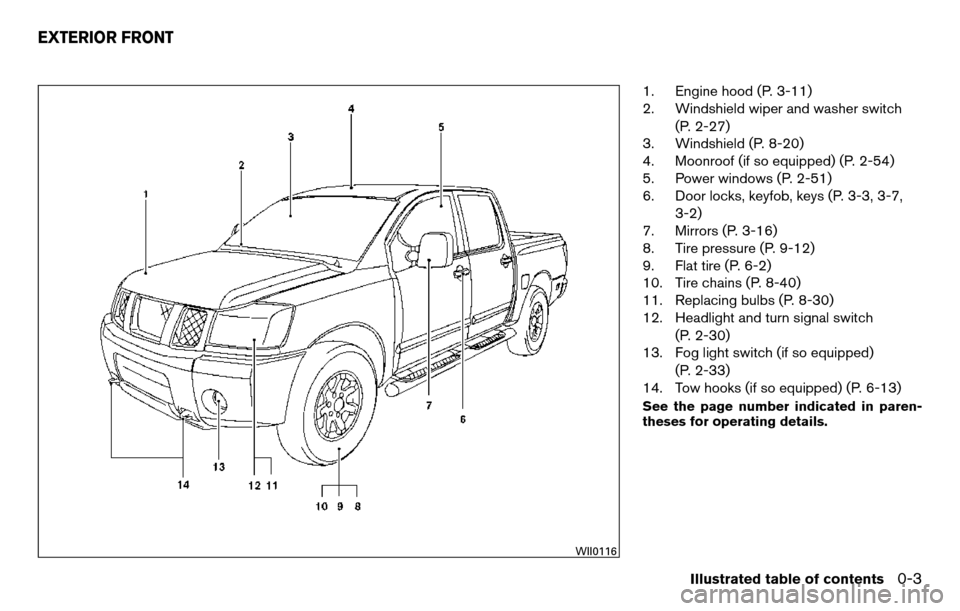

1. Engine hood (P. 3-11)
2. Windshield wiper and washer switch(P. 2-27)
3. Windshield (P. 8-20)
4. Moonroof (if so equipped) (P. 2-54)
5. Power windows (P. 2-51)
6. Door locks, keyfob, keys (P. 3-3, 3-7,
3-2)
7. Mirrors (P. 3-16)
8. Tire pressure (P. 9-12)
9. Flat tire (P. 6-2)
10. Tire chains (P. 8-40)
11. Replacing bulbs (P. 8-30)
12. Headlight and turn signal switch
(P. 2-30)
13. Fog light switch (if so equipped)
(P. 2-33)
14. Tow hooks (if so equipped) (P. 6-13)
See the page number indicated in paren-
theses for operating details.
WII0116
EXTERIOR FRONT
Illustrated table of contents0-3

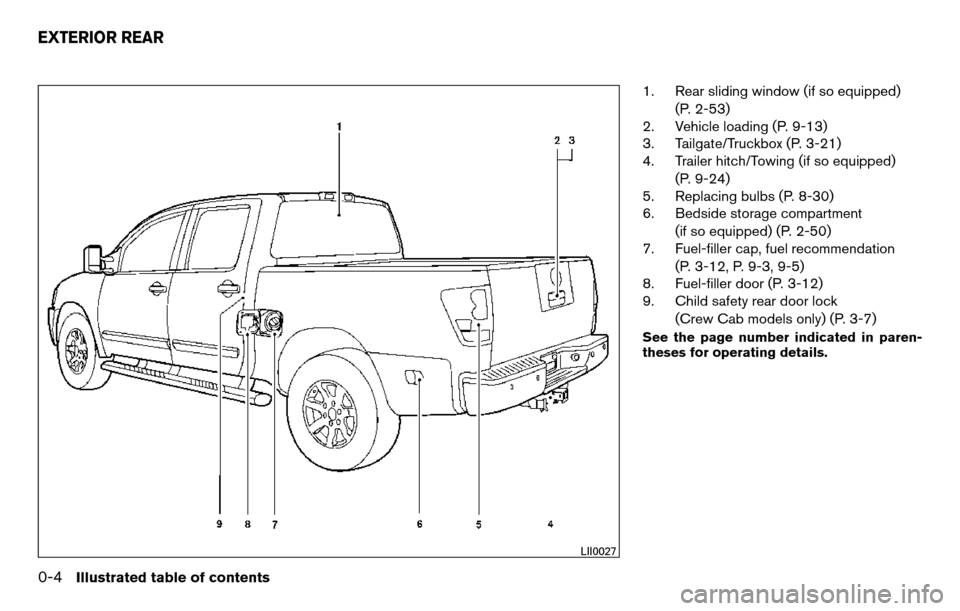

1. Rear sliding window (if so equipped)(P. 2-53)
2. Vehicle loading (P. 9-13)
3. Tailgate/Truckbox (P. 3-21)
4. Trailer hitch/Towing (if so equipped)
(P. 9-24)
5. Replacing bulbs (P. 8-30)
6. Bedside storage compartment
(if so equipped) (P. 2-50)
7. Fuel-filler cap, fuel recommendation
(P. 3-12, P. 9-3, 9-5)
8. Fuel-filler door (P. 3-12)
9. Child safety rear door lock
(Crew Cab models only) (P. 3-7)
See the page number indicated in paren-
theses for operating details.
LII0027
EXTERIOR REAR
0-4Illustrated table of contents

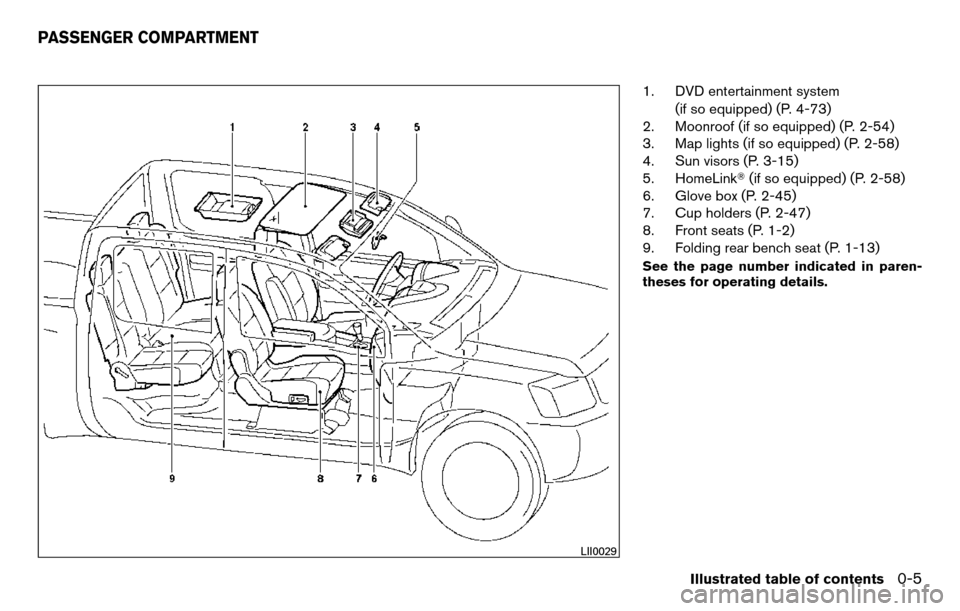

1. DVD entertainment system(if so equipped) (P. 4-73)
2. Moonroof (if so equipped) (P. 2-54)
3. Map lights (if so equipped) (P. 2-58)
4. Sun visors (P. 3-15)
5. HomeLink (if so equipped) (P. 2-58)
6. Glove box (P. 2-45)
7. Cup holders (P. 2-47)
8. Front seats (P. 1-2)
9. Folding rear bench seat (P. 1-13)
See the page number indicated in paren-
theses for operating details.
LII0029
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vents (P. 4-17)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-30)
3. Steering wheel switch for audio
control/Bluetooth Hands-Free Phone
System (if so equipped) (P. 4-71,
P. 4-83, P. 4-98, P. 4-109)
4. Instrument brightness control (P. 2-33)
5. Driver supplemental air bag/horn
(P. 1-47, P. 2-34)
6. Meters, gauges and warning/indicator
lights (P. 2-4, 2-13)
7. Cruise control main/set switches
(if so equipped) (P. 5-21)
8. Shift selector (column) (if so equipped)
(P. 5-16)
9. Windshield wiper/washer switch
(P. 2-27)
10. Navigation system* (if so equipped)
(P. 4-4)
11. Climate controls (P. 4-17, P. 4-25,
P. 4-32)
12. Front passenger supplemental air bag
(P. 1-47)
13. Glove box (P. 2-45)
14. Storage tray (P. 2-45)
LIC2437
INSTRUMENT PANEL
0-6Illustrated table of contents

15. Front passenger air bag status light(P. 1-56)
16. Power outlet (P. 2-39)
17. Heated seat switch (if so equipped)
(P. 2-34)
18. Vehicle Dynamic Control (VDC) off
switch (P. 2-36)
19. Tow mode switch (P. 2-38)
20. Electronic locking rear differential
(E-Lock) system switch (if so
equipped) (P.2-36)
21. Shift selector (console)
(if so equipped) (P. 5-16)
22. Hazard warning flasher switch (P. 6-2)
23. Power outlet (P. 2-39)
24. 4WD shift switch (if so equipped)
(P. 5-27)
25. Ignition switch (P. 5-9)
26. Tilt steering wheel control (P. 3-14)
27. Cargo lamp switch (if so equipped)
(P. 2-34)/Rear sonar system off switch
(if so equipped) (P. 2-38)/Pedal posi-
tion adjustment switch (if so equipped)
(P. 3-14)/Rear power window switch
(if so equipped) (P. 2-54)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

1. Battery (P. 8-14)
2. Fuse/fusible link box (P. 8-22)
3. Transmission dipstick (P. 8-11)
4. Engine oil filler cap (P. 8-9)
5. Brake fluid reservoir (P. 8-13)
6. Windshield-washer fluid reservoir(P. 8-13)
7. Air cleaner (P. 8-18)
8. Drive belt location (P. 8-16)
9. Radiator cap (P. 8-7)
10. Power steering fluid reservoir (P. 8-12)
11. Engine oil dipstick (P. 8-9)
12. Engine coolant reservoir (P. 8-7)
NOTE:
Engine cover removed for clarity.
See the page number indicated in paren-
theses for operating details.
WDI0630
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

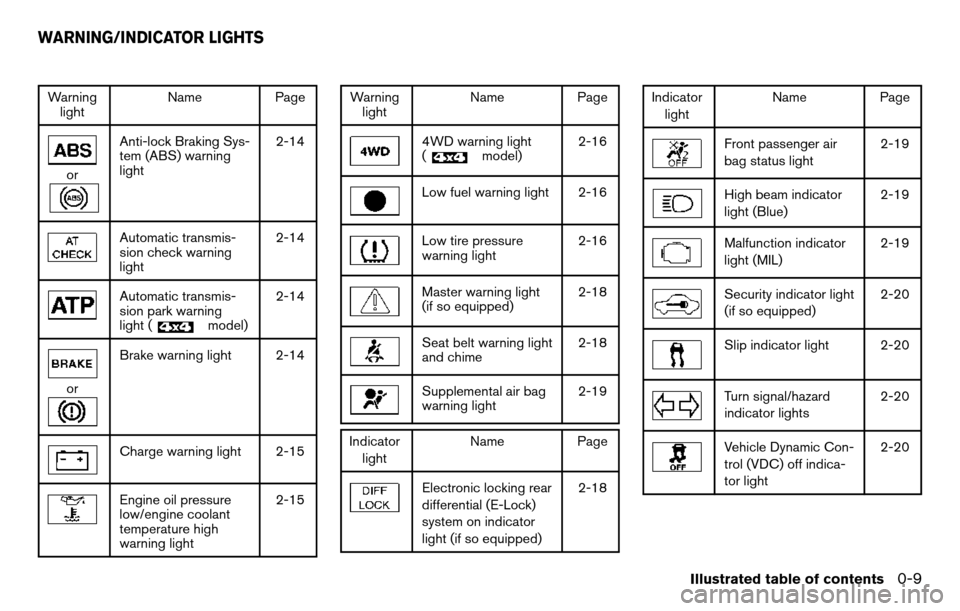

Warninglight Name
Page
or
Anti-lock Braking Sys-
tem (ABS) warning
light 2-14
Automatic transmis-
sion check warning
light2-14
Automatic transmis-
sion park warning
light (
model)2-14
or
Brake warning light 2-14
Charge warning light 2-15
Engine oil pressure
low/engine coolant
temperature high
warning light 2-15
Warning
light Name
Page
4WD warning light
(model)2-16
Low fuel warning light 2-16
Low tire pressure
warning light 2-16
Master warning light
(if so equipped)2-18
Seat belt warning light
and chime2-18
Supplemental air bag
warning light2-19
Indicator
light Name
Page
Electronic locking rear
differential (E-Lock)
system on indicator
light (if so equipped) 2-18
Indicator
light Name
Page
Front passenger air
bag status light 2-19
High beam indicator
light (Blue)2-19
Malfunction indicator
light (MIL)2-19
Security indicator light
(if so equipped)2-20
Slip indicator light 2-20
Turn signal/hazard
indicator lights2-20
Vehicle Dynamic Con-
trol (VDC) off indica-
tor light2-20
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9
