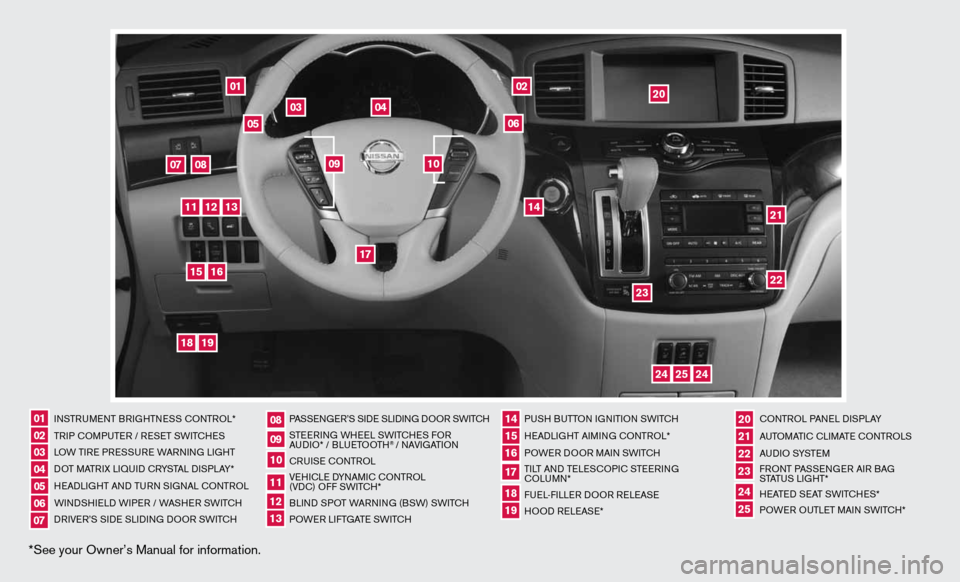

2013 NISSAN QUEST Quick Reference Guide

Quick RefeRence Guide
2 013
QueST

*See your Owner’s Manual for information.
01
03
04
02
20
2122
23
05
08
06
13
24
151807
1619
17
12
25
11
24
14
09
10
inSTR uM enT BR iGHTne SS cOnTROL*
TR iP c OMP uTeR / R eS eT SW iTc HeS
LOW T iRe PRe SSuRe WARnin G LiGHT
d OT MATR iX Li Quid c RYSTAL di SPLAY*
H eAd LiGHT And Tu Rn S iG nAL c OnTROL
W ind SHieL d W iPeR / WASHeR SW iT c H
dR iV e R’S Side SLidinG dOOR SWi TcH PASSenG
eR’S Side SLidinG dOOR SWi TcH
STee Rin G WH eeL SW iTc HeS fOR
A udi O* / BLueTOOTH
® / nAVi GATiOn
cR uiSe cOn TROL
Ve Hic Le d YnAM ic cOnTROL
(Vdc) O ff SWiTc H*
BLind SPOT WAR ninG (BSW) SWi TcH
POW eR LifTGATe SW iTc H PuSH B
uTTOn iGniTiOn SWi TcH
H eAd LiGHT Ai Min G c OnTROL*
POWe R dOOR MA in SWi TcH
Ti LT And Te LeSc OP ic STee Rin G
c OLu Mn*
fue L-fiLLe R dOOR R eLeAS e
HOO d ReLeAS e* cOn
TROL PA neL diSPLAY
A uTOMATic c LiMATe c OnTROLS
A u d i O SYST eM
f RO nT PASS enGeR Ai R BAG
STATu S LiGHT*
H eATed S eAT SWiTc HeS*
POW eR O uTLeT MAin SW iTc H*
0102030405
0910
2124
18
06
11
2225
07
141916
08
15
2023
17
1213

TABLe Of cOnTenTS
New SYSTe M FeaTureS
Around ViewTM Monitor (if so equipped) ............................ 2
Blind Spot Warning (BSW) System (if so equipped) ................. 3
Advanced climate control System (if so equipped) .................. 4
e SS eNTIaL INFOr MaTION
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 5
Tire Pressure Monitoring System (TPMS) with easy fill Tire Alert .......5
FI rST D rIVe Fea TureS

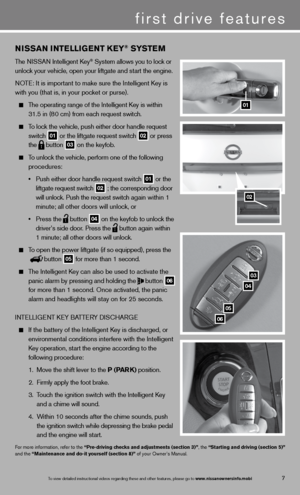

ni SSAn intelligent k ey
® System ................................. 7

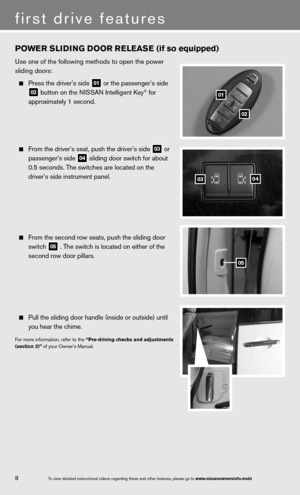

Power Sliding door Release (if so equipped) ....................... 8

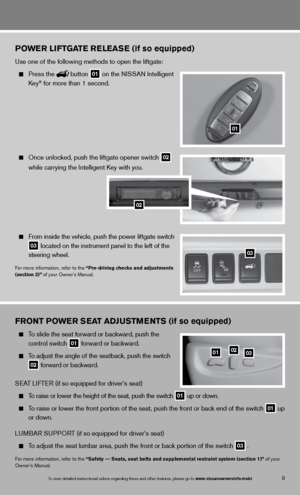

Power Liftgate Release (if so equipped) ............................9
front Power Seat Adjustments (if so equipped) ......................9

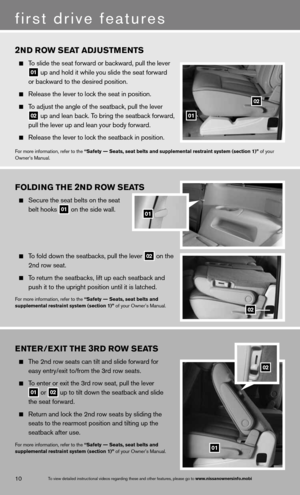

2nd Row Seat Adjustments ..................................... 10
f olding the 2nd Row Seats ..................................... 10
enter/ exit the 3rd Row Seats .................................... 10

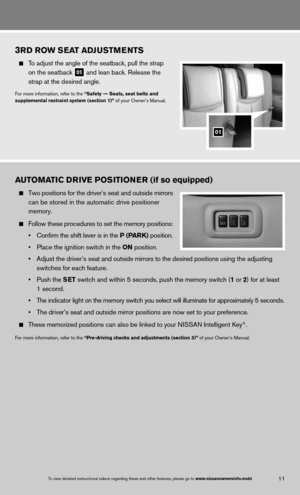

3rd Row Seat Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 11
Automatic drive Positioner (if so equipped) ........................ 11

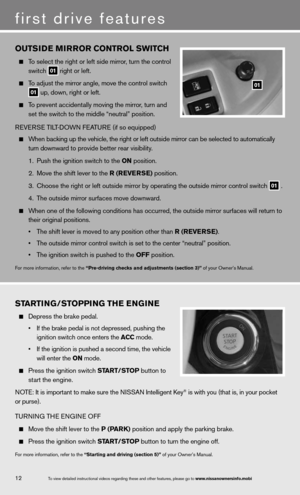

Outside Mirror control Switch ................................... 12
Starting/Stopping the engine .................................... 12

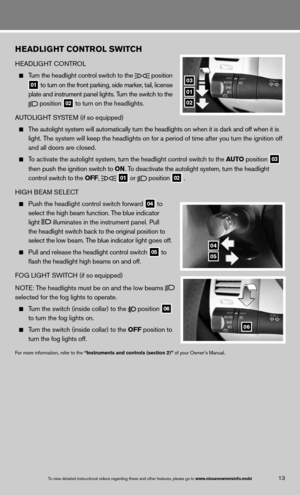

Headlight control Switch ....................................... 13

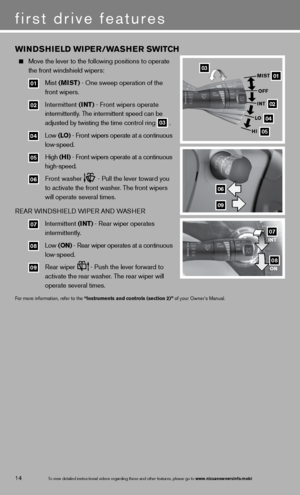

Windshield Wiper/Washer Switch ............................... 14

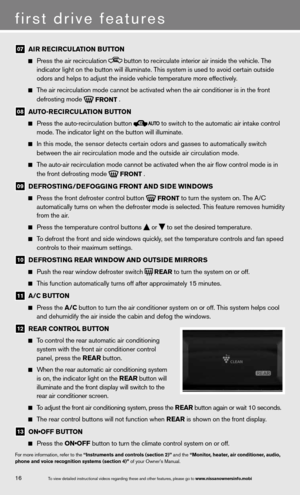

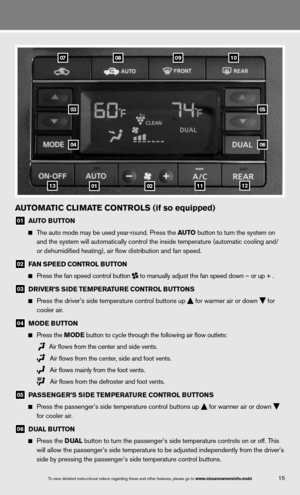

Automatic climate controls (if so equipped) ....................... 15

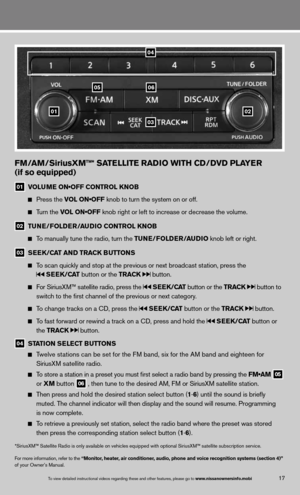

f M/AM/SiriusXM
TM Satellite Radio with cd/ dVd Player
(if so equipped) ............................................... 17
u SB/iPod
® interface (if so equipped) ............................. 18

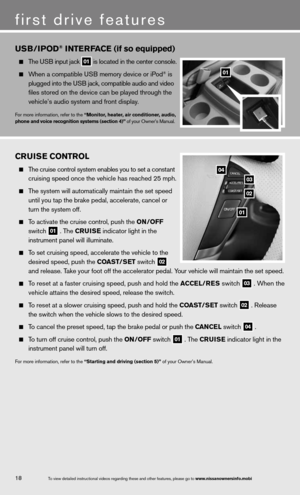

cruise control ................................................ 18

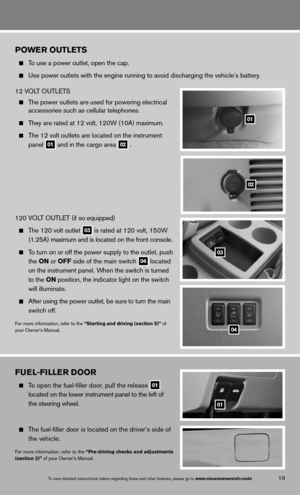

Power Outlets ................................................ 19
fuel-filler door ............................................... 19
SYST eM GuIDe

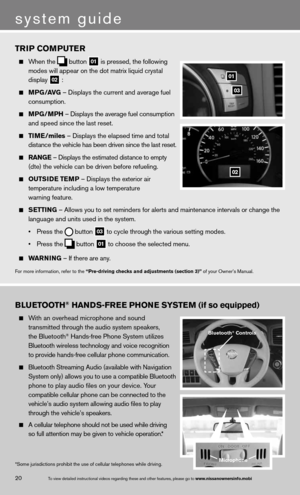

Trip computer ................................................ 20
Bluetooth
® Hands-free Phone System (if so equipped) ...............20

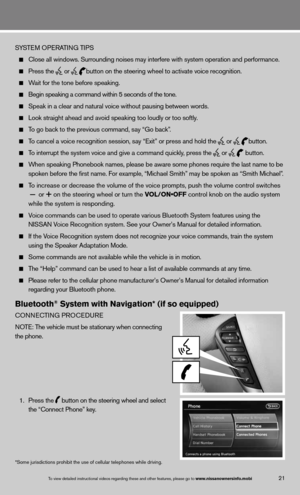

System Operating Tips ...................................... 21
Bluetooth
® System with navigation (if so equipped) ..............21

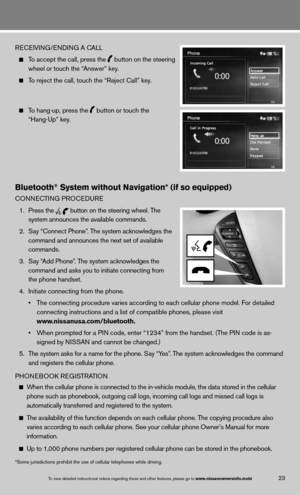

Bluetooth® System without navigation (if so equipped) . . . . . . . . . . .23

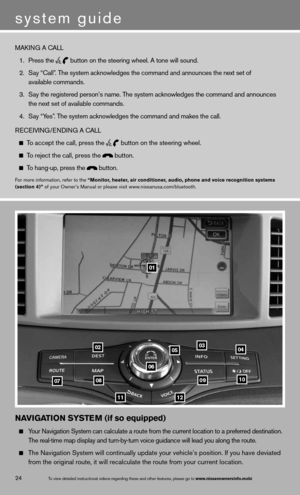

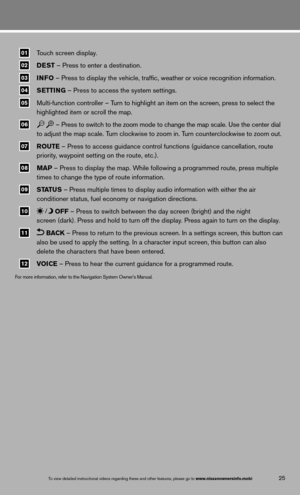

navigation System (if so equipped) ...............................24

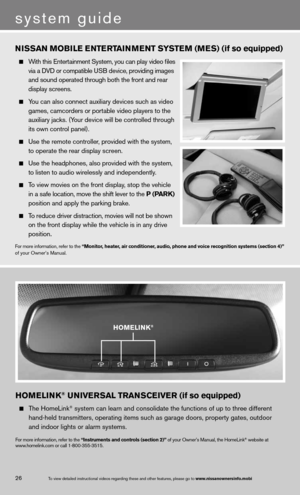

ni SSAn Mobile entertainment System (M eS) (if so equipped) ....... 26
HomeLink
® universal Transceiver (if so equipped) .................. 26
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, heater, air
conditioner, audio, phone and voice recognition systems (section 4)”
and the “Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/quest or snap this barcode with an appropriate barcode reader.

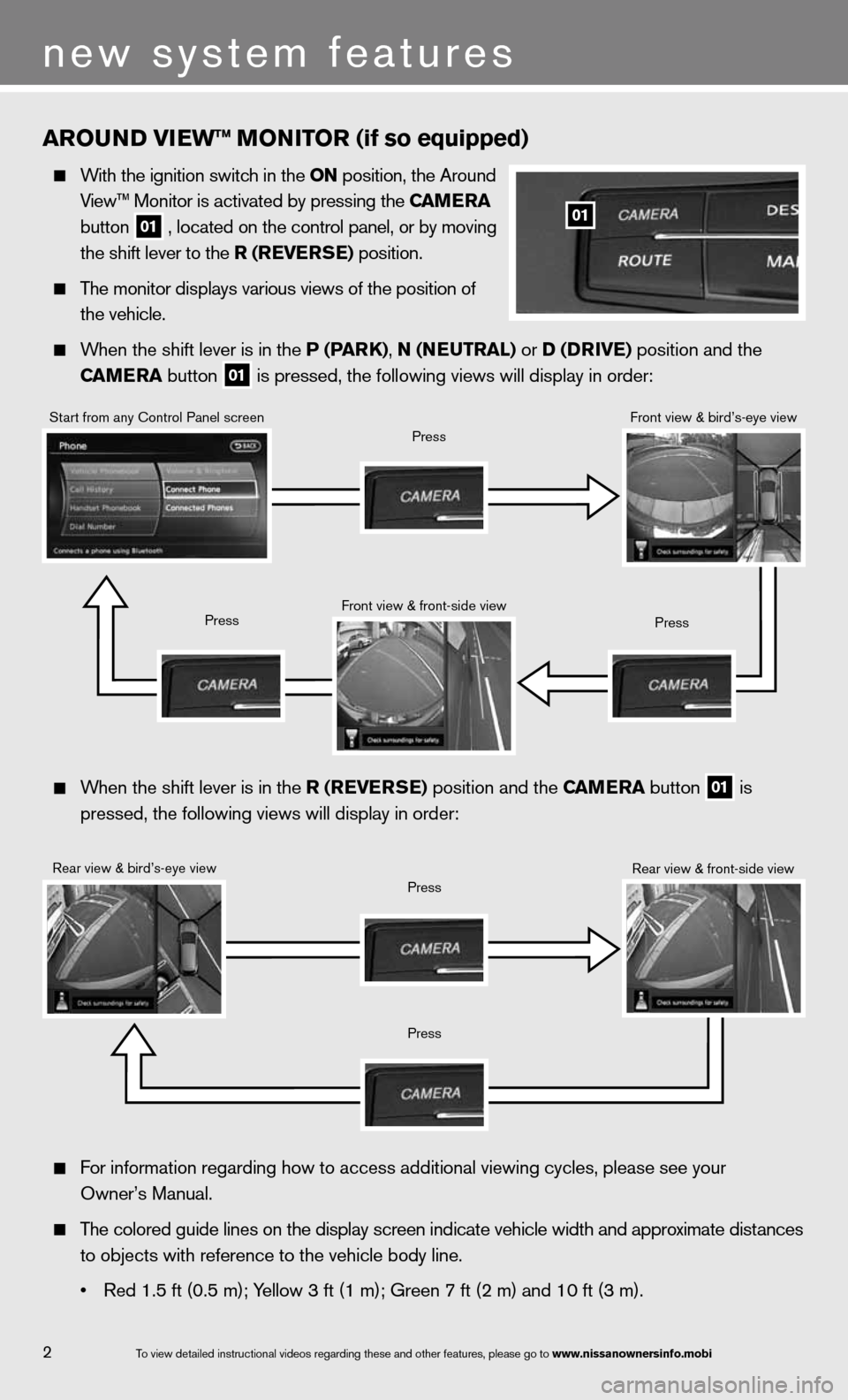

arOu ND VI ew™ MONITOr (if so equipped)
With the ignition switch in the ON position, the Around
View™ Monitor is activated by pressing the C aMera
button

01 , located on the control panel, or by moving

the shift lever to the r (reVer Se) position.

The monitor displays various views of the position of
the vehicle.

When the shift lever is in the P (P arK), N (N euTraL) or D (D rIVe) position and the
CaM era button

01 is pressed, the following views will display in order:
01

When the shift lever is in the r (reVer Se) position and the C aMera button
01 is

pressed, the following views will display in order:
Start from any control Panel screen
Rear view & bird’s-eye view front view & front-side view
Press
Press
Press
Press
Press
front view & bird’s-eye view
Rear view & front-side view
f or information regarding how to access additional viewing cycles, please\
see your
Owner’s Manual.

The colored guide lines on the display screen indicate vehicle width and \
approximate distances
to objects with reference to the vehicle body line.
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft (3 m).
2
new system features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Ifo.mobi

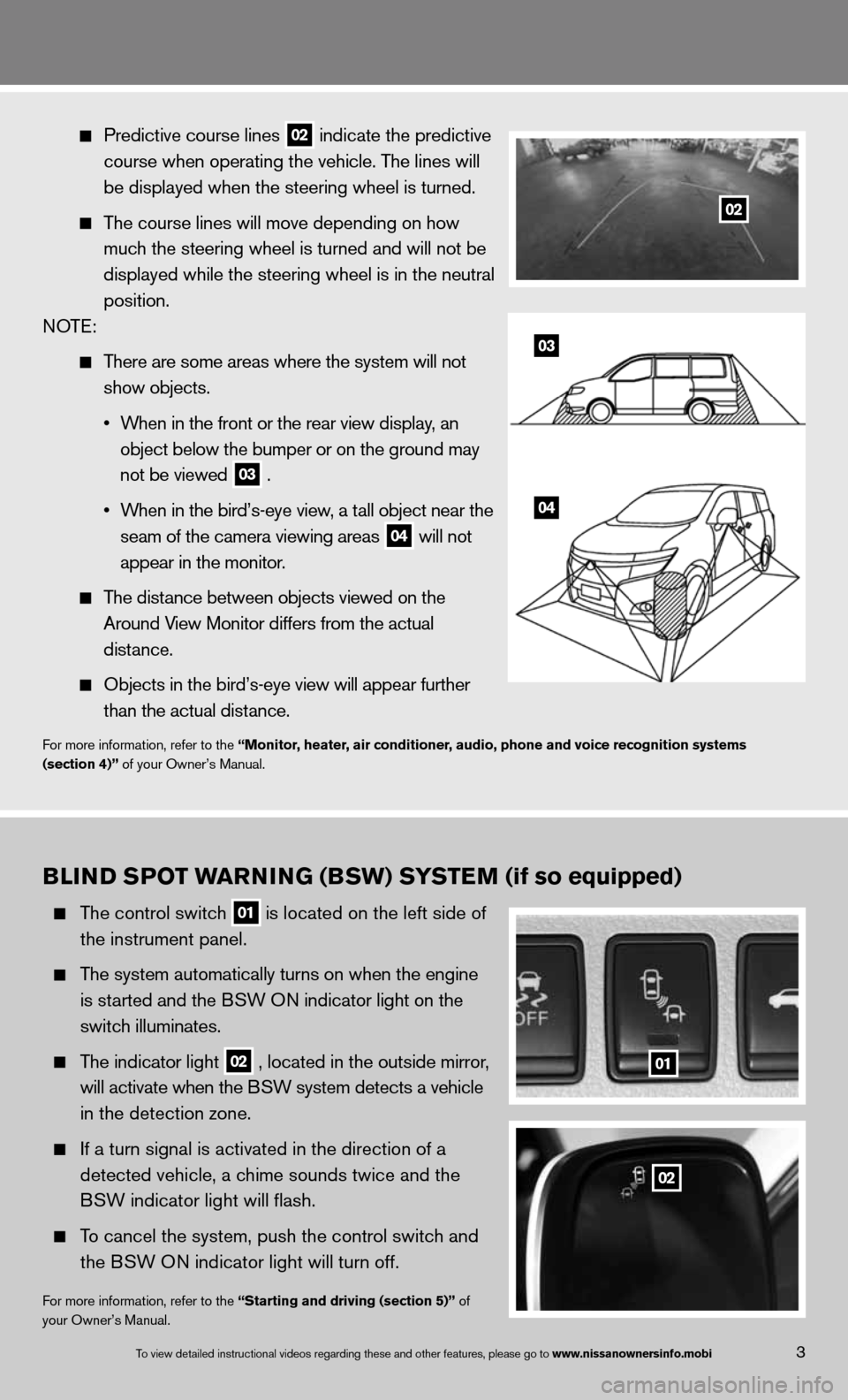

Predictive course lines
02 indicate the predictive
course when operating the vehicle. The lines will
be displayed when the steering wheel is turned.

The course lines will move depending on how
much the steering wheel is turned and will not be
displayed while the steering wheel is in the neutral
position.
n OTe:

There are some areas where the system will not
show objects.
• When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed

03 .
• When in the bird’s-eye view, a tall object near the
seam of the camera viewing areas

04 will not
appear in the monitor.

The distance between objects viewed on the
Around View Monitor differs from the actual
distance.

Objects in the bird’s-eye view will appear further
than the actual distance.
for more information, refer to the “Monitor, heater, air conditioner, audio, phone and voice recognition systems
(section 4)” of your Owner’s Manual.
03
04
B LIND S POT warNING (BSw) S YSTeM (if so equipped)
The control switch
01 is located on the left side of
the instrument panel.

The system automatically turns on when the engine
is started and the BSW O n indicator light
on the
switch illuminates.

The indicator light
02 , located in the outside mirror,
will activate when the BSW system detects a vehicle
in the detection zone.

if a turn signal is activated in the direction of a
detected vehicle, a chime sounds twice and the
BSW indicator light will flash.

To cancel the system, push the control switch and
the BSW O n indicator light will turn off.
for more information, refer to the “Starting and driving (section 5)” of
your Owner’s Manual.
01
02
3To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Ifo.mobi
02

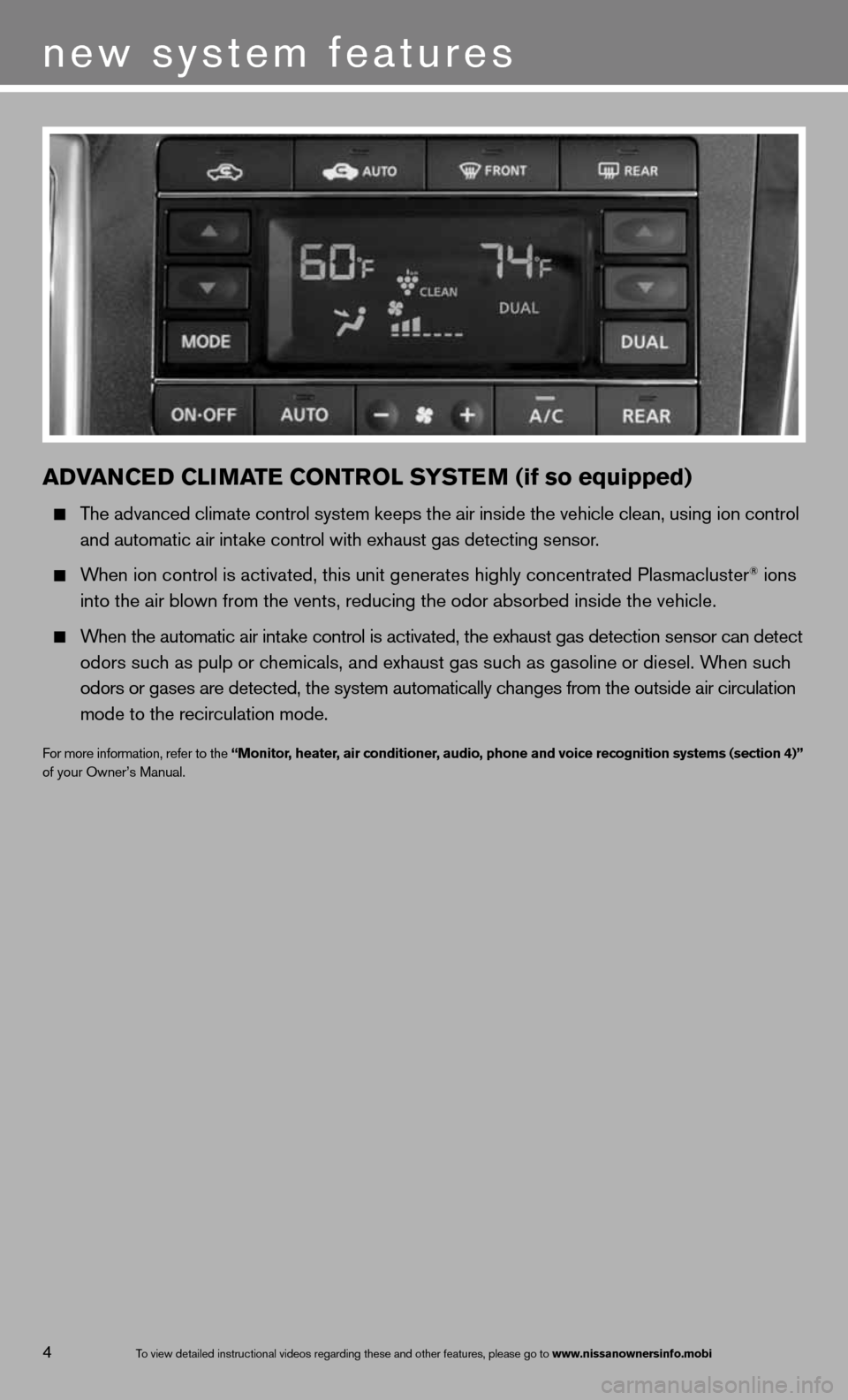

aDVaNCe D CLIMa Te CONTr OL SYSTe M (if so equipped)
The advanced climate control system keeps the air inside the vehicle clea\
n, using ion control
and automatic air intake control with exhaust gas detecting sensor.

When ion control is activated, this unit generates highly concentrated Pl\
asmacluster® ions
into the air blown from the vents, reducing the odor absorbed inside the\
vehicle.

When the automatic air intake control is activated, the exhaust gas detection sensor can detect
odors such as pulp or chemicals, and exhaust gas such as gasoline or diesel. When such
odors or gases are detected, the system automatically changes from the outside air circulation
mode to the recirculation mode.
for more information, refer to the “Monitor, heater, air conditioner, audio, phone and voice recognition systems (section 4)”
of your Owner’s Manual.
4
new system features
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Ifo.mobi

TIre Pre SSure MONITOr ING SYSTeM (TPMS)
wITH eaSY FILL TI re aLerT
A CHe CK TIre P reSSure warning message will
appear in the dot matrix liquid crystal display

01
and the low tire pressure warning light
02 will

illuminate when one or more tires are low on
pressure and air is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mile (1.6km) at moderate speeds.

When adding air to an under-inflated tire, the TPMS with
easy fill Tire Alert provides visual and audible signals
outside the vehicle to help you inflate the tires to the
recommended c OLd tire pressure.

To use the easy fill Tire Alert system:
1. Move the shift lever to the P (P arK) position and apply the parking brake.
2. Place the ignition switch in the ON position. do not start the engine.
3. Add air to the under-inflated tire and within a few seconds, the hazar\
d warning lights will
start flashing.
4. When the designated tire pressure is reached, the horn will beep once and the hazard
warning flashers will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.
01
02
5To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Ifo.mobi

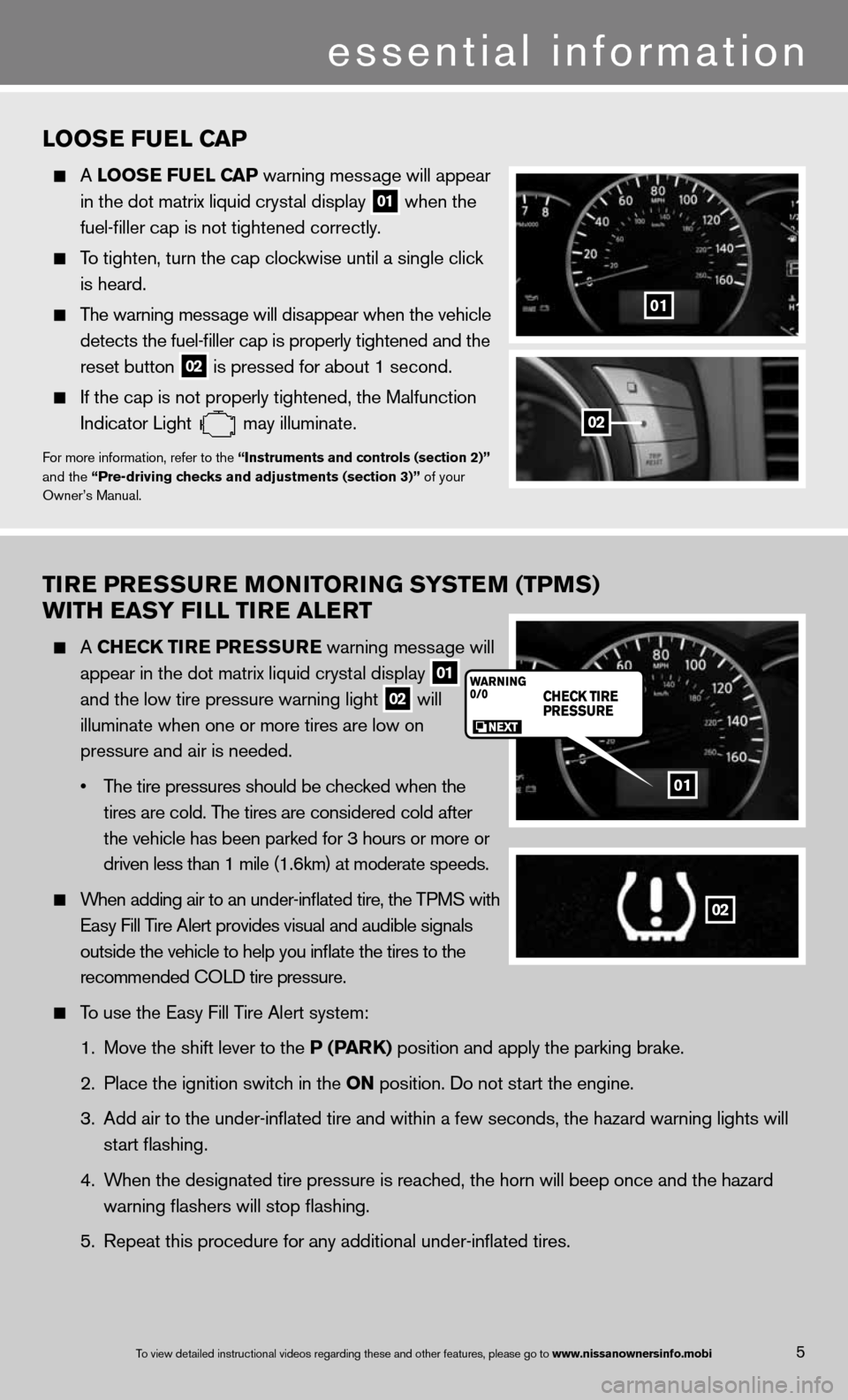

LOOS e Fue L CaP
A LOOS e Fue L CaP warning message will appear
in the dot matrix liquid crystal display

01 when the
fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed for about 1 second.
if the cap is not properly tightened, the Malfunction
indicator Light
may illuminate.f
or more information, refer to the “Instruments and controls (section 2)”
and the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
01
02
essential information

6To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\Ifo.mobi

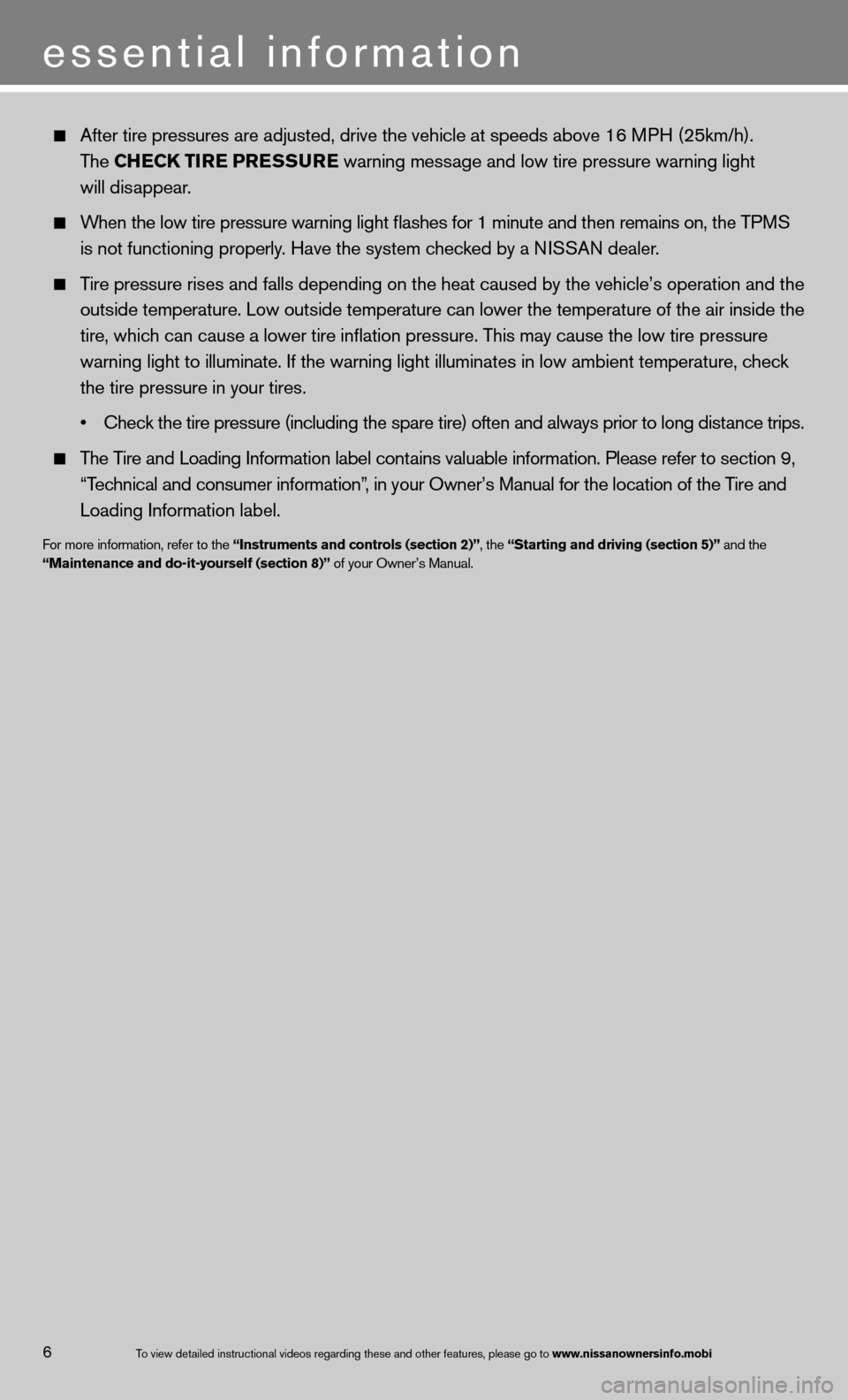

After tire pressures are adjusted, drive the vehicle at speeds above 16 MPH (25km/h).
The CHe CK TIre PreSS ure warning message and low tire pressure warning light
will disappear.

When the low tire pressure warning light flashes for 1 minute and then \
remains on, the TPMS
is not functioning properly. Have the system checked by a ni SSAn dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. if the warning light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior to long distance trips.

The Tire and Loading information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading information label.
for more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
essential information
