2013 NISSAN LEAF display

Headlight warning lightFront fog light indicator light (if so equipped)
Low battery charge warning lightFront passenger air bag status light
CHECKING BULBS
With all doors closed, apply the parking brake,
and push the power switch in the ON position.
The following lights will illuminate (if so
equipped):
,or,,
The following lights illuminate briefly and then
turn off:
(yellow) ,,or(red) ,
or,,,,,,
,
If any light does not illuminate, it may indicate a
burned-out bulb or an open circuit in the electri-
cal system. Have the system checked by a
NISSAN certified LEAF dealer.
Some indicators and warnings are also displayed
on the dot matrix crystal display in the lower
display. (SeeDot matrix liquid crystal display.)
WARNING LIGHTS
12-volt battery charge
warning light
The DC/DC converter converts 400 volt Li-ion
battery voltage to charge the 12-volt battery.
This light illuminates continuously after the bulb is
checked when the power switch is in the ON
position, and turns off when the power switch is
placed in the READY to drive position.
When this warning light illuminates, a chime
sounds and the following warnings are also dis-
played.
Master warning (red)
EV system warning light
The following messages also flash on and off on
the dot matrix liquid crystal display.
If the vehicle is being driven: “Stop the vehicle”
and if the vehicle is stopped: “When parked apply parking brake”. When these messages flash, im-
mediately stop the vehicle in a safe location, pull
the parking brake switch and push the P (Park)
position switch on the selector lever to place the
vehicle in the P (Park) position. The warning on
the meter and the chime stop when the parking
brake is operated or the vehicle is in the P (Park)
position. Contact a NISSAN certified LEAF
dealer for support.
CAUTION
The DC/DC converter system may not be functioning properly if the 12-volt
battery charge warning light illumi-
nates continuously when the power
switch is in the READY to drive posi-
tion. Immediately stop the vehicle in a
safe location and contact a NISSAN
certified LEAF dealer.
Instruments and controls2-13

Pressing the brake pedal when thepower switch position is not in the ON
or READY to drive position and/or low
brake fluid level may increase the
stopping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
If the brake fluid level is below the minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN certified LEAF dealer.
Electric shift control system
warning light
This light illuminates to warn when a malfunction
occurs in the electric shift control system. When
the master warning illuminates, the chime sounds
and the message, “When parked apply parking
brake”, is displayed on the dot matrix liquid crystal
display.
When the power switch is in the OFF position,
the chime sounds continuously. Make sure the
parking brake is applied.
Have the system checked by a NISSAN certified
LEAF dealer.
EV system warning
light
This light illuminates if there is a malfunction in the
following systems. Contact a NISSAN certified
LEAF dealer.
Traction motor and inverter system
Charge port or on board charger
Li-ion battery system
Cooling system
Shift control system
Emergency shut off system is activated. See
Emergency shut off system in theEV over-
view section.
Headlight warning
light
This light illuminates if the LED headlights are
malfunctioning. Contact a NISSAN certified
LEAF dealer.
Low battery charge warning
light
This light illuminates when the available Li-ion
battery charge is getting low. Charge as soon as
it is possible, preferably before the Li-ion battery
available charge gauge reaches the bottom line.
NOTE:
The low battery charge warning light turns
off immediately before the Li-ion battery is
completely discharged and the vehicle will
stop. If the Li-ion battery becomes com-
pletely discharged, the vehicle must be
charged in order to be driven.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the power switch is placed in the ON posi-
tion, this light illuminates for about 1 second and
then turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. A CHECK
TIRE PRESSURE warning also appears on the
dot matrix liquid crystal display.
2-16Instruments and controls

When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure to the recommended COLD tire pressure
shown on the Tire and Loading Information label.
The low tire pressure warning light does not
automatically turn off when the tire pressure is
adjusted. After the tire is inflated to the recom-
mended pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure warning
light. Use a tire pressure gauge to check the tire
pressure.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.
For additional information, seeDot Matrix Liquid
Crystal Display in theInstruments and Con-
trols section and Tire Pressure Monitoring Sys-
tem (TPMS) in theStarting and driving section
and In case of emergency section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the power switch is placed
in the ON position. The light will remain on after
the 1 minute. Have the system checked by a NISSAN certified LEAF dealer. The CHECK TIRE
PRESSURE warning does not appear if the low
tire pressure warning light illuminates to indicate
a TPMS malfunction.
For additional information, see
Dot matrix liquid
crystal display andTire Pressure Monitoring
System (TPMS) in theStarting and driving
section.
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
If the light does not illuminate when the power switch is placed in the ON
position, have the vehicle checked by a
NISSAN certified LEAF dealer as soon
as possible.
If the light illuminates while driving, avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Serious vehicle damage could occur
and may lead to an accident and could
result in serious personal injury. Check
the tire pressure for all four tires. Ad-
just the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label
to turn the low tire pressure warning
light OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you have
a flat tire, repair it as soon as possible.
When a wheel is replaced, the TPMS will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Contact your
NISSAN certified LEAF dealer as soon
as possible for tire replacement
and/or system resetting.
Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS.
CAUTION
The TPMS is not a substitute for the regular tire pressure check. Be sure to
check the tire pressure regularly.
Instruments and controls2-17

If the vehicle is being driven at speedsof less than 16 MPH (25 km/h) , the
TPMS may not operate correctly.
Be sure to install the specified size of tires to the four wheels correctly.
Master warning light
(red/yellow)
There are two types of master warning lights:
yellow and red. These lights illuminate if any
warning lights or indicator lights are illuminated or
if various vehicle information warnings appear in
the dot matrix liquid crystal display.
Yellow master warning light:
The yellow master warning light is located on the
upper display.
This light illuminates when a yellow warning light
on the lower display is illuminated or when a
message is displayed on the dot matrix liquid
crystal display.
Red master warning light:
The red master warning light is located on the
upper display.
This light illuminates when a red warning light on
the lower display is illuminated or when a warning is displayed on the dot matrix liquid crystal dis-
play.
Power steering warning
light
When the power switch is in the ON position, the
electric power steering warning light illuminates
and turn off when the power switch is placed in
the READY to drive position. This indicates the
electric power steering system is operational.
If the electric power steering warning light illumi-
nates while the READY to drive indicator light is
ON, it may indicate the electric power steering
system is not functioning properly and may need
servicing. Have the electric power steering sys-
tem checked by a NISSAN certified LEAF dealer.
When the electric power steering warning light
illuminates while the READY to drive indicator is
ON, the power assist to the steering will cease
operation but you will still have control of the
vehicle. At this time, greater steering efforts are
required to operate the steering wheel, especially
in sharp turns and at low speeds.
See
Power steering system in theStarting and
driving section.
Seat belt warning
light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the power
switch is placed in the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for approximately 6 seconds unless the driver’s
seat belt is securely fastened.
The seat belt warning light for the front passenger
will illuminate if the seat belt is not fastened when
the front passenger’s seat is occupied. The front
passenger seat belt warning light does not acti-
vate until 5 seconds after the power switch is in
the ON position.
SeeSeat belts in theSafety — Seats seat belts
and supplemental restraint system section for
precautions on seat belt usage.
Supplemental air bag warning
light
After turning the power switch to the ON posi-
tion, the supplemental air bag warning light will
illuminate. The supplemental air bag warning light
will turn off after about 7 seconds if the supple-
mental front air bag and supplemental side air
2-18Instruments and controls

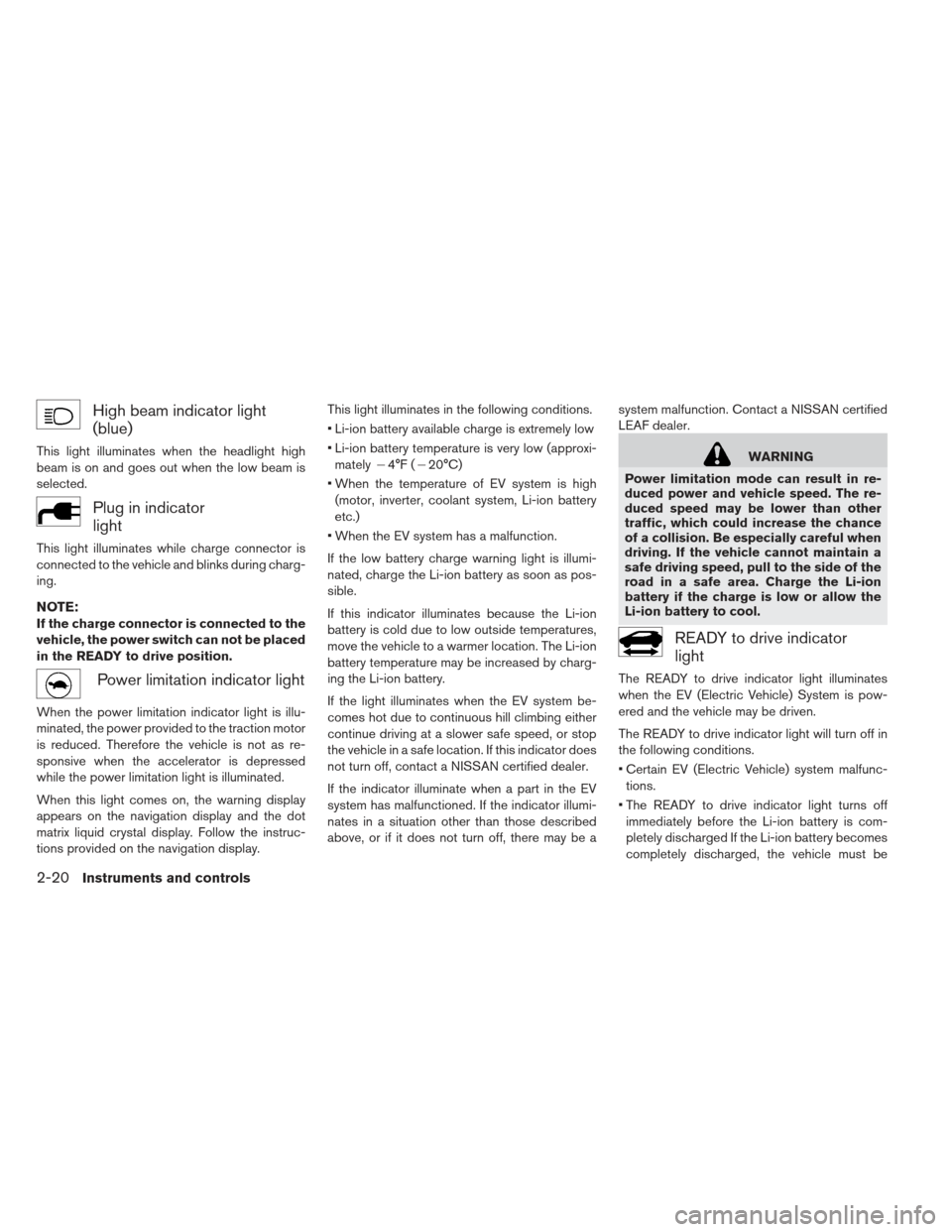

High beam indicator light
(blue)
This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Plug in indicator
light
This light illuminates while charge connector is
connected to the vehicle and blinks during charg-
ing.
NOTE:
If the charge connector is connected to the
vehicle, the power switch can not be placed
in the READY to drive position.
Power limitation indicator light
When the power limitation indicator light is illu-
minated, the power provided to the traction motor
is reduced. Therefore the vehicle is not as re-
sponsive when the accelerator is depressed
while the power limitation light is illuminated.
When this light comes on, the warning display
appears on the navigation display and the dot
matrix liquid crystal display. Follow the instruc-
tions provided on the navigation display.This light illuminates in the following conditions.
Li-ion battery available charge is extremely low
Li-ion battery temperature is very low (approxi-
mately 4°F (20°C)
When the temperature of EV system is high (motor, inverter, coolant system, Li-ion battery
etc.)
When the EV system has a malfunction.
If the low battery charge warning light is illumi-
nated, charge the Li-ion battery as soon as pos-
sible.
If this indicator illuminates because the Li-ion
battery is cold due to low outside temperatures,
move the vehicle to a warmer location. The Li-ion
battery temperature may be increased by charg-
ing the Li-ion battery.
If the light illuminates when the EV system be-
comes hot due to continuous hill climbing either
continue driving at a slower safe speed, or stop
the vehicle in a safe location. If this indicator does
not turn off, contact a NISSAN certified dealer.
If the indicator illuminate when a part in the EV
system has malfunctioned. If the indicator illumi-
nates in a situation other than those described
above, or if it does not turn off, there may be a system malfunction. Contact a NISSAN certified
LEAF dealer.
WARNING
Power limitation mode can result in re-
duced power and vehicle speed. The re-
duced speed may be lower than other
traffic, which could increase the chance
of a collision. Be especially careful when
driving. If the vehicle cannot maintain a
safe driving speed, pull to the side of the
road in a safe area. Charge the Li-ion
battery if the charge is low or allow the
Li-ion battery to cool.
READY to drive indicator
light
The READY to drive indicator light illuminates
when the EV (Electric Vehicle) System is pow-
ered and the vehicle may be driven.
The READY to drive indicator light will turn off in
the following conditions.
Certain EV (Electric Vehicle) system malfunc- tions.
The READY to drive indicator light turns off immediately before the Li-ion battery is com-
pletely discharged If the Li-ion battery becomes
completely discharged, the vehicle must be
2-20Instruments and controls

Seat belt warning chime
The seat belt warning chime will sound for about
6 seconds unless the driver’s seat belt is securely
fastened.
12-volt battery charge warning chime
If the 12-volt battery charge warning light illumi-
nates, the chime will sound when a warning mes-
sage is displayed on the dot matrix crystal display
on the lower display.
When the chime sounds, immediately stop the
vehicle in a safe location and push the P (Park)
position switch on the selector lever and apply
parking brake. The 12-volt battery charge warn-
ing light turns off on the lower display and the
chime will stop when the parking brake is applied
or the vehicle is placed in the P (Park) position.
Contact a NISSAN certified LEAF dealer for sup-
port. For details of the meter warnings, see12-
volt battery charge warning light. The dot matrix liquid crystal display
1is located
in the lower display, and it displays charging
related information, Average electricity
consumption/Instant electricity consumption, Av-
erage vehicle speed, Driving distance/Driving
time (Elapsed time) , shift position indicator, the
cruise control, the Intelligent Key operation infor-
mation and other warnings and information.
For details about the odometer, see Odometer/
twin trip odometer.
For details about the cruise control, see Cruise
control in theStarting and driving section.For the details about the NISSAN Intelligent
Key® system, see
NISSAN Intelligent Key® sys-
tem in the Pre-driving checks and adjustments
section.
DOT MATRIX LIQUID CRYSTAL
DISPLAY
2-22Instruments and controls

1. READY to drive position operation
indicator
This indicator appears while the vehicle is in the P
(Park) position. This indicator means that the EV
(Electric Vehicle) system will start when the
power switch is pressed with the brake pedal
depressed.
2. Key is not detected warning
This warning appears in either of the following
conditions.
No key inside the vehicle:
This warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the power switch in the ACC or ON position.
Make sure that the Intelligent Key is inside the
vehicle.
Unregistered Intelligent Key:
This warning appears when the power switch is
placed in the ON, ACC or READY to drive posi-
tion and the Intelligent Key cannot be recognized
by the system. You cannot place the power
switch in the READY to drive position with an
unregistered key. Use an Intelligent Key that has
been registered.See
NISSAN Intelligent Key® system in the
Pre-driving checks and adjustments section for
more details.
3. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (See NISSAN Intelligent Key® bat-
tery replacement in theMaintenance and do-it-
yourself section.)
4. EV system operation for discharged
Intelligent Key system indicator
This indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not com-
municating normally.
If this indicator appears, touch the power switch
with the Intelligent Key while depressing the
brake pedal. (See NISSAN Intelligent Key® bat-
tery discharge in theStarting and driving sec-
tion.)
5. Door/rear hatch open warning
(power switch is in the ON position)
This warning appears if any of the doors and/or
the rear hatch are open or not closed securely.
The vehicle icon indicates which door or the rear
hatch is open on the display. Make sure that all of
the doors and the rear hatch are closed.
This warning also appears alternating with SHIFT
P warning while the driver’s door is opened with
the shift position in any position other than the P
(Park) position. See SHIFTPwarning (if so
equipped).
6. Intelligent Key system warning
This warning appears if there is a malfunction in
the Intelligent Key system.
If this warning appears while the power switch
position is in the ON position, the power switch
can not be switched to the READY to drive posi-
tion. If this warning appears while power switch is
in the READY to drive position, the vehicle can be
driven. However, contact a NISSAN certified
LEAF dealer.
7. Driver alert
This warning appears when the previously set
time for a break is reached. You can set the time
2-24Instruments and controls

for up to 6 hours in the setting menu. (SeeTrip
computer.)
8. Low outside air temperature
The outside air temperature is displayed in °F or
°C in the range of 20°F to 140°F (30°C to
60°C) .
The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 37°F (3°C) , the warning is
displayed on the screen.
The outside temperature sensor is located in
front side of the vehicle. The sensor may be
affected by road, wind directions and other driv-
ing conditions. The display may differ from the
actual outside temperature or the temperature
displayed on various signs of billboards.
9. Low washer fluid warning (for
Canada)
This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See Window washer fluid in theMaintenance
and do-it-yourself section.)
10. Light reminder warning
This warning appears when the power switch is
turned to the OFF position but the headlight
switch is still ON. Turn off the headlight switch.
11. Plug in indicator
This indicator appears when the charge connec-
tor is connected.
If the charge connector is connected to the ve-
hicle, the power switch can not be placed in the
READY to drive position.
12. Remove charge connector
warning
This warning appears when the power switch is
in the ACC or ON position and if the power
switch is pushed to the READY to drive position
with the brake pedal depressed, while the charge
connector is inserted to the vehicle. Remove the
charge connector.
13. Electric shift control system
warning
This message appears if there is malfunction in
the electric shift control system.
This message appears when the parking brake is
not applied, even after the vehicle has been parked. The master warning light (red) also illu-
minates and the chime sounds.
Apply parking brake. The message in the dot
matrix display turns off and the chime stops. Have
the system checked by a NISSAN certified LEAF
dealer.
14. Shift control system (T/M) warning
This warning appears if there is a malfunction in
the electric shift control system but operation of
the electric shift control is still possible. The mas-
ter warning (yellow) light also illuminates and the
chime sounds. When this occurs, check the shift
position indicator by the shift lever or dot matrix
crystal display in the meter to make sure that
shifting has been performed properly. Contact a
NISSAN certified LEAF dealer as soon as pos-
sible.
15. Shift position warning
This warning appears if the system cannot detect
the shift position. Make sure the vehicle is placed
in a position properly.
The master warning light (red) also illuminates
and the chime sounds. Check the shift position of
the vehicle.
Instruments and controls2-25
