2013 NISSAN LEAF display

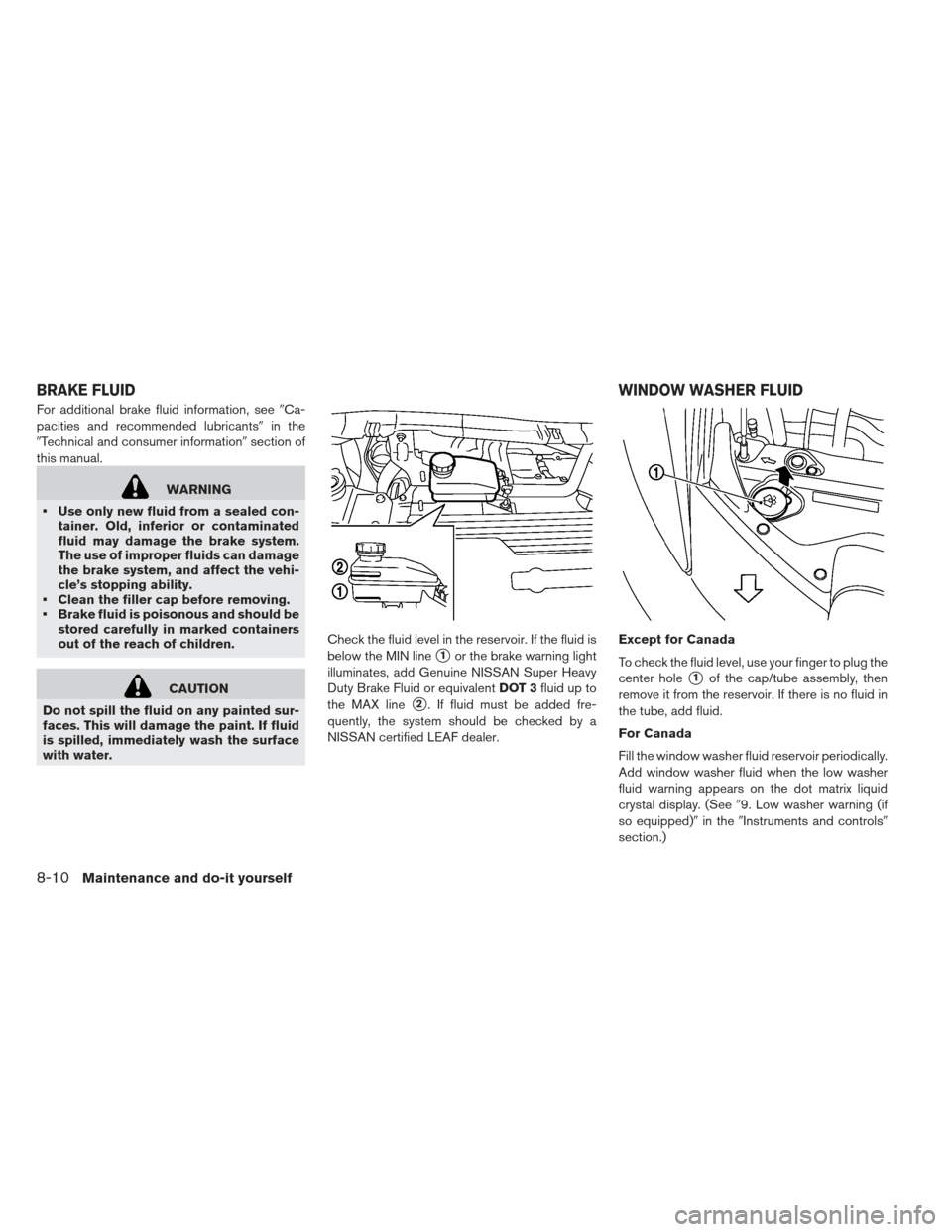

For additional brake fluid information, seeCa-
pacities and recommended lubricants in the
Technical and consumer information section of
this manual.
WARNING
Use only new fluid from a sealed con- tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system, and affect the vehi-
cle’s stopping ability.
Clean the filler cap before removing.
Brake fluid is poisonous and should be stored carefully in marked containers
out of the reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid
is spilled, immediately wash the surface
with water. Check the fluid level in the reservoir. If the fluid is
below the MIN line
1or the brake warning light
illuminates, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalent DOT 3fluid up to
the MAX line
2. If fluid must be added fre-
quently, the system should be checked by a
NISSAN certified LEAF dealer. Except for Canada
To check the fluid level, use your finger to plug the
center hole
1of the cap/tube assembly, then
remove it from the reservoir. If there is no fluid in
the tube, add fluid.
For Canada
Fill the window washer fluid reservoir periodically.
Add window washer fluid when the low washer
fluid warning appears on the dot matrix liquid
crystal display. (See 9. Low washer warning (if
so equipped) in theInstruments and controls
section.)
BRAKE FLUID WINDOW WASHER FLUID
8-10Maintenance and do-it yourself

If you have a flat tire, seeFlat tirein theIn
case of emergency section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pres-
sure of all tires. When the low tire pressure warn-
ing light is lit, and the CHECK TIRE PRESSURE
warning appears on the dot matrix liquid crystal
display, one or more of your tires is significantly
under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) . Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving) .
For more details, seeLow tire pressure warning
light in the Instruments and controls section,
Tire Pressure Monitoring System (TPMS) in the
Starting and driving section andTire Pressure
Monitoring System (TPMS) in theIn case of
emergency section.
Tire inflation pressure
Check the pressure of the tires often and always
prior to long distance trips. The recommended tire pressure specifications are shown on the Tire
and Loading Information label under the “Cold
Tire Pressure” heading. The Tire and Loading
Information label is affixed to the driver side cen-
ter pillar. Tire pressures should be checked regu-
larly because:
Most tires naturally lose air over time.
Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle strikes
a curb while parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
The TPMS with Easy Fill Tire Alert also provides
visual and audible signals outside the vehicle for
inflating the tires to the recommended COLD tire
pressure. (See TPMS with Easy Fill Tire Alert in
the Starting and driving section.)
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
WARNING
Improperly inflated tires can fail sud- denly and cause an accident.
The Gross Vehicle Weight rating (GVWR) is located on the F.M.V.S.S.
certification label. The vehicle weight
capacity is indicated on the Tire and
Loading Information label. Do not load
your vehicle beyond this capacity.
Overloading your vehicle may result in
reduced tire life, unsafe operating con-
ditions due to premature tire failure, or
unfavorable handling characteristics
and could also lead to a serious acci-
dent. Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components.
Before taking a long trip, or whenever you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
For additional information regarding tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
WHEELS AND TIRES
8-26Maintenance and do-it yourself

Checking.....................2-13
Checking bulbs .............. .2-13
Checking coolant level ............8-8
Child restraints..................1-17
Booster seats............... .1-31
Precautions on child restraints ......1-17
Top tether strap .............. .1-20
Child safety....................1-15
Child safety rear door lock ............3-6
Circuitbreaker,Fusiblelink...........8-17
Cleaning exterior and interior ........7-2,7-4
Climatecontrol..................4-16
Climate control service ...........4-16
Climate control system refrigerant
and lubricant recommendations .....4-16
In-cabin microfilter .............4-16
Climate control system ..............4-7
Climate control operation ..........4-7
Climate Ctrl. Timer............4-12,4-19
Clock.......................2-11
Cockpit .......................2-3
Cold weather driving ..............5-24
Console box ...................2-52
Coolant.......................9-2
Capacities and recommended
lubricants .................. .9-2
Changing coolant .............. .8-9
Checking coolant level ............8-8
Cooling system..................8-7
Corrosionprotection ...............7-6
Cruise control ..................5-15 Cupholders...................2-50
D
Defroster switch, Rear window and outside
mirror defroster switch
..............2-41
Dimensionsandweights.............9-6
Dot matrix liquid crystal display .........2-22
Driving ......................5-24
Cold weather driving ............5-24
Driving vehicle ............... .5-11
Precautions when starting and driving . . .5-2
Driving range ....................2-8
Driving vehicle ..................5-11
E
ECO .......................2-46
ECO switch................ .2-46
ECOindicator..................2-10
Efficient use of your vehicle ..........EV-23
Emergency charge ..............CH-11
Emergency EV (Electric Vehicle) shut off. .5-9, 6-2
Emergency shutoff system ...........EV-9
Emission control information label ........9-8
EV Characteristics ...............EV-9
Event Data Recorder (EDR) ...........9-18
EVSE (Electric Vehicle Supply
Equipment) ...................CH-11 EVSE (Electric Vehicle Supply Equipment)
cleaning
......................7-6
EV system ....................EV-2
EV unique information .............EV-25
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire.......................6-3
Flattowing....................9-14
Floormatcleaning.................7-5
Fluid ........................8-10
Brake fluid ................. .8-10
Capacities and recommended
lubricants .................. .9-2
coolant .................... .8-7
Reduction gear fluid .............8-9
Window washer fluid ............8-10
F.M.V.S.S./C.M.V.S.S. certification label .....9-8
Foglightswitch .................2-45
Frontmanualseatadjustment ..........1-3
Front passenger air bag and status light ....1-42
Front seat, Front seat adjustment ........1-3
Fuses.......................8-16
Fusiblelinks ...................8-17
G
Garage door open, HomeLink® Universal . . .2-58
Transceiver ................. .2-58
10-2Index

W
Warning......................6-2
Hazard warning flasher switch.......6-2
Indicators for operation ..........2-23
Tire pressure monitoring system
(TPMS) ................. .5-2, 6-3
Warning/indicator lights and audible
reminders ................. .2-12
Warning information displays .......2-32
Warning lights ............... .2-13
Warningandindicatorlights ..........0-11
Warninginformationdisplays..........2-32
Warninglabels,Airbagwarninglabels.....1-48
Warninglight...................1-48
Air bag warning light........1-48, 2-18
Anti-lock braking system (ABS)
warning light ................ .2-14
BRAKE system warning light (yellow) . .2-14
BRAKE warning light (red) .........2-15
Low tire pressure warning light ......2-16
Seat belt warning light ...........2-18
Vehicle Dynamic Control (VDC)
warning light ................ .2-19
Washer switch..................2-40
Rear window wiper and washer
switch................... .2-40
Windshield wiper and washer switch . .2-38
Washing ......................7-2
Waxing.......................7-2
Weights(Seedimensionsandweights).....9-6 Wheels and tires
.................8-26
Care of wheels............... .7-3
Cleaning aluminum alloy wheels ......7-3
Wheel/tire size...................9-6
When traveling or registering your vehicle
inanothercountry.................9-7
Window(s) .....................7-3
Cleaning................... .7-3
Power windows .............. .2-54
Window washer fluid..............8-10
Windshieldwiperandwasherswitch .....2-38
Wiper.......................8-13
Pulling up the wiper arm ..........8-13
Rear window wiper and washer
switch ................... .2-40
Rear window wiper blade .........8-15
Windshield wiper and washer switch . .2-38
Wiper blades .............8-13, 8-14
Index10-7
