2013 NISSAN CUBE Owners Manual

Black plate (103,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

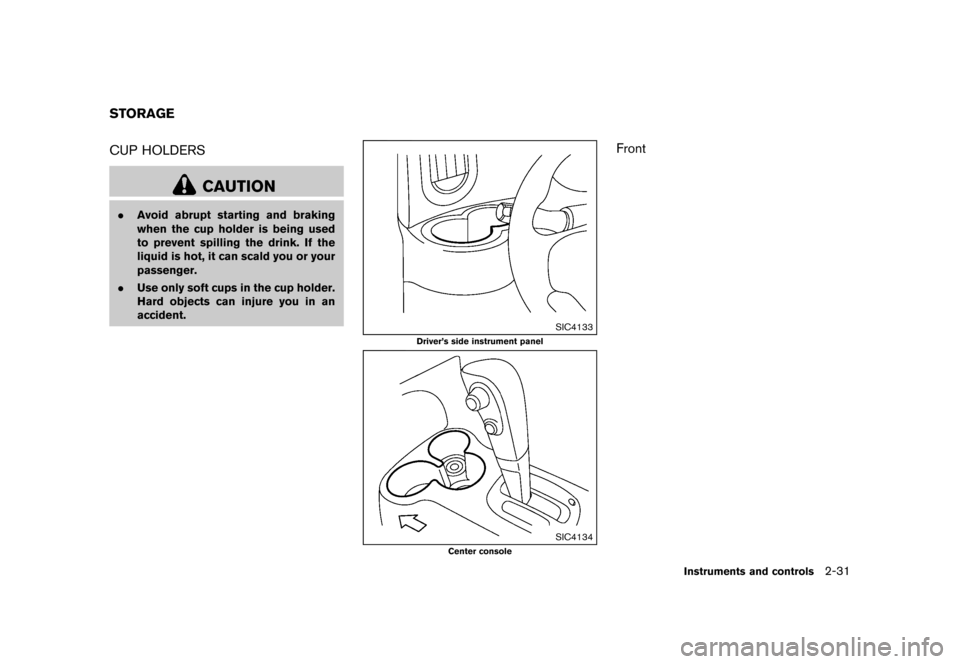

GUID-945FA47A-EB17-41BE-894F-70680D9CC454CUP HOLDERSGUID-6CE59DC5-C85D-465B-82AB-207D3B606311
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4133
Driver’s side instrument panel
SIC4134
Center console
FrontGUID-EFD2825F-3746-4453-9902-F2B54A59F28E
Instruments and controls2-31
STORAGE
Condition:

Black plate (104,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-32Instruments and controls

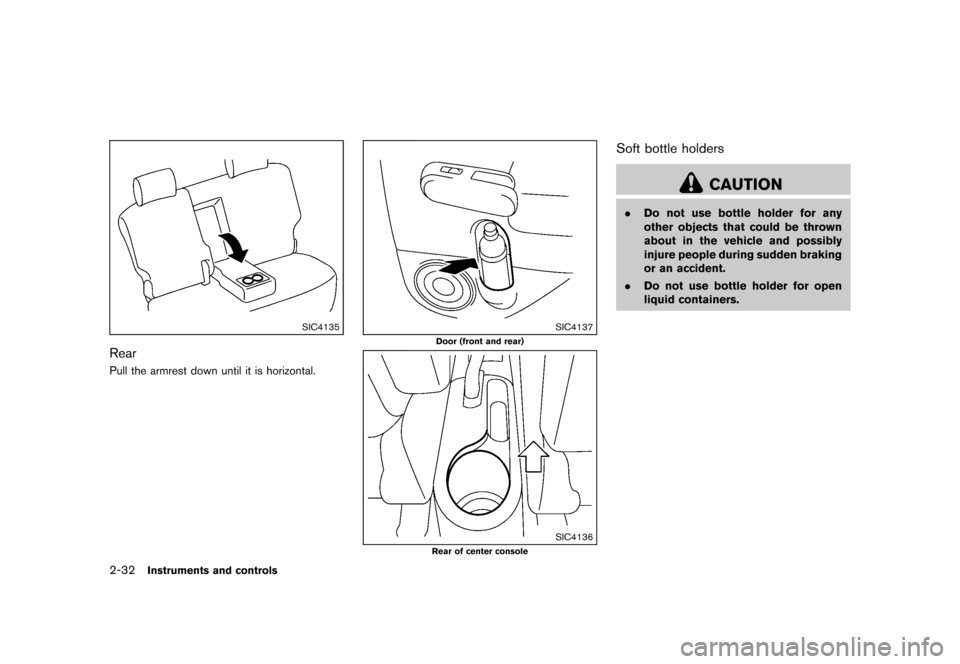

SIC4135
RearGUID-1AF15B69-AFCF-4CBC-A51F-00E686B30047Pull the armrest down until it is horizontal.
SIC4137
Door (front and rear)
SIC4136
Rear of center console
Soft bottle holdersGUID-8497CB07-C0AF-486A-B052-60BFB13876EB
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
Condition:

Black plate (105,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SIC4138
GLOVE BOXGUID-400E9A5C-5A22-46EE-9F61-79D7C2EB5223
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
SIC4165
WARNING
Do not store objects on the horizontal
surface just above the glove box or on
top of the instrument panel. Objects
can become projectiles and/or interfere
with passenger air bag deployment
causing serious personal injury.
SIC4147
REAR PILLAR POCKETGUID-56D74CC3-4A3F-44F1-9101-862D64BE81E4
CAUTION
Do not keep heavy or long objects in
the pocket.
Instruments and controls2-33
Condition:

Black plate (106,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-34Instruments and controls

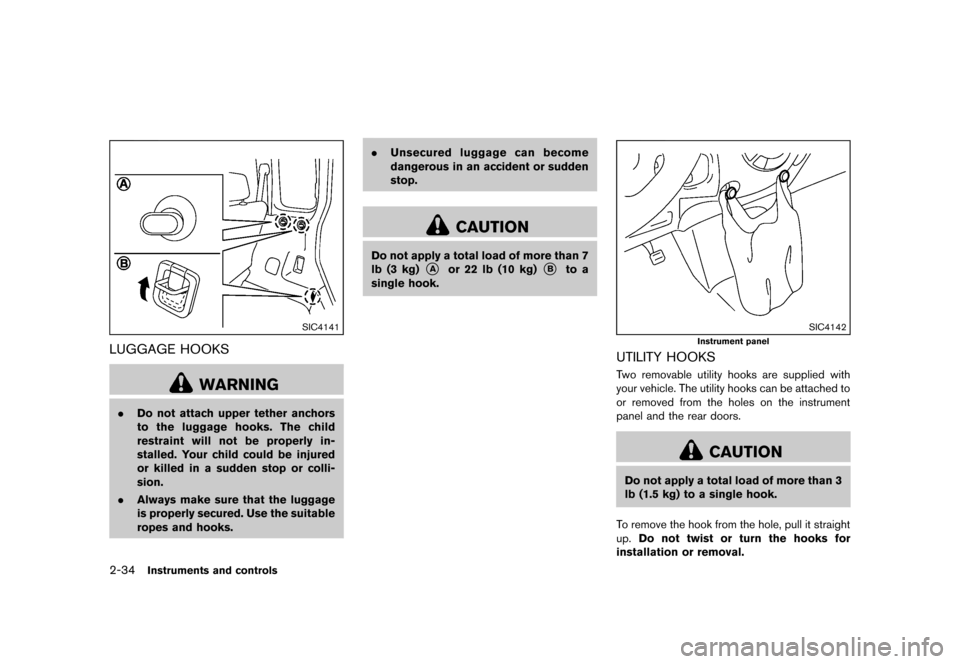

SIC4141
LUGGAGE HOOKSGUID-D1E44DD1-BE4B-402B-85DB-3131362C6396
WARNING
.Do not attach upper tether anchors
to the luggage hooks. The child
restraint will not be properly in-
stalled. Your child could be injured
or killed in a sudden stop or colli-
sion.
. Always make sure that the luggage
is properly secured. Use the suitable
ropes and hooks. .
Unsecured luggage can become
dangerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than 7
lb (3 kg)
*Aor 22 lb (10 kg)*Bto a
single hook.
SIC4142
Instrument panel
UTILITY HOOKSGUID-DEB07D4A-A80D-4F15-9C45-11B16AC78BF7Two removable utility hooks are supplied with
your vehicle. The utility hooks can be attached to
or removed from the holes on the instrument
panel and the rear doors.
CAUTION
Do not apply a total load of more than 3
lb (1.5 kg) to a single hook.
To remove the hook from the hole, pull it straight
up. Do not twist or turn the hooks for
installation or removal.
Condition:

Black plate (107,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SIC4143
Rear door
The utility hooks can be attached to the holes as
illustrated.
WARNING
CHOKING HAZARD-Small parts. Not for
children under 3 years. Do not allow
children to play with utility hook.
GUID-F2D034E5-E06C-45F4-BB27-80E5785D843EPOWER WINDOWSGUID-D850B834-1D67-46B2-A202-BFAF9E98AE86
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is placed in the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
SIC3507
1. Window lock button
2. Driver side window
3. Rear left passenger side window
4. Front passenger side window
5. Rear right passenger side window
Main power window switch (driver’s
side)
GUID-EC156C3E-517A-4CD9-9A4C-F78278E9218FTo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Instruments and controls2-35
WINDOWS
Condition:

Black plate (108,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-36Instruments and controls
Locking passengers’ windowsGUID-6F81C207-028E-4113-BA2E-B6913C005FE5When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3508
Passenger side power window switchGUID-879B184A-275F-4226-A5AB-A41B7756707FThe passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3509
Automatic operationGUID-060949F5-EEF2-4E59-AD19-C3B1B783B621The automatic operation is available for the
switch that has an
mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Condition:

Black plate (109,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
Auto-reverse functionGUID-320918BB-A941-4798-9806-6DF16E89289C
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is placed
in the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
If the windows do not close automaticallyGUID-7004FD71-0B52-4F72-97B5-BA1A7103A16BIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Place the ignition switch in the ON position.
2. Close the door.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-B92C6198-D0CA-457E-B767-457BA56098BA
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
Instruments and controls2-37
INTERIOR LIGHTS
Condition:

Black plate (110,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-38Instruments and controls
SIC4572
MAP LIGHTSGUID-AF4FED06-41C7-46DF-BD5C-F0D2DBAAFF21Operate the map light switch to turn the map
light on or off.
*1: ON position
*2: OFF position
SIC4573
MAP LIGHT CONTROL SWITCHGUID-6B794D6A-6D77-4A7A-AEEC-8E6E57DAEBD2The map lights control switch has three posi-
tions: ON
*1, OFF*2and center.
ON positionGUID-3793931D-059E-42EB-ADAB-63D54D5D31C1When the switch is in the ON position*1, the
map lights will illuminate.
OFF positionGUID-06352655-D3EC-4D9A-A01D-1E38D6CE9E3DWhen the switch is in the OFF position*2, the
map lights will not illuminate, regardless of the
condition.
Center positionGUID-4C0601C2-AA8C-4FD2-9ED0-13C7E7493485When the switch is in the center position, the
map lights will illuminate under the following
conditions:
. ignition switch is placed in the OFF position
(models with Intelligent Key system)
— remain on for about 15 seconds.
. the key is removed from the ignition switch
(models without Intelligent Key system)
— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK
button (on the keyfob or
Intelligent Key) or the request switch (In-
telligent Key system equipped model) , with
the ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
