REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-5280351C-2012-4CB7-A942-B4D436B2779EThe front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags and pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
.Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced by a NISSAN dealer. The
air bag modules and pretensioner
system cannot be repaired. .
The front air bag, side air bag and
curtain air bag systems, and preten-
sioner system should be inspected
by a NISSAN dealer if there is any
damage to the front end or side
portion of the vehicle.
. If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, contact a NISSAN
dealer. Correct supplemental air
bag and pretensioner system dis-
posal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.
Safety — Seats, seat belts and supplemental restraint system1-55
Condition:

Black plate (72,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

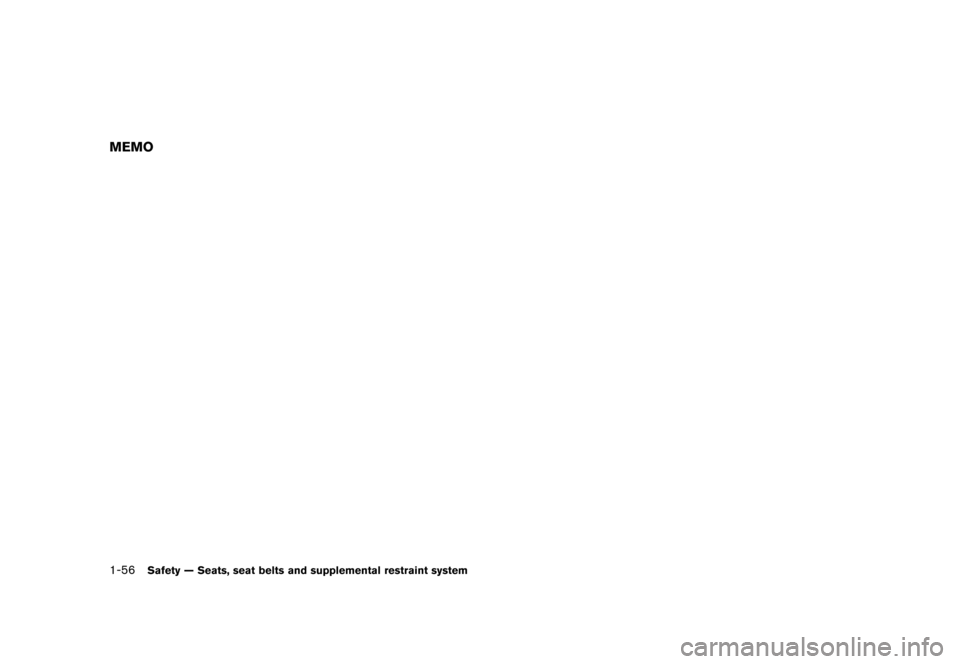

1-56Safety — Seats, seat belts and supplemental restraint system
MEMO
Condition:

Black plate (73,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-2
Instrument panel ...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer and odometer ...
............................................ 2-5
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Vehicle information display ...
................................................ 2-8
Outside air temperature (if so equipped) ...
..................... 2-9
Continuously Variable Transmission (CVT) position
indicator (if so equipped) ...
.................................................. 2-9
Trip computer ...
....................................................................... 2-9
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Security systems ...
.................................................................... 2-19
Vehicle security system ...
.................................................. 2-19
NISSAN Vehicle Immobilizer System ...
.......................... 2-20
Windshield wiper and washer switch ...
............................... 2-22
Rear window wiper and washer switch ...
........................... 2-23 Rear window and outside mirror defroster switch
...
....... 2-24
Headlight and turn signal switch ...
....................................... 2-24
Headlight switch ...
............................................................ 2-24
Turn signal switch ...
.......................................................... 2-27
Fog light switch (if so equipped) ...
.............................. 2-28
Horn ...
........................................................................\
.................. 2-28
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-28
Heated seats (if so equipped) ...
........................................... 2-29
Power outlet ...
........................................................................\
.... 2-30
Storage ...
........................................................................\
............ 2-31
Cup holders ...
..................................................................... 2-31
Glove box ...
........................................................................\
. 2-33
Rear pillar pocket ...
........................................................... 2-33
Luggage hooks ...
............................................................... 2-34
Utility hooks ...
..................................................................... 2-34
Windows ...
........................................................................\
......... 2-35
Power windows ...
.............................................................. 2-35
Interior lights ...
........................................................................\
.. 2-37
Map lights ...
........................................................................\
2-38
Map light control switch ...
............................................... 2-38
Ceiling light ...
...................................................................... 2-39
Cargo light ...
........................................................................\
...... 2-40
Condition:
>

Black plate (74,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-2Instruments and controls
GUID-D39D3E05-1287-4630-BB8B-5DBFF20D07E0
SSI0563
1. Front cup holders
2. Headlight, fog light and turn signal switch
3. Steering wheel— Horn
— Driver’s supplemental air bag
4. Wiper and washer switch
5. Fuse box cover 6. Outside mirror remote control switch
7. Vehicle Dynamic Control (VDC) OFF switch
8. Tilting steering wheel lever
9. Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth
®Hands-Free Phone System con-
trol 10. Steering-wheel-mounted controls (right side)
— Cruise control switches
11. Selector lever or Shift lever
— Continuously Variable Transmission (CVT)
— Manual Transmission (MT)
12. Parking brake
*: if so equipped
COCKPIT
Condition:

Black plate (75,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-741A14C4-F1A6-472D-9228-7C1146AF8138
SSI0840
1. Side ventilator
2. Meters and gauges
3. Center ventilator
4. Hazard warning flasher switch
5. Audio system* or Navigation system**— Clock*
6. Front passenger air bag status light 7. Front passenger supplemental air bag
8. Fuel-filler door release handle
9. Hood release handle
10. Ignition switch (models without Intelligent Key
system)
11. Push-button ignition switch (models with Intel- ligent Key system) 12. Heater and air conditioner* control
— Rear window and outside mirror* defroster
switch
13. Utility hooks
14. Heated seat switch*
15. iPod
®connector*/USB connector*
16. Power outlet
17. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Instruments and controls2-3
INSTRUMENT PANEL
Condition:

Black plate (76,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-4Instruments and controls
GUID-2F413D3E-B2C9-4243-A4AA-637B6452E2FB
SIC4119
1. Tachometer
2. Engine coolant temperature gauge
3. Vehicle information display— Odometer/twin trip odometer
— Trip computer
— Outside air temperature*
4. Fuel gauge 5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. Continuously Variable Transmission (CVT) posi-
tion indicator*
9. RESET switch for trip odometer/Trip computer mode switch *: if so equipped
The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.
METERS AND GAUGES
Condition:

Black plate (77,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SIC4120
Speedometer
SPEEDOMETER AND ODOMETERGUID-EC32360C-6F31-4F4D-B8EB-020089B05D73
SpeedometerGUID-A315E167-834E-45E4-A6EA-54001DD4A855The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC4121
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-74C9E53F-5D8B-4E79-8D94-4528C6EBE238The odometer*1/twin trip odometer*2are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the reset switch*3located on the
meter panel changes the display as follows:
TRIP A ?TRIP B ?Trip computer mode ?
TRIP A For trip computer information, see “Trip compu-
ter” (P.2-9) .
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the reset switch*3for approximately 1
second resets the trip odometer to zero.
Instruments and controls2-5
Condition:

Black plate (78,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-6Instruments and controls
SIC4712
Loose fuel cap warning messageGUID-0A73F916-C2BD-44D0-927C-5C493DB3792BPush the trip computer mode switch*Afor
more than 1 second to reset the LOOSE FUEL
CAP warning message after the fuel cap has
been tightened. For additional information see
“Fuel-filler cap” (P.3-21) of this manual.
JVI0359X
Check tire pressure warning messageGUID-4B7494B7-11DF-4659-A936-5F9073B4EAA0The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light
is illuminated and low tire
pressure is detected. Check and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The CHECK TIRE PRES
warning message turns off when the low tire
pressure warning light
turns off.
The low tire pressure warning light
remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON position as long as the low tire pressure warning
light
remains illuminated.
For more information see “Low tire pressure
warning light” (P.2-14) , “Tire Pressure Monitor-
ing System (TPMS)” (P.5-3) , and “Wheels and
tires” (P.8-30).
Extended storage fuse warning message
(if so equipped)
GUID-3D458489-C9E3-42F9-BF1F-CA6C8CEC8107The SHIPPING MODE ON/PUSH STORAGE
FUSE warning message may be displayed if the
extended storage fuse switch is not pushed in
(switched on) . When this message is displayed,
push in (switch on) the extended storage fuse
switch to turn off the message. For more
information, see “Extended storage fuse switch”
(P.8-23) .
Condition:
