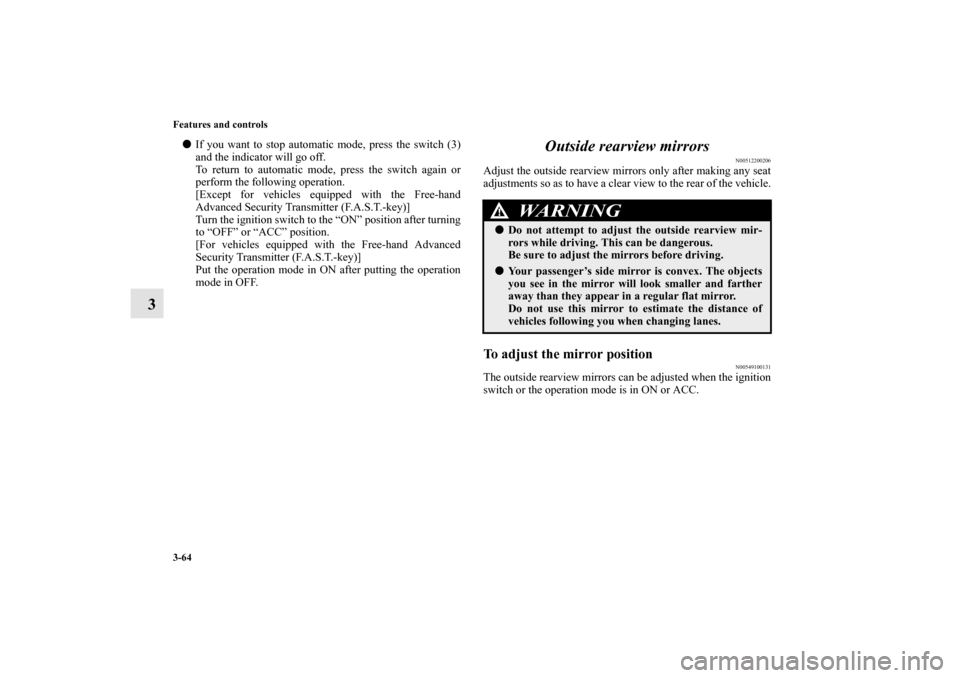

3-64 Features and controls
3

If you want to stop automatic mode, press the switch (3)
and the indicator will go off.
To return to automatic mode, press the switch again or
perform the following operation.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]
Turn the ignition switch to the “ON” position after turning
to “OFF” or “ACC” position.
[For vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
Put the operation mode in ON after putting the operation
mode in OFF.
Outside rearview mirrors
N00512200206
Adjust the outside rearview mirrors only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.To adjust the mirror position
N00549100131
The outside rearview mirrors can be adjusted when the ignition
switch or the operation mode is in ON or ACC.
WARNING
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0150700US.book 64 ページ ２０１２年３月２２日　木曜日　午後６時４６分

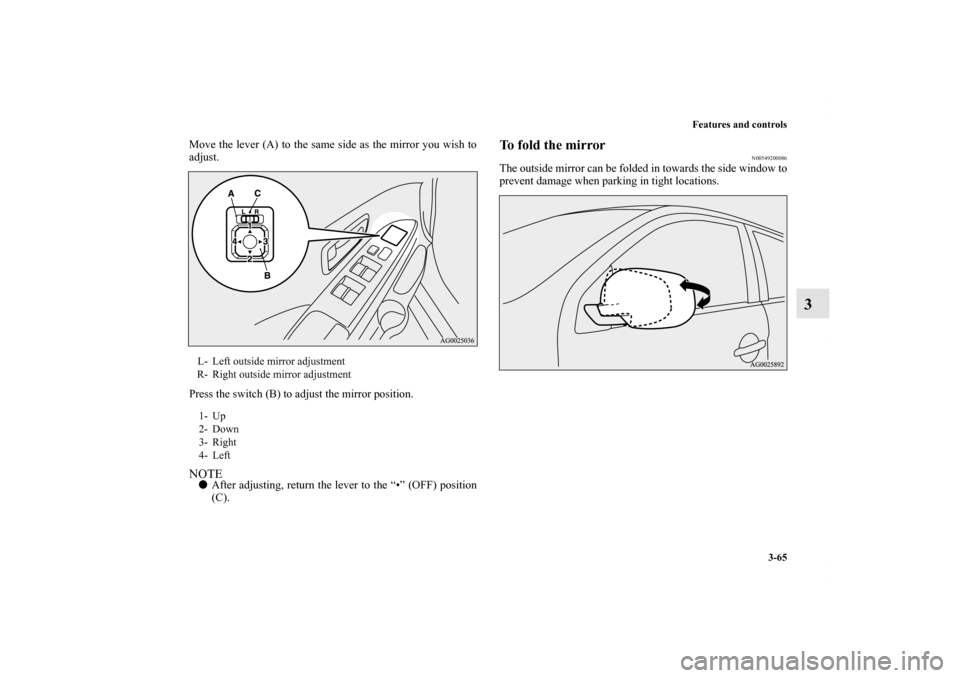

Features and controls3-65
3
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position.NOTE
After adjusting, return the lever to the “•” (OFF) position
(C).
To fold the mirror
N00549200086
The outside mirror can be folded in towards the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0150700US.book 65 ページ ２０１２年３月２２日　木曜日　午後６時４６分

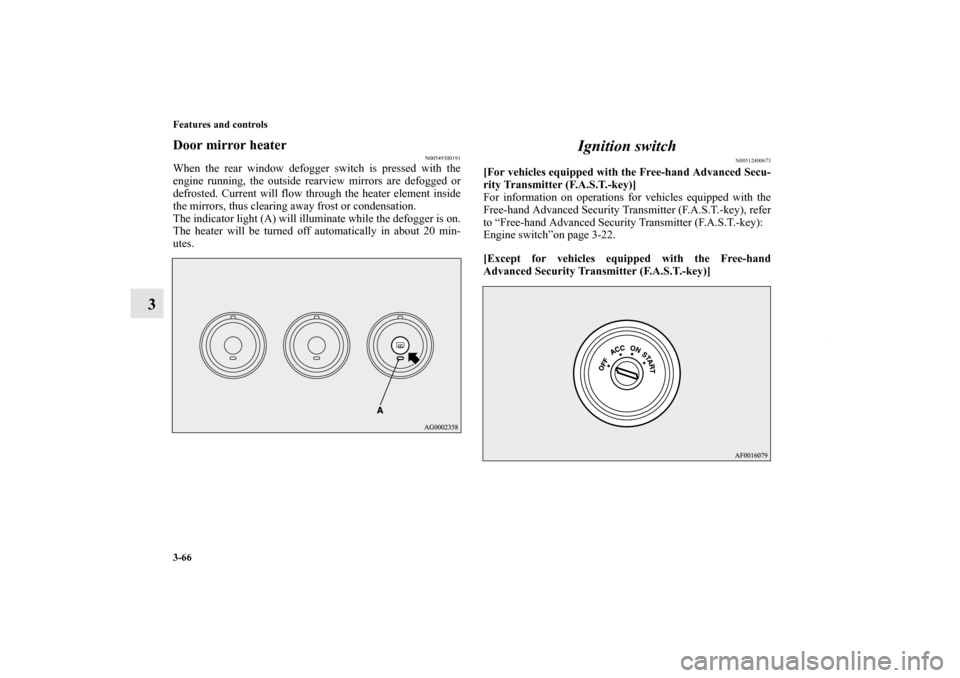

3-66 Features and controls
3
Door mirror heater
N00549300191
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400673
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Engine switch”on page 3-22.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]
BK0150700US.book 66 ページ ２０１２年３月２２日　木曜日　午後６時４６分

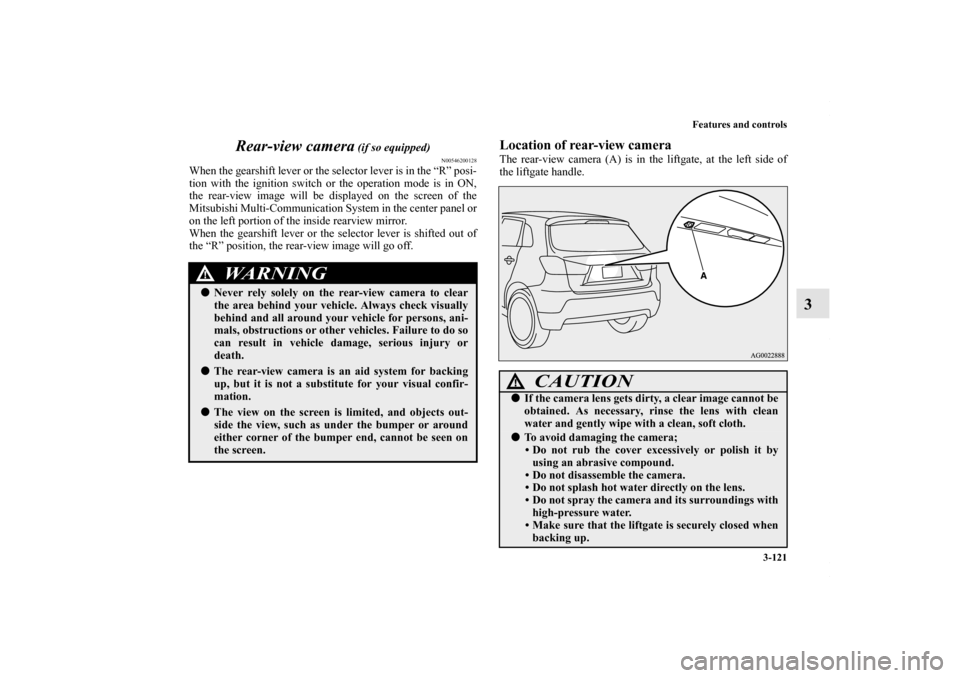

Features and controls3-121
3
Rear-view camera
(if so equipped)
N00546200128
When the gearshift lever or the selector lever is in the “R” posi-
tion with the ignition switch or the operation mode is in ON,
the rear-view image will be displayed on the screen of the
Mitsubishi Multi-Communication System in the center panel or
on the left portion of the inside rearview mirror.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the rear-view image will go off.
Location of rear-view cameraThe rear-view camera (A) is in the liftgate, at the left side of
the liftgate handle.
WARNING
!

Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with high-pressure water.
• Make sure that the liftgate is securely closed when
backing up.
BK0150700US.book 121 ページ ２０１２年３月２２日　木曜日　午後６時４６分

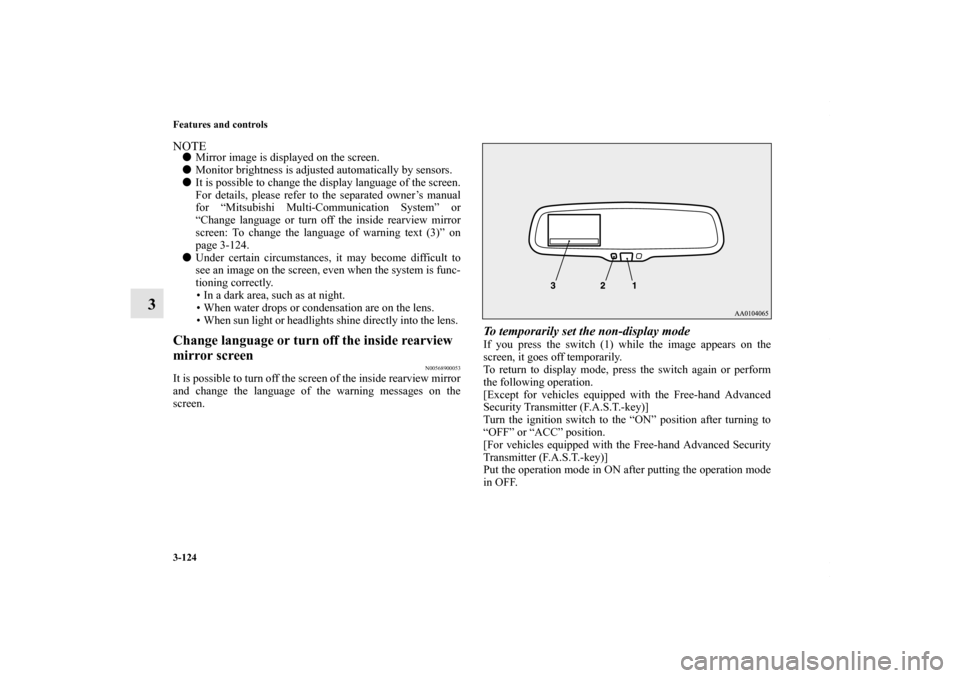

3-124 Features and controls
3
NOTE
Mirror image is displayed on the screen.

Monitor brightness is adjusted automatically by sensors.

It is possible to change the display language of the screen.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System” or
“Change language or turn off the inside rearview mirror
screen: To change the language of warning text (3)” on
page 3-124.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens. Change language or turn off the inside rearview
mirror screen
N00568900053
It is possible to turn off the screen of the inside rearview mirror
and change the language of the warning messages on the
screen.
To temporarily set the non-display modeIf you press the switch (1) while the image appears on the
screen, it goes off temporarily.
To return to display mode, press the switch again or perform
the following operation.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
Turn the ignition switch to the “ON” position after turning to
“OFF” or “ACC” position.
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
Put the operation mode in ON after putting the operation mode
in OFF.
BK0150700US.book 124 ページ ２０１２年３月２２日　木曜日　午後６時４６分

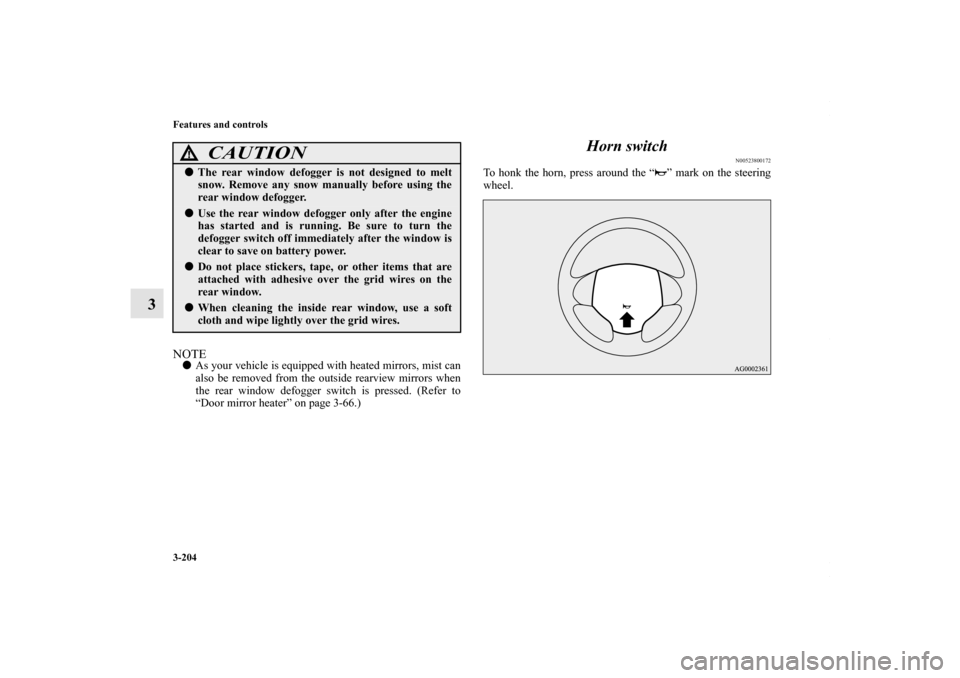

3-204 Features and controls
3
NOTE
As your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Door mirror heater” on page 3-66.)
Horn switch
N00523800172
To honk the horn, press around the “ ” mark on the steering
wheel.
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.
Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0150700US.book 204 ページ ２０１２年３月２２日　木曜日　午後６時４６分

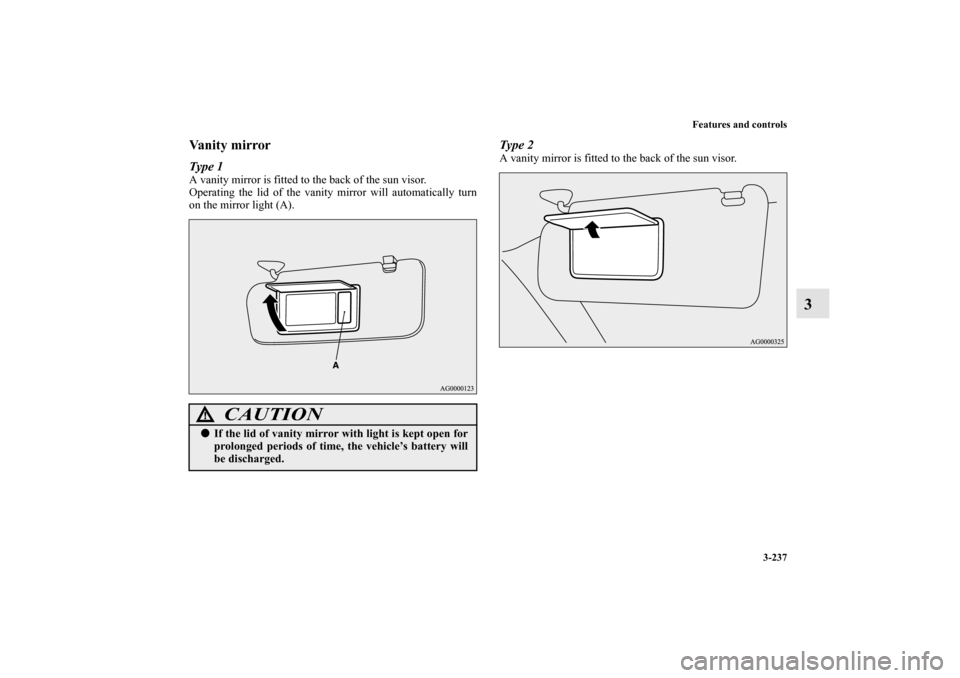

Features and controls3-237
3
Va n i t y m i r r o rType 1A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automatically turn
on the mirror light (A).
Type 2A vanity mirror is fitted to the back of the sun visor.
CAUTION
!
If the lid of vanity mirror with light is kept open for
prolonged periods of time, the vehicle’s battery will
be discharged.
BK0150700US.book 237 ページ ２０１２年３月２２日　木曜日　午後６時４６分

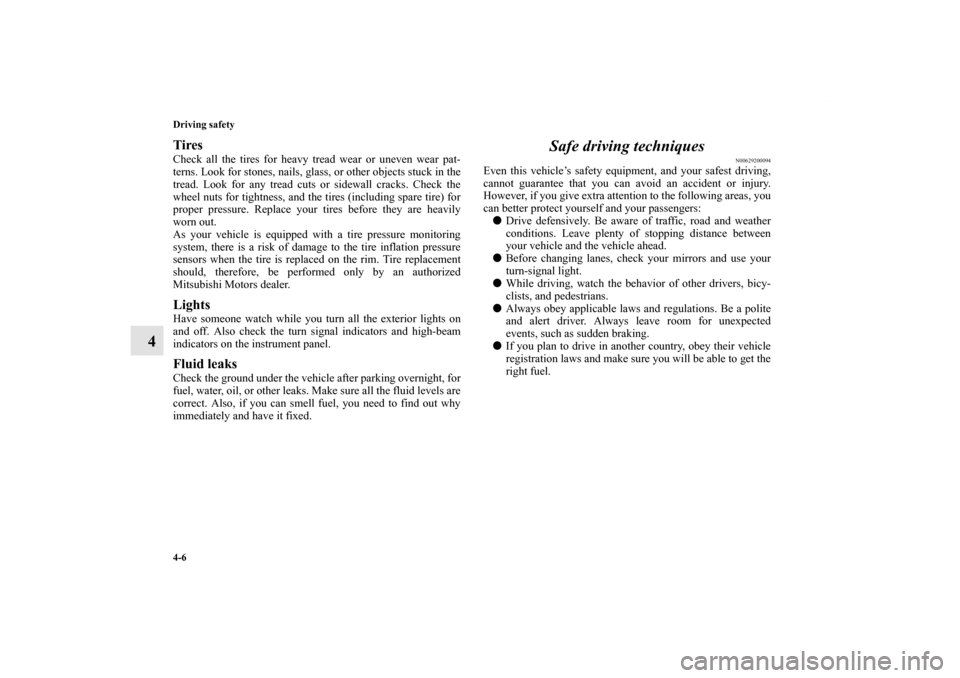

4-6 Driving safety
4
TiresCheck all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressure. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.LightsHave someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel.Fluid leaksCheck the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
Safe driving techniques
N00629200094
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:
Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
