Page 543 of 602
7-42 Vehicle care and maintenance
7
*: Fusible link Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1 Heater30 A*
2 Stop lights
(Brake lights) 15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional10 A
6 Door locks20 A
7 Radio15 A
8 Control unit relay 7.5 A
9 Interior lights
(Dome lights) 15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges7.5 A
13 Cigarette lighter
/Accessory socket 15 A
14 Ignition
Switch 10 A
15 Sunroof20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger30 A*
22 Heated door mirror 7.5 A
23 Passenger’s power seat 25 (20) A
24 Driver’s power seat 25 (20) A
25 Heated seats30 ANo.
Symbol
Electrical system
Capacity
BK0150700US.book 42 ページ 2012年3月22日 木曜日 午後6時46分
Page 551 of 602
7-50 Vehicle care and maintenance
7

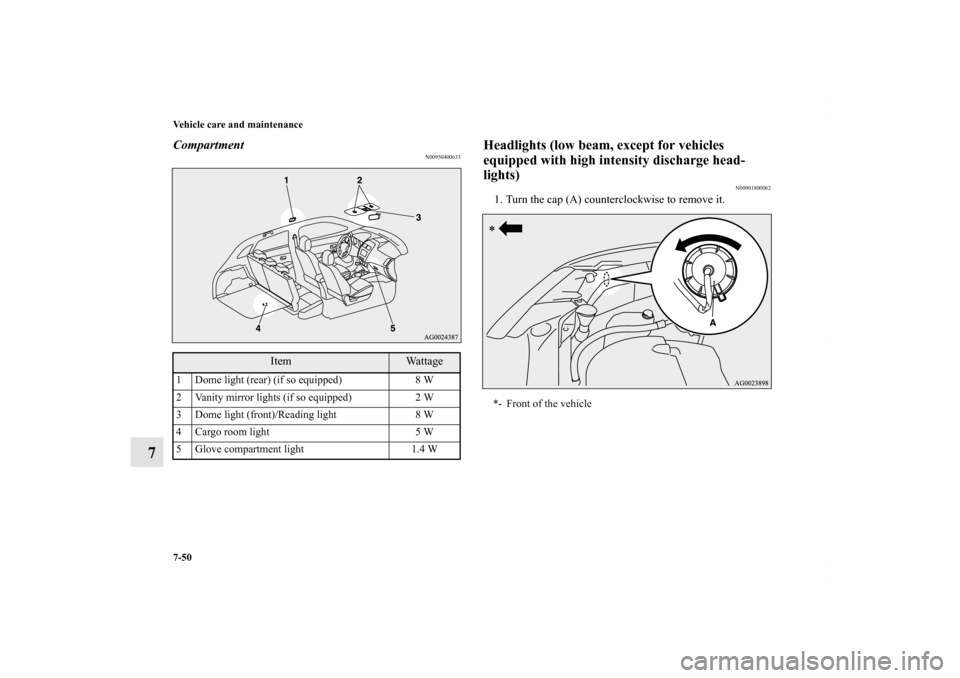

Compartment
N00950400633
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800062
1. Turn the cap (A) counterclockwise to remove it.
Item
Wa t t a g e
1 Dome light (rear) (if so equipped)8 W
2 Vanity mirror lights (if so equipped) 2 W
3 Dome light (front)/Reading light 8 W
4 Cargo room light 5 W
5 Glove compartment light 1.4 W
*- Front of the vehicle
BK0150700US.book 50 ページ 2012年3月22日 木曜日 午後6時46分
Page 573 of 602

7-72 Vehicle care and maintenance
7
During cold weatherSalt and other chemicals spread on winter roads in some geo-
graphical areas can have a detrimental effect on the vehicle
underbody. You should flush the underbody with a high pres-
sure hose every time you wash the outside of your vehicle.
Take special care to remove mud or other debris which could
trap and hold salt and moisture.
After washing your vehicle, wipe off all waterdrops from the
rubber parts around the doors to prevent the doors from freez-
ing.
CAUTION
!When washing the underside of your vehicle or the
wheels, wear a pair of gloves to protect your hands.If your vehicle has rain sensor wipers, place the
wiper switch lever in the “OFF” position to deacti-
vate the rain sensor before washing the vehicle. Oth-
erwise, the wipers will operate in the presence of
water spray on the windshield and may get damaged
as a result.Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody to
ensure that water does not enter the engine com-
partment.Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. Because hot
water can damage plastics parts and seep inside
your vehicle, make sure you do the following when
using such equipment:
• Keep the washing nozzle at least 28 inches (70 cm)
away from the vehicle body.
• When washing around the door glass, hold the nozzle at a distance of more than 28 inches (70 cm)
and at a right angle to the glass surface.
Make sure to do the following when using an auto-
matic car wash, with help from either this manual or
the car wash operator, to avoid damaging your vehi-
cle:
• Fold the outside rearview mirrors.
• Remove the antenna.
• Tape the wiper arm assembly.
• If your vehicle is equipped with a rear spoiler or
roof rails, check with the car wash operator before
using the car wash.
• If your vehicle is equipped with the rain sensor wipers, place the wiper switch lever in the “OFF”
position to deactivate the rain sensor.CAUTION
!
BK0150700US.book 72 ページ 2012年3月22日 木曜日 午後6時46分
Page 597 of 602

Alphabetical index
4
H
Hazard warning flasher switch 3-193
Hazard warning lights 3-177
Head restraints 2-12
Headlight leveling switch 3-191
HeadlightsBulb capacity 7-48
Dimmer 3-188
Headlight flasher 3-188
Replacement 7-50
,7-52
Switch 3-183
High beam indicator 3-177
High-mount stop light Bulb capacity 7-48
Hill start assist 3-94
Hood lock release mechanism and safety catch 7-38
Horn switch 3-204
I
If the vehicle breaks down 6-2
Ignition switch 3-66
Important facts to know in case of an accident 8-5
Indicators 3-177
Information screen display 3-126
Inside rearview mirror 3-60
Inspection and maintenance following rough road operation 3-90
Instrument cluster 3-129 Interior lights 3-240
J
Jack
Storage 6-7
