2013 MINI Paceman Owner's Manual

REFERENCETechnical data
248
MINI Paceman
CooperCooper S
1Vehicle width, with outs
ide mirror 78.6/1,996 78.6/1,996
2 Vehicle height without roof antenna
59.8/1,51859.9/1,522
3 Vehicle width, without outs
ide mirror70.3/1,786 70.3/1,786
4 Wheelbase
102.2/2,596102.2/2,596
5 Vehicle length
162.2/4,120162.2/4,120
All dimensions in in/mm. Minimum turning radius dia.: 38.1 ft/11.6 m.

00320051004F004C00510048000300280047004C0057004C005200510003

Technical dataREFERENCE
249
Weights
MINI Countryman
CooperCooper S
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs/kg 2,954/1,340 3,053/1,385
> Automatic transmission lbs/kg 3,020/1,370 3,097/1,405
Approved gross weight
> Manual transmission lbs/kg 3,858/1,750 3,990/1,810
> Automatic transmission lbs/kg 3,924/1,780 4,034/1,830
Load lbs/kg 860/390 860/390
Approved front axle load
> Manual transmission lbs/kg 2,050/930 2,127/965
> Automatic transmission lbs/kg 2,116/960 2,172/985
Approved rear axle load lbs/kg 1,918/870 1,918/870
Approved roof load capacity lbs/kg 165/75 165/75
Cargo area capacity cu ft/ liters12.4 - 41.3/
350 - 1,170 12.4 - 41.3/
350 - 1,170

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCETechnical data
250
Never exceed either the approved axle loads or
the gross vehicle weight.
Cooper S ALL4John Cooper Works
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs/kg 3,208/1,455 3,263/1,480
> Automatic transmission lbs/kg 3,252/1,475 3,307/1,500
Approved gross weight
> Manual transmission lbs/kg 4,101/1,860 4,156/1,885
> Automatic transmission lbs/kg 4,145/1,880 4,200/1,905
Load lbs/kg 860/390 860/390
Approved front axle load
> Manual transmission lbs/kg 2,183/990 2,183/990
> Automatic transmission lbs/kg 2,227/1,010 2,227/1,010
Approved rear axle load lbs/kg 2,017/915 2,072/940
Approved roof load ca pacity lbs/kg 165/75 165/75
Cargo area capacity cu ft/ liters12.4 - 41.3/
350 - 1,170 12.4 - 41.3/
350 - 1,170

00320051004F004C00510048000300280047004C0057004C005200510003

Technical dataREFERENCE
251
MINI Paceman
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
CooperCooper SCooper S ALL4
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs/kg 2,940/1,334 3,070/1,393 3,210/1,456
> Automatic transmission lbs/ kg 3,010/1,365 3,110/1,411 3,260/1,479
Approved gross weight
> Manual transmission lbs/kg 3,850/1,746 3,960/1,796 4,100/1,860
> Automatic transmission lbs/ kg 3,920/1,778 4,010/1,819 4,140/1,878
Load lbs/kg 850/386 850/386 850/386
Approved front axle load
> Manual transmission lbs/ kg 2,050/930 2,120/962 2,180/989
> Automatic transmission lbs/ kg 2,120/962 2,170/984 2,220/1,007
Approved rear axle load lbs/kg 1,910/866 1,910/866 2,020/916
Approved roof load capac-
ity lbs/kg165/75 165/75 165/75
Cargo area capacity cu ft/ liters11.6 - 38.1/
330 - 1080 11.6 - 38.1/
330 - 1080 11.6 - 38.1/
330 - 1080
US gal/US quartsLitersNotes
Fuel tank 12.4/– approx. 47 Fuel grade: page 201
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.2 approx. 4 For more details: page 57

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCEShort commands for the voice activation system
252
Short commands for the voice
activation system
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. Equipment is also described
that is not available because of, for example,
selected options or coun try version. This also
applies to safety relate d functions and systems.
General information
Instructions for the voice activation system, refer
to page21.
Having the possible sp oken commands read
aloud: {Voice commands }
The following short commands apply to vehicles
with voice activation sy stem. They do not work
for equipment with which only the mobile
phone can be operated by voice.
Useful short commands
FunctionCommand
Accessing tone control {Tone }
Accessing settings {Settings }
Accessing the onboard computer {Onboard info }
Accessing contacts {Contacts }
To display phone book {Phonebook }
Accessing services {Assist }
Selecting destination entry {Enter address}
Selecting route guidance {Guidance }

00320051004F004C00510048000300280047004C0057004C005200510003

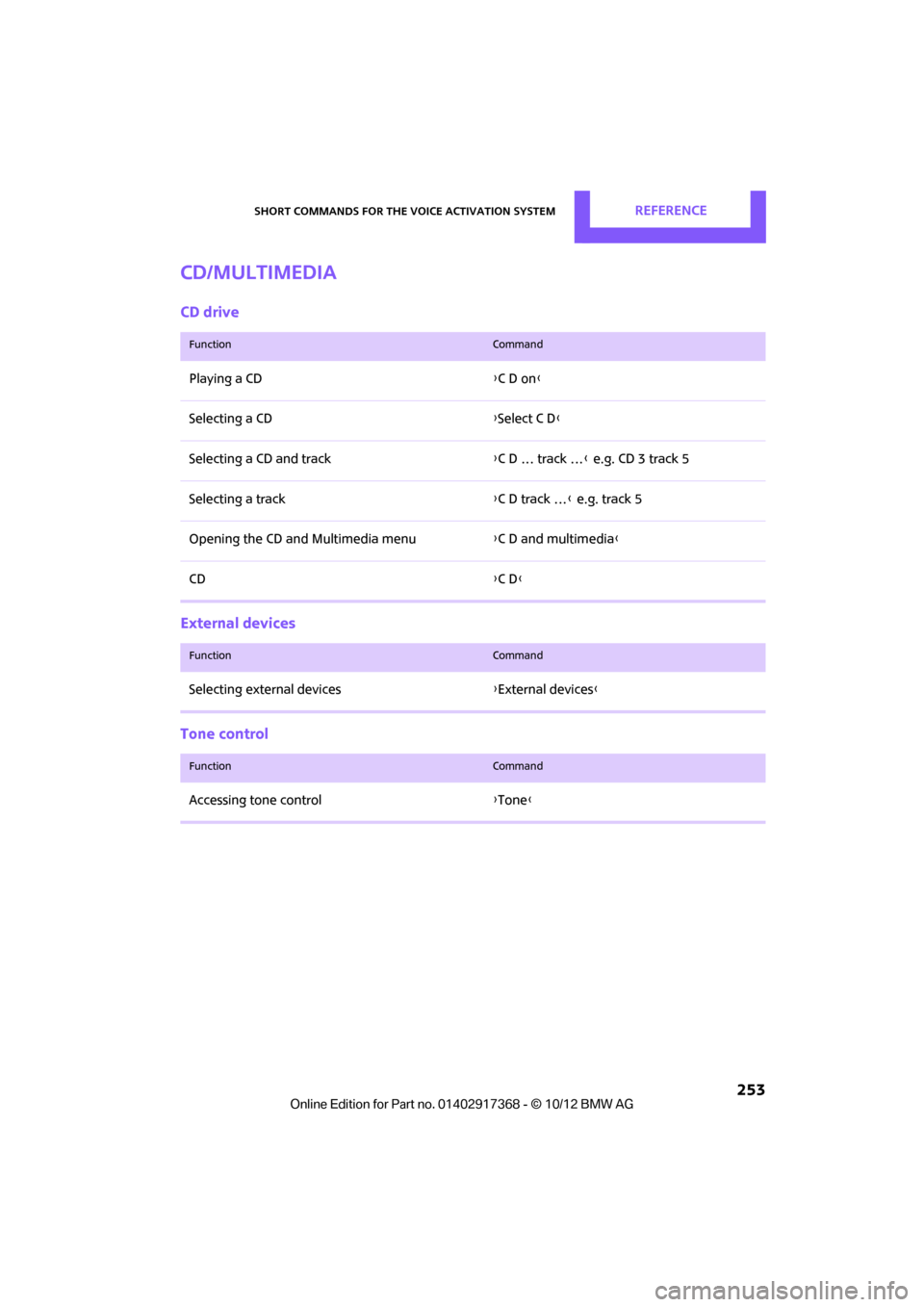

Short commands for the voice activation systemREFERENCE
253
CD/Multimedia
CD drive
External devices
Tone control
FunctionCommand
Playing a CD{C D on}
Selecting a CD {Select C D }
Selecting a CD and track {C D … track … } e.g. CD 3 track 5
Selecting a track {C D track … } e.g. track 5
Opening the CD and Multimedia menu {C D and multimedia }
CD {C D }
FunctionCommand
Selecting external devices {External devices }
FunctionCommand
Accessing tone control {Tone }

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCEShort commands for the voice activation system
254
Radio
FM
AM
Satellite radio
FunctionCommand
Selecting the radio{Radio }
Selecting FM stations {F M }
Selecting manual search {Manual }
Selecting the frequency range {Select frequency }
Selecting a station {Select station } e.g. W-PLJ
FunctionCommand
Selecting AM stations {A M }
Selecting manual search {Manual }
FunctionCommand
Selecting the satellite radio {Satellite radio }
Switching on the satellite radio {Satellite radio on }
Selecting a satellite radio channel {Select satellite radio } e.g. channel 2

00320051004F004C00510048000300280047004C0057004C005200510003

Short commands for the voice activation systemREFERENCE
255
Stored stations
Telephone
Office
FunctionCommand
Selecting stored stations{Presets}
Choosing a stored station {Select preset }
Selecting a stored station {Preset … } e.g. stored station 2
FunctionCommand
Opening the Telephone menu {Telephone }
To display phone book {Phonebook }
To redial {Redial }
Displaying accepted calls {Received calls }
Dialing a phone number {Dial number}
Displaying the list of messages {Messages }
Displaying Bluetooth devices {Bluetooth }
FunctionCommand
Calling up the Office menu {Office }
Displaying Current office {Current office }
Displaying contacts {Contacts }
