2013 MERCEDES-BENZ SL-Class navigation system

X
Select All Data and press
0039to confirm.
This function exports all the data to the
selected disc.
or
X Select the data type and press 0039to
confirm.
Depending on the previous entry, select the
data type for the export 0013or not 0003.
X Select Continue and press
0039to confirm.
i Personal music files in the MUSIC
REGISTER canno tbe saved and imported
again using this function. Reset function
You can completely reset COMAND to the
factory settings. Amongst other things, this
will delete all personal COMAND data. This
includes the station presets, entries in the
destination memory and in the list of previous
destinations in the navigation system and
address book entries. Resetting is
recommended before selling or transferring
ownership of your vehicle, for example.
Data on the internal hard drive, e.g. music
files in the MUSIC REGISTER, will be deleted.
You can also delete music files from the
MUSIC REGISTER using the "Delete all music
files" function (Y page 453).
X Press the 000Dfunction button.
X Select Settings by turning
003E0012003Fthe
COMAND controller and press 0039to
confirm.
X Select Reset and press
0039to confirm.
Ap rompt appears asking whethe ryou wish
to reset.
X Select Yes or
No and press
0039to confirm.
If you select No , the process will be
canceled. If you select
Yes , a prompt will appear again
asking whether you really wish to reset.
X Select Yes or
No and press
0039to confirm.
If you select Yes , a message will be shown.
COMAND is reset and restarted.
If you select No , the process will be
canceled. Vehicle functions
Your COMAND equipment
These operating instructions describe all the
standard and optional equipment for your
COMAND system, as available at the time of
going to print. Country-specific differences
are possible. Please note that your COMAND
system may not be equipped with all the
features described. Climate control status display
The climate status display in the COMAND display
(example)
If you change the settings of the climate
control system, the climate status display
appears for three seconds at the bottom of
the screen in the COMAND display
.You will
see the current settings of the various climate
control functions.
Overview of climate control systems, see
separate vehicle operating instructions. 308
Vehicle functionsCOMAND

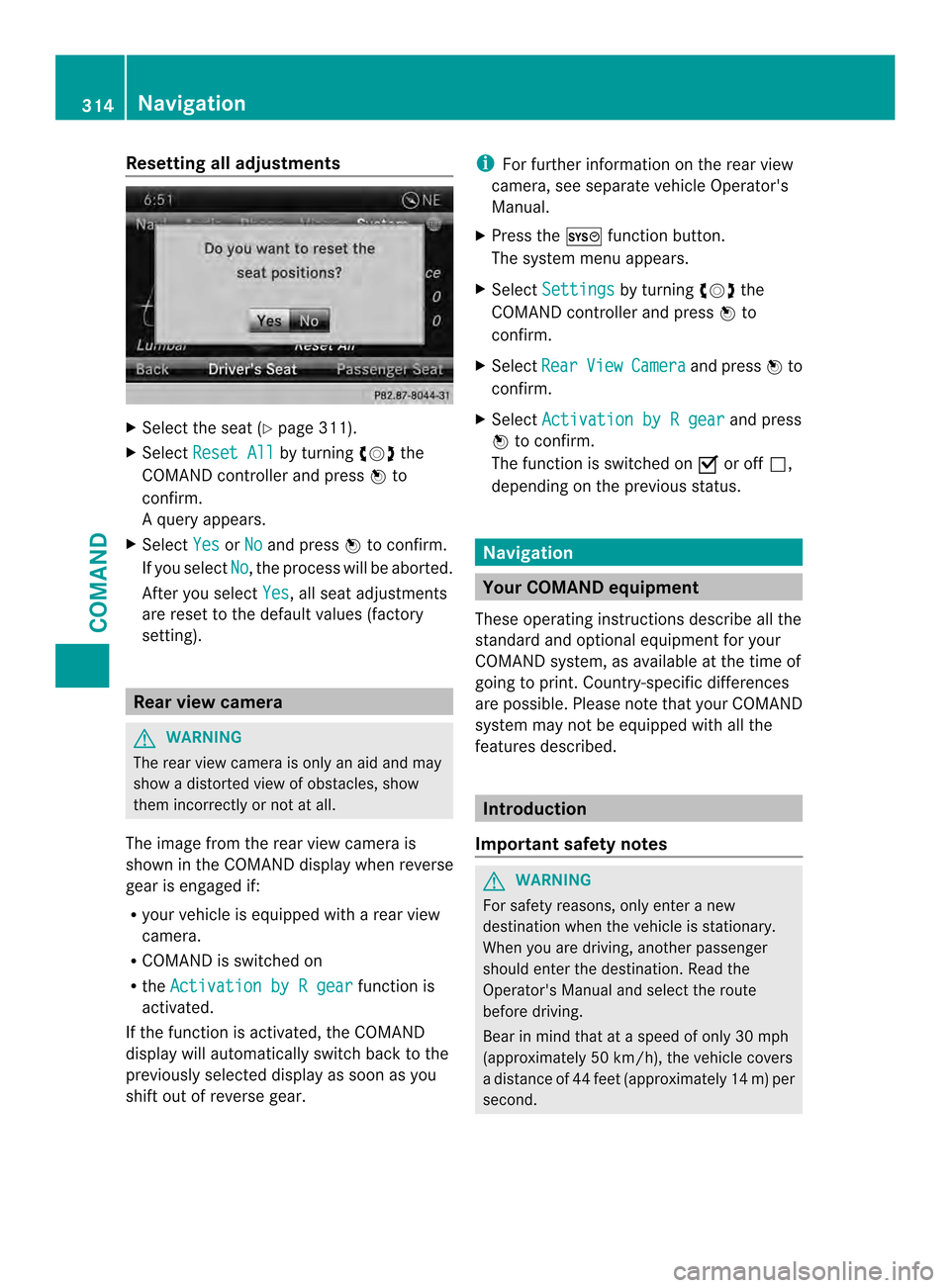

Resetting all adjustments
X
Select the sea t(Ypage 311).
X Select Reset All by turning
003E0012003Fthe
COMAND controller and press 0039to
confirm.
Aq uery appears.
X Select Yes or
No and press
0039to confirm.
If you select No , the process will be aborted.
Afte ryou select Yes , all seat adjustments
are reset to the default values (factory
setting). Rear view camera
G
WARNING
The rear view camera is only an aid and may
show a distorted view of obstacles, show
them incorrectly or not at all.
The image from the rear view camera is
shown in the COMAND display when reverse
gear is engaged if:
R your vehicle is equipped with a rear view
camera.
R COMAND is switched on
R the Activation by R gear function is
activated.
If the function is activated, the COMAND
display will automatically switch back to the
previously selected display as soon as you
shift out of reverse gear. i
For further information on the rear view
camera, see separate vehicle Operator's
Manual.
X Press the 000Dfunction button.
The system menu appears.
X Select Settings by turning
003E0012003Fthe
COMAND controller and press 0039to
confirm.
X Select Rear View Camera and press
0039to
confirm.
X Select Activation by R gear and press
0039 to confirm.
The function is switched on 0013or off 0003,
depending on the previous status. Navigation
Your COMAND equipment
These operating instructions describe all the
standard and optional equipment for your
COMAND system, as available at the time of
going to print. Country-specific differences
are possible. Please note that your COMAND
system may not be equipped with all the
features described. Introduction
Important safety notes G
WARNING
For safety reasons, only enter a new
destination when the vehicle is stationary.
When you are driving, another passenger
should enter the destination .Read the
Operator's Manual and select the route
before driving.
Bear in mind that at a speed of only 30 mph
(approximately 50 km/h), the vehicle covers
a distance of 44 feet (approximately 14 m) per
second. 314
NavigationCOMAND

COMAND calculates the rout
eto the
destination without taking account of the
following, for example:
R traffic lights
R stop and give way signs
R merging lanes
R parking or stopping in a no parking/no
stopping zone
R other road and traffic rules and regulations
R narrow bridges G
WARNING
COMAND may give incorrect navigation
commands if the actual road/traffic situation
no longer corresponds to the data on the
digital map. Digital maps do not cover all
areas nor all routes in an area. For example,
a route may have been diverted or the
direction of a one-way street may have
changed.
For this reason, you must always observe road
and traffic rules and regulations during your
journey. Road and traffic rules and regulations
always have priority over the system's driving
recommendations. G
WARNING
Navigation announcements are intended to
direct you while driving without diverting your
attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Looking at the icons or map display can
distract you from traffic conditions and
driving, and increase the risk of an accident.
General notes Operational readiness of the navigation
system
The navigation system must determine the
position of the vehicle before first use or
whenever operational status is restored.
Therefore, you may have to drive for a while
before precise route guidance is possible. GPS reception
Correct functioning of the navigation system
depends, amongst other things, on GPS
reception
.Incertain situations, GPS
reception may be impaired, there may be
interference or there may be no reception at
all, e.g. in tunnels or parking garages.
i Using roof carriers may impair the correct
functioning of a roof antenna (phone,
satellite radio, GPS).
Entry restriction
On vehicles for certain countries, there is a
restriction on entering data.
The restriction is active from a vehicle speed
of above approximately 3 mph (5 km/h). As
soon as the speed falls below approximately
2 mph (3 km/h), the restriction becomes
inactive.
When the restriction is active, certain entries
cannot be made. This will be indicated by the
fact that certain menu items are grayed out
and cannot be selected.
The following entries are not possible, for
example:
R entering the destination city and street
R entering a destination via the map
R entering POIs in the vicinity of a city or via
a name search
R editing entries
R using the number keypad for direct entry
Other entries are possible, such as entering
points of interest in the vicinity of the
destination or curren tposition. Navigation
315COMAND Z

X
Select Navi in the main function bar by
sliding 00380012and turning 003E0012003Fthe COMAND
controlle rand press 0039to confirm.
X Select Route Settings and press
0039to
confirm.
The route settings menu appears.
X Select a route type and press 0039to confirm.
Af illed circle indicates the current setting.
X Selec tthe route option(s) and press 0039to
confirm.
The route options are switched on 0013or off
0003, depending on the previous status.
i If you change the route type and/or the
route options while route guidance is
active, COMAND will calculate a new route.
If you change the route type and/or the
route options while route guidance is
inactive, COMAND uses the new setting for
the next route guidance.
Route guidance active: a destination has
been entered and the route has been
calculated.
Route guidance inactive: no destination
has been entered yet and no route has been
calculated yet.
i RDS-TMC is not available in all countries.
You can select the following route types:
R Fast Route :C
OMAND calculates a route
with the shortest (minimized) journey time.
R Dynamic Traffic Route : same route
type as Fast Route .Ina
ddition, COMAND
takes into account any relevant traffic
reports received during route guidance.
The navigation system can help you avoid
a traffic jam, for example, by recalculating
the route.
R Dynamic TRF. Route After Request :
same route type as Dynamic Traffic Route . After recalculating the route,
COMAND asks you whether you want to
adopt the new route or whether you want
to continue along the original route. R
Eco Route : the
Eco Route is a variant of
the Fast Route route type. COMAND will
attempt to minimize the journey distance
at the expense of a slightly increased
journey time.
R Short Route :C
OMAND calculates a route
with the shortest possible (minimized)
route distance.
i The route calculated may, for example,
include ferry connections, even if the
Avoid Ferries route option is switched
on.
In some cases, COMAND may not be able
to take all the selected route options into
account, e.g. when calculating particularly
long routes.
X To exit the menu: slide003600120037 the COMAND
controller.
To set the number of persons in the
vehicle for the use of carpool lanes For route calculation, you can take HOV or
carpool lanes into account.
If you use HOV or carpool lanes, please
observe the applicable laws as well as the
local and time limitation conditions.
Carpool lanes may only be used under certain
conditions. Normally you can use these lanes
when two or more occupants are traveling in
the vehicle. However, there are lanes that can
only be used when three or four occupants
(e.g. in New York) travel in the vehicle. In
California, lone drivers can use a carpool lane
if their vehicle's emission level or fuel
consumption is below a fixed threshold.
Carpool lanes may be reserved for specific
times (e.g. during the peak period).
Carpool lanes are identified by HOV symbols
on special road signs and by markings on the
road. On the road signs, you may also see the
word CARPOOL .T
he lanes are arranged as a
separate lane next to the others or are built
as a physically separate lane.
Depending on the setting under Number of Occupants in Vehicle , COMAND uses Navigation
317COMAND Z

Option 2 – route guidance is already
active:
if route guidance is already active, a
prompt will appear asking whether you wish
to terminate the currently active route
guidance.
X Select Yes or
No and press
0039to confirm.
If you select Yes , COMAND will stop route
guidance and start route calculation for the
new destination.
If you select No , COMAND will continue
with the active route guidance.
i Route calculation takes a certain amount
of time. The time depends on the distance
from the destination, for example.
COMAND calculates the route using the
digital map data.
The calculated route can differ from the
ideal route, for example because of
incomplete map data. Please also refer to
the notes about the digital map
(Y page 372).
Entering and saving your home address
You can either enter your home address for
the first time (option 1) or edit a previously
stored home address (option 2).
X Option 1: enter the address, e.g. a city,
street and house number (Y page 319).
X Once you have entered the address, select
Save in the address entry menu by turning
003E0012003F and sliding 00380012000Athe COMAND
controller and press 0039to confirm.
X Select Save as "My Address" and press
0039 to confirm.
COMAND stores your home address under
the My Address entry in the destination
memory.
X Option 2: proceed as described under
"Option 1".
Ap rompt appears asking whethe rthe
current home address should be
overwritten. X
Select Yes and press
0039to confirm.
After selecting Yes , the
Saving Procedure Successful message
appears.
Selecting adestination from the
destination memory (e.g. My address) Introduction
The destination memory always contains an
entry named "My address". You may wish to
assign your home address to this entry, for
example (Y
page 324), and selec titfor route
guidance. This entry is always located at the
top of the list in the destination memory.
X To switch to navigation mode: press the
0014 function button.
X To show the menu: press0039the COMAND
controller.
X Select Dest. in the navigation system
menu bar by turning 003E0012003Fthe COMAND
controller and pressing 0039to confirm.
X Select From Memory and press
0039to
confirm.
You will see the destination memory list
either with the character bar (option 1) or
as a selection list (option 2).
Option 1: destination memoryl ist with
character bar 0002
Character entered by the user
0003 Characters automatically added by the
system 324
NavigationCOMAND

0027
List entry most closely resembling the
characters entered so far
0026 To switch to the selection list
0024 To delete an entry
0025 Characters not currently available
0016 Character bar
0017 Currently selected character
0018 To cancel an entry
0019 Characters currently available
X Enter a destination, e.g. "My address".
Character entry, using city input as an
example (Y page 301).
Option 2: destination memory list as
selection list Destination memory list
X
Select My Address by turning
003E0012003Fthe
COMAND controller.
X Irrespective of the option, press 0039to
confirm yours election.
The address entry menu appears again.
"My address" has been entered.
X To start route calculation: selectStart and press
0039to confirm.
Entering adestination from the list of
last destinations X
To switch to navigation mode: press the
0014 function button.
X To show the menu: press0039the COMAND
controller. X
Select Dest. in the navigation system
menu bar by turning 003E0012003Fthe COMAND
controller and pressing 0039to confirm. X
Select From Last Destinations and
press 0039to confirm.
X Select the desired destination by turning
003E0012003F the COMAND controller and press
0039 to confirm.
The address entry menu appears again. The
destination address selected has been
entered.
X To start route calculation: selectStart and press
0039to confirm.
Once the route has been calculated, route
guidance begins (Y page 323).
i “Las tDestinations” memory
(Y page 361).
Entering adestination usin gthe map Calling up the map
X
To switch to navigation mode: press the
0014 function button.
X To show the menu: press0039the COMAND
controller.
X Select Dest. in the navigatio
nsystem
menu bar by turning 003E0012003Fthe COMAND
controller and pressing 0039to confirm. Navigation
325COMAND Z

0002
Curren tvehicle position
0003 Crosshair
0027 Details of the crosshair position
0026 Map scale selected
X Select Using Map and press
0039to confirm.
You see the map with the crosshair.
Display 0027depends on the settings selected
in "Map information in the display"
(Y page 365). You can see the current street
name if the digital map contains the
necessary data, You can see the coordinates
of the crosshair if the geo-coordinate display
is switched on and the GPS signal is strong
enough.
Moving the map and selecting the
destination
X To scroll the map: slide003600120037, 00380012000Aor
00340012003D the COMAND controller.
X To set the map scale: as soon as you turn
003E0012003F the COMAND controller, the scale bar
appears.
X Turn 003E0012003F until the desired scale is set.
Turning clockwise zooms out from the map;
turning counter-clockwise zooms in. X
To select adestination: press0039the
COMAND controller once or several times.
If COMAND is unable to assign a unique
address, you will see either the address
entry menu with the destination address or
a selectio nlist.
X Selec tadestination by turning 003E0012003Fthe
COMAND controller and press 0039to
confirm.
If the destination is within the limits of the
digital map, COMAND attempts to assign
the destination to the map.
If the destination can be assigned, you will
see the address entry menu with the
address of the destination. If not, you will
see the Destination From Map entry.
X To start route calculation: selectStart and press
0039to confirm.
Entering adestination usin ggeo-
coordinates X
To switch to navigation mode: press the
0014 function button.
X To show the menu: press0039the COMAND
controller.
X Select Dest. in the navigation system
menu bar by turning 003E0012003Fthe COMAND
controller and pressing 0039to confirm. 326
NavigationCOMAND

X
Select Using Geo-Coordinates and
press 0039to confirm.
An entry menu appears.
You can now enter the latitude and longitude
coordinates.
X To change a value: turn003E0012003F the
COMAND controller.
X To move the mark within the line: slide
003600120037 the COMAND controller.
X To move the mark between the lines:
slide 00380012000A the COMAND controller.
X To confirm the value: press0039the
COMAND controller.
i If the selected position is outside the
digital map, COMAND uses the nearest
digitized road for route calculation. You will
see the The coordinates are off the
map message. If the selected position is
located ove rabody of water, you will see
the message: The destination is in a body of water. Please select
another destination.
Intermediate stop
Entering an intermediate stop
X
To switch to navigation mode: press the
0014 function button.
X To show the menu: press0039the COMAND
controller.
X Select Dest. in the navigation system
menu bar by turning 003E0012003Fthe COMAND
controller and pressing 0039to confirm. Intermediate stop categories
Option 1: the route does not have an
intermediate stop.
X
Select Stopover and press
0039to confirm.
X Select a category; see option 2.
Option 2: the route already has an
intermediate stop.
X Select Change Stopover and press
0039to
confirm. Example: search results for the chosen category
COFFEE SHOP
0002
Highlighted stopover, curren tdistance
fro mv ehicle position and name of
stopover
X To select acategory: select a category by
turning 003E0012003Fthe COMAND controller and
press 0039to confirm.
COMAND first searches in the selected
category for destinations along the route.
If there are no destinations available there,
COMAND searches for destinations within
a radius of 60 miles(100 km) of the vehicle
position. Navigation
327COMAND Z
