Cockpit
Function Page
0002
Steering wheel paddle
shifters
318
0003
Combination switch 283
0026
Cruise control lever 335
0025
Horn
0023
Instrument cluster 37
0024
DIRECT SELECT lever 314
0014
Control panel for:
Vehicle level 347
Suspension tuning 348
PARKTRONIC 350
Swiveling the COMAND
display
128
COMAND display
brightness
128
Instrument lighting
128 Function Page
0015
Overhead control panel 42
0016
Automatic climate control 294
0017
Ignition lock 307
Start/Stop button 307
0018
Adjusts the steering wheel 114
Steering wheel heating 114
001C
Electric parking brake 328
001D
Diagnostics connection 31
001E
Opens the hood 462
001F
Nigh
tView Assist Plus 360
0021
Light switch 28036
CockpitAt a glance

Instrumen
tcluster Displays
Function Page
0002
Coolant temperature 374
0003
Fuel gauge
0026
PARKTRONIC 350
0025
Multifunction display 376
Speedometer
0023
Transmission position 316
0024
Tachometer 375
0014
Drive program 317
0015
Parking Guidance
353 Function Page
0016
Unit of measurement for
the speedometer
388
0017
Outside temperature 375
0018
Additional speedometer 388
001C
HOLD function 346
0001
PRE-SAFE ®
Brake 77
001D
Adaptive Highbeam Assist 284
Lane Keeping Assist or
Active Lane Keeping Assist 365,
369 ATTENTION ASSIST 359Instrument cluster
37At a glance

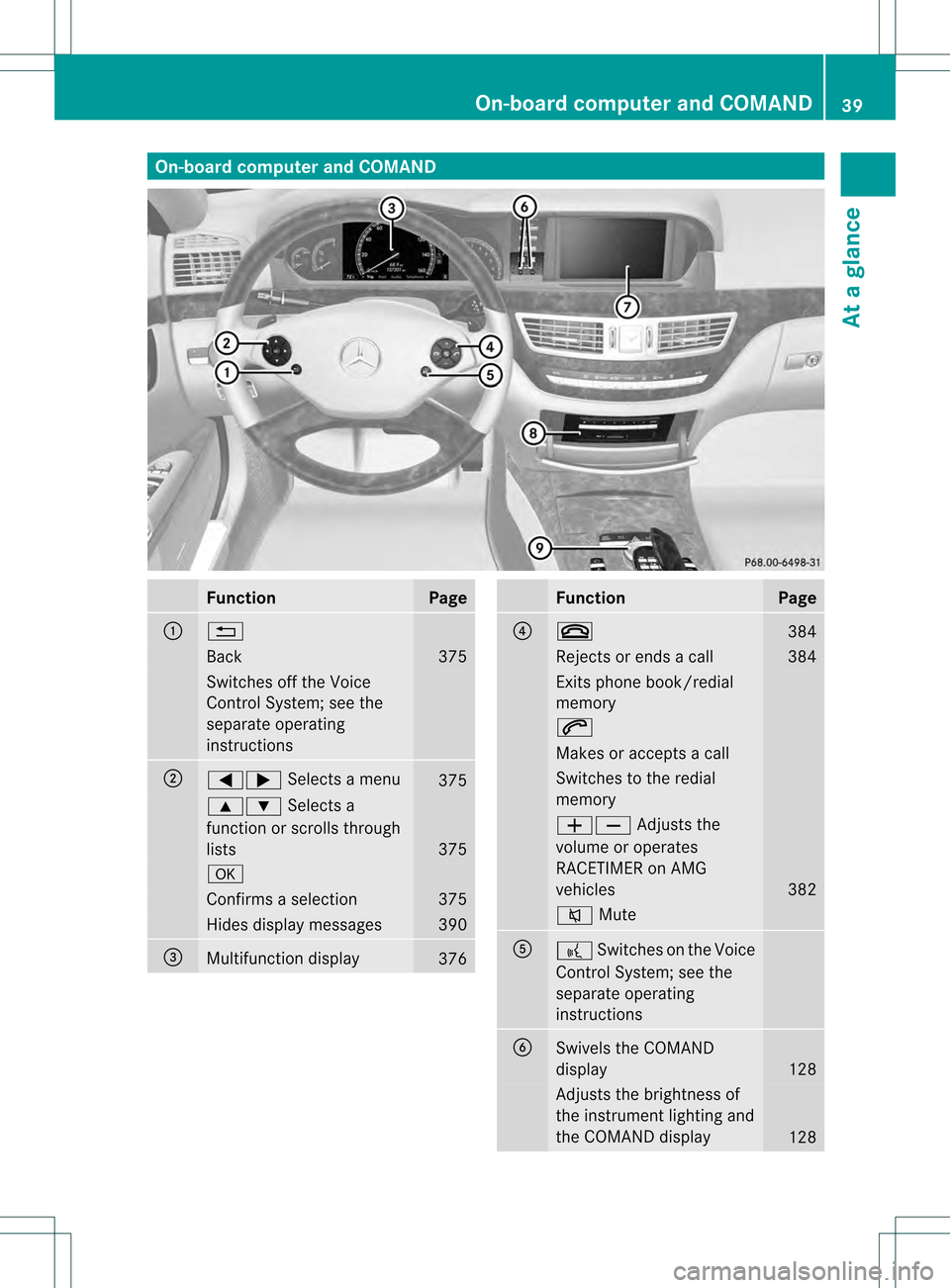

On-board computer and COMAND
Function Page
0002
0001
Back 375
Switches off the Voice
Control System; see the
separate operating
instructions
0003
0009000C
Selects a menu 375
000A000B
Selects a
function or scrolls through
lists 375
0011
Confirms a selection 375
Hides display messages 390
0026
Multifunction display
376 Function Page
0025
001F
384
Rejects or ends a call 384
Exits phone book/redial
memory
0027
Makes or accepts a call
Switches to the redial
memory
000F0010
Adjusts the
volume or operates
RACETIMER on AMG
vehicles 382
0029
Mute 0023
001B
Switches on the Voice
Control System; see the
separate operating
instructions 0024
Swivels the COMAND
display
128
Adjusts the brightness of
the instrument lighting and
the COMAND display
128On-board computer and COMAND
39At a glance

Function Page
0014

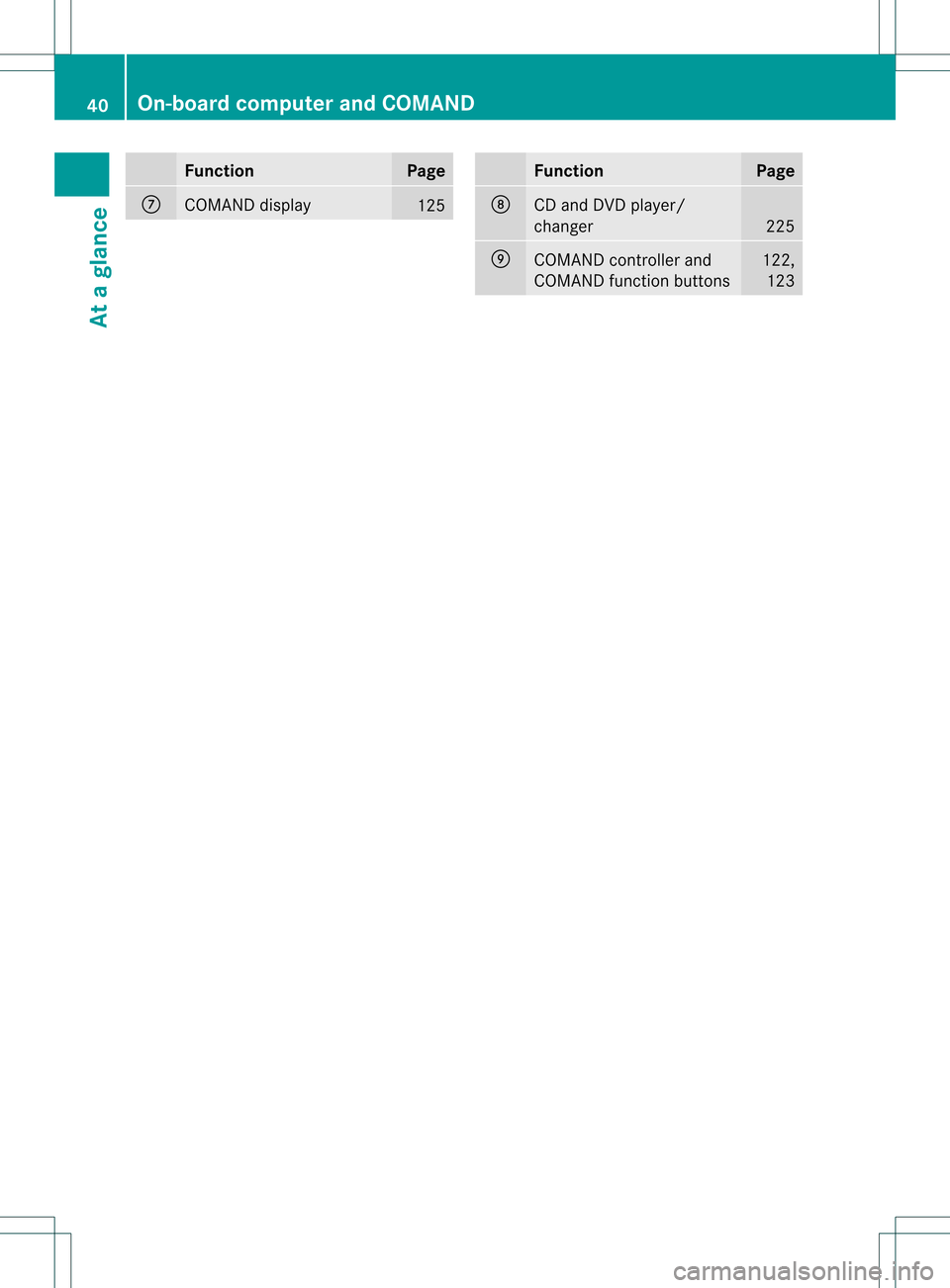

COMAND display
125 Function Page
0015
CD and DVD player/
changer
225
0016
COMAND controller and
COMAND function buttons 122,
123 40
On-board computer and COMANDAt a glance

When the OCS senses that the front-
passenger seat is classified as being empty,
the 00170016 indicator lamp will
illuminate when the engine is started and
remain illuminated, indicatin gthat the front-
passenger front air bag is deactivated.
When the OCS senses that the front-
passenger seat occupant is classified as
being heavier than the weight of a typical 12-
month-old child seated in astandard child
restraint or as being a small individual (such
as a young teenager or asmall adult), the
00170016 indicator lamp will illuminate
for approximately 6seconds when the engine
is started and then, depending on occupant
weight sensor readings from the front-
passenger seat, remain illuminated or go out.
With the 00170016 indicator lamp
illuminated, the front-passenger fron tair bag
is deactivated. With the 00170016
indicator lamp out, the front-passenger front
air bag is activated.
When the OCS senses that the front-
passenger seat occupant is classified as an
adult or someone larger than a small
individual, the 00170016 indicator lamp
will illuminate for approximately 6seconds
when the engine is started and then go out,
indicating that the front-passenger front air
bag is activated.
If the 00170016 indicator lamp is
illuminated, the front-passenger fron tair bag
is deactivated and will not be deployed.
If the 00170016 indicator lamp is not
illuminated, the front-passenge rfront air bag
is activated and will be deployed:
R in the event of certain frontal impacts
R if impact exceeds a preset deployment
threshold
R independently of the side impact air bags If the front-passenger front air bag is
deployed, the rate of inflation will be
influenced by:
R
the rate of vehicle deceleratio nas assessed
by the air bag control unit
R the front passenger's weight category as
identified by OCS
For further information, see "Air bag display
messages" (Y page 403). G
WARNING
According to accident statistics, children are
safer when properly restrained on the rear
seats than on the front-passenger seat. Thus,
we strongly recommend that children be
placed in the rear seats whenever possible.
Regardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriately sized
child restraint system or booster seat
recommended for the size and weight of the
child.
The infant or child restraint system must be
properly secured with the vehicle's seat belt,
the seat belt and Top Tether strap, or lower
anchors and Top Tether strap, fully in
accordance with the child seat
manufacturer's instructions.
Occupants, especially children, should always
sit as upright as possible, wear the seat belt
properly and use an appropriate sized infant
restraint, toddler restraint, or booster seat
recommended for the size and weight of the
child.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when circumstances
require you to place a child in the front-
passenger seat:
R Your vehicle is equipped with air bag
technology designed to deactivate the
front-passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along Occupant safety
55Safety
Z

Problems with the Occupant Classification System
Problem Possible causes/consequences and
0004 Solutions
The
00170016
indicator lamp
illuminates and
remains illuminated.
The person on the
front-passenger seat:
R has the weight of a
typical adult
R has been determined
by the system not to
be a child The OCS is malfunctioning.
X
Have the OCS checked as soon as possible at an authorized
Mercedes-Benz Center.
X Observe the additional display messages in the multifunction
display (Y page 403). G
WARNING
If the 00170016 indicator lamp illuminates and remains illuminated when the weight of a
typical adult or someone larger than a small individual has been detected on the passenger seat,
the system then determines the occupant cannot be a child. Do not allow any occupant to use
the passenger seat until the system has been repaired. Problem Possible causes/consequences and
0004 Solutions
The
00170016
indicator lamp does not
illuminate and/or does
not remain illuminated.
The front-passenger
seat is:
R unoccupied
R occupied with a
weight up to that of a
typical twelve-
month-old child in a
standard child
restraint system The OCS is malfunctioning.
X
Make sure there is nothing between the seat cushion and the
child seat.
X Check the installation of the child restraint system.
X Make sure that no objectsa re applying additional weight onto
the seat.
X If the 00170016 indicator lamp does not illuminate, have
the OCS checked as soon as possible at an authorized
Mercedes-Benz Center. Do not transport a child on the front-
passenger seat as long as the OCS is not functioning.
X Observe the additional display messages in the multifunction
display (Y page 403). G
WARNING
If the 00170016 indicator lamp does not illuminate or remains out with the weight of a
typical 12-month-old child in a standard child restraint or less, or is unoccupied, on the front-
passenger seat, do not transport a child on the front-passenge rseat until the system has been
repaired. 58
Occupant safetySafety
