X
Place the ratchet ring spanner onto the
hexagon nut of the jack so that the letters
AB are visible.
X Turn the ratchet ring spanner until the vehi-
cle is once again standing firmly on the
ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( :
to A). The specified tightening torque is
130 Nm.
X Turn the jack back to its initial position.
X Stow the jack and the rest of the vehicle
tools in the vehicle again.
X Check the air pressure of the newly fitted
wheel and adjust accordingly.
Observe the recommended tyre pressure
(Y page 356).
i Vehicles with a tyre pressure control sys-
tem: all fitted wheels must be equipped
with functioning sensors. Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle. These are specially adapted to the control
systems, such as ABS or ESP
®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes-
ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage.
! Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases. 366
Wheel and tyre combinationsWheels and tyres

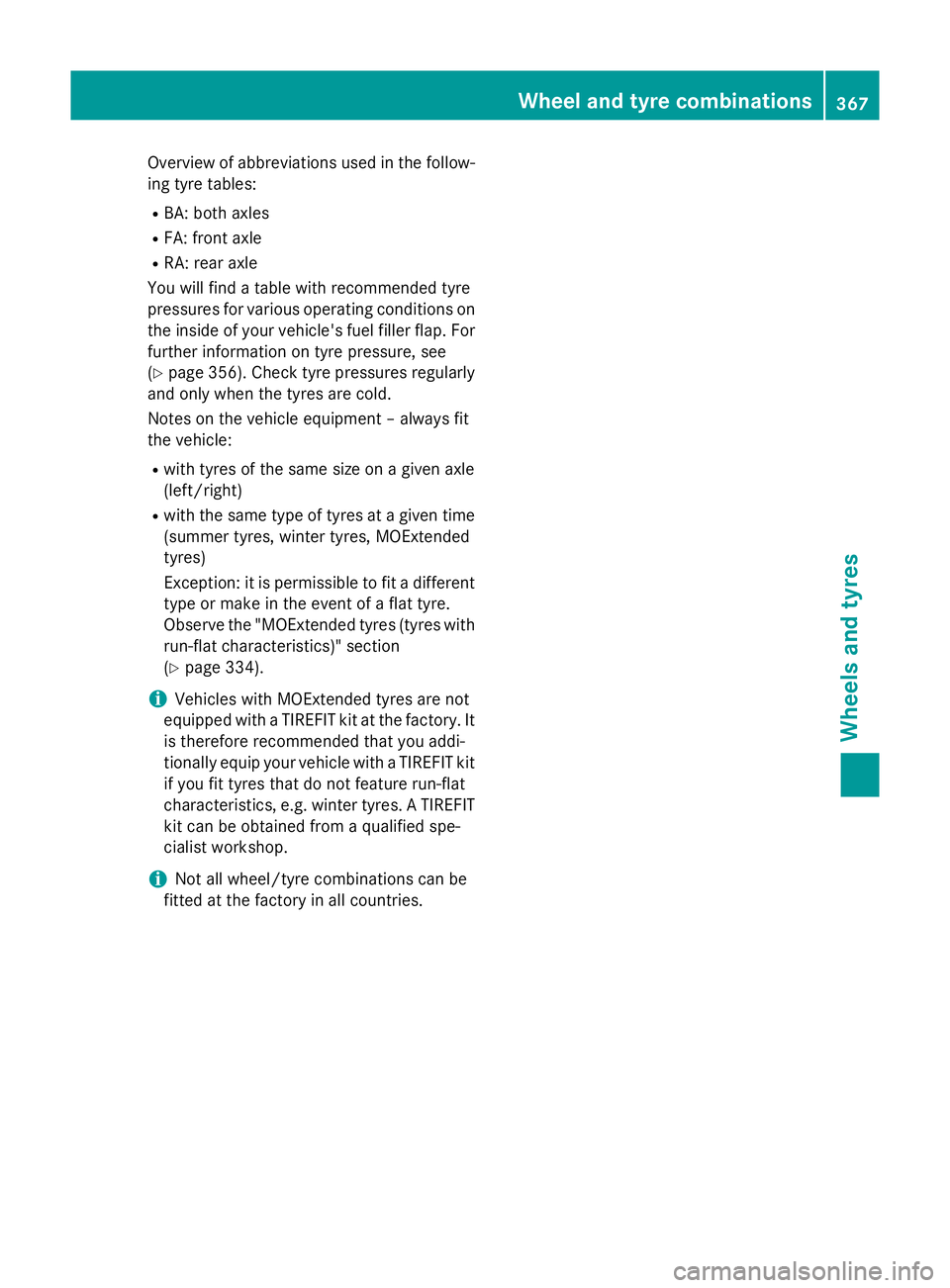

Overview of abbreviations used in the follow-
ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find a table with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 356). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment – always fit
the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissible to fit a different
type or make in the event of a flat tyre.
Observe the "MOExtended tyres (tyres with
run-flat characteristics)" section
(Y page 334).
i Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory. It
is therefore recommended that you addi-
tionally equip your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat
characteristics, e.g. winter tyres. A TIREFIT
kit can be obtained from a qualified spe-
cialist workshop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. Wheel and tyre combinations
367Wheels and tyres Z

Tyres
GLA 180 Summer tyres
R 17
Tyres Wheels
BA: 215/6
0 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+S
i BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+S
i7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+S
i BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+S
i BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. 368
Wheel and tyre combinationsWheels and tyres

GLA 180 CDI
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. Wheel and tyre combinations
369Wheels and tyres Z

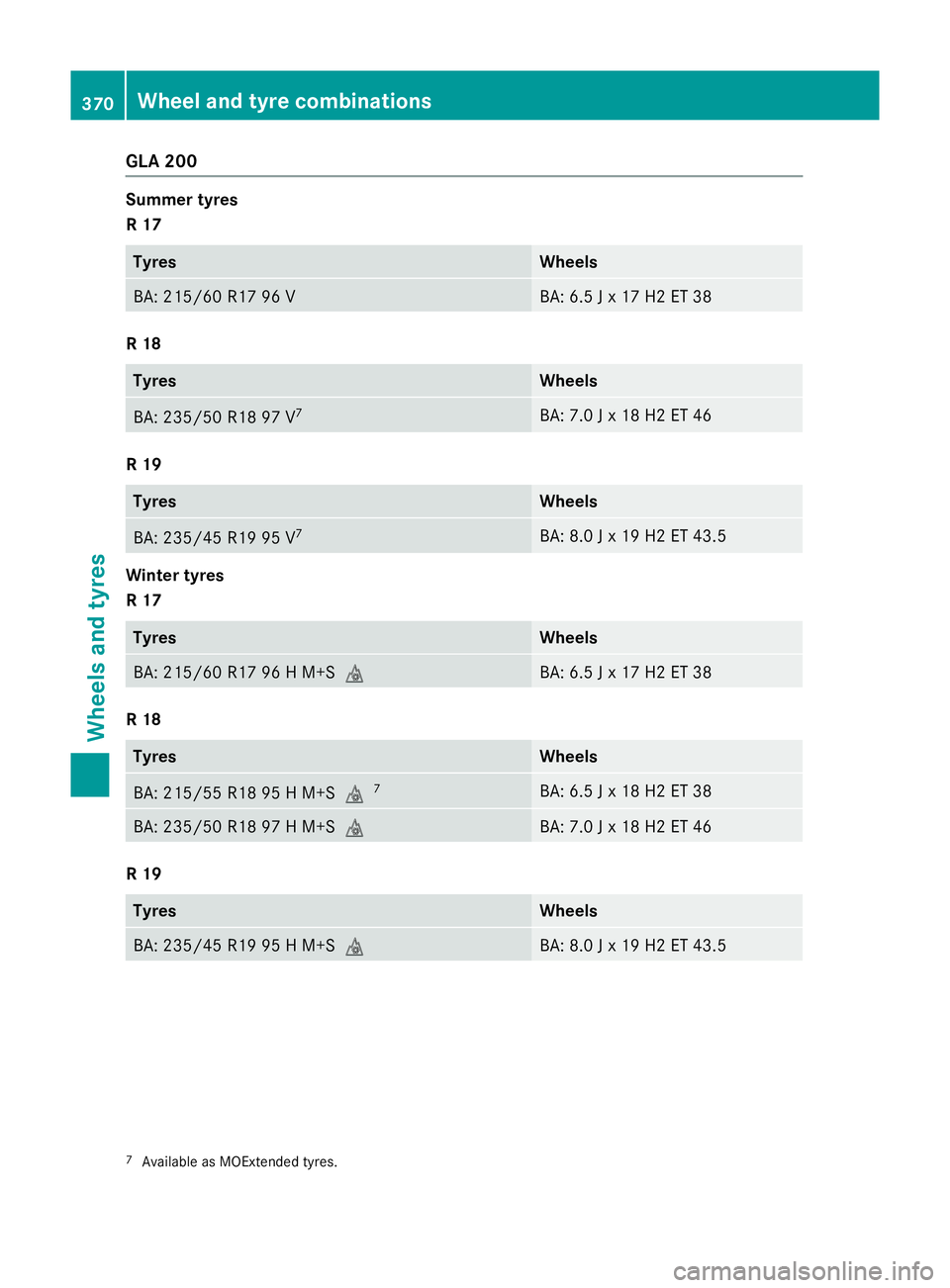

GLA 200
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. 370
Wheel and tyre combinationsWheels and tyres

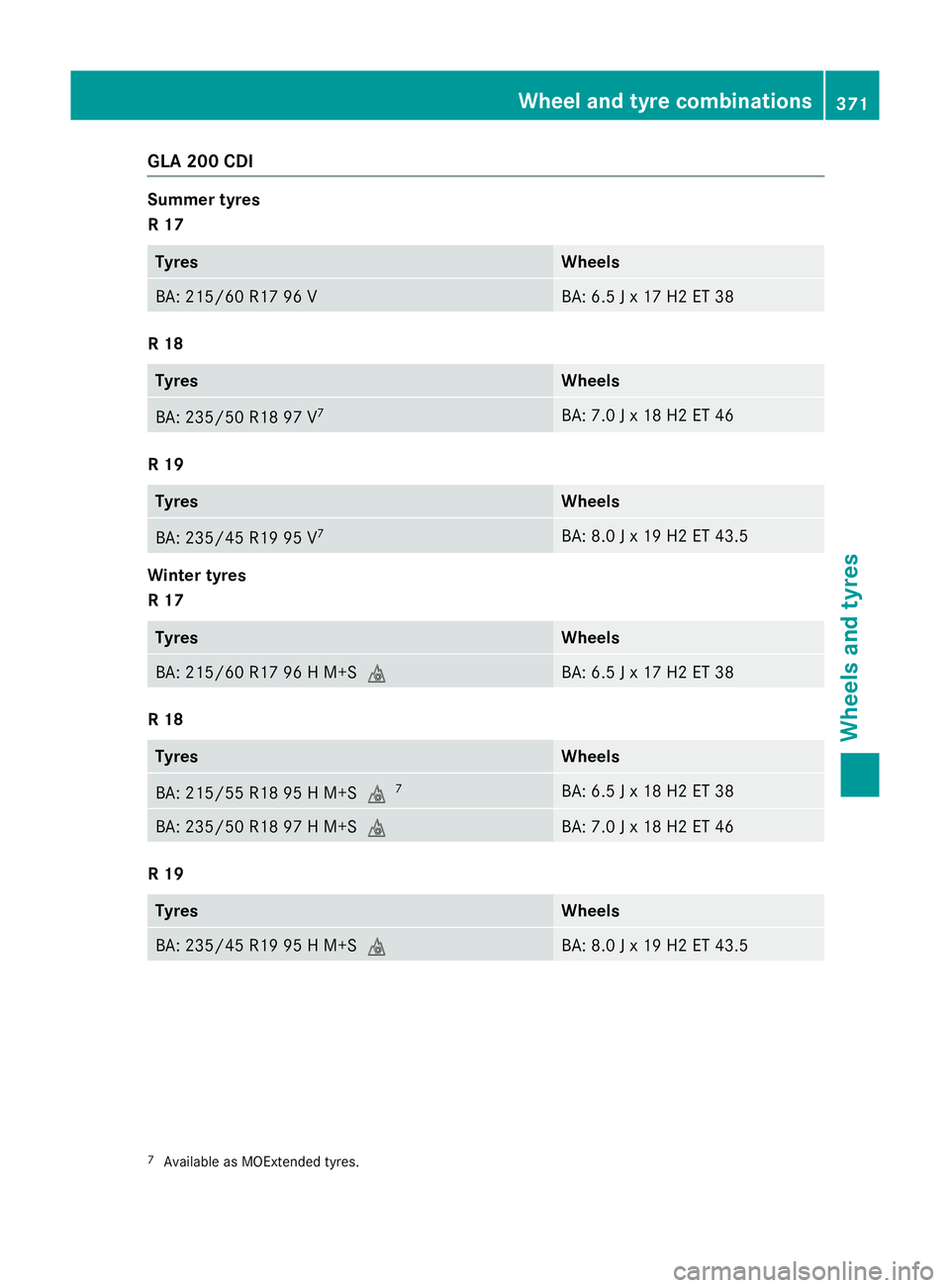

GLA 200 CDI
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. Wheel and tyre combinations
371Wheels and tyres Z

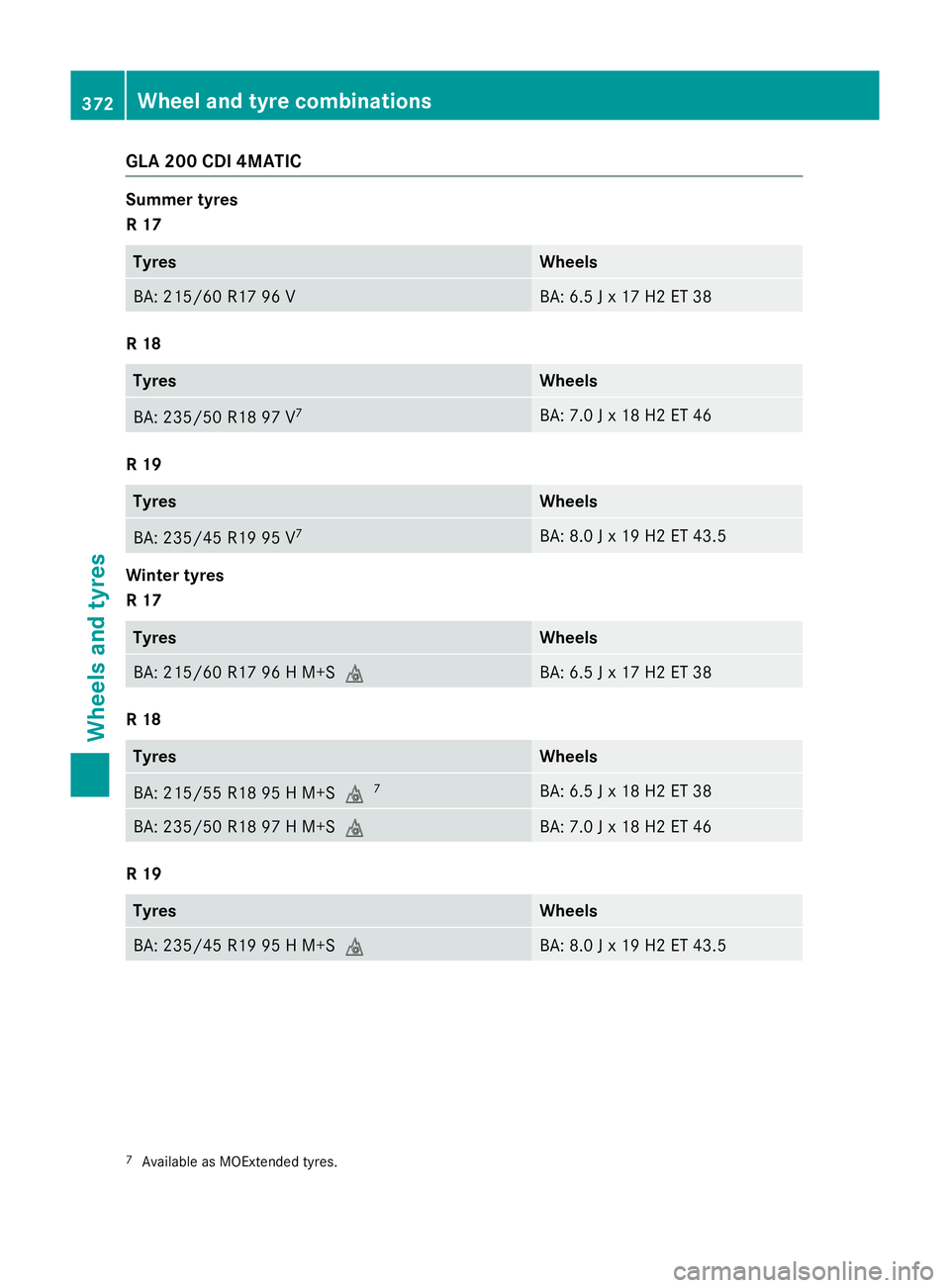

GLA 200 CDI 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. 372
Wheel and tyre combinationsWheels and tyres

GLA 220 CDI
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. Wheel and tyre combinations
373Wheels and tyres Z
