2013 MERCEDES-BENZ GLA SUV Owners Manual

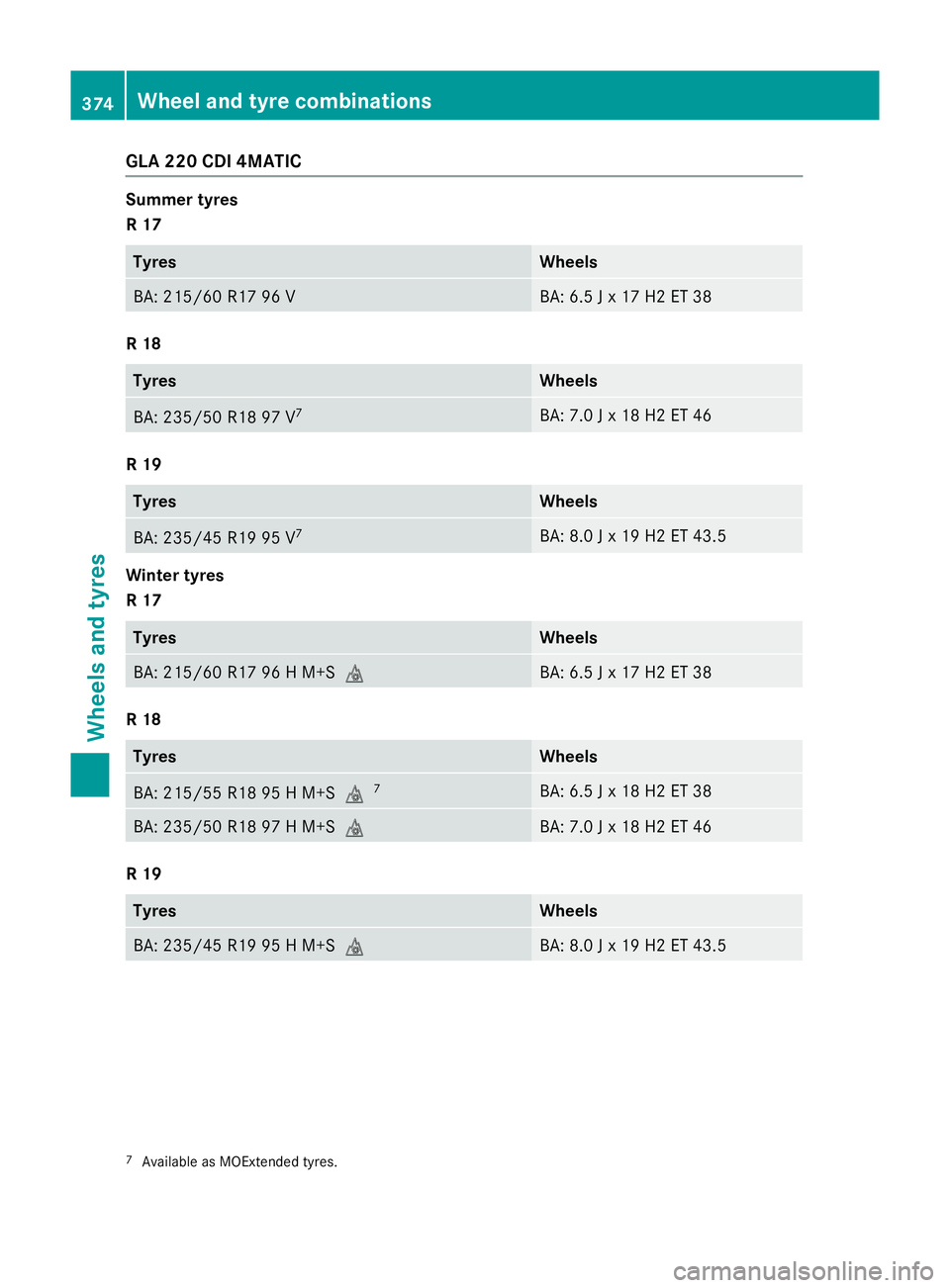

GLA 220 CDI 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. 374
Wheel and tyre combinationsWheels and tyres

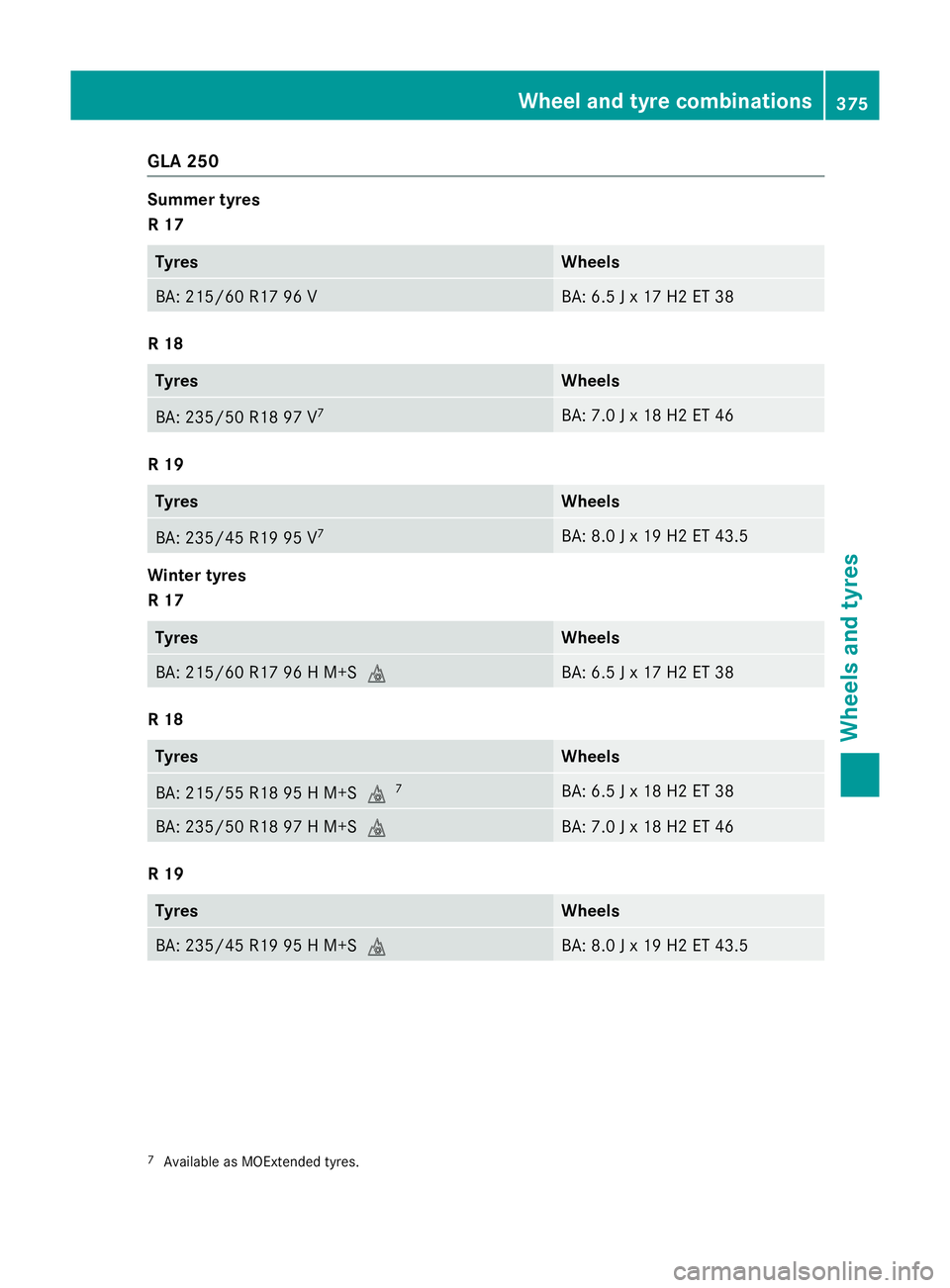

GLA 250
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. Wheel and tyre combinations
375Wheels and tyres Z

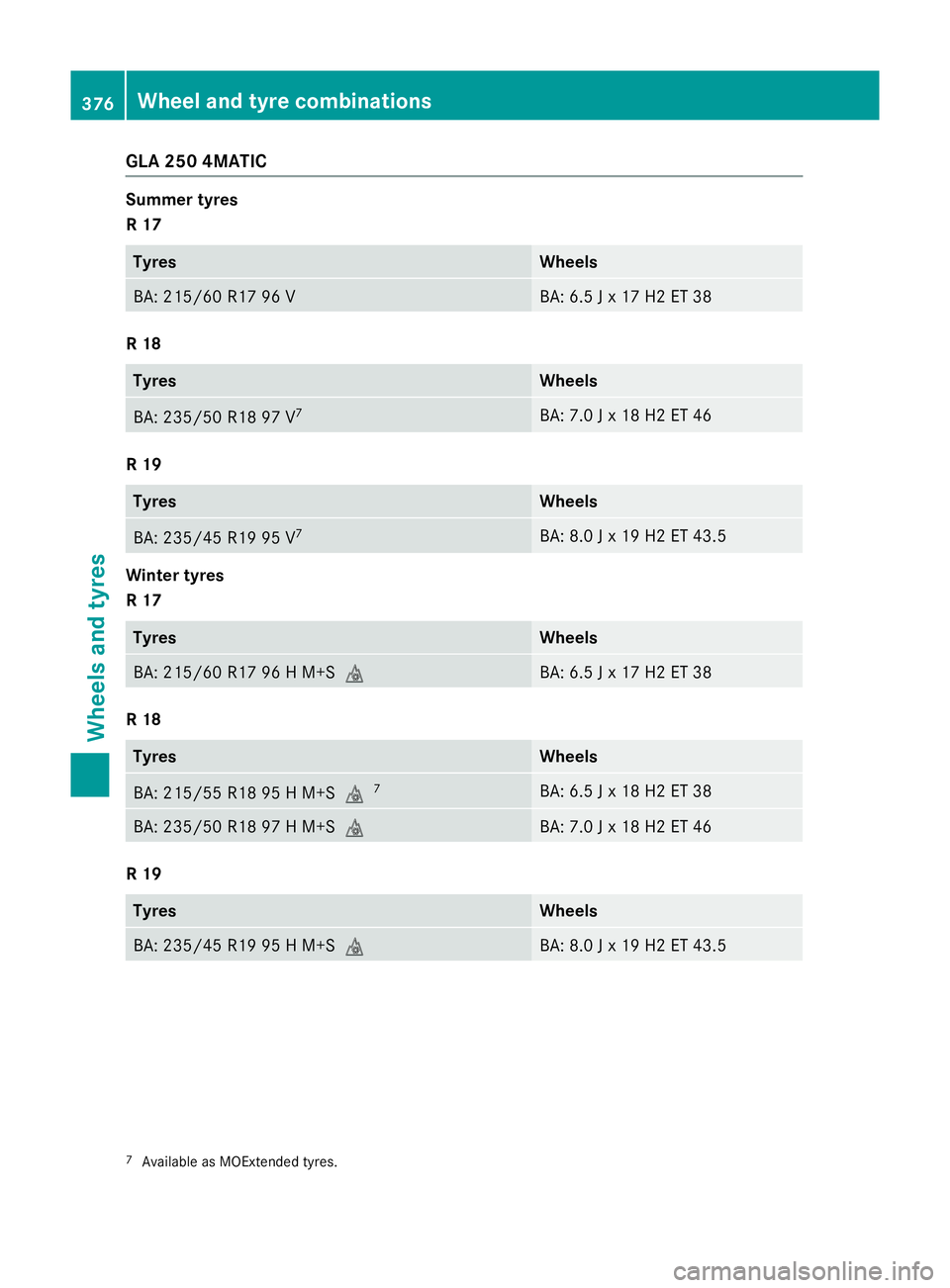

GLA 250 4MATIC
Summer tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 V BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 235/50 R18 97 V
7 BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 V
7 BA: 8.0 J x 19 H2 ET 43.5
Winter tyres
R 17
Tyres Wheels
BA: 215/60 R17 96 H M+Si BA: 6.5 J x 17 H2 ET 38
R 18
Tyres Wheels
BA: 215/55 R18 95 H M+Si
7 BA: 6.5 J x 18 H2 ET 38
BA: 235/50 R18 97 H M+Si BA: 7.0 J x 18 H2 ET 46
R 19
Tyres Wheels
BA: 235/45 R19 95 H M+Si BA: 8.0 J x 19 H2 ET 43.5
7
Available as MOExtended tyres. 376
Wheel and tyre combinationsWheels and tyres

GLA 45 AMG 4MATIC
Summer tyres
R 19
Tyres Wheels
BA: 235/45 ZR19 99 Y XL
8 BA: 8.0 J x 19 H2 ET 43.5
R 20
Tyres Wheels
BA: 235/40 ZR20 96 Y XL
8 BA: 8.0 J x 20 H2 ET 43.5
Winter tyres
R 18
Tyres Wheels
BA: 215/55 R18 99 V XL M+S
i BA: 7.5 J x 18 H2 ET 42
R 19
Tyres Wheels
BA: 235/45 R19 99 V XL M+S
i8 BA: 8.0 J x 19 H2 ET 43.5
Emergency spare wheel
Important safety notes
G
WARNING
The wheel/tyre dimensions and the tyre type of the spare wheel/emergency spare wheel
and the wheel to be replaced may differ. Fit-
ting a spare wheel/emergency spare wheel
may severely impair the driving characteris-
tics. There is a risk of accident.
To prevent hazardous situations:
R Adapt your driving style accordingly and
drive carefully.
R Never fit more than one spare wheel/emer-
gency spare wheel if the dimensions are
different to those of the wheel being
replaced. R
Only use a spare wheel/emergency spare
wheel briefly if the dimensions are different
to those of the wheel being replaced.
R Do not switch off ESP ®
.
R Have the spare wheel/emergency spare
wheel in question replaced at the nearest
qualified specialist workshop. Make sure
that the wheel/tyre dimensions and tyre
type are correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 80 km/h.
Snow chains must not be fitted to emergency spare wheels.
8 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. Emergency spare wheel
377Wheels and tyres Z

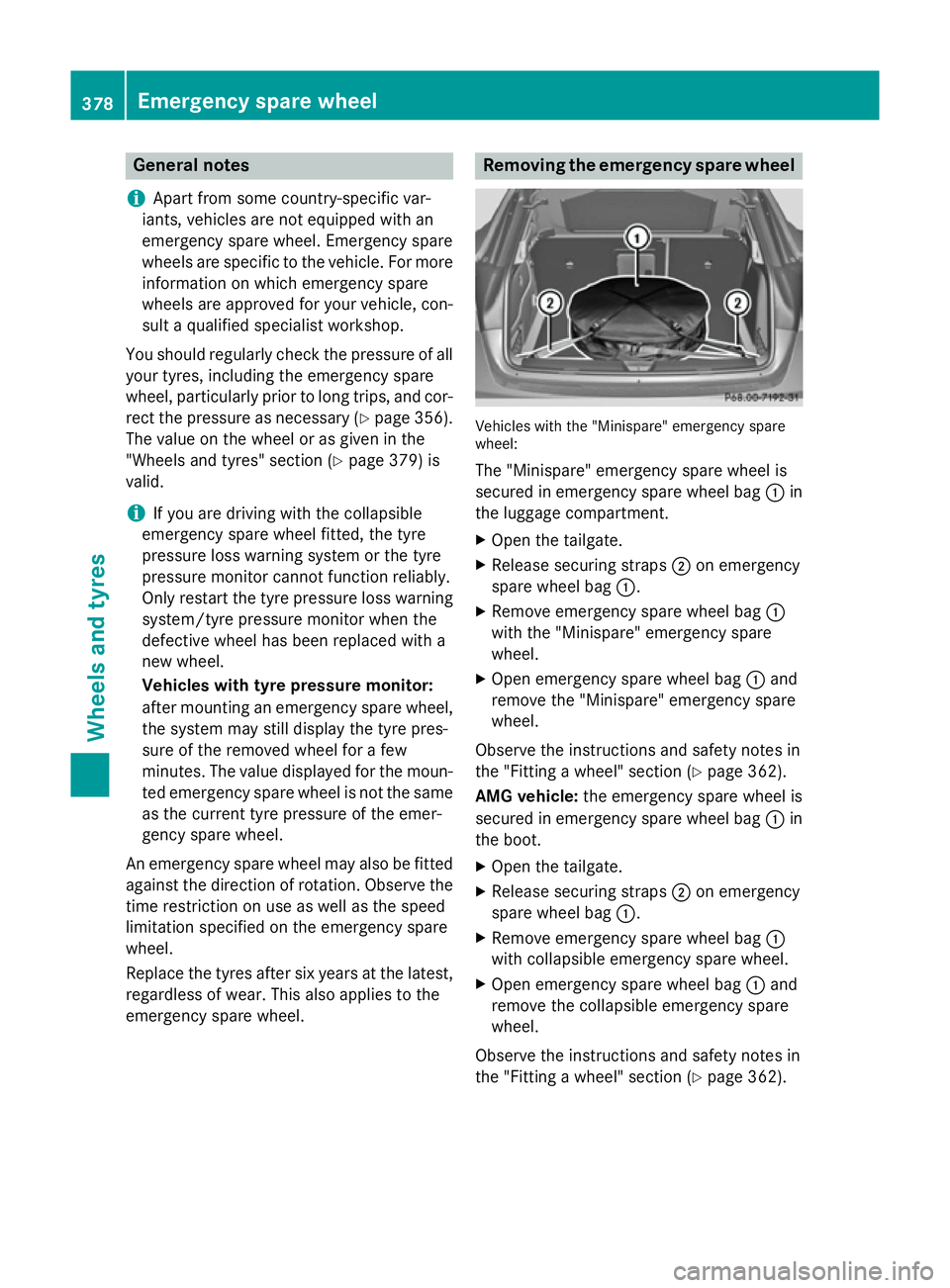

General notes
i Apart from some country-specific var-
iants, vehicles are not equipped with an
emergency spare wheel. Emergency spare
wheels are specific to the vehicle. For more information on which emergency spare
wheels are approved for your vehicle, con-
sult a qualified specialist workshop.
You should regularly check the pressure of all
your tyres, including the emergency spare
wheel, particularly prior to long trips, and cor- rect the pressure as necessary (Y page 356).
The value on the wheel or as given in the
"Wheels and tyres" section (Y page 379) is
valid.
i If you are driving with the collapsible
emergency spare wheel fitted, the tyre
pressure loss warning system or the tyre
pressure monitor cannot function reliably.
Only restart the tyre pressure loss warning system/tyre pressure monitor when the
defective wheel has been replaced with a
new wheel.
Vehicles with tyre pressure monitor:
after mounting an emergency spare wheel,
the system may still display the tyre pres-
sure of the removed wheel for a few
minutes. The value displayed for the moun-
ted emergency spare wheel is not the same as the current tyre pressure of the emer-
gency spare wheel.
An emergency spare wheel may also be fitted against the direction of rotation. Observe the
time restriction on use as well as the speed
limitation specified on the emergency spare
wheel.
Replace the tyres after six years at the latest, regardless of wear. This also applies to the
emergency spare wheel. Removing the emergency spare wheel
Vehicles with the "Minispare" emergency spare
wheel:
The "Minispare" emergency spare wheel is
secured in emergency spare wheel bag :in
the luggage compartment.
X Open the tailgate.
X Release securing straps ;on emergency
spare wheel bag :.
X Remove emergency spare wheel bag :
with the "Minispare" emergency spare
wheel.
X Open emergency spare wheel bag :and
remove the "Minispare" emergency spare
wheel.
Observe the instructions and safety notes in
the "Fitting a wheel" section (Y page 362).
AMG vehicle: the emergency spare wheel is
secured in emergency spare wheel bag :in
the boot.
X Open the tailgate.
X Release securing straps ;on emergency
spare wheel bag :.
X Remove emergency spare wheel bag :
with collapsible emergency spare wheel.
X Open emergency spare wheel bag :and
remove the collapsible emergency spare
wheel.
Observe the instructions and safety notes in
the "Fitting a wheel" section (Y page 362).378
Emergency spare wheelWheels and tyres

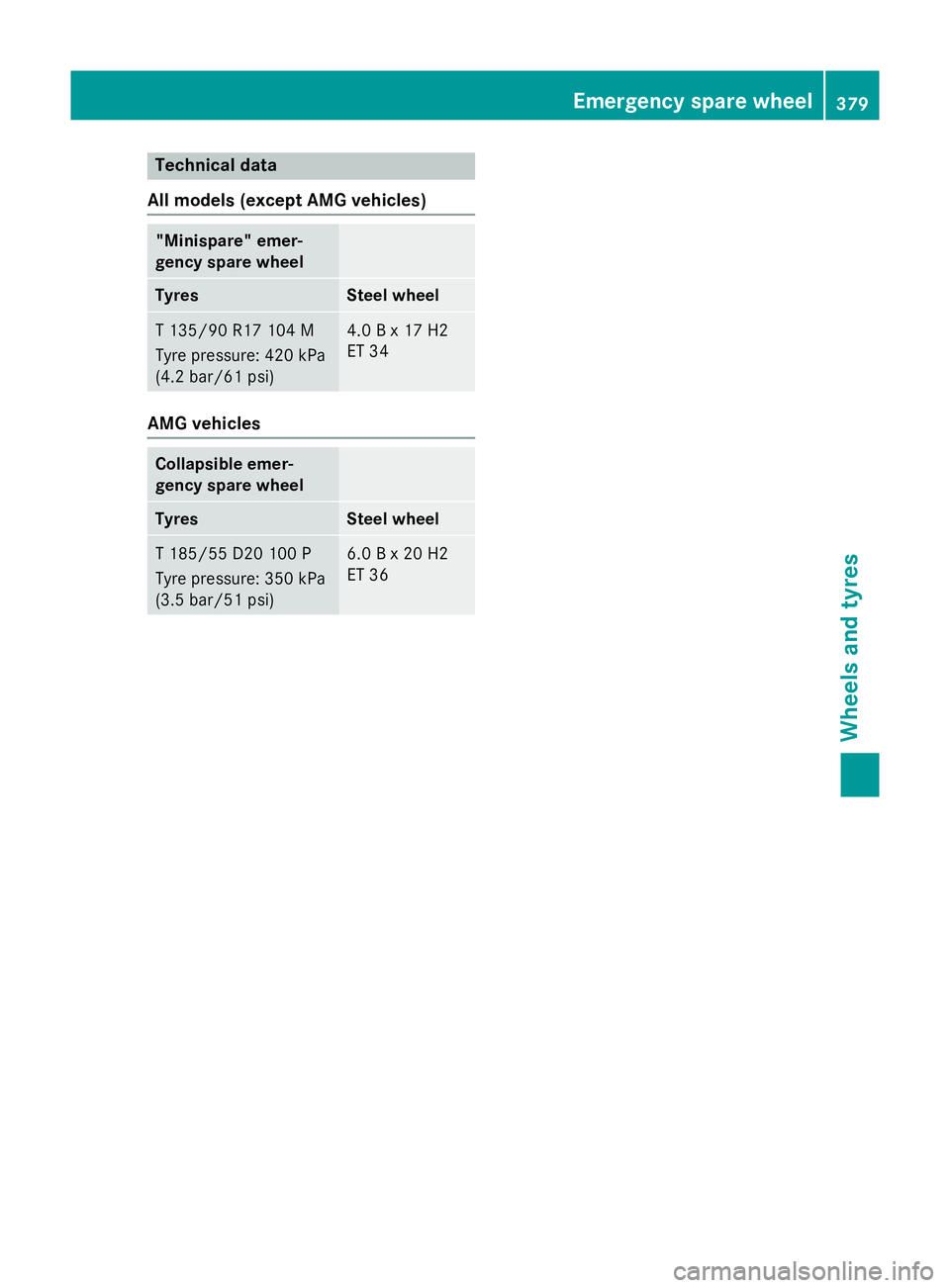

Technical data
All models (except AMG vehicles) "Minispare" emer-
gency spare wheel
Tyres Steel wheel
T 135/9
0 R17 104 M
Tyre pressure : 420 kPa
(4.2 bar/61 psi) 4.0 B x 17 H2
ET 34
AMG vehicles
Collapsible emer-
gency spare wheel
Tyres Steel wheel
T 185/55 D20 100 P
Tyre pressure: 350 kPa
(3.5 bar/51 psi) 6.0 B x 20 H2
ET 36 Emergency spare wheel
379Wheels and tyres Z

380

Useful information
............................382
Information on technical data .........382
Vehicle electronics ...........................382
Identification plates .........................384
Service products and capacities .....384
Vehicle data ...................................... 391
Vehicle data for off-road driving .....392
Trailer tow hitch ................................ 393 381Technical data
