2013 Lexus GS450h Using the audio system / LEXUS 2013 GS450H OWNERS MANUAL (OM30D01U)

GS450h_U (OM30D01U)
5775-6. Using the storage features
5
Interior features
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
■Tray in the console box
■Console box light
The console box light turns on when the tail lights are on.
Console box
1
2
The tray slides forward/backward and can be
removed.
CAUTION
When using the console box with half-open, do not apply too much load on the
armrest. Doing so may damage the armrest and may cause you to injure yourself.

578
GS450h_U (OM30D01U)
5-6. Using the storage features
■Front
To open, press down and release
the cup holder lid.
■Rear
To open, pull down the armrest
and press in and release the rear
cup holder on the armrest.
■Removing the separate tray (front cup holder)
■When stowing the cup holders (rear cup holder)
Stow the cup holder with the armrest down. The cup holder cannot be stowed if the
armrest is not down.
Cup holders
The cup holder insert may be removed for
cleaning.

GS450h_U (OM30D01U)
5795-6. Using the storage features
5
Interior features
CAUTION
■Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
■To prevent damage to the rear cup holder
Stow the cup holder before stowing the armrest.

580
GS450h_U (OM30D01U)
5-6. Using the storage features
Auxiliary boxes
Ty p e AType B
Press in the button. Pull up the lever to release the lock and lift the lid.
Type C (if equipped)
Open the lid.
CAUTION
■Using the auxiliary boxes (type C)
Do not use the auxiliary box as an ashtray.
Doing so may cause a fire.

581
GS450h_U (OM30D01U)5-6. Using the storage features
5
Interior features

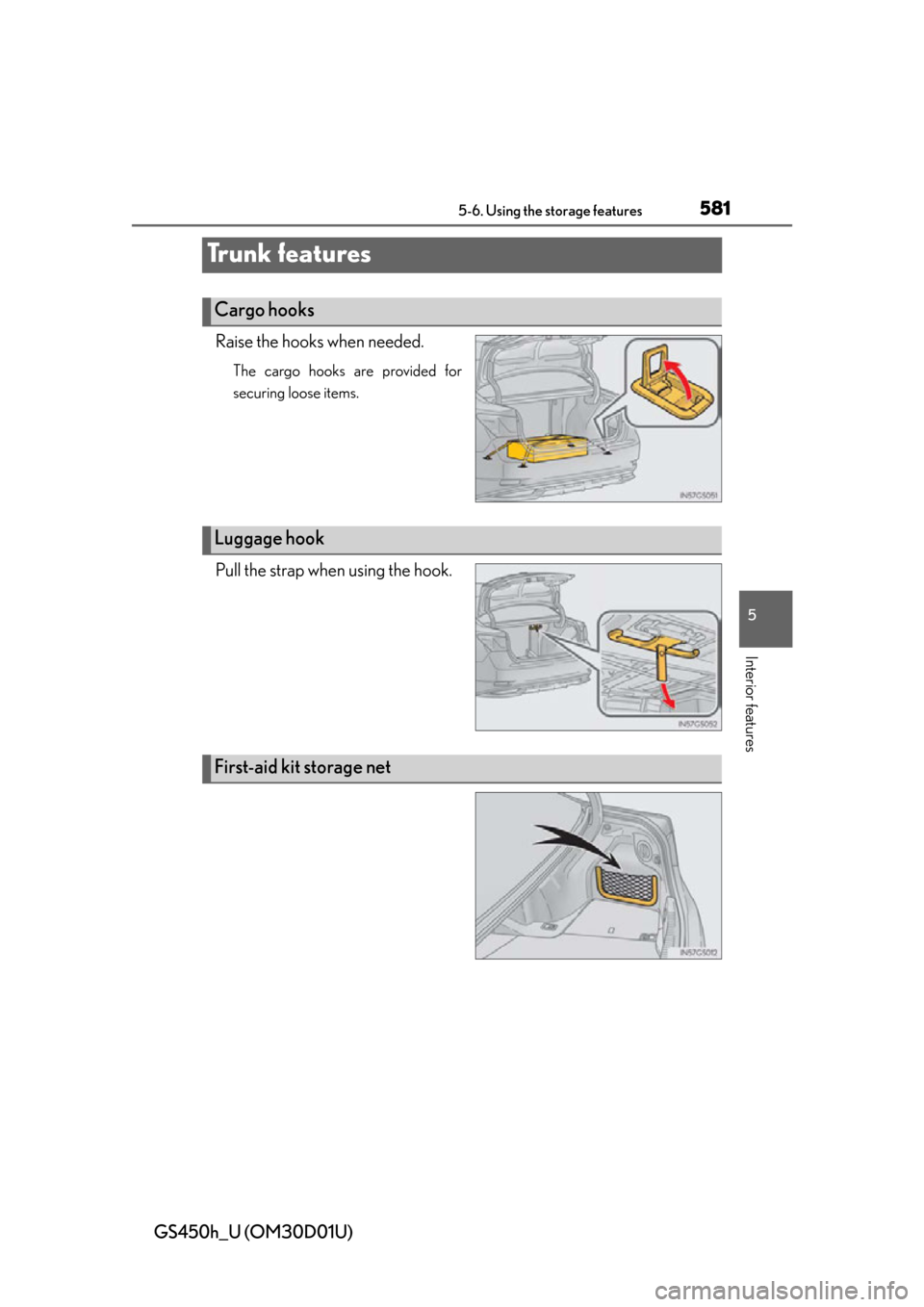

Tr u n k f e a t u r e s
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Pull the strap when using the hook.
Cargo hooks
Luggage hook
First-aid kit storage net

582
GS450h_U (OM30D01U)
5-6. Using the storage features
Pull the strap upwards to lift up the
luggage mat.Loosen the belt
Tighten the belt
Luggage mat
Warning reflector storage belt
1
2
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the car go hooks to their stowed positions.
NOTICE
■Luggage hook weight capacity
Do not hang any object heavier than 11 lb. (5 kg) on the luggage hook.

583
GS450h_U (OM30D01U)5-7. Other interior features
5
Interior features
Sun visors and vanity mirrors
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and swing
it to the side.
To use the side extender, place
the visor in the si de position, then
slide it backward.
Slide the cover to open.
The light turns on when the cover is
opened.
Sun visors
1
2
3
Va n i t y m i r r o r s
NOTICE
■To prevent 12-volt battery discharge
Do not leave the vanity lights on for extended periods while the hybrid system is off.

584
GS450h_U (OM30D01U)
5-7. Other interior features
Clock
Pressing and holding will move
the clock hands backward.
Pressing and holding will move
the clock hands forward.
The clock can be adjusted by pressing the buttons.
1
2
