2013 Lexus GS450h Owner's Manual

464
GS450h_U (OM30D01U)
5-3. Using the audio system
NOTICE
■Player precautions
Failure to follow the precautions below may result in damage to the discs or the
player itself.
●Do not insert anything other than discs into the disc slot.
●Do not apply oil to the player.
●Store discs away from direct sunlight.
●Never try to disassemble any part of the player.
GS450h_U.book Page 464 Monday, January 23, 2012 10:20 AM

465
GS450h_U (OM30D01U)5-3. Using the audio system
5
Interior features
Listening to Bluetooth® audio
The Bluetooth® audio system enables users to enjoy music played on a
portable player from the vehicle speaker via wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable
of playing portable audio music with out cables. If your portable player
does not support Bluetooth
®, the Bluetooth® audio system will not
function.
Press the “MEDIA” button if a Bluetooth
® audio player has already
been connected.
Select the “BT Audio” tab or press the “MEDIA” button repeatedly until
the “BT Audio” tab is selected.
GS450h_U.book Page 465 Monday, January 23, 2012 10:20 AM

466
GS450h_U (OM30D01U)
5-3. Using the audio system

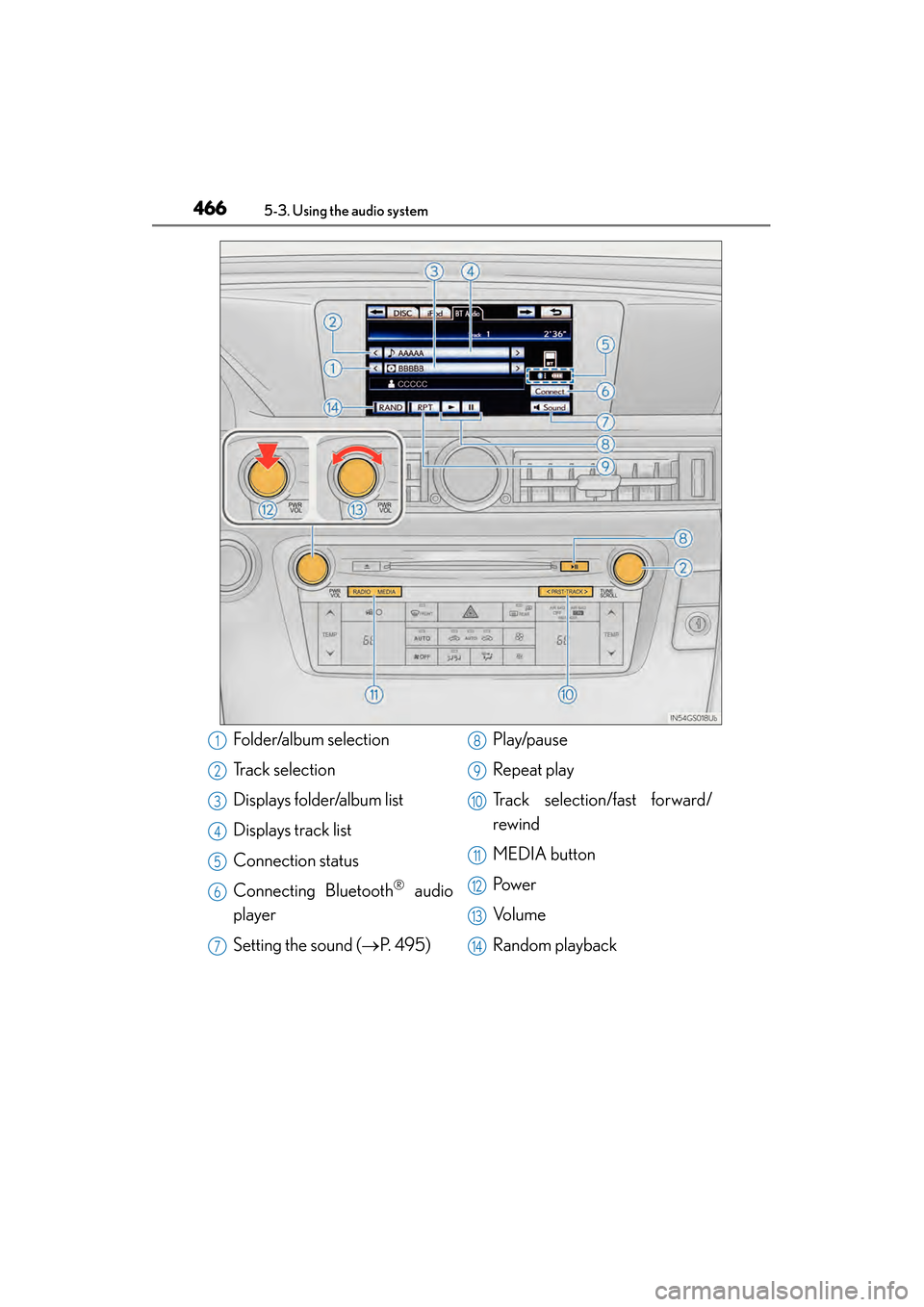

Folder/album selection
Track selection
Displays folder/album list
Displays track list
Connection status
Connecting Bluetooth
® audio
player
Setting the sound ( →P. 495) Play/pause
Repeat play
Track selection/fast forward/
rewind
MEDIA button
Pow e r
Vo l u m e
Random playback
1
2
3
4
5
6
7
8
9
10
11
12
13
14
GS450h_U.book Page 466 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
4675-3. Using the audio system
5
Interior features
You can check such indicators as signal strength and battery charge on
the screen.Connection status
Battery charge
Status display
1
2
IndicatorsConditions
Connection statusGood
No
connection
Battery chargeFullEmpty
GS450h_U.book Page 467 Monday, January 23, 2012 10:20 AM

468
GS450h_U (OM30D01U)
5-3. Using the audio system
To use the Bluetooth® audio system, you need to enter your portable
player into the system. Once registered, you can enjoy your music on the
vehicle’s audio system. ( →P. 566)
For the operation procedure for the portable player, consult your player’s
accompanying instruction manual.
■When “Bluetooth* Power” is turned on
When the portable player is on standby for the connection, it will be
automatically connected whenever the power switch is in either
ACCESSORY or ON mode.
■When “Bluetooth* Power” is turned off
Manually connect the portable player in accordance with the following
procedure. Select “Connect”.
Select the desired portable
player.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Connecting Bluetooth® audio player
1
2
GS450h_U.book Page 468 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
4695-3. Using the audio system
5
Interior features
When the connection is com-
pleted, this screen is dis-
played. It is now possible to use
the portable player.
Select to play, select to
pause or press to play/pause.
Some titles may not be displayed
depending on the type of portable
player.
3
Playing Bluetooth® audio
GS450h_U.book Page 469 Monday, January 23, 2012 10:20 AM

470
GS450h_U (OM30D01U)
5-3. Using the audio system
■On the audio top screen
Select “<” or “>” on the screen to select the next/previous folder/album.
■On the playlist screenSelect the album name on the
screen to display the playlist
screen.
Select the desired screen button.
If the folder name on the screen is selected, the track list screen is displayed.
Select the desired track name
on the screen.
, : Select to move the list up or
down by 5 track/folder groups.
“PRST•TRACK” button: Press “<” or
“>” on the “PRST•TRACK” button to
scroll through the track list one by
one.
“TUNE/SCROLL” knob: Turn the
knob clockwise or counterclock-
wise to quickly scroll up or down
the track/folder list.
, : If appears to the right of
an item name, the complete name
is too long for the screen. Select
to scroll to the end of the name.
Select to move to the beginning
of the name.
Selecting a track/folder/album
1
2
3
GS450h_U.book Page 470 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
4715-3. Using the audio system
5
Interior features
■On the audio top screen
Turn the “TUNE/SCROLL” knob or press “<” or “>” on the
“PRST•TRACK” button to select the desired track number.
■On the track list screenSelect the track name on the screen to display the following track list
screen.
Select the desired track num-
ber.
, : Select to move the list up or
down by 5 track groups.
“PRST•TRACK” button: Press “<” or
“>” on the “PRST•TRACK” button to
scroll through the track list one by
one.
“TUNE/SCROLL” knob: Turn the
knob clockwise or counterclock-
wise to quickly scroll up or down
the track list.
, : If appears to the right of
an item name, the complete name
is too long for the screen. Select
to scroll to the end of the name.
Select to move to the beginning
of the name.
■Fast forwarding and rewinding a track
Press and hold “<” or “>” on the “PRST•TRACK” button to fast forward
or rewind.
Selecting, fast forwarding or rewinding a track
1
2
GS450h_U.book Page 471 Monday, January 23, 2012 10:20 AM
