2013 Lexus GS450h Owner's Manual

144
GS450h_U (OM30D01U)
3-2. Opening, closing and locking the doors and trunk
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 76 8 )
■When leaving a key to the vehi cle with a parking attendant
→ P. 119
The trunk lid can be opened by pulling the
glow-in-the-dark lever located on the inside
of the trunk lid to the side.
The lever will continue to glow for some time
after the trunk lid is closed.
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk
may be thrown out, causing an accident.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffocate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.
GS450h_U.book Page 144 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1453-2. Opening, closing and locking the doors and trunk
3
Operation of each component
CAUTION
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious
injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to fall closed again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to fall closed again after
it is opened.
●The trunk lid may fall if it is not opened fully.
It is more difficult to open or close the trunk
lid on an incline than on a level surface, so
beware of the trunk lid unexpectedly open-
ing or closing by itself. Make sure that the
trunk lid is fully open and secure before
using the trunk.
●When closing the trunk lid, take extra care
to prevent your fingers etc. from being
caught.
●When closing the trunk lid, make sure to
press it lightly on its outer surface. If the
trunk handle is used to fully close the trunk
lid, it may result in hands or arms being
caught.
GS450h_U.book Page 145 Monday, January 23, 2012 10:20 AM

146
GS450h_U (OM30D01U)
3-2. Opening, closing and locking the doors and trunk
CAUTION
■Trunk easy closer (vehicles with power trunk opener and closer)
■Power trunk opener and closer (if equipped)
Observe the following precautions when operating the power trunk opener and
closer.
Failure to do so may cause serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●If the trunk closer switch is pressed while the trunk lid is opening during automatic
operation, the trunk lid stops opening. Take extra care when on an incline, as the
trunk lid may open or close suddenly.
●On an incline, the trunk lid may fall after it opens automatically. Make sure the
trunk lid is fully open and secure before using the trunk.
●In the following situations, the power trunk opener and closer may detect an
abnormality and automatic operation may be stopped. In this case, the trunk lid
has to be operated manually. Take extra care in this situation, as the stopped trunk
lid may suddenly fall, causing an accident.
• When the trunk lid contacts an obstacle
• When the 12-volt battery voltage suddenly drops, such as when the power switch is turned to ON mode or the hybrid system is started during automatic
operation
●Do not attach any accessories other than genuine Lexus parts to the trunk lid. The
power trunk opener and closer may not operate, causing itself to malfunction, or
the trunk lid may fall closed again after it is opened.
In the event that the trunk lid is left slightly
open, the trunk easy closer will automatically
close it to the fully closed position. It takes
several seconds before the trunk easy closer
begins to operate. Be careful not to catch fin-
gers or anything else in the trunk lid, as this
may cause bone fractures or other serious
injuries.
GS450h_U.book Page 146 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1473-2. Opening, closing and locking the doors and trunk
3
Operation of each component
CAUTION
■Jam protection function (vehicles with power trunk opener and closer)
Observe the following precautions.
Failure to do so may cause serious injury.
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the trunk lid fully closes. Be careful not to catch fingers or anything else in the
trunk lid.
●The jam protection function may not work depending on the shape of the object
that is caught. Be careful not to catch fingers or anything else.
NOTICE
■To prevent trunk easy closer malfunctions (vehicles with power trunk opener and
closer)
Do not apply force to the trunk lid while the trunk easy closer is operating.
■To prevent damage to the power trunk opener and closer (vehicles with power
trunk opener and closer)
●Make sure that there is no luggage or snow on the trunk lid before operating the
power trunk opener and closer. In addition, make sure that there is no ice
between the trunk lid and frame that prevents movement of the trunk lid. Operat-
ing the power trunk opener and closer when excessive load is present on the
trunk lid may cause a malfunction.
●Do not apply excessive force to the trunk lid while the power trunk opener and
closer is operating.
GS450h_U.book Page 147 Monday, January 23, 2012 10:20 AM

148
GS450h_U (OM30D01U)
3-3. Adjusting the seats
Front seats
XTy p e A
XTy p e B
Adjustment procedure
Seat position adjustment switch
Seatback angle adjustment
switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback upper angle adjust-
ment switch (if equipped)Lumbar support adjustment
switch
Pelvic support adjustment
switch (if equipped)
Seat cushion length adjustment
switch (if equipped)
Seatback side support adjust-
ment switch (if equipped)1
2
3
4
5
6
7
8
9
GS450h_U.book Page 148 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1493-3. Adjusting the seats
3
Operation of each component
■Power easy access system
The driver’s seat and steering wheel move in accordance with power switch mode
and the driver’s seat belt condition. The passenger’s seat moves when the passen-
ger’s door is opened. (→P. 1 5 3 )
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
■When adjusting the seat positions
Make sure to leave enough space around the feet so they do not get stuck.
GS450h_U.book Page 149 Monday, January 23, 2012 10:20 AM

150
GS450h_U (OM30D01U)
3-3. Adjusting the seats
Driving position memory
Check that the shift lever is in P.
Turn the power switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors to
the desired positions. (When memorizing the front passenger’s seat,
adjust the front passenger’s seat to the desired positions.)
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the sig-
nal beeps.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
Your preferred driving po sition (the position of the driver’s seat, steer-
ing wheel and outside rear view mirrors) can be memorized and
recalled by pressing a button. It is also possible to set this function to
activate automatically when the doors are unlocked.
Three different driving position s can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passenger’s se at to be memorized (if equipped).
Entering a position to memory
1
2
3
4
GS450h_U.book Page 150 Monday, January 23, 2012 10:20 AM

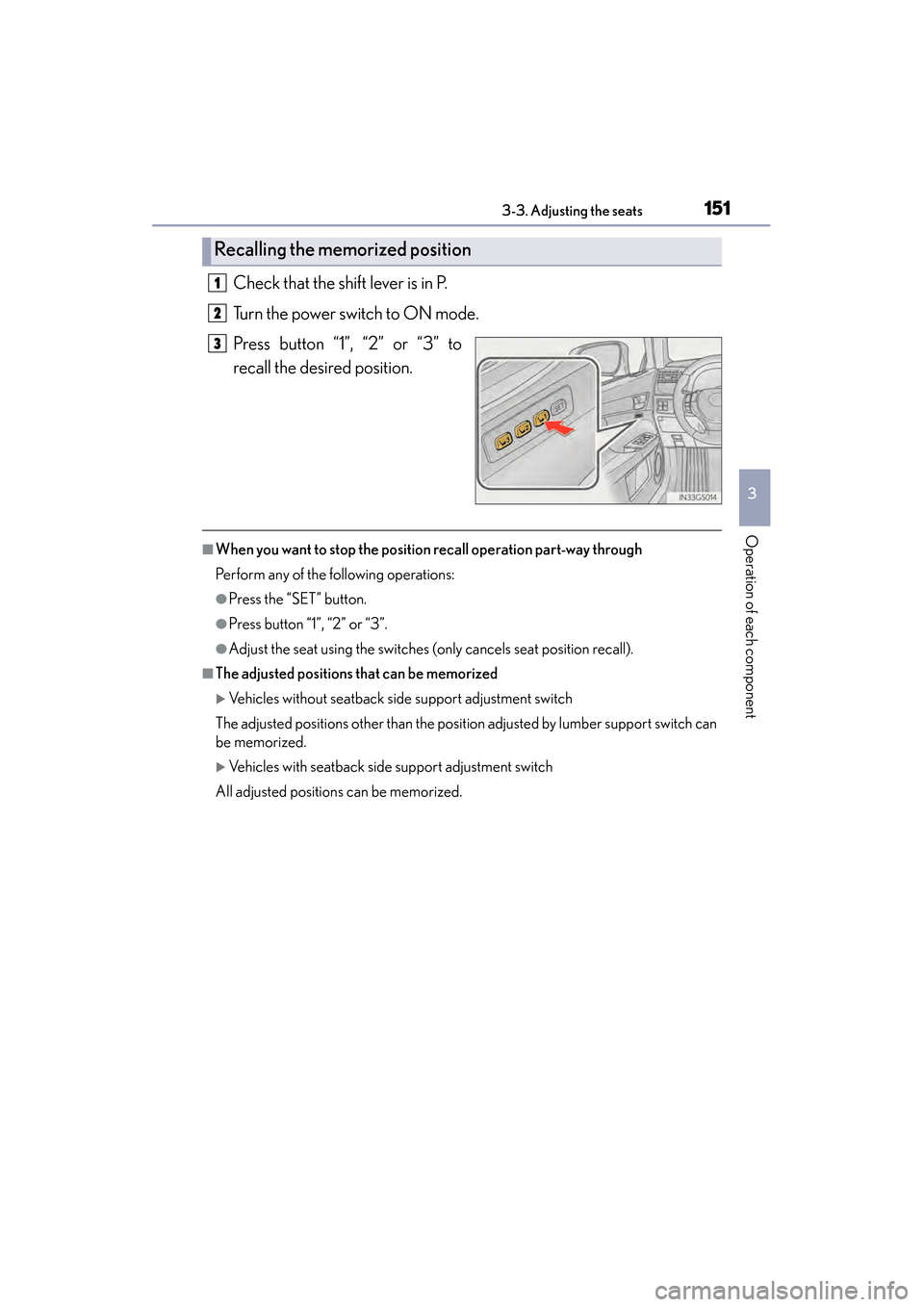

GS450h_U (OM30D01U)
1513-3. Adjusting the seats
3
Operation of each component
Check that the shift lever is in P.
Turn the power switch to ON mode.
Press button “1”, “2” or “3” to
recall the desired position.
■When you want to stop the position recall operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■The adjusted positions that can be memorized
XVehicles without seatback side support adjustment switch
The adjusted positions other than the position adjusted by lumber support switch can
be memorized.
XVehicles with seatback side support adjustment switch
All adjusted positions can be memorized.
Recalling the memorized position
1
2
3
GS450h_U.book Page 151 Monday, January 23, 2012 10:20 AM
