GS450h_U (OM30D01U)
3-5. Opening, closing the windows and moon roof
Power windows.............................164
Moon roof ....................................... 167
4-1. Before driving Driving the vehicle ...................... 172
Cargo and luggage.................... 183
Vehicle load limits ....................... 186
Trailer towing ................................. 187
Dinghy towing .............................. 188
4-2. Driving procedures Power (ignition) switch ............. 189
EV drive mode ..............................196
Hybrid transmission................... 199
Turn signal lever .......................... 205
Parking brake .............................. 207
Brake Hold .................................... 210
Horn ..................................................212
4-3. Operating the lights and wipers
Headlight switch ..........................213
Fog light switch ............................ 218
Windshield wipers and washer ..................................219
Headlight cleaner switch ........ 226 4-4. Refueling
Opening the fuel tank cap ......227
4-5. Using the driving support systems
Cruise control ............................. 232
Dynamic radar cruise control............................ 236
LKA (Lane-Keeping Assist) ............251
Intuitive parking assist ................ 261
Rear view monitor system ....... 274
Driving mode select switch ... 286
Driving assist systems .............. 289
PCS (Pre-Collision System) ......... 296
BSM (Blind Spot Monitor) .............305
Lexus night view ............................ 311
4-6. Driving tips Hybrid vehicle driving tips ....... 317
Winter driving tips .......................319
4Driving
GS450h_U.book Page 3 Monday, January 23, 2012 10:20 AM

17Pictorial index
GS450h_U (OM30D01U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 319
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . . . . . . . . . .P. 385
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 618
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 2 7
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 784
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 651
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 790
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 319
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . .P. 651
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 749
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 638
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 8 5
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 774
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 728
Headlights/parking lights/daytime running lights . . . . . . . . . . . . . . . . . . P. 213
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Stop lights
Brake Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 210
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 687, Watts: P. 791)
*: If equipped
8
9
10
11
12
13
14
15
GS450h_U.book Page 17 Monday, January 23, 2012 10:20 AM

19Pictorial index
GS450h_U (OM30D01U)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 109
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . P. 721
Parking brake switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 721
Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 21 3
Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . .P. 213
Fog lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 218
Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 646
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 739
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 702
Trunk opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 4 1
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 634
Tilt and telescopic steering control switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 364
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 506
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 142
*: If equipped
4
5
6
7
8
9
10
11
12
13
14
GS450h_U.book Page 19 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
872. Instrument cluster
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(→ P. 2 0 5 )
(if equipped)
LKA (Lane-Keeping
Assist) indicator
(→ P. 2 5 1 )
(U.S.A.)
Headlight indicator
(→ P. 2 1 3 )

(if equipped)
Intuitive parking assist indi-
cator ( →P. 2 6 1 )
(Canada)
Tail light indicator
(→ P. 2 1 3 ) *1
(if equipped)
“AFS OFF” indicator
(→ P. 2 1 5 )
Headlight high beam indi-
cator ( →P. 2 1 4 )
*1, 2 Slip indicator
(→ P. 2 9 1 )
(if equipped)
Front fog light indicator
(→ P. 2 1 8 )*1VSC OFF indicator
(→ P. 2 9 1 )
“READY” indicator
( → P. 1 8 9 )
*1, 3
(if equipped)
“PCS” warning light
(→ P. 2 9 7 )
EV indicator ( →P. 7 2 )
(U.S.A.)
Parking brake indicator
(→ P. 2 0 7 )
Cruise control indicator
( → P. 232, 236)
(Canada)
Parking brake indicator
(→ P. 2 0 7 )
(if equipped)
Radar cruise control indi-
cator ( →P. 2 3 6 )*1Brake hold standby indica-
tor ( →P. 2 1 0 )
Cruise control “SET” indi-
cator ( →P. 232, 236)
*1Brake hold operated indi-
cator ( →P. 2 1 0 )
*1“A I R B A G O N /
OFF” indicator
(→ P. 4 9 )
GS450h_U.book Page 87 Monday, January 23, 2012 10:20 AM

121
GS450h_U (OM30D01U)3-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket. (The driver should
always carry the electronic key.)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Welcome light illumination control
The side marker, parking, tail and license plate lights automatically turn on at night
when the doors are unlocked using the entry function or wireless remote control if
the light switch is in the “AUTO” position.
Function summary
Locks and unlocks the doors ( →P. 122)
Opens the trunk ( →P. 122)
Starts the hybrid system ( →P. 1 8 9 )1
2
3
GS450h_U.book Page 121 Monday, January 23, 2012 10:20 AM

152
GS450h_U (OM30D01U)
3-3. Adjusting the seats
A desired driving position can be recalled linked with the unlocking of the
door.
■Setting procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carrying only the key to which you wa nt to link the driving position, shift
the shift lever to P and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be linked
properly.
Turn the power switch to ON mode and recall the position which you
want to link.
While pressing the button to
recall the position, press the
driver’s door lock switch
(either lock or unlock) until the
signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Linking driving position memory with door unlock operation
(driver’s side only)
1
2
GS450h_U.book Page 152 Monday, January 23, 2012 10:20 AM

GS450h_U (OM30D01U)
1533-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key for which you want to cancel the linked door unlock
operation.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the power switch to ON mode.
While pressing the “SET” button, press the driver’s door lock switch
(either lock or unlock) until the signal beeps.
The auto away/return function
enables easy access by activating
when the driver or front passenger
attempts to enter or exit the vehicle.
■Auto away function when exiting the vehicle (driver’s/front passen-
ger’s seat)
XDriver’s seat
When all of the following actions have been performed, the steering
wheel will move up and back to the point farthest away from the driver
and the seat will move backward: • The shift lever has been shifted to P.
• The power switch has been turned off.
• The driver seat belt has been unfastened.
XFront passenger’s seat (if equipped)
If the lumbar support, side support (if equipped), etc. of the front pas-
senger’s seat has been adjusted, the seat will return to its original state if
the front passenger’s door is opened while the vehicle is stopped to
allow easy exit from the vehicle.
Power easy access system
1
2
GS450h_U.book Page 153 Monday, January 23, 2012 10:20 AM

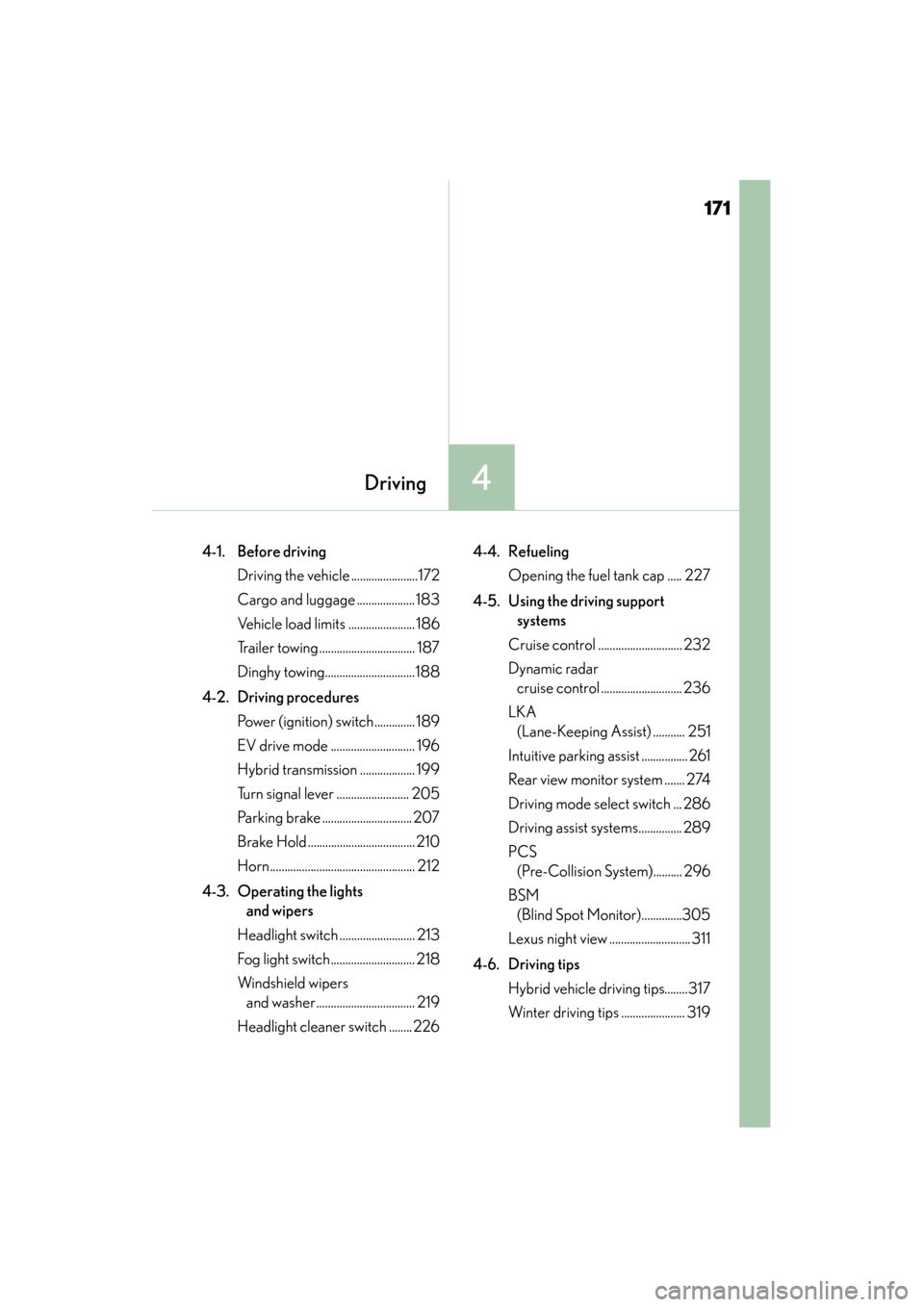

171
GS450h_U (OM30D01U)
4Driving
4-1. Before driving Driving the vehicle .......................172
Cargo and luggage .................... 183
Vehicle load limits ....................... 186
Trailer towing ................................. 187
Dinghy towing...............................188
4-2. Driving procedures Power (ignition) switch.............. 189
EV drive mode ............................. 196
Hybrid transmission ................... 199
Turn signal lever ......................... 205
Parking brake ............................... 207
Brake Hold ..................................... 210
Horn.................................................. 212
4-3. Operating the lights and wipers
Headlight switch .......................... 213
Fog light switch............................. 218
Windshield wipers and washer.................................. 219
Headlight cleaner switch ........ 226 4-4. Refueling
Opening the fuel tank cap ..... 227
4-5. Using the driving support systems
Cruise control ............................. 232
Dynamic radar cruise control ............................ 236
LKA (Lane-Keeping Assist) ........... 251
Intuitive parking assist ................ 261
Rear view monitor system ....... 274
Driving mode select switch ... 286
Driving assist systems............... 289
PCS (Pre-Collision System).......... 296
BSM (Blind Spot Monitor)..............305
Lexus night view ............................ 311
4-6. Driving tips Hybrid vehicle driving tips........317
Winter driving tips ...................... 319
GS450h_U.book Page 171 Monday, January 23, 2012 10:20 AM
