2013 JEEP GRAND CHEROKEE SRT Owners Manual

Center High-Mounted Stop Lamp (CHMSL)
The center high-mounted stop lamp is an LED assembly.
See your authorized dealer for replacement.
Rear License Lamp
1. Use a screw driver to gently pry against the side of thesnap tab to remove the license lamp lens.
2. Pull bulb from socket.
3. Replace bulb.
4. Reinstall lens.
Center High-Mounted Stop Lamp
7
MAINTAINING YOUR VEHICLE 607

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 25 Gallons94 Liters
Engine Oil With Filter
6.4 Liter Engine (SAE 0W-40, Synthetic API Certified) 7 Quarts6.6 Liters
Cooling System*
6.4 Liter Engine (MOPAR Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula or equivalent) 16 Quarts
15.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
608 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant or Genuine Part
Engine Coolant We recommend you use MOPARAntifreeze/Coolant 10 Year/
150,000 Mile Formula OAT (Organic Additive Technology).
Engine Oil For best performance and maximum protection under all types of
operating conditions, the manufacturer only recommends full syn-
thetic engine oils that meet the American Petroleum Institute (API)
categories of SM or SM/CF.
The manufacturer recommends the use of a full synthetic SAE 0W-40
engine oil.
Engine Oil Filter We recommend you use MOPAREngine Oil Filters.
Spark Plugs We recommend you use MOPARSpark Plugs.
Fuel Selection Premium Unleaded 91 Octane Only or Higher.
7
MAINTAINING YOUR VEHICLE 609

Chassis
ComponentFluid, Lubricant or Genuine Part
Automatic Transmission We recommend you use MOPARATF+4 Automatic Transmission
Fluid.
Transfer Case We recommend you use MOPARATF+4Automatic Transmission
Fluid.
Front Axle We recommend you use 75W-85 Fuch 5010D
Rear Axle We recommend you use 75W-85 Castrol SAF Carbon Mod.
Brake Master Cylinder We recommend you use MOPARDOT 3 Brake Fluid, SAE J1703.
If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is
acceptable.
Power Steering Reservoir We recommend you use MOPARPower Steering Fluid +4,
MOPAR ATF+4Automatic Transmission Fluid.
610 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............612▫Required Maintenance Intervals ...........614
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
NOTE:
•
The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s oil
if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
• Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
• Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or six months, which-
ever comes first.
8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S612 MAINTENANCE SCHEDULES

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” for further in-
formation.
At Each Stop For Fuel
•Check the engine oil level. Refer to “Maintenance
Procedures/Engine Oil” in “Maintaining Your Ve-
hicle” for further information.
• Check the windshield washer solvent and add if
required.
Once A Month
• Check tire pressure and look for unusual wear or
damage. •
Inspect the battery, and clean and tighten the terminals
as required.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, and power steering, and add as
needed.
• Check all lights and other electrical items for correct
operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 613

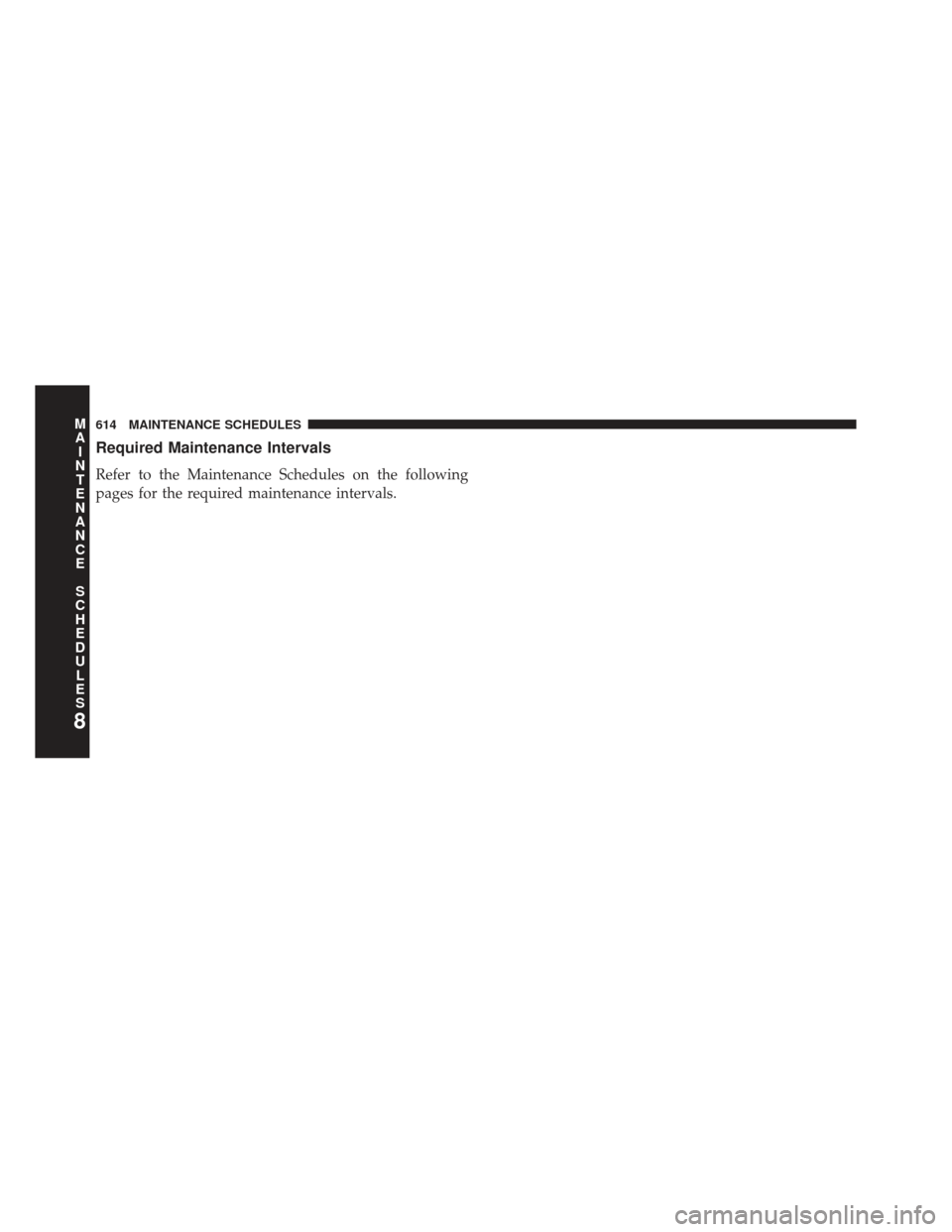

Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
8
MA I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S614 MAINTENANCE SCHEDULES
