2013 JEEP GRAND CHEROKEE SRT Owners Manual

Floor ModeAir comes from the floor outlets. A slight amount
of air is directed through the defrost and side
window demister outlets.
Mix Mode
Air comes from the floor, defrost and side window
demist outlets. This mode works best in cold or
snowy conditions. It allows you to stay comfortable
while keeping the windshield clear.
Defrost Mode
Air comes from the windshield and side window
demist outlets. Use Defrost mode with maximum
temperature settings for best windshield and side window
defrosting. When the defrost mode is selected, the blower
will automatically default to medium-high unless the
blower is controlled manually.
NOTE: While operating in the other modes, the system
will not automatically sense the presence of fog, mist or
ice on the windshield. Defrost mode must be manually
selected to clear the windshield and side glass.
Air Conditioning (A/C)
The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When in A/C mode and the ATC is set to a cool
temperature, dehumidified air flows through the air
outlets. If Economy mode is desired, press the A/C
button to turn off the A/C mode in the ATC display and
deactivate the A/C system. Also, make sure to select only
Panel, Bi-Level or Floor modes.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 439

NOTE:
•If the system is in Mix, Floor or Defrost Mode, the A/C
can be turned off, but the A/C system shall remain
active to prevent fogging of the windows.
• If fog or mist appears on the windshield or side glass,
select Defrost mode and increase blower speed.
Recirculation Control
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the Recirculation control button. Re-
circulation mode should only be used temporarily. The
recirculation LED will illuminate when this button is
selected. Push the button a second time to turn off the
Recirculation mode LED and allow outside air into the
vehicle. NOTE:
In cold weather, use of Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in the Defrost modes to improve
window clearing operation. Recirculation will be dis-
abled automatically if Defrost is selected.
Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the A/C button) on
will clear the fog. Adjust the temperature control, air
direction, and blower speed to maintain comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
440 UNDERSTANDING YOUR INSTRUMENT PANEL

blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
Defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
NOTE:In some cases during high temperature trailer
tow operation the Air Conditioning system performance
may be reduced. This is to help protect the engine from
overheating during the high load condition.
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use partial
Recirculation A/C mode to provide additional comfort.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air condi-
tioning system at idle for about five minutes in the fresh
air and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.4
UNDERSTANDING YOUR INSTRUMENT PANEL 441

Operating Tips Chart
442 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................447
▫ Automatic Transmission ................447
▫ Keyless Enter-N-Go™ ..................448
▫ Normal Starting ...................... .449
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................451
▫ If Engine Fails To Start .................451
▫ After Starting ....................... .453
 AUTOMATIC TRANSMISSION ............453
▫ Key Ignition Park Interlock ...............455 ▫
Brake/Transmission Shift Interlock System . . .455
▫ Five-Speed Automatic Transmission ........456
▫ Gear Ranges ........................ .456
 AUTOSTICK ........................ .463
▫ Operation .......................... .463
 SELEC-TRACK™ — IF EQUIPPED ..........465
▫ Description ......................... .465
▫ Active Damping System .................467
 DRIVING THROUGH WATER .............467
▫ Flowing/Rising Water ..................468
5

POWER STEERING .....................470
 FUEL SAVER TECHNOLOGY —
IF EQUIPPED ......................... .471
 PARKING BRAKE ..................... .471
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .473
▫ Anti-Lock Brake System (ABS) ............474
▫ Traction Control System (TCS) ............474
▫ Brake Assist System (BAS) ...............475
▫ Electronic Roll Mitigation (ERM) ..........475
▫ Electronic Stability Control (ESC) ..........476
▫ Trailer Sway Control (TSC) ..............480
▫ ESC Activation/Malfunction Indicator Light
And ESC OFF Indicator Light ............481
TIRE SAFETY INFORMATION .............483
▫ Tire Markings ....................... .483
▫ Tire Identification Number (TIN) ...........487
▫ Tire Terminology And Definitions ..........488
▫ Tire Loading And Tire Pressure ...........489
 TIRES — GENERAL INFORMATION .........494
▫ Tire Pressure ....................... .494
▫ Tire Inflation Pressures .................495
▫ Tire Pressures For High Speed Operation . . . .496
▫ Radial Ply Tires ..................... .497
▫ All Season Tires – If Equipped ............497
▫
Summer Or Three Season Tires – If Equipped . . .498
444 STARTING AND OPERATING

▫Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped ................498
▫ Compact Spare Tire – If Equipped .........499
▫ Full Size Spare – If Equipped .............499
▫ Limited-Use Spare – If Equipped ..........500
▫ Tire Spinning ....................... .500
▫ Tread Wear Indicators ..................501
▫ Life Of Tire ........................ .502
▫ Replacement Tires .....................502
 TIRE ROTATION RECOMMENDATIONS .....504

TIRE PRESSURE MONITOR SYSTEM (TPMS) . . .505
▫ Premium System – If Equipped ............508
▫ Tire Pressure Monitoring Low Pressure
Warnings .......................... .509▫
General Information ...................512
 FUEL REQUIREMENTS ..................513
▫ 6.4L Engine ......................... .513
▫ Reformulated Gasoline .................513
▫ Gasoline/Oxygenate Blends ..............514
▫ E-85 Usage In Non-Flex Fuel Vehicles .......514
▫ MMT In Gasoline .....................515
▫ Materials Added To Fuel ................515
▫ Fuel System Cautions ...................516
▫ Carbon Monoxide Warnings .............517
 ADDING FUEL ....................... .517
▫ Fuel Filler Cap (Gas Cap) ...............517
▫ Loose Fuel Filler Cap Message ............520
5
STARTING AND OPERATING 445

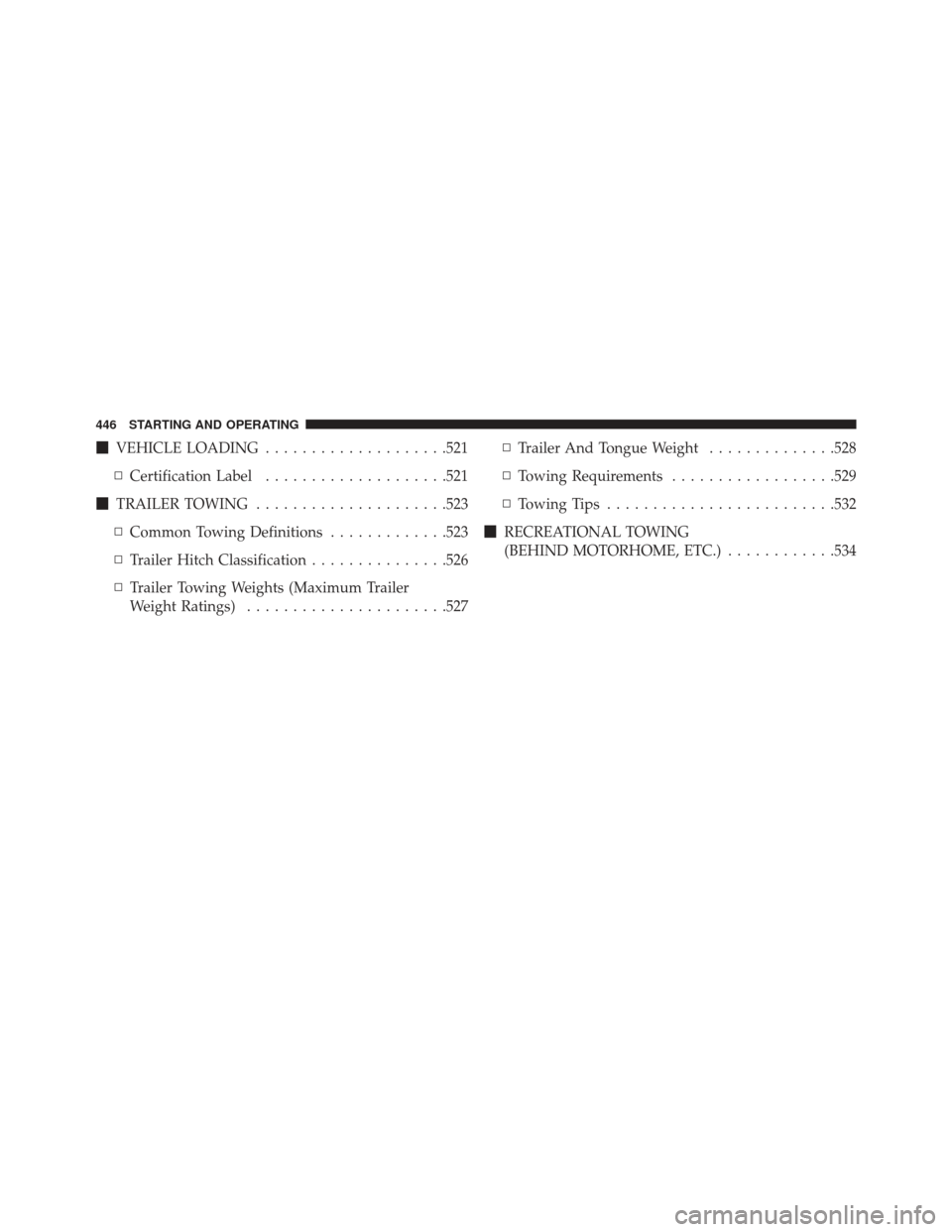

VEHICLE LOADING ....................521
▫ Certification Label ....................521
 TRAILER TOWING .....................523
▫ Common Towing Definitions .............523
▫ Trailer Hitch Classification ...............526
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... .527▫
Trailer And Tongue Weight ..............528
▫ Towing Requirements ..................529
▫ Towing Tips ........................ .532
 RECREATIONAL TOWING
(BEHIND MOTORHOME, ETC.) ............534
446 STARTING AND OPERATING
