2013 JEEP GRAND CHEROKEE glove box

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle on
the driver’s side should the battery in the vehicle or the
RKE transmitter go dead. The emergency key is also for
locking the glove box. You can keep the emergency key
with you when valet parking.
NOTE:Entering a vehicle using the emergency key with
the security alarm armed, will result in the alarm sound-
ing. Insert the Key Fob (even if the Key Fob battery is
dead) into the ignition switch to disarm security alarm.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

STORAGE
Glove Compartment
The glove compartment is located on the right side of the
instrument panel.To open the glove compartment, pull outward on the
latch and lower the glove box door.
Glove Compartment
Opened Glove Compartment
294 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Do not remove the A/C air filter while the blower is
operating or personal injury may result.
The A/C air filter is located in the fresh air inlet behind
the glove box. Perform the following procedure to re-
place the filter:
1. Open the glove compartment and remove all contents.
2. Push in on the sides of the glove compartment and lower the door.
3. Pivot the glove compartment downward.
4. Disengage the two retaining tabs that secure the filter cover to the HVAC housing, and remove the cover. 5. Remove the A/C air filter by pulling it straight out of
the housing.
A/C Air Filter Replacement
7
MAINTAINING YOUR VEHICLE 571

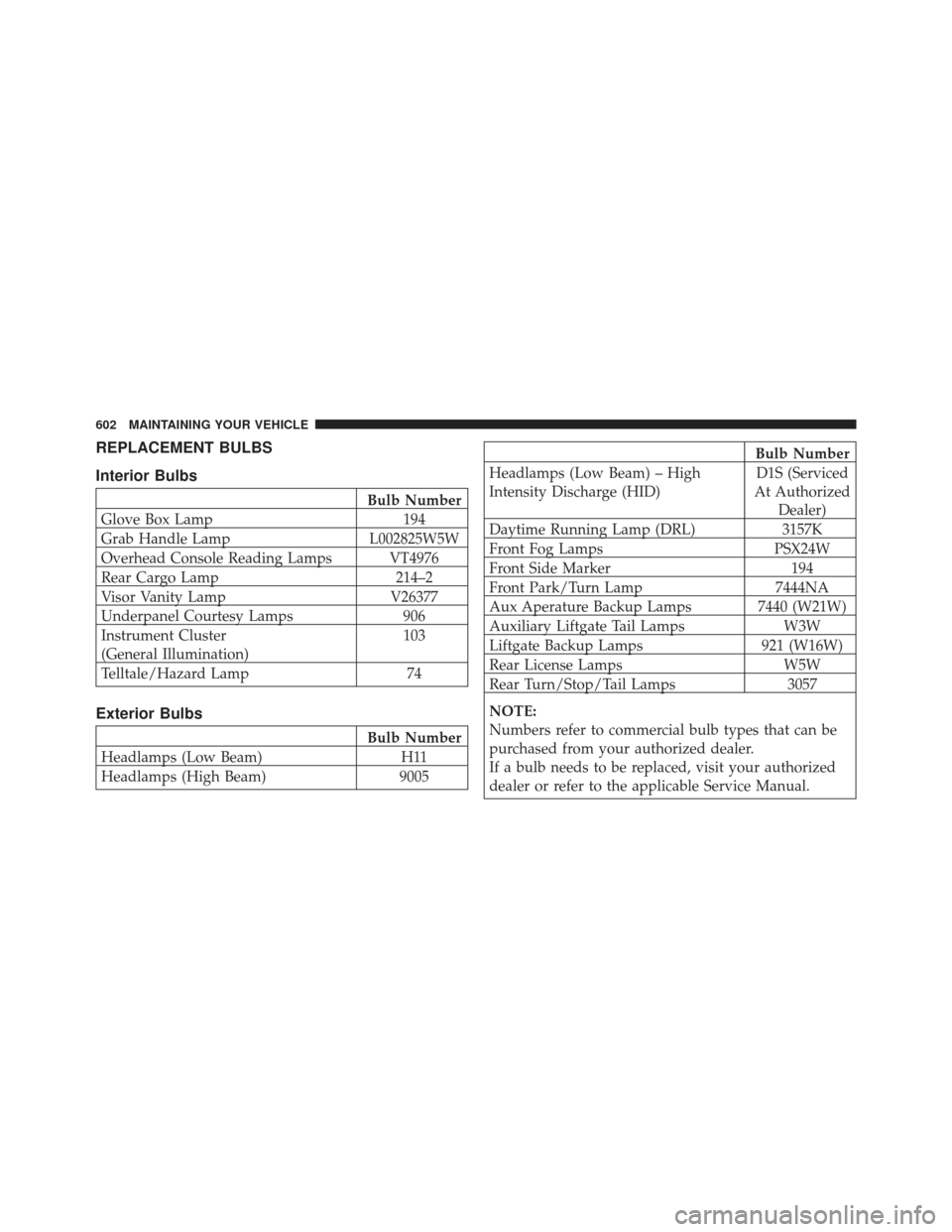

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Glove Box Lamp 194
Grab Handle Lamp L002825W5W
Overhead Console Reading Lamps VT4976
Rear Cargo Lamp 214–2
Visor Vanity Lamp V26377
Underpanel Courtesy Lamps 906
Instrument Cluster
(General Illumination) 103
Telltale/Hazard Lamp 74
Exterior Bulbs
Bulb Number
Headlamps (Low Beam) H11
Headlamps (High Beam) 9005
Bulb Number
Headlamps (Low Beam) – High
Intensity Discharge (HID) D1S (Serviced
At Authorized Dealer)
Daytime Running Lamp (DRL) 3157K
Front Fog Lamps PSX24W
Front Side Marker 194
Front Park/Turn Lamp 7444NA
Aux Aperature Backup Lamps 7440 (W21W)
Auxiliary Liftgate Tail Lamps W3W
Liftgate Backup Lamps 921 (W16W)
Rear License Lamps W5W
Rear Turn/Stop/Tail Lamps 3057
NOTE:
Numbers refer to commercial bulb types that can be
purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
602 MAINTAINING YOUR VEHICLE
