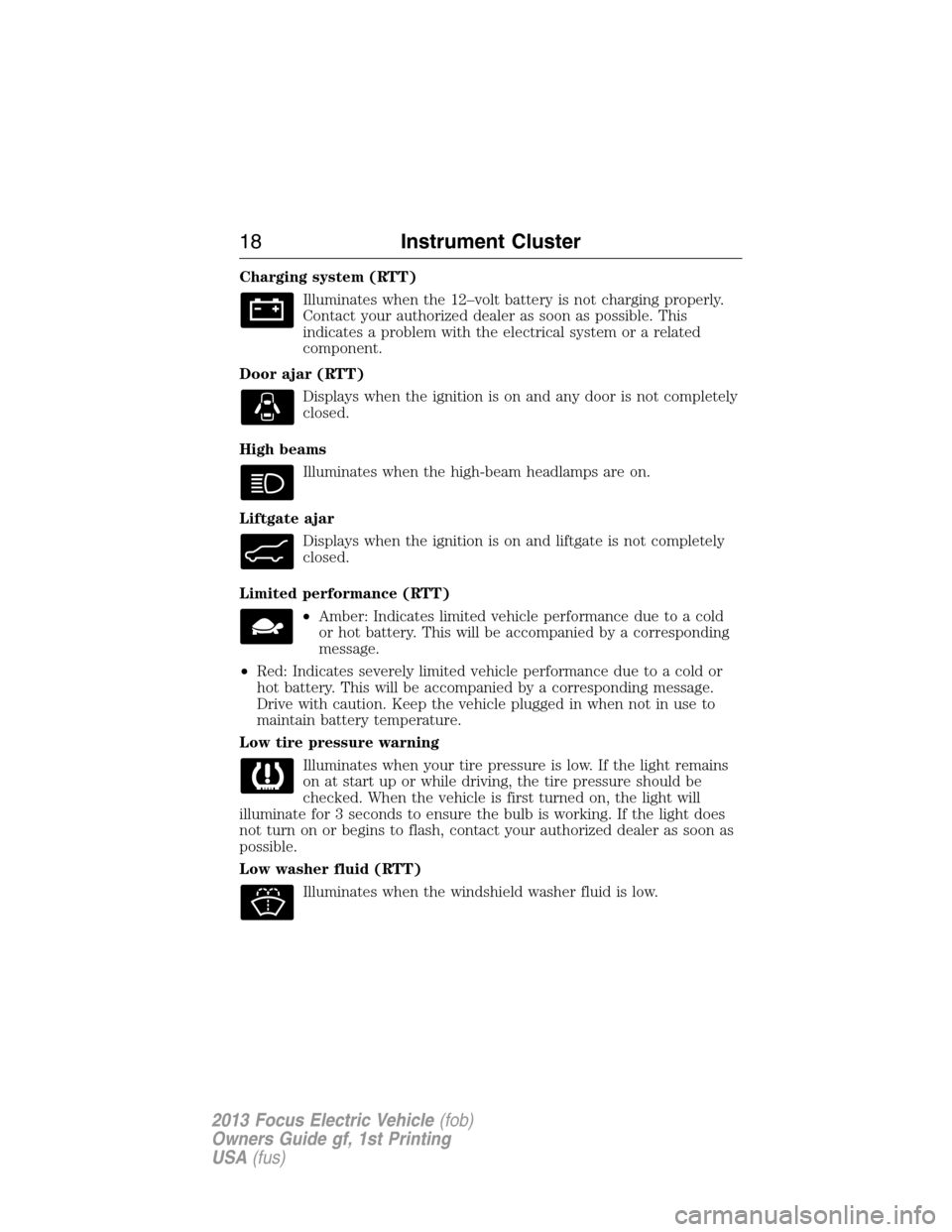

Charging system (RTT)
Illuminates when the 12–volt battery is not charging properly.
Contact your authorized dealer as soon as possible. This
indicates a problem with the electrical system or a related
component.
Door ajar (RTT)
Displays when the ignition is on and any door is not completely
closed.
High beams
Illuminates when the high-beam headlamps are on.
Liftgate ajar
Displays when the ignition is on and liftgate is not completely
closed.
Limited performance (RTT)
•Amber: Indicates limited vehicle performance due to a cold
or hot battery. This will be accompanied by a corresponding
message.
•Red: Indicates severely limited vehicle performance due to a cold or
hot battery. This will be accompanied by a corresponding message.
Drive with caution. Keep the vehicle plugged in when not in use to
maintain battery temperature.
Low tire pressure warning
Illuminates when your tire pressure is low. If the light remains
on at start up or while driving, the tire pressure should be
checked. When the vehicle is first turned on, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn on or begins to flash, contact your authorized dealer as soon as
possible.
Low washer fluid (RTT)
Illuminates when the windshield washer fluid is low.
18Instrument Cluster
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

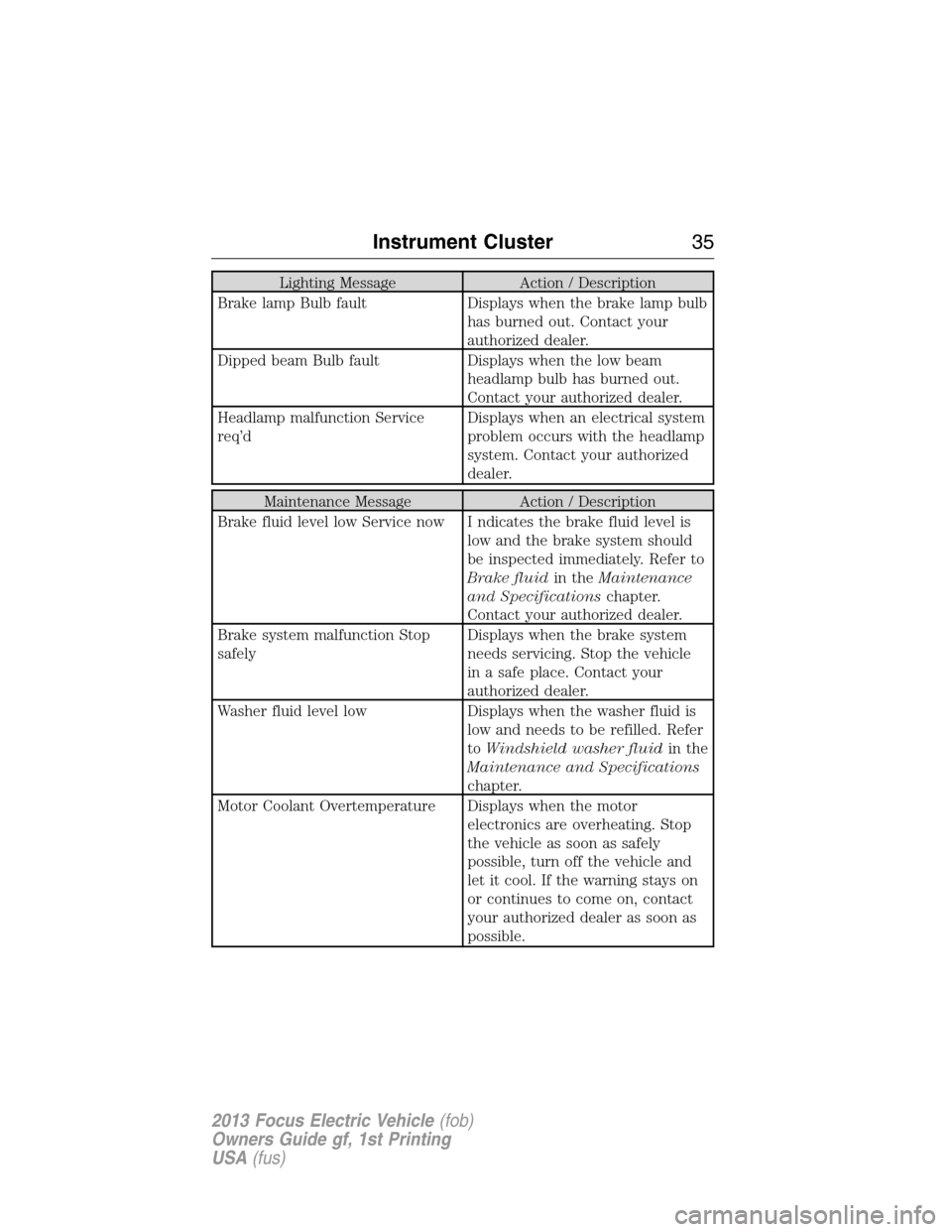

Lighting Message Action / Description
Brake lamp Bulb fault Displays when the brake lamp bulb
has burned out. Contact your
authorized dealer.
Dipped beam Bulb fault Displays when the low beam
headlamp bulb has burned out.
Contact your authorized dealer.
Headlamp malfunction Service
req’dDisplays when an electrical system
problem occurs with the headlamp
system. Contact your authorized
dealer.
Maintenance Message Action / Description
Brake fluid level low Service now I ndicates the brake fluid level is
low and the brake system should
be inspected immediately. Refer to
Brake fluidin theMaintenance
and Specificationschapter.
Contact your authorized dealer.
Brake system malfunction Stop
safelyDisplays when the brake system
needs servicing. Stop the vehicle
in a safe place. Contact your
authorized dealer.
Washer fluid level low Displays when the washer fluid is
low and needs to be refilled. Refer
toWindshield washer fluidin the
Maintenance and Specifications
chapter.
Motor Coolant Overtemperature Displays when the motor
electronics are overheating. Stop
the vehicle as soon as safely
possible, turn off the vehicle and
let it cool. If the warning stays on
or continues to come on, contact
your authorized dealer as soon as
possible.
Instrument Cluster35
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Note:The head lamp indicator will illuminate when the head lamps are
activated.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
•To turn autolamps on, rotate the
control to
.
•To turn autolamps off, rotate the
control from the autolamp
position.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
Autolamp delay system (if equipped)
If your vehicle is equipped with autolamps, you can set the delay time to
keep the headlights on for up to one minute after the key is turned off.
The home light delay settings are adjusted through the message center
in the instrument cluster. The default delay time from the factory is set
to 20 seconds.
Note:The headlamps can be activated manually by pulling the high
beam/flash-to-pass lever toward you. The headlamps are deactivated
after 30 seconds or three minutes if any door is open.
A
A
Lighting129
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

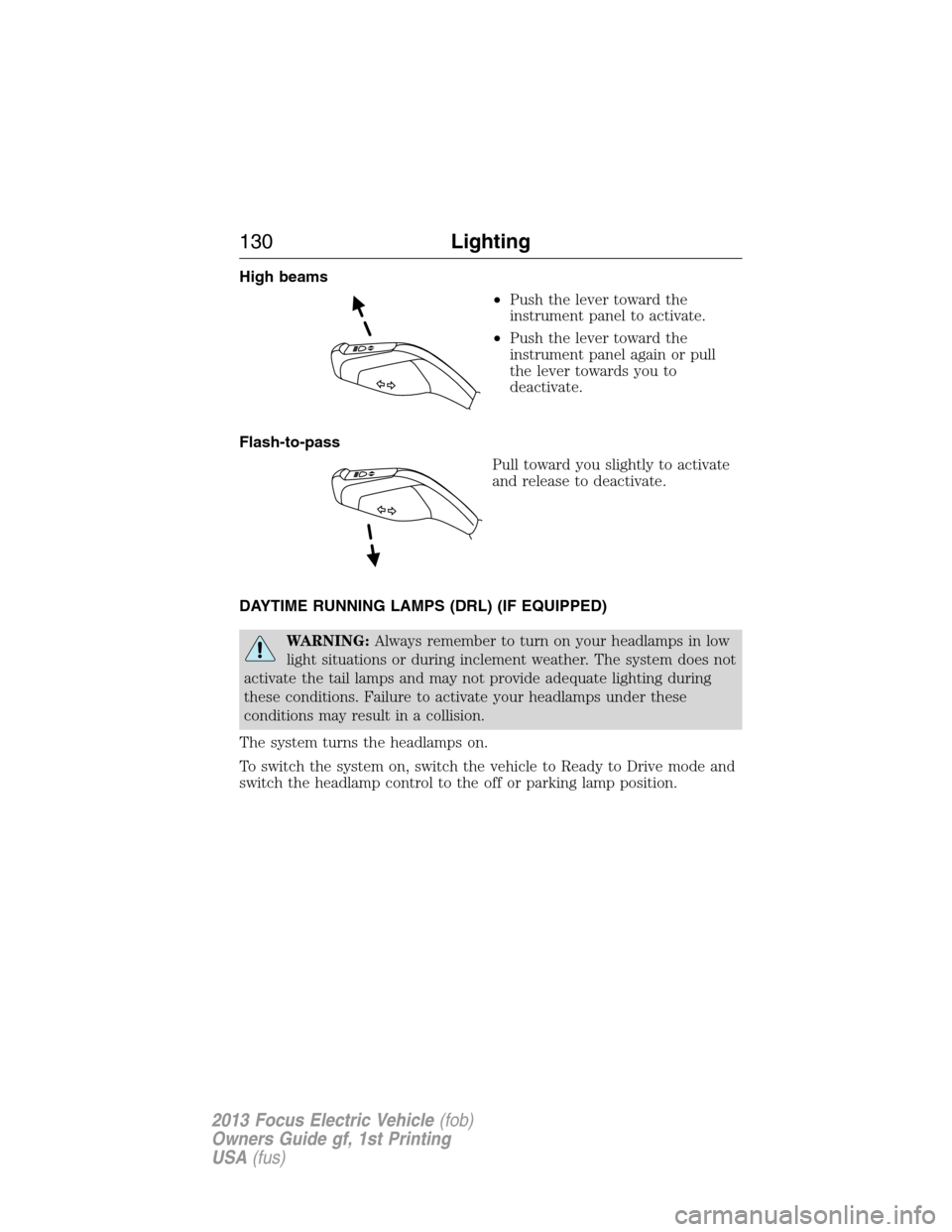

High beams
•Push the lever toward the
instrument panel to activate.
•Push the lever toward the
instrument panel again or pull
the lever towards you to
deactivate.
Flash-to-pass
Pull toward you slightly to activate
and release to deactivate.
DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps in low
light situations or during inclement weather. The system does not
activate the tail lamps and may not provide adequate lighting during
these conditions. Failure to activate your headlamps under these
conditions may result in a collision.
The system turns the headlamps on.
To switch the system on, switch the vehicle to Ready to Drive mode and
switch the headlamp control to the off or parking lamp position.
130Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

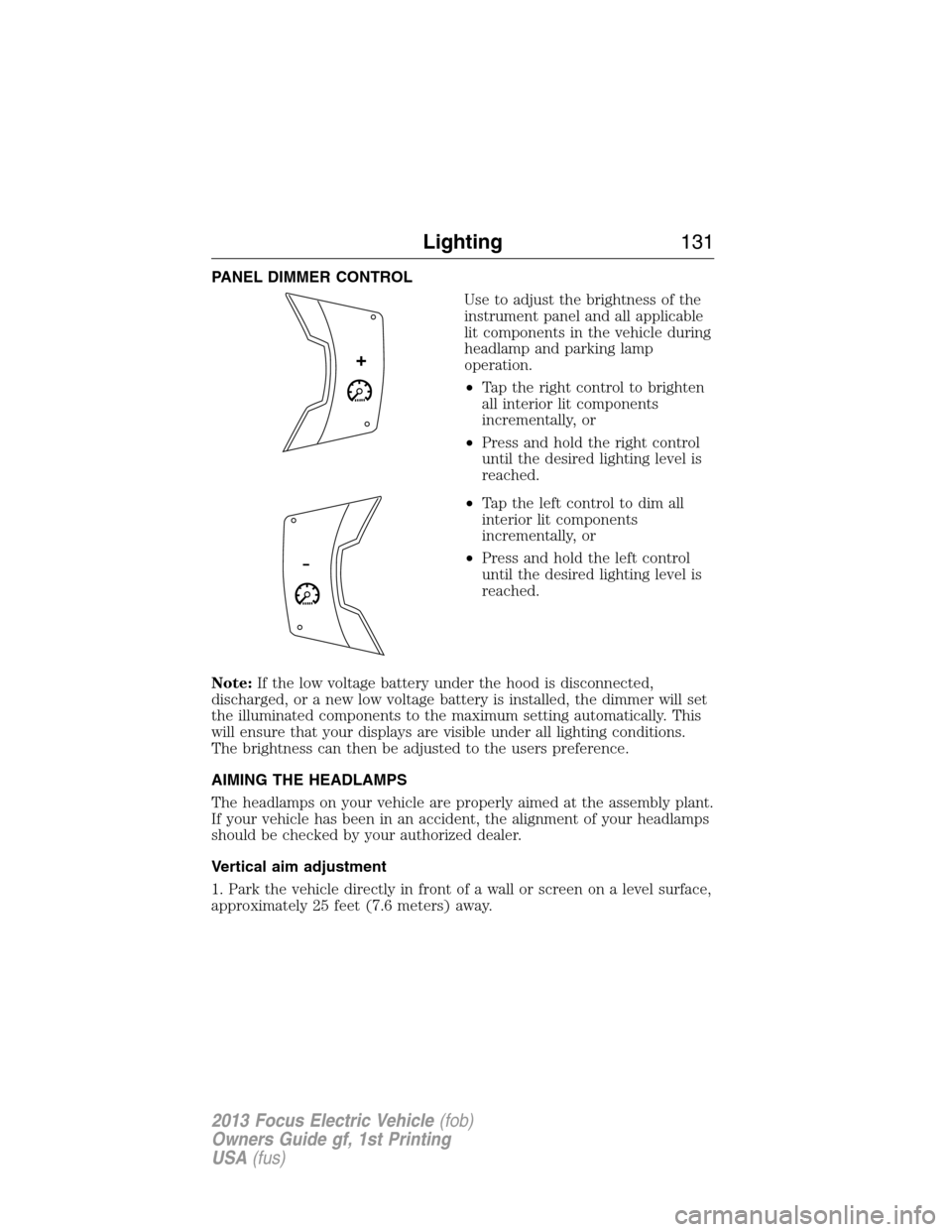

PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
lit components in the vehicle during
headlamp and parking lamp
operation.
•Tap the right control to brighten
all interior lit components
incrementally, or
•Press and hold the right control
until the desired lighting level is
reached.
•Tap the left control to dim all
interior lit components
incrementally, or
•Press and hold the left control
until the desired lighting level is
reached.
Note:If the low voltage battery under the hood is disconnected,
discharged, or a new low voltage battery is installed, the dimmer will set
the illuminated components to the maximum setting automatically. This
will ensure that your displays are visible under all lighting conditions.
The brightness can then be adjusted to the users preference.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
Lighting131
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

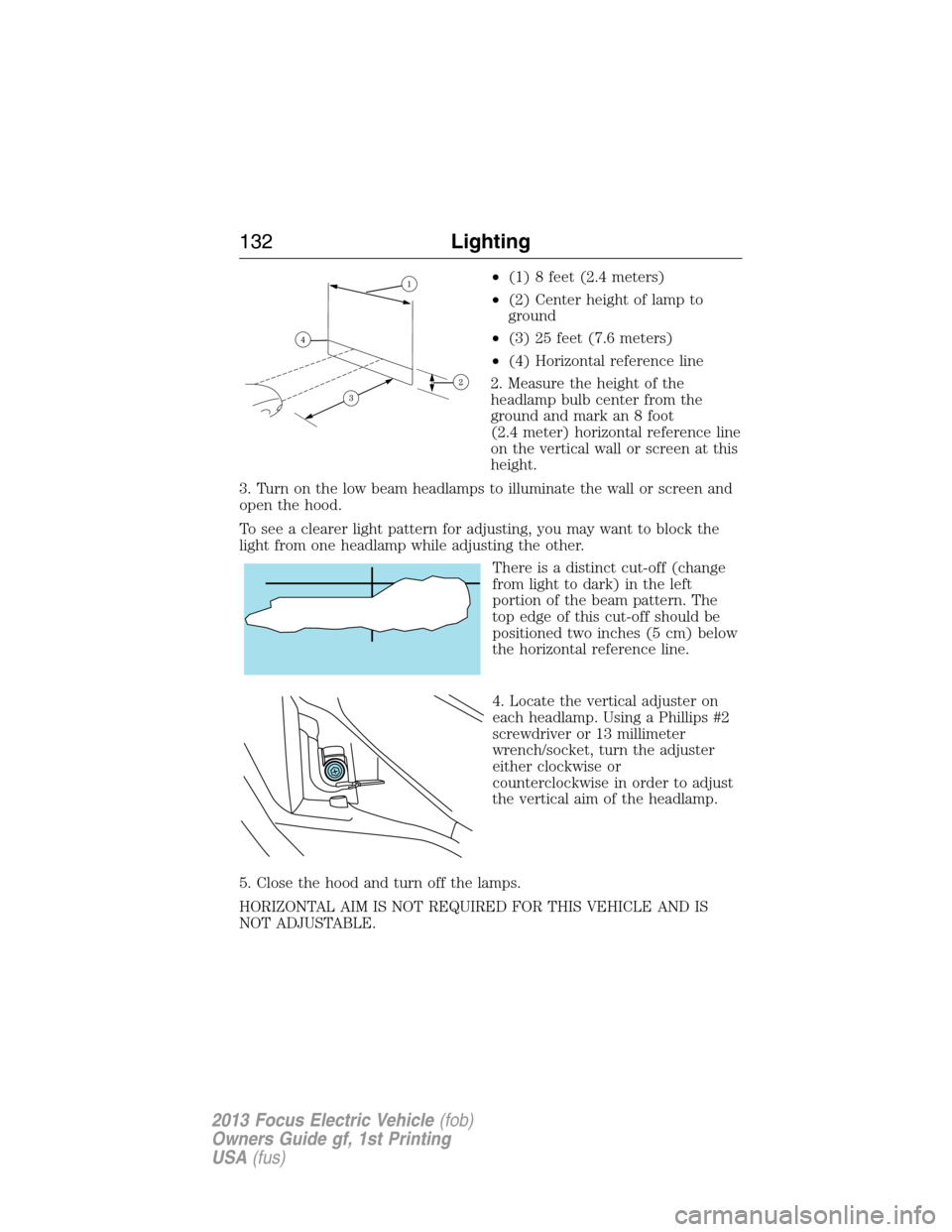

•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
There is a distinct cut-off (change
from light to dark) in the left
portion of the beam pattern. The
top edge of this cut-off should be
positioned two inches (5 cm) below
the horizontal reference line.
4. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver or 13 millimeter
wrench/socket, turn the adjuster
either clockwise or
counterclockwise in order to adjust
the vertical aim of the headlamp.
5. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NOT ADJUSTABLE.
132Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

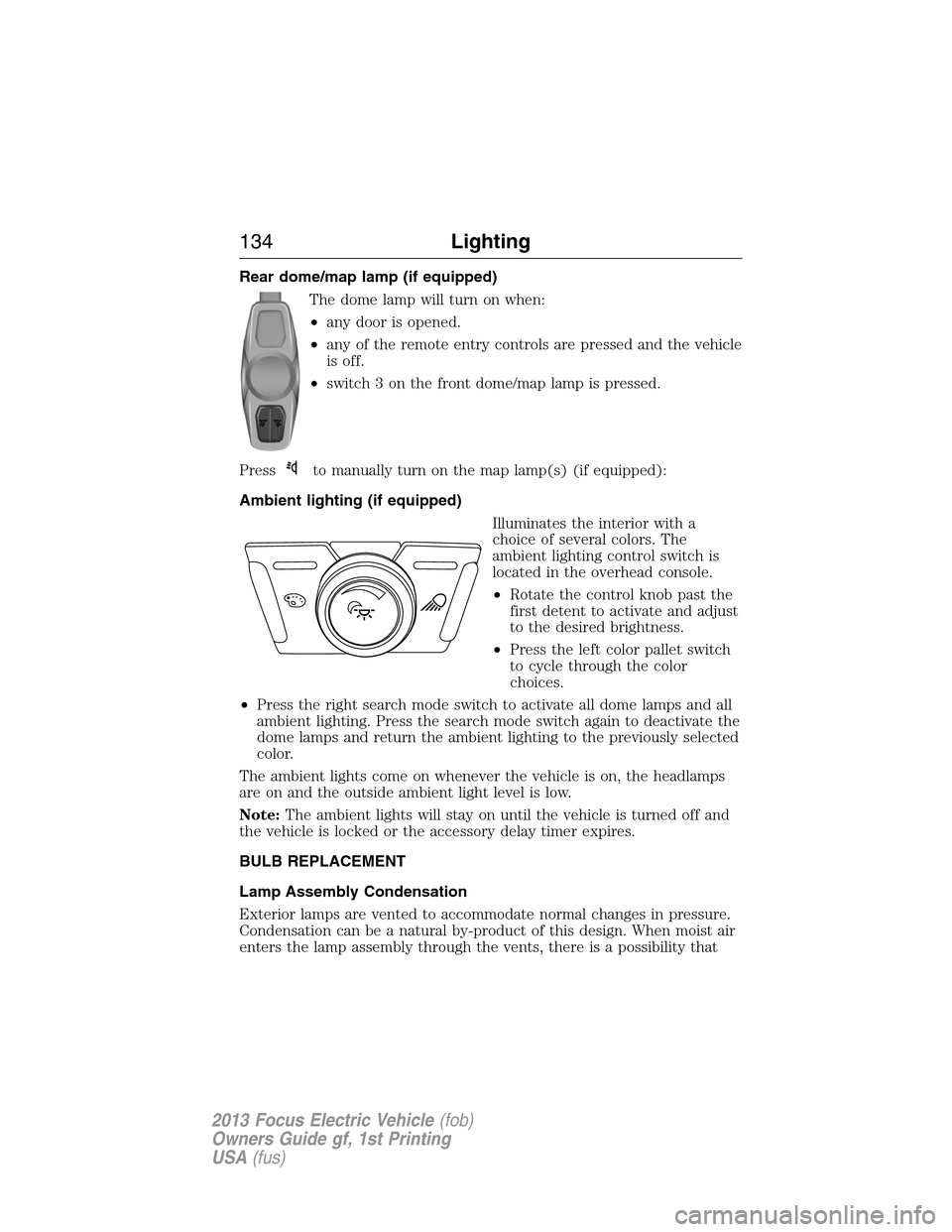

Rear dome/map lamp (if equipped)
The dome lamp will turn on when:
•any door is opened.
•any of the remote entry controls are pressed and the vehicle
is off.
•switch 3 on the front dome/map lamp is pressed.
Press
to manually turn on the map lamp(s) (if equipped):
Ambient lighting (if equipped)
Illuminates the interior with a
choice of several colors. The
ambient lighting control switch is
located in the overhead console.
•Rotate the control knob past the
first detent to activate and adjust
to the desired brightness.
•Press the left color pallet switch
to cycle through the color
choices.
•Press the right search mode switch to activate all dome lamps and all
ambient lighting. Press the search mode switch again to deactivate the
dome lamps and return the ambient lighting to the previously selected
color.
The ambient lights come on whenever the vehicle is on, the headlamps
are on and the outside ambient light level is low.
Note:The ambient lights will stay on until the vehicle is turned off and
the vehicle is locked or the accessory delay timer expires.
BULB REPLACEMENT
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
134Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
