2013 FORD FOCUS ELECTRIC engine

CALIFORNIA PROPOSITION 65
WARNING:Some constituents of engine exhaust, certain vehicle
components, certain fluids contained in vehicles and certain
products of component wear contain or emit chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Note:Certain components in your vehicle such as airbag modules, safety
belt pretensioners, and remote control batteries may contain perchlorate
material. Special handling may apply for service or vehicle end of life
disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more
information.

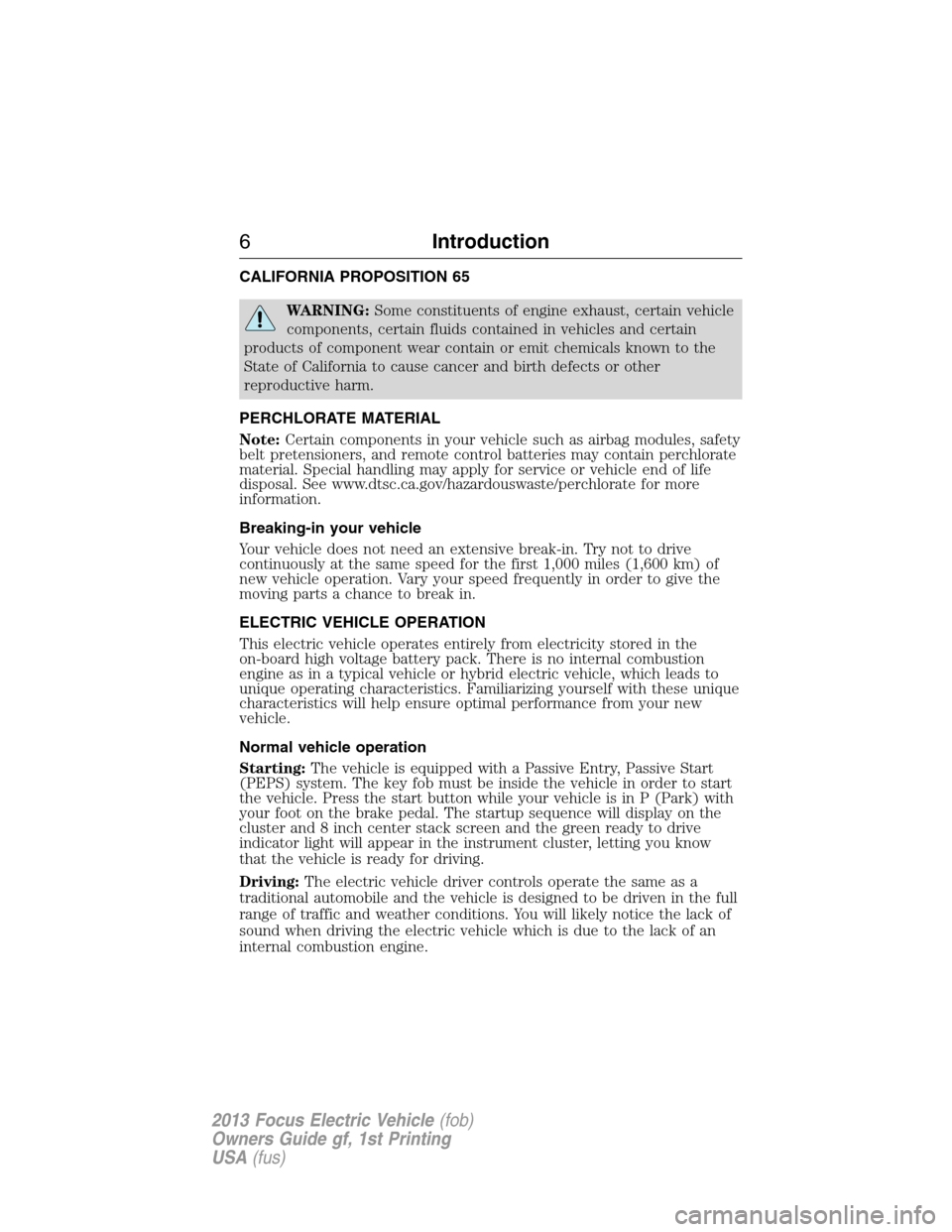

Breaking-in your vehicle
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
ELECTRIC VEHICLE OPERATION
This electric vehicle operates entirely from electricity stored in the
on-board high voltage battery pack. There is no internal combustion
engine as in a typical vehicle or hybrid electric vehicle, which leads to
unique operating characteristics. Familiarizing yourself with these unique
characteristics will help ensure optimal performance from your new
vehicle.
Normal vehicle operation
Starting:The vehicle is equipped with a Passive Entry, Passive Start
(PEPS) system. The key fob must be inside the vehicle in order to start
the vehicle. Press the start button while your vehicle is in P (Park) with
your foot on the brake pedal. The startup sequence will display on the
cluster and 8 inch center stack screen and the green ready to drive
indicator light will appear in the instrument cluster, letting you know
that the vehicle is ready for driving.
Driving:The electric vehicle driver controls operate the same as a
traditional automobile and the vehicle is designed to be driven in the full
range of traffic and weather conditions. You will likely notice the lack of
sound when driving the electric vehicle which is due to the lack of an
internal combustion engine.
6Introduction
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

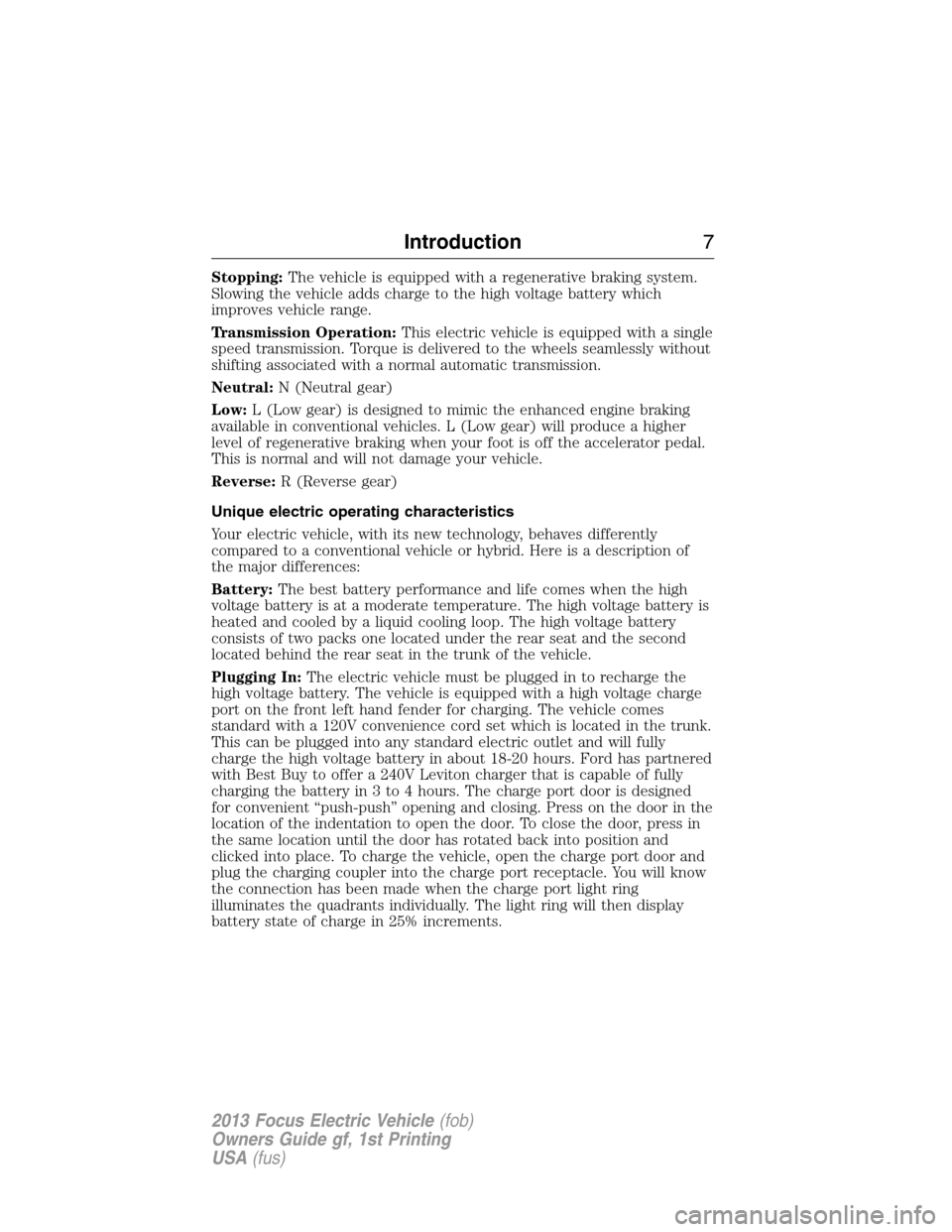

Stopping:The vehicle is equipped with a regenerative braking system.
Slowing the vehicle adds charge to the high voltage battery which
improves vehicle range.
Transmission Operation:This electric vehicle is equipped with a single
speed transmission. Torque is delivered to the wheels seamlessly without
shifting associated with a normal automatic transmission.
Neutral:N (Neutral gear)
Low:L (Low gear) is designed to mimic the enhanced engine braking
available in conventional vehicles. L (Low gear) will produce a higher
level of regenerative braking when your foot is off the accelerator pedal.
This is normal and will not damage your vehicle.
Reverse:R (Reverse gear)
Unique electric operating characteristics
Your electric vehicle, with its new technology, behaves differently
compared to a conventional vehicle or hybrid. Here is a description of
the major differences:
Battery:The best battery performance and life comes when the high
voltage battery is at a moderate temperature. The high voltage battery is
heated and cooled by a liquid cooling loop. The high voltage battery
consists of two packs one located under the rear seat and the second
located behind the rear seat in the trunk of the vehicle.
Plugging In:The electric vehicle must be plugged in to recharge the
high voltage battery. The vehicle is equipped with a high voltage charge
port on the front left hand fender for charging. The vehicle comes
standard with a 120V convenience cord set which is located in the trunk.
This can be plugged into any standard electric outlet and will fully
charge the high voltage battery in about 18-20 hours. Ford has partnered
with Best Buy to offer a 240V Leviton charger that is capable of fully
charging the battery in 3 to 4 hours. The charge port door is designed
for convenient “push-push” opening and closing. Press on the door in the
location of the indentation to open the door. To close the door, press in
the same location until the door has rotated back into position and
clicked into place. To charge the vehicle, open the charge port door and
plug the charging coupler into the charge port receptacle. You will know
the connection has been made when the charge port light ring
illuminates the quadrants individually. The light ring will then display
battery state of charge in 25% increments.
Introduction7
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Scheduled Maintenance and Mechanical Repairs
One of the best ways for you to make sure that your vehicle provides
years of service is to have it maintained in line with our
recommendations using parts that conform to the specifications detailed
in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or
exceed these specifications.
Collision Repairs
We hope that you never experience a collision but, accidents do happen.
Genuine Ford replacement collision parts meet our stringent
requirements for fit, finish, structural integrity, corrosion protection and
dent resistance. During vehicle development we validate these parts
deliver the intended level of protection as a whole system. A great way
to know for sure you are getting this level of protection is to use genuine
Ford replacement collision parts.
Warranty on Replacement Parts
Genuine Ford and Motorcraft replacement parts are the only
replacement parts that benefit from a Ford Warranty. Damage caused to
your vehicle as a result of the failure of non-Ford parts may not be
covered by the Ford Warranty. For additional information, refer to the
terms and conditions of the Ford Warranty.
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. Additionally, when your vehicle is in for service or repair,
Ford Motor Company, Ford of Canada, and service and repair facilities
may access or share among them data for vehicle improvement purposes.
For U.S. only (if equipped), if you choose to use the SYNCVehicle
Health Report, you consent that certain diagnostic information may also
be accessed electronically by Ford Motor Company and Ford authorized
service facilities, and that the diagnostic information may be used for any
purpose. See theSYNCchapter for more information.
10Introduction
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Symbol Description Symbol Description Symbol Description
Safety alertSee Owner’s
ManualAnti-lock
braking
system
Avoid
smoking,
flames, or
sparksBatteryBattery acid
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
Child seat
tether anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine oilExplosive gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Heated rear
windowInterior
luggage
compartment
releaseJack
14Introduction
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Symbol Description Symbol Description Symbol Description
Lighting
controlLow tire
pressure
warningMaintain
correct fluid
level
Panic alarmParking aid
systemParking
brake system
Power
steering fluidPower
windows
front and
rearPower
window
lockout
Service
engine soonSide airbagStability
control
Windshield
defrost and
demistWindshield
washer and
wiper
Introduction15
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

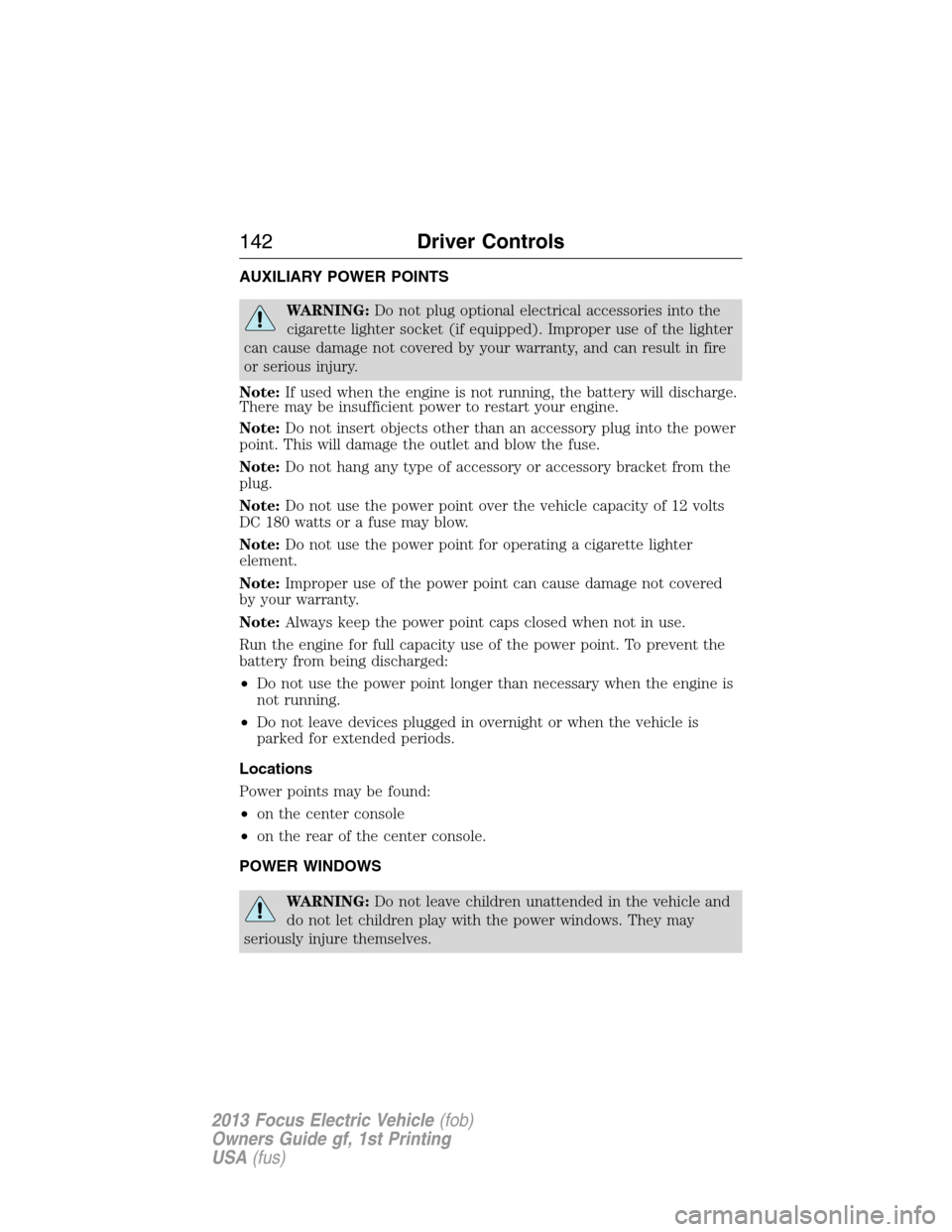

AUXILIARY POWER POINTS
WARNING:Do not plug optional electrical accessories into the
cigarette lighter socket (if equipped). Improper use of the lighter
can cause damage not covered by your warranty, and can result in fire
or serious injury.
Note:If used when the engine is not running, the battery will discharge.
There may be insufficient power to restart your engine.
Note:Do not insert objects other than an accessory plug into the power
point. This will damage the outlet and blow the fuse.
Note:Do not hang any type of accessory or accessory bracket from the
plug.
Note:Do not use the power point over the vehicle capacity of 12 volts
DC 180 watts or a fuse may blow.
Note:Do not use the power point for operating a cigarette lighter
element.
Note:Improper use of the power point can cause damage not covered
by your warranty.
Note:Always keep the power point caps closed when not in use.
Run the engine for full capacity use of the power point. To prevent the
battery from being discharged:
•Do not use the power point longer than necessary when the engine is
not running.
•Do not leave devices plugged in overnight or when the vehicle is
parked for extended periods.
Locations
Power points may be found:
•on the center console
•on the rear of the center console.
POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
142Driver Controls
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

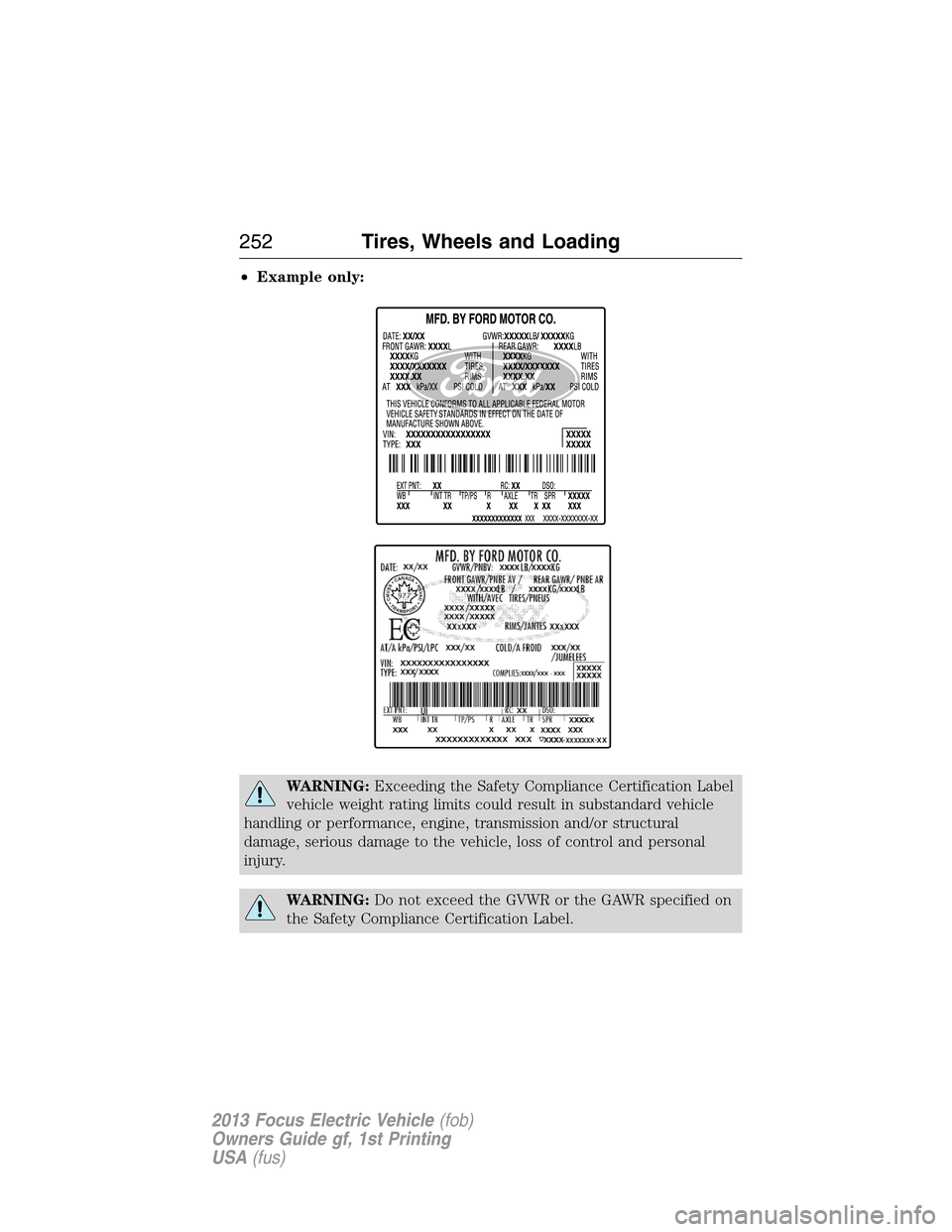

•Example only:
WARNING:Exceeding the Safety Compliance Certification Label
vehicle weight rating limits could result in substandard vehicle
handling or performance, engine, transmission and/or structural
damage, serious damage to the vehicle, loss of control and personal
injury.
WARNING:Do not exceed the GVWR or the GAWR specified on
the Safety Compliance Certification Label.
252Tires, Wheels and Loading
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

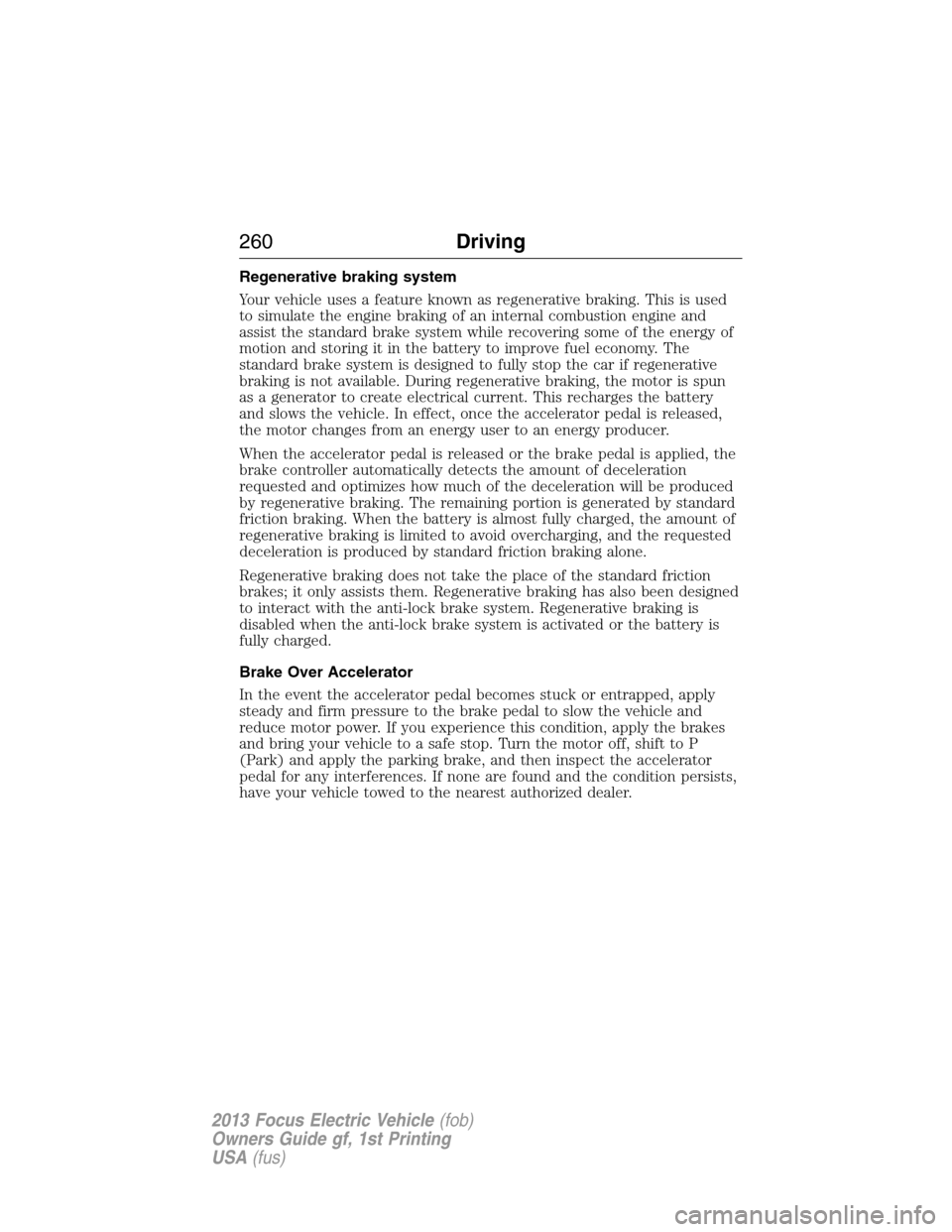

Regenerative braking system
Your vehicle uses a feature known as regenerative braking. This is used
to simulate the engine braking of an internal combustion engine and
assist the standard brake system while recovering some of the energy of
motion and storing it in the battery to improve fuel economy. The
standard brake system is designed to fully stop the car if regenerative
braking is not available. During regenerative braking, the motor is spun
as a generator to create electrical current. This recharges the battery
and slows the vehicle. In effect, once the accelerator pedal is released,
the motor changes from an energy user to an energy producer.
When the accelerator pedal is released or the brake pedal is applied, the
brake controller automatically detects the amount of deceleration
requested and optimizes how much of the deceleration will be produced
by regenerative braking. The remaining portion is generated by standard
friction braking. When the battery is almost fully charged, the amount of
regenerative braking is limited to avoid overcharging, and the requested
deceleration is produced by standard friction braking alone.
Regenerative braking does not take the place of the standard friction
brakes; it only assists them. Regenerative braking has also been designed
to interact with the anti-lock brake system. Regenerative braking is
disabled when the anti-lock brake system is activated or the battery is
fully charged.
Brake Over Accelerator
In the event the accelerator pedal becomes stuck or entrapped, apply
steady and firm pressure to the brake pedal to slow the vehicle and
reduce motor power. If you experience this condition, apply the brakes
and bring your vehicle to a safe stop. Turn the motor off, shift to P
(Park) and apply the parking brake, and then inspect the accelerator
pedal for any interferences. If none are found and the condition persists,
have your vehicle towed to the nearest authorized dealer.
260Driving
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
