2013 FORD FOCUS ELECTRIC Owners Manual

INTERIOR MIRROR
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the front and back of the mirror.
Mirror performance may be affected. A rear center passenger or raised
rear center head restraint may also block light from reaching the sensor.
The mirror will dim automatically to reduce glare when bright lights are
detected from behind your vehicle. It will automatically return to normal
reflection when you select reverse gear to make sure you have a clear
view when backing up.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Move the center of the control
right or left to select the mirror to
adjust.
2. Press the arrows to adjust the
mirror.
3. Return the control to the center
position to lock mirrors in place.
Driver Controls145
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Heated outside mirrors
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Signal Indicator Mirrors
When the turn signal is activated, the outer portion of the appropriate
mirror housing will blink. This provides an additional warning to other
drivers that your vehicle is about to turn.
Fold-Away Mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Blind Spot Mirrors
Your vehicle is equipped with blind spot mirrors. Refer toBlind Spot
Mirrorsin theDrivingchapter.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
146Driver Controls
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Using speed control
The speed controls are located on the steering wheel. The following
buttons work with speed control:
CAN (cancel)/RES (resume):
Pull toward you to cancel or resume
a set speed.
SET+:Press to set a speed or
increase a set speed.
ON/OFF:Press to turn speed
control on or off.
SET–:Press to decrease a set
speed.
Setting speed control
To set speed control:
1. Press and release ON.
2. Accelerate to the desired speed.
3. Press and release SET+.
4. Take your foot off the accelerator pedal.
5. The indicator
light on the instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
CAN
RESON/OFF
SET+
SET-
Driver Controls147
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

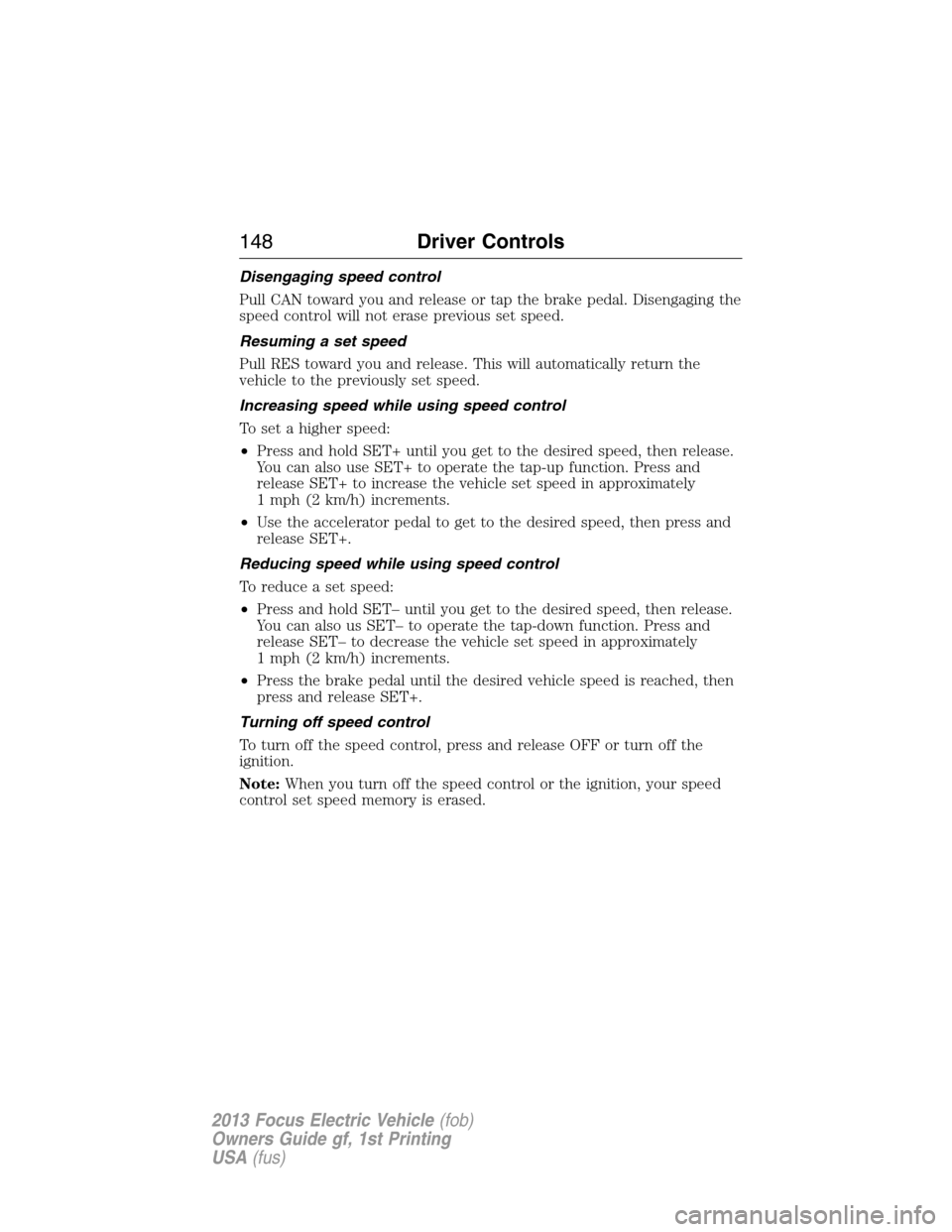

Disengaging speed control
Pull CAN toward you and release or tap the brake pedal. Disengaging the
speed control will not erase previous set speed.
Resuming a set speed
Pull RES toward you and release. This will automatically return the
vehicle to the previously set speed.
Increasing speed while using speed control
To set a higher speed:
•Press and hold SET+ until you get to the desired speed, then release.
You can also use SET+ to operate the tap-up function. Press and
release SET+ to increase the vehicle set speed in approximately
1 mph (2 km/h) increments.
•Use the accelerator pedal to get to the desired speed, then press and
release SET+.
Reducing speed while using speed control
To reduce a set speed:
•Press and hold SET– until you get to the desired speed, then release.
You can also us SET– to operate the tap-down function. Press and
release SET– to decrease the vehicle set speed in approximately
1 mph (2 km/h) increments.
•Press the brake pedal until the desired vehicle speed is reached, then
press and release SET+.
Turning off speed control
To turn off the speed control, press and release OFF or turn off the
ignition.
Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
148Driver Controls
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

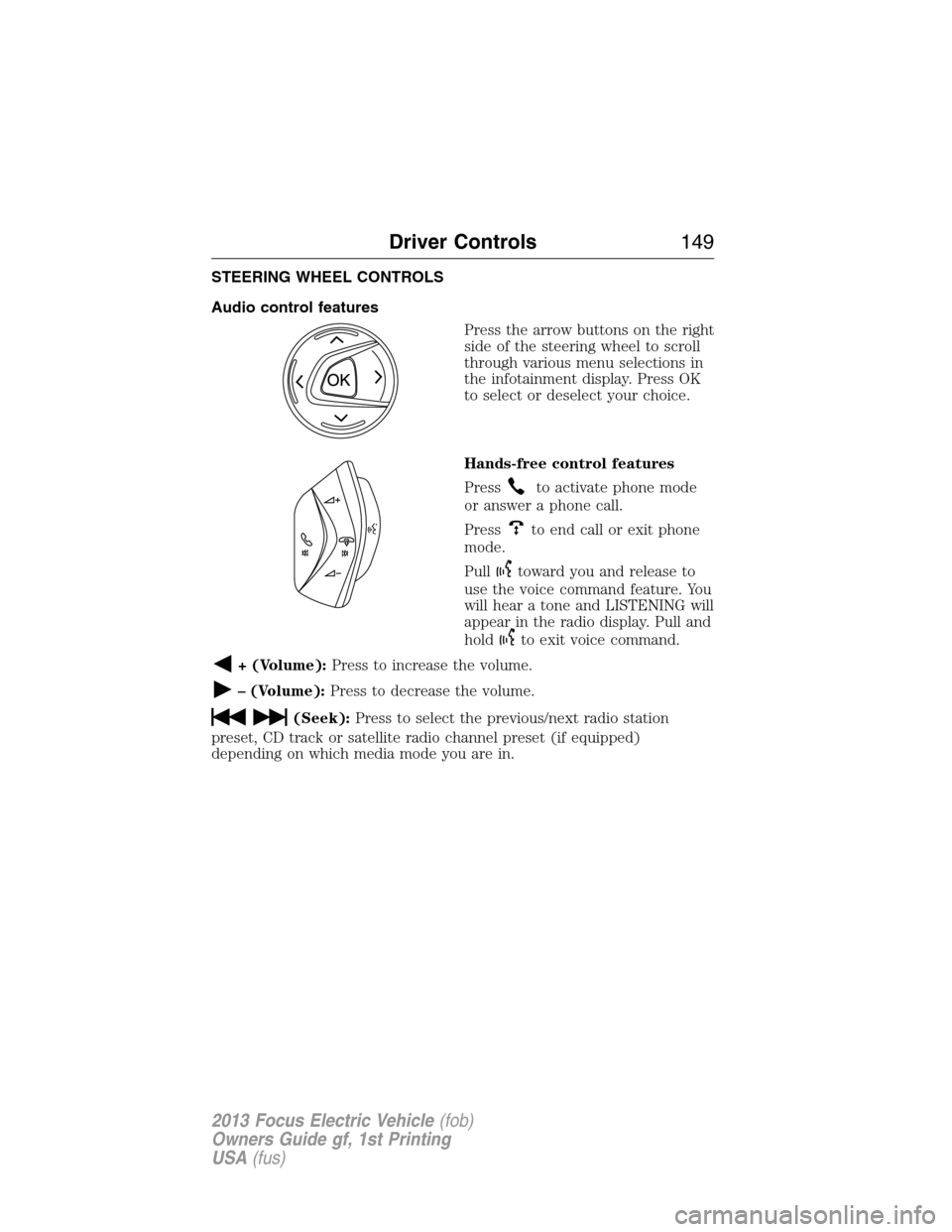

STEERING WHEEL CONTROLS
Audio control features
Press the arrow buttons on the right
side of the steering wheel to scroll
through various menu selections in
the infotainment display. Press OK
to select or deselect your choice.
Hands-free control features
Press
to activate phone mode
or answer a phone call.
Press
to end call or exit phone
mode.
Pull
toward you and release to
use the voice command feature. You
will hear a tone and LISTENING will
appear in the radio display. Pull and
hold
to exit voice command.
+ (Volume):Press to increase the volume.
– (Volume):Press to decrease the volume.
(Seek):Press to select the previous/next radio station
preset, CD track or satellite radio channel preset (if equipped)
depending on which media mode you are in.
Driver Controls149
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

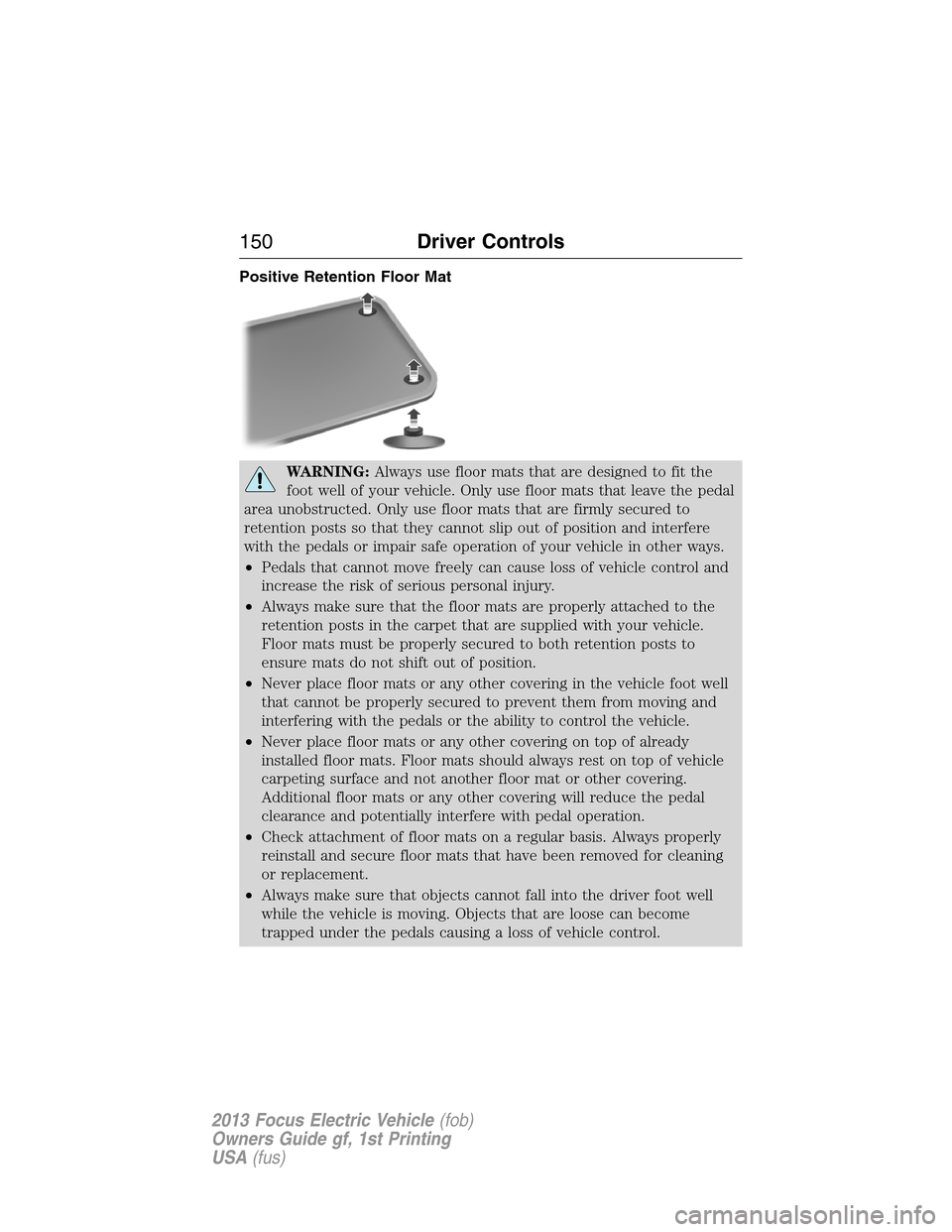

Positive Retention Floor Mat
WARNING:Always use floor mats that are designed to fit the
foot well of your vehicle. Only use floor mats that leave the pedal
area unobstructed. Only use floor mats that are firmly secured to
retention posts so that they cannot slip out of position and interfere
with the pedals or impair safe operation of your vehicle in other ways.
•Pedals that cannot move freely can cause loss of vehicle control and
increase the risk of serious personal injury.
•Always make sure that the floor mats are properly attached to the
retention posts in the carpet that are supplied with your vehicle.
Floor mats must be properly secured to both retention posts to
ensure mats do not shift out of position.
•Never place floor mats or any other covering in the vehicle foot well
that cannot be properly secured to prevent them from moving and
interfering with the pedals or the ability to control the vehicle.
•Never place floor mats or any other covering on top of already
installed floor mats. Floor mats should always rest on top of vehicle
carpeting surface and not another floor mat or other covering.
Additional floor mats or any other covering will reduce the pedal
clearance and potentially interfere with pedal operation.
•Check attachment of floor mats on a regular basis. Always properly
reinstall and secure floor mats that have been removed for cleaning
or replacement.
•Always make sure that objects cannot fall into the driver foot well
while the vehicle is moving. Objects that are loose can become
trapped under the pedals causing a loss of vehicle control.
150Driver Controls
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

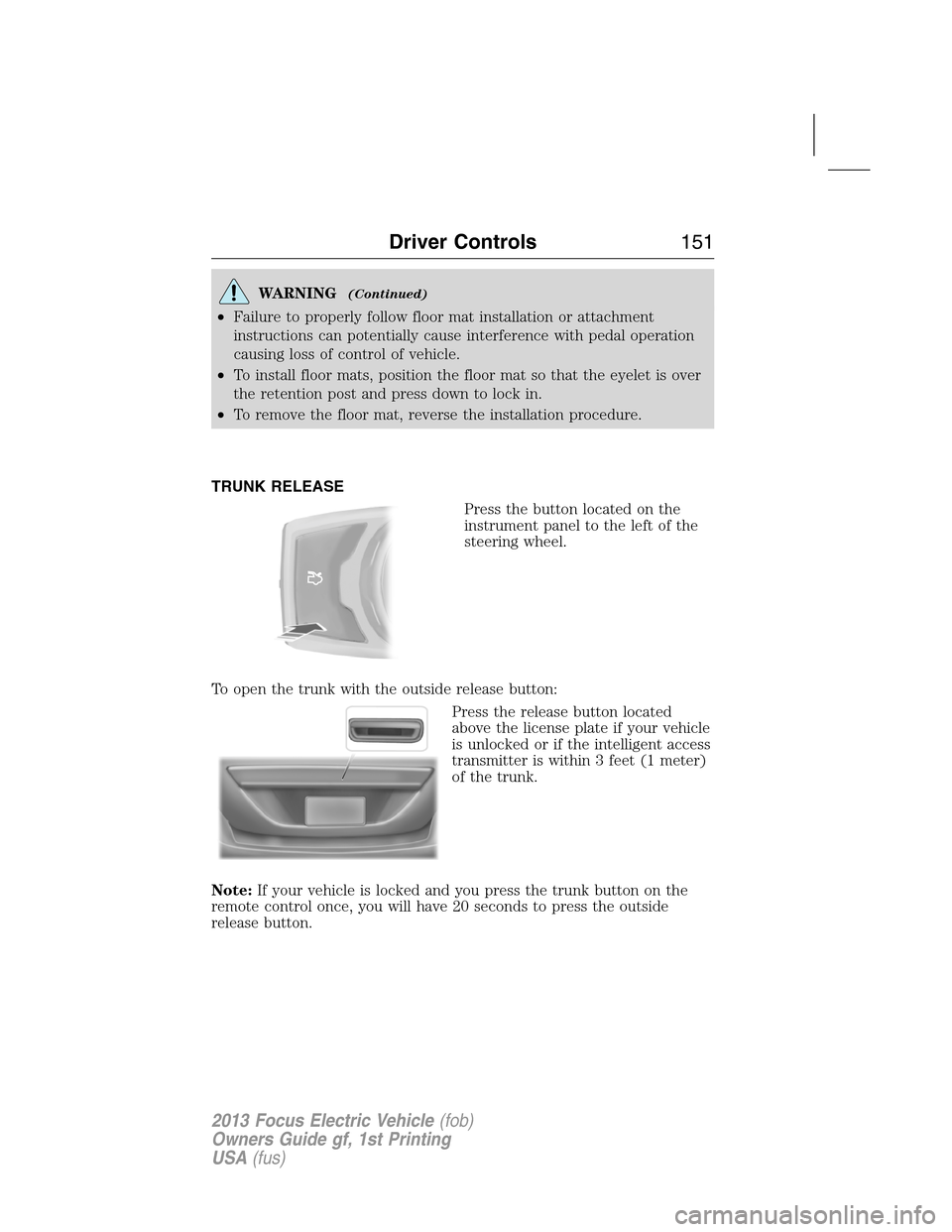

WARNING(Continued)
•Failure to properly follow floor mat installation or attachment
instructions can potentially cause interference with pedal operation
causing loss of control of vehicle.
•To install floor mats, position the floor mat so that the eyelet is over
the retention post and press down to lock in.
•To remove the floor mat, reverse the installation procedure.
TRUNK RELEASE
Press the button located on the
instrument panel to the left of the
steering wheel.
To open the trunk with the outside release button:
Press the release button located
above the license plate if your vehicle
is unlocked or if the intelligent access
transmitter is within 3 feet (1 meter)
of the trunk.
Note:If your vehicle is locked and you press the trunk button on the
remote control once, you will have 20 seconds to press the outside
release button.
Driver Controls151
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

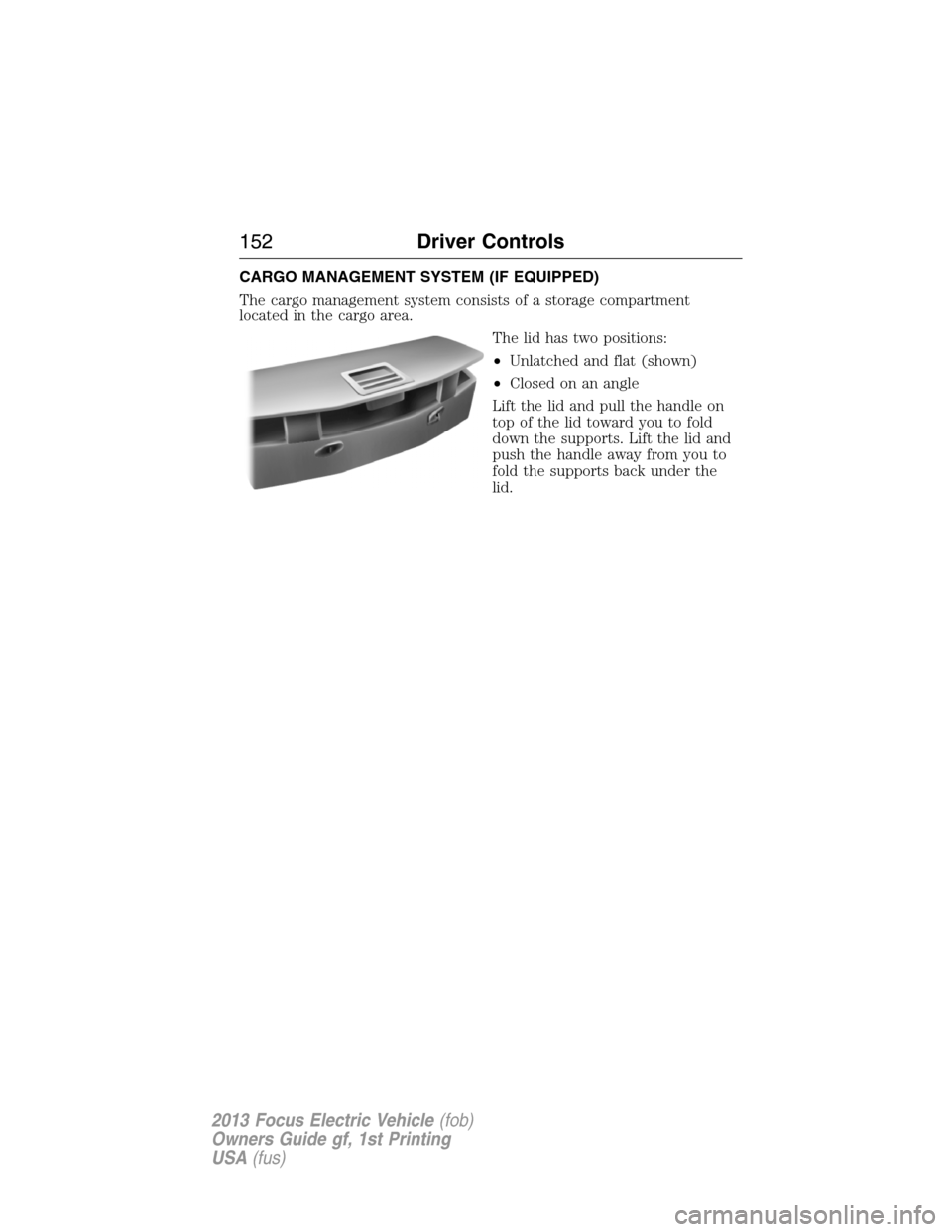

CARGO MANAGEMENT SYSTEM (IF EQUIPPED)
The cargo management system consists of a storage compartment
located in the cargo area.
The lid has two positions:
•Unlatched and flat (shown)
•Closed on an angle
Lift the lid and pull the handle on
top of the lid toward you to fold
down the supports. Lift the lid and
push the handle away from you to
fold the supports back under the
lid.
152Driver Controls
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
