TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid-Hydroboost
brake booster
system—Chassis with
Gross Vehicle Weight
Ratings of 16,000 lb
(7,257 kg), 18,000 lb
(8,165 kg) and 19,500 lb
(8,845 kg)
Between MIN and
MAX on reservoirMotorcraftHigh
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Brake fluid-Hydromax
brake booster
system—Chassis with
Gross Vehicle Weight
Ratings of 20,500 lb
(9,299 kg), 22,000 lb
(9,979 kg), 24,000 lb
(10,886 kg) and 26,000 lb
(11793 kg)DOT 5.1 Motor Vehicle
Brake FluidYS4Z-19542-AA /
ESD-M6C57-A or
WSS-M6C65-A2
Engine coolant
1,2
30.6 quarts (29.0L)MotorcraftPremium Gold
Engine Coolant
(yellow-colored)VC-7-B (US)
CVC-7-B (Canada) /
WSS-M97B51-A1
128Capacities and Specifications
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine oil
3,4
7.0 quarts
(6.6L)MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C945-A
Automatic transmission
TorqShift5-speed
5,6
18.2 quarts (17.2L)
Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
WSS-M2C938-A
Power steering fluidKeep in FULL
range on dipstick
Parking brake assemblyFill to bottom of fill
plug holeMotorcraft
MERCONVATFXT-5-QM /
MERCONV
WSS-M2C938-A
Rear axle
7,8
4.0 quarts
(3.9L)
(Dana M80)
MotorcraftSAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A and GL-5 8.0 quarts
(7.6L)
(Dana S110)
7.0 quarts
(6.6L)
(Dana S130)
16.0 quarts (15.1L)
(Dana Spicer
17060S)
Capacities and Specifications129
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Transmission
/steering/parking brake
linkages and pivots, brake
and clutch pedal shaft (if
equipped)— Premium Long-Life GreaseXG-1-C /
ESA-M1C75-B
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2 / - -
Fuel tank80 gallons (303L)
Motorhome
——
40 gallons (151L)
Commercial chassis
1Capacity is approximate and will vary due to second-stage manufacturer completion of HVAC system.
Fill to the Cold Fill Level on reservoir.2Add the coolant type originally equipped in your vehicle.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A, SAE 5W-20 and display the API Certification Mark.4Your engine has been designed to be used with Ford engine oil, which gives a fuel economy benefit
while maintaining the durability of your engine.
Using oils other than the one specified can result in longer engine cranking periods, reduced engine
performance, reduced fuel economy and increased emission levels.
130Capacities and Specifications
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and if
equipped with in-tank cooler. The amount of transmission fluid and fluid level should be set by the
indication on the dipstick’s normal operating range.6Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid other
than the recommended fluid may cause transmission damage.7Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated for
life. These lubricants do not need to be checked or changed unless a leak is suspected, service is
required or the axle assembly has been submerged in water. The axle lubricant should be changed any
time the rear axle has been submerged in water.8Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
Capacities and Specifications131
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 6.8L V10 engine
Air filter element FA-1782
Battery BXT-65-750
Oil filter FL-820-S
Spark plugs
1
Transmission fluid filter FT-180
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is located near the cowl to the right of
the air filter.
If you ever find it necessary to communicate with Ford Motor Company
about your vehicle, always include the VIN in your communication.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number
132Capacities and Specifications
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

VEHICLE CERTIFICATION LABEL
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.

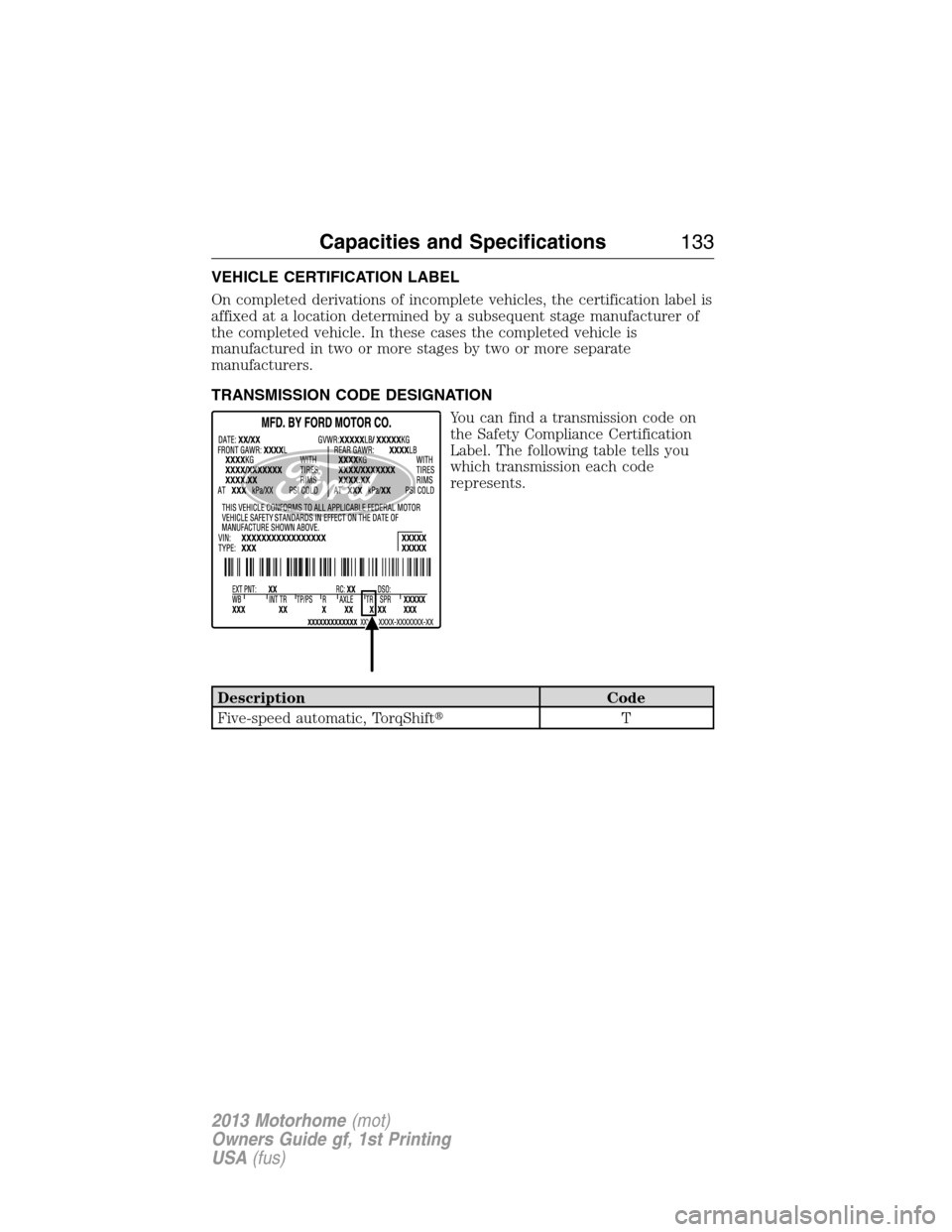

TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic, TorqShiftT
Capacities and Specifications133
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)
