•Audio system maximum volume of 45%. A message in the audio
system is displayed when attempting to exceed the limited volume.
•AdvanceTrac. The system cannot be turned off when Always-on has
been set.
CREATING A MYKEY
Use the information display controls to create a MyKey.
1. Insert the key you want to program into the ignition or, if the vehicle
is equipped with push button start, put the Intelligent Access key in
the backup slot; see theStarting and Stopping the Enginechapter
for the backup slot location.
2. Turn the ignition on.
3. Press SETUP using the information display buttons until PRESS
RESET TO CREATE MYKEY is displayed.
4. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
5. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed Wait until KEY RESTRICTED AT
NEXT START is displayed.
The key is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.
To program optional settings for the key(s), see the
Programming/Changing Optional Settingschapter.
Programming/Changing Optional Settings
Note:All programmed keys can be cleared within the same key cycle in
which a key was programmed, otherwise an admin key is required to
clear the keys. To clear all keys, seeClearing all MyKeys.
You can access the optional settings through the information display
controls.
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKey setup menus.
3. Press the SETUP button to display the next menu to scroll through
your choices.
4. On any of the menus, press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings.
MyKey57
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

CLEARING ALL MYKEYS
Note:All programmed MyKeys can be cleared within the same key cycle
in which a MyKey was created, otherwise an admin key is required to
clear the keys.
To clear all MyKeys (which removes all restrictions and returns them to
admin key status), use the information display controls to do the
following:
1. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
3. Press and hold the RESET button for two seconds until ALL
MYKEYS CLEARED is displayed.
CHECKING MYKEY SYSTEM STATUS
The information display controls provide information about keys
programmed to the vehicle:
•MYKEY MILES:Tracks mileage when a MyKey is used. If mileage
does not accumulate as expected, then the MyKey is not being used
by the intended user. The only way to reset this to zero is by clearing
MyKeys. If the mileage is lower than the last time you checked, then
the key system has been recently reset.
•# MYKEY(S):Indicates how many MyKeys are programmed to the
vehicle. Can also be used to detect deletion of a MyKey.
•# ADMIN KEY(S):Indicates how many admin keys are programmed
to the vehicle. Can also be used to detect if an additional key has
been programmed to the vehicle.
USING MYKEY WITH REMOTE START SYSTEMS
MyKey is NOT compatible with non-Ford-approved aftermarket remote
start systems. If you choose to install a remote start system, please see
your Ford authorized dealer for a Ford-approved remote start system.
The following information MAY help customers who choose to use a
non-Ford-approved remote start system. The actions provided below do
NOT make MyKey compatible with non-Ford-approved remote start
system, but it MAY help you to retain some MyKey functions.
Vehicles Equipped with Traditional Keys
When using a non-Ford-approved remote start system, the default
settings may recognize the remote start system as an additional admin
key with its associated privileges. It is NOT compatible with MyKey.
Restart the engine when you insert a key into the ignition cylinder; it
may help you to retain some MyKey functions.
58MyKey
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

In addition to the key that has been programmed as a MyKey, owners of
vehicles equipped with traditional keys have the option to program the
non-Ford-approved remote start system as a MyKey if the remote start
fob is used by the MyKey driver.
To program a non-Ford-approved remote start system as a MyKey, do the
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a non-Ford approved remote start fob.
3. Follow Steps 1-5 in theCreating a MyKeysection.
Vehicles Equipped with Intelligent Access Key (Push Button Start)
Note:It is not possible to program the remote start system as a MyKey
on vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any other
admin key. When the vehicle is started using remote start, the system
will stall the engine when you either enter the vehicle or shift the vehicle
into gear. Prior to the engine stall, the vehicle will have administrative
privileges. When you restart the engine, the vehicle will identify the user
as an admin or MyKey driver depending on the settings of the actual key
used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey system
status menu, may include the non-Ford-approved remote start system as
an additional key in the total count. See theChecking System Status
section.
For all vehicles with a non-Ford-approved remote start installed, it is
possible to program all real keys as MyKeys, in which case, you will need
to use your remote start system to clear all MyKeys (which removes all
restrictions and returns them to admin key status) by doing the
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using your non-Ford-approved remote start
fob.
3. Follow Steps 1-3 in theClearing all MyKeyssection.
MyKey59
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

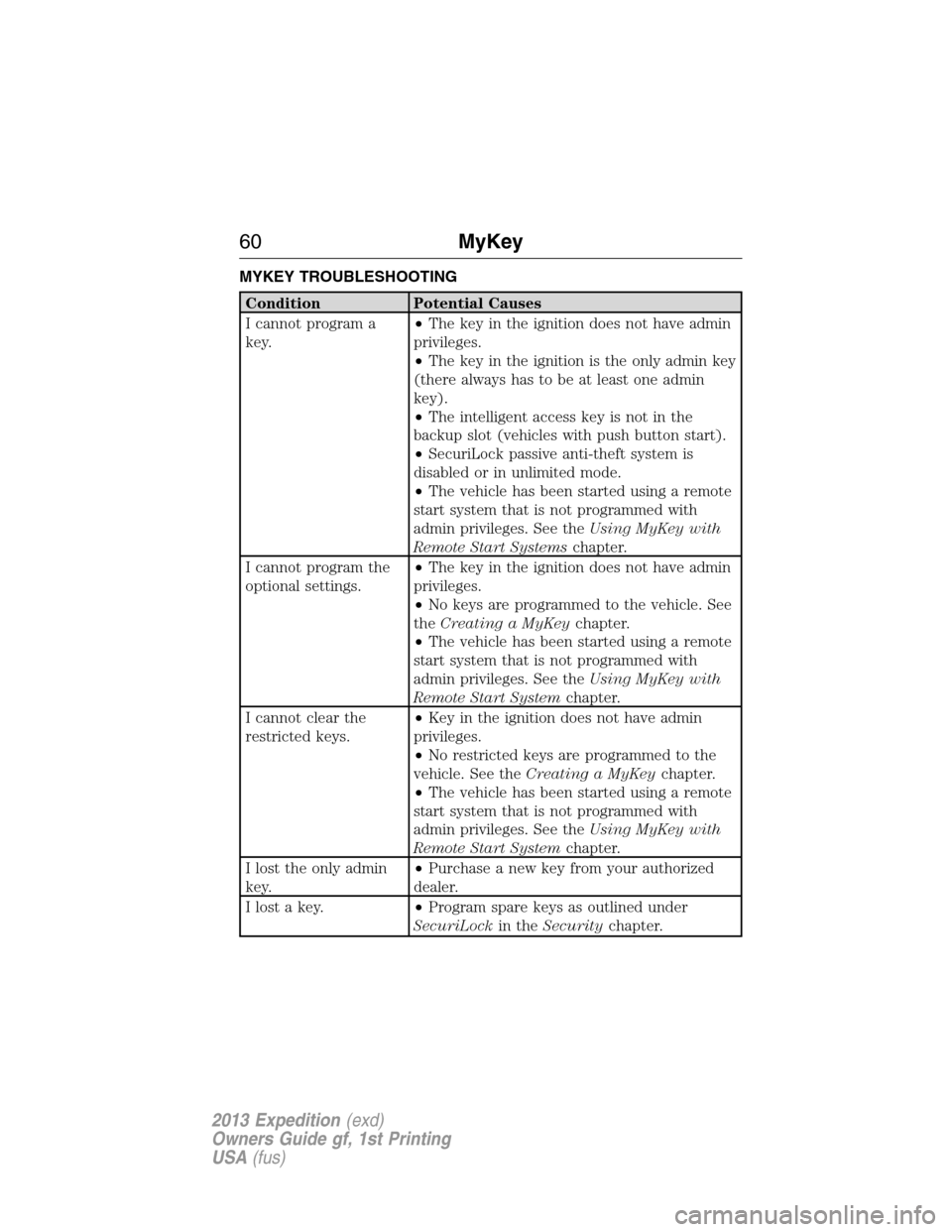

MYKEY TROUBLESHOOTING
Condition Potential Causes
I cannot program a
key.•The key in the ignition does not have admin
privileges.
•The key in the ignition is the only admin key
(there always has to be at least one admin
key).
•The intelligent access key is not in the
backup slot (vehicles with push button start).
•SecuriLock passive anti-theft system is
disabled or in unlimited mode.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. See theUsing MyKey with
Remote Start Systemschapter.
I cannot program the
optional settings.•The key in the ignition does not have admin
privileges.
•No keys are programmed to the vehicle. See
theCreating a MyKeychapter.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. See theUsing MyKey with
Remote Start Systemchapter.
I cannot clear the
restricted keys.•Key in the ignition does not have admin
privileges.
•No restricted keys are programmed to the
vehicle. See theCreating a MyKeychapter.
•The vehicle has been started using a remote
start system that is not programmed with
admin privileges. See theUsing MyKey with
Remote Start Systemchapter.
I lost the only admin
key.•Purchase a new key from your authorized
dealer.
I lost a key.•Program spare keys as outlined under
SecuriLockin theSecuritychapter.
60MyKey
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Condition Potential Causes
I accidentally
programmed all keys
as restricted keys.•The vehicle has a remote start system that
is recognized as an admin key. See theUsing
MyKey with Remote Start Systemchapter to
reset all restricted keys using remote start.
No restricted key
functions with
intelligent access key
(push button start).•An admin key is present at engine start-up.
•No restricted keys are programmed to the
vehicle. See theCreating a MyKeychapter.
Restricted key
programmed total
includes one additional
key.•An unknown key has been programmed to
the vehicle as a restricted key.
•The vehicle is equipped with a remote start
system. See theUsing MyKey with Remote
Start Systemschapter.
Admin keys
programmed total
includes one additional
key.•An unknown key has been programmed to
the vehicle as an admin key.
•Vehicle is equipped with a remote start
system. See theUsing MyKey with remote
start systemschapter.
MyKey miles do not
accumulate.•The restricted key is not being used by the
intended user.
•The key system has been reset.
MyKey61
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

LOCKING AND UNLOCKING
You can use the power door lock control or the remote control to lock
and unlock the vehicle.
Power Door Locks
The power door lock control is located on the driver and front passenger
door panels.
A. Unlock
B. Lock
Remote Control
The remote control can be used anytime the vehicle is not running.
Unlocking the Doors (Two-Stage Unlock)
Press the button to unlock the driver’s door.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate the unlocking
mode was changed. The unlocking mode will be applied to the remote
control and keyless entry keypad.
Locking the Doors
Press the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the luggage compartment are
closed.
Note:If any door or the luggage compartment is not closed, or if the
hood is not closed on vehicles equipped with an anti-theft alarm or
remote start, the horn will chirp twice and the lamps will not flash.
AB
62Locks
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

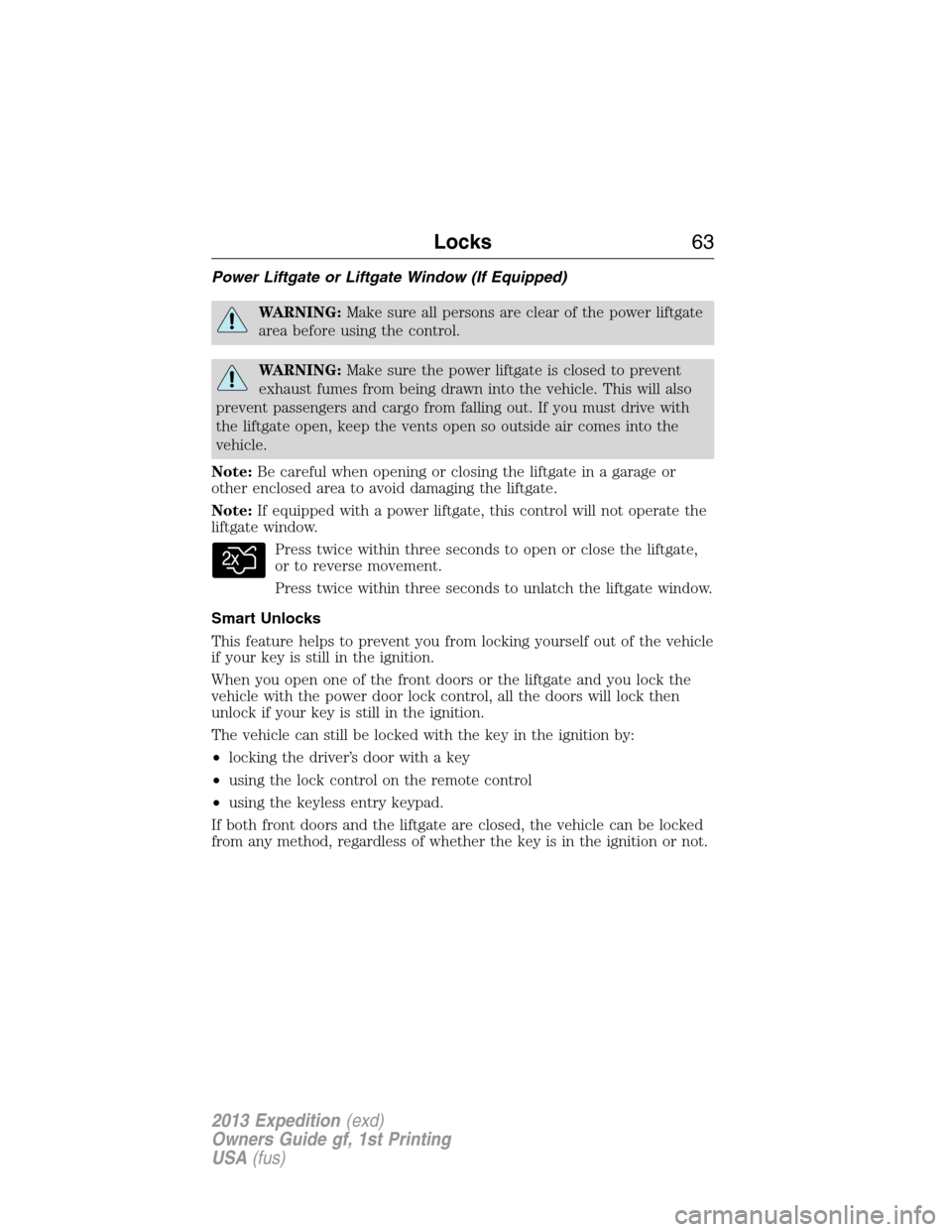

Power Liftgate or Liftgate Window (If Equipped)
WARNING:Make sure all persons are clear of the power liftgate
area before using the control.
WARNING:Make sure the power liftgate is closed to prevent
exhaust fumes from being drawn into the vehicle. This will also
prevent passengers and cargo from falling out. If you must drive with
the liftgate open, keep the vents open so outside air comes into the
vehicle.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Note:If equipped with a power liftgate, this control will not operate the
liftgate window.
Press twice within three seconds to open or close the liftgate,
or to reverse movement.
Press twice within three seconds to unlatch the liftgate window.
Smart Unlocks
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors or the liftgate and you lock the
vehicle with the power door lock control, all the doors will lock then
unlock if your key is still in the ignition.
The vehicle can still be locked with the key in the ignition by:
•locking the driver’s door with a key
•using the lock control on the remote control
•using the keyless entry keypad.
If both front doors and the liftgate are closed, the vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
Locks63
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Autolock and Unlock
The autolock feature will lock all the doors, the liftgate and the liftgate
window when:
•all doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
If the vehicle was autolocked, the autounlock feature will unlock all
doors when the driver’s door is opened within 10 minutes of switching
the ignition off.
Enabling or Disabling Autolock and Autounlock
These features can be enabled or disabled:
•by your authorized dealer
•through the information display
•using the power door lock procedure.
To enable or disable using the power door locks, do the following:
Note:You will have 30 seconds to complete the procedure.
1. Switch the ignition on.
2. Press the power door unlock button three times.
3. Switch the ignition off.
4. Press the power door unlock button three times.
5. Switch the ignition on. The horn will chirp indicating the programming
mode has been entered.
Autolock:Once in programming mode, press the power door unlock
button then the lock button. The horn will chirp once if autolock was
deactivated or twice (one short and one long chirp) if autolock was
activated.
Autounlock:Once in programming mode, press the power door lock
button then the unlock button. The horn will chirp once if autounlock
was deactivated or twice (one short and one long chirp) if autounlock
was activated.
6. Turn the ignition off. The horn will chirp once to confirm the
procedure is complete.
Note:The autounlock feature can be enabled or disabled independently
of the autolock feature.
64Locks
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)
